Summary of Contents for Bertazzoni PROF365QXE

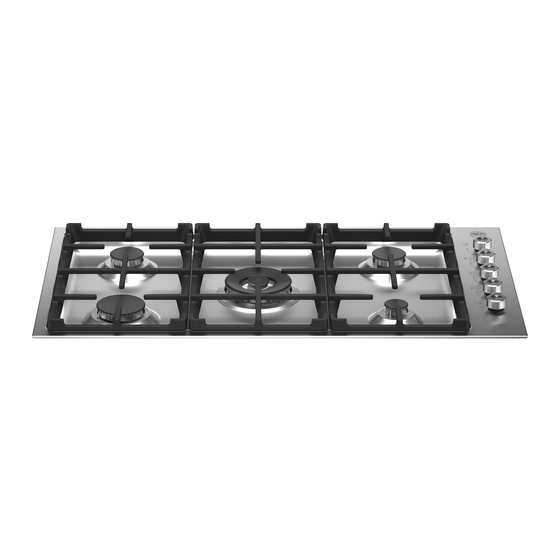

- Page 1 INSTALLATION MANUAL USER AND MAINTENANCE MANUAL GAS COOKTOP www.bertazzoni.com...
- Page 3 Bertazzoni becomes a real pleasure. This manual will help you learn to use and care for your Bertazzoni appliance in the safest and most effective way, so that it can give you the highest satisfaction for years to come.
- Page 5 USER MANUAL VALIDITY The following manual is valid for all the product codes mentioned below: • PROF365QXE • MAST365QBXT • PROF365QBXT • MAST365QXE • MAST366QBXT • PROF366QBXT • PROF304QXE • MAST304QBXT • PROF304QBXT • MAST304QXE...
-
Page 6: Table Of Contents
............... . . BERTAZZONI SERVICE . - Page 7 ........KEEPING YOUR BERTAZZONI CLEAN ............
-
Page 9: Installation Manual
WHAT TO DO IF YOU SMELL GAS Natural or LP gas. • Do not try to light any appliance. FOR THE INSTALLER: Before installing the Bertazzoni • Do not touch any electrical switch. appliance, please read these instructions carefully. This appliance shall be installed in accordance with the •... -
Page 10: Data Rating Label
WARNINGS DANGER GAS LEAK HAZARD!!! To avoid risk of personal injury or death, leak-testing of the appliance must be conducted according to the manufacturer’s instructions. Before placing appliance in operation, always check for gas leaks with water and soap solution. DO NOT USE AN OPEN FLAME TO CHECK FOR GAS LEAKS. -
Page 11: Before Installation
BEFORE INSTALLATION GAS PRESSURE • This appliance shall only be installed by an authorized professional. The maximum inlet gas supply pressure incoming to the • This appliance shall be installed in accordance with the gas appliance pressure regulator is 1/2 PSI (13,8’’ iwc or manufacturer’s installation instructions. -
Page 12: Ventilation Preparation
This cooktop will best perform when installed with Bertazzoni exhaust hoods. These hoods have been designed to work in conjunction with the Bertazzoni cooktop and have the same fi nish for a perfect look. Before installation of the exhaust hood, consult local or regional building and installation codes for additional specific clearance requirements. -
Page 13: Specifications
SPECIFICATIONS Fig. 1 Fig. 2 • a. Back wall/panel • d. FRONT • b. Side wall/panel • e. SIDE COOKTOP 30″ COOKTOP 36″ 2″ 5/8 (6,6 cm) 2″ 5/8 (6,6 cm) 1/2″ (1,2 cm) 3/4″ (1,9 cm) 28″ 9/16 (72,5 cm) 35″... -
Page 14: Cabinet Preparation
SPECIFICATIONS BURNER INJECTOR PRESSURE MAX RATE MIN RATE BY–PASS diam.[mm] Type [iwc] [Btu/hr] [Btu/hr] diam.[mm] 3,750 1,098 0.92 4″ Regulated Auxiliary 3,750 1,098 0.56 10″ 0.29 (Propane) 6,000 1,758 1,500 1.17 4″ Regulated Semi-rapid 6,300 1,845 1,500 0.73 10″ 0.37 (Propane) 10,400 3,048... -
Page 15: Clearance Dimensions
CLEARANCE DIMENSIONS INSTALLATION ADJACENT TO KITCHEN COOKTOP 30″ COOKTOP 36″ CABINETS 28″ 15/16 (73,5 cm) 35″ 5/8 (90,5 cm) This cooktop may be installed directly adjacent to existing 36″ (91,5 cm) 36″ (91,5 cm) countertop high cabinets (36″ or 91.5 cm from the floor). CAUTION METAL HOOD The cooktop CANNOT be installed directly... -
Page 16: Technical Installation Instructions
TECHNICAL INSTALLATION INSTRUCTIONS INSTALLING THE HOB ABOVE AN OVEN INSTALLING THE HOB ABOVE A CUPBOARD OR DRAWERS The clearance between the cooktop and the kitchen furniture or other installed appliances must be enough to The clearance between the cooktop and the kitchen units ensure sufficient ventilation and air discharge. -
Page 17: Hob Fastening
TECHNICAL INSTALLATION INSTRUCTIONS HOB FASTENING 4) Slide the hooks into position and secure them with the screws. In order to prevent accidental water ingress into the unit below, the appliance is fitted with a special gasket. 1) Lay out the protective sealing strips along the edges of the opening in the bench top and carefully overlap the strip end. -
Page 18: Installation Requirements
INSTALLATION REQUIREMENTS ELECTRICAL A properly-grounded horizontally- mounted electrical receptacle should be installed. Check all local code requirements. An agency-approved, properly-sized manual shutoff valve should be installed. To connect gas between shut-off valve and regulator, use agency-approved, properly sized flexible or rigid pipe. Check all local code requirements. -
Page 19: Electrical Connection
ELECTRICAL CONNECTION WARNING ELECTRICAL SHOCK HAZARD Disconnect electrical power at the circuit breaker box or fuse box before installing the appliance. Provide appropriate ground for the appliance. Use copper conductors only. Failure to follow these instructions could result in serious injury or death. This unit is manufactured for a polarized, grounded 120 volt/60 Hz, 16 amp system. -
Page 20: Wiring Diagram
WIRING DIAGRAM The electric wiring diagrams and schematics are attached behind the rangetop, and should not be removed except by a service technician, then replaced after service. Fig. 12... -
Page 21: Gas Connection
GAS CONNECTION FLEXIBLE CONNECTIONS WARNING DO NOT USE AN OPEN FLAME WHEN In case of installation with flexible couplings and/ or quick- CHECKING FOR LEAKS! disconnect fittings, the installer must use a heavy-duty, AGA design-certified commercial flexible connector of at Leak testing of the appliance shall be conducted according least 1/2″... -
Page 22: Pressure Regulator
GAS CONNECTION PRESSURE REGULATOR Since service pressure may fluctuate with local demand, every gas cooking appliance must be equipped with a pressure regulator on the incoming service line for safe and efficient operation. The pressure regulator shipped with the appliance has two female threads 1/2″... -
Page 23: Installation
INSTALLATION APPLIANCE INSTALLATION UNPACKING THE COOKTOP • Remove all packing materials from the shipping pallet but leave the adhesive-backed foam layer over brushed- metal surfaces to protect it from scratches until the cooktop is installed in its final position. Only the film on the side panels should be removed before inserting the range between the cabinets. -
Page 24: Gas Conversion
GAS CONVERSION WARNING 4) Install pressure regulator Before carrying this operation, The pressure regulator supplied with the appliance is a disconnect the appliance from gas and convertible type pressure regulator for use with Natural electricity. Gas at a nominal outlet pressure of 4″ iwc or LP gas at a nominal outlet pressure of 10″... - Page 25 It is not uncommon to see orange in the flame a Bertazzoni authorized parts warehouse. Each nozzle color; this indicates the burning of airborne impurities in has a number indicating its flow diameter printed on the the gas and will disappear with use.
-
Page 26: High Altitude Installation
GAS CONVERSION 8) Minimum flame adjustment WARNING These adjustments should be made only for use of the appliance with natural gas. For use with liquid propane gas, the choke screw must be fully turned in a clockwise direction. For reconversion from propane to natural gas, the choke screw must be turned of 1-1.5 laps counterclockwise until a proper minimum... -
Page 27: Installation Checklist
INSTALLATION CHECKLIST A qualified installer should carry out the following checks: Island trim or Backguard attached according to instruction Clearance to cabinet surfaces as manufacturer’s guideline Proper ground connection Gas service line connected following manufacturer’s guideline Valves, stoppers and gasket installed between the range and the service line Gas connection tested and free of gas leaks Cooktop settled for the type of gas available in the... -
Page 28: Final Preparation
FINAL PREPARATION • Before using the appliance, remove any protective wrap from the stainless steel. • All stainless steel body parts should be wiped with hot, soapy water and with a liquid stainless steel cleanser. • If buildup occurs, do not use steel wool, abrasive cloths, cleaners, or powders! •... -
Page 29: Bertazzoni Service
Bertazzoni is committed to providing the best customer and product service. We have a dedicated team of trained professionals to answer your needs. If you own a Bertazzoni appliance and need service in the US or Canada please use the following contact information: If located in the USA: 866 905 0010 https://us.bertazzoni.com/more/support... -
Page 30: User Manual
WARNINGS IN MASSACHUSETTS: Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and All gas products must be installed by a “Massachusetts” care must be exercised when installing, maintaining, or licensed plumber or gas fitter. -
Page 31: Child Safety
WARNINGS CHILD SAFETY COOKING SAFETY • NEVER leave children alone or unsupervised near the • Once the unit has been installed as outlined in the appliance when it is in use or is still hot. Installation Instructions, it is important that the fresh air supply is not obstructed. -
Page 32: Gas Safety
WARNINGS GAS SAFETY CLEANING SAFETY • To prevent carbon monoxide build-up, do not block • Turn off all controls and wait for appliance parts to cool appliance air vents. before touching or cleaning them. DO NOT touch the burner grates or surrounding areas until they have had •... -
Page 33: Worktop And Knobs Layout
WORKTOP AND KNOBS LAYOUT CONTROLS / BURNERS CONTROLS / BURNERS Fig. 21 Fig. 23 1 Front right auxiliary burner 1 Front right auxiliary burner 2 Rear left semi-rapid burner 2 Front central semi-rapid burner 3 Rear right rapid burner 3 Rear right rapid burner 4 Front left dual burner 4 Front left dual burner 5 Rear central semi-rapid burner... -
Page 34: Gas Cooktop
GAS COOKTOP BURNER CAPS AND GRATES MAKING SURE THE FLAME IS OPTIMAL The burners and the burner caps must be properly placed The flame should be stable with no excessive noise or for the cooktop to function properly. fluttering. The color should be blue with no yellow on the tips. -
Page 35: Using The Gas Burners
GAS COOKTOP USING THE GAS BURNERS USING THE POWER BURNERS • Press in the control knob and turn it anti-clockwise, to To give further flexibility, the dual power burner can be used HIGH position. as a single simmer burner if the central burner alone is ignited or as a power burner if the outer burner is also •... -
Page 36: Using Specialty Cookware
GAS COOKTOP USING SPECIALTY COOKWARE SIMMER RING For very slow cooking the porcelain coated simmer ring WOKS should be used. In some models the porcelain- coated cast Either flat-based or round-bottom woks with the accessory iron simmer ring must be purchased separately. Simmer ring can be used on all models. -
Page 37: Keeping Your Bertazzoni Clean
KEEPING YOUR BERTAZZONI CLEAN BURN HAZARD Make sure the heating elements are turned off and allowed to cool completely before any cleaning and/or maintenance operation. THINGS TO AVOID • Do not use a steam cleaner to clean the range: the steam could reach electrical components and cause a short. -
Page 38: Troubleshooting
Here are answer to common problems you may experience. You are also welcome to call our toll free Customer Service line to troubleshoot any issue with your Bertazzoni: Is there power to the range? Are the igniters or burner holes blocked? Are the burner rings and burner caps... -
Page 39: Warranty
CUSTOMER CARE For any warranty information and service request, contact us: In USA: https://us.bertazzoni.com/more/support In CANADA: https://ca.bertazzoni.com/more/support... - Page 40 Via Palazzina, 8, 42016 Guastalla RE © 2024 BERTAZZONI. All rights reserved. 3100758_v.03...
