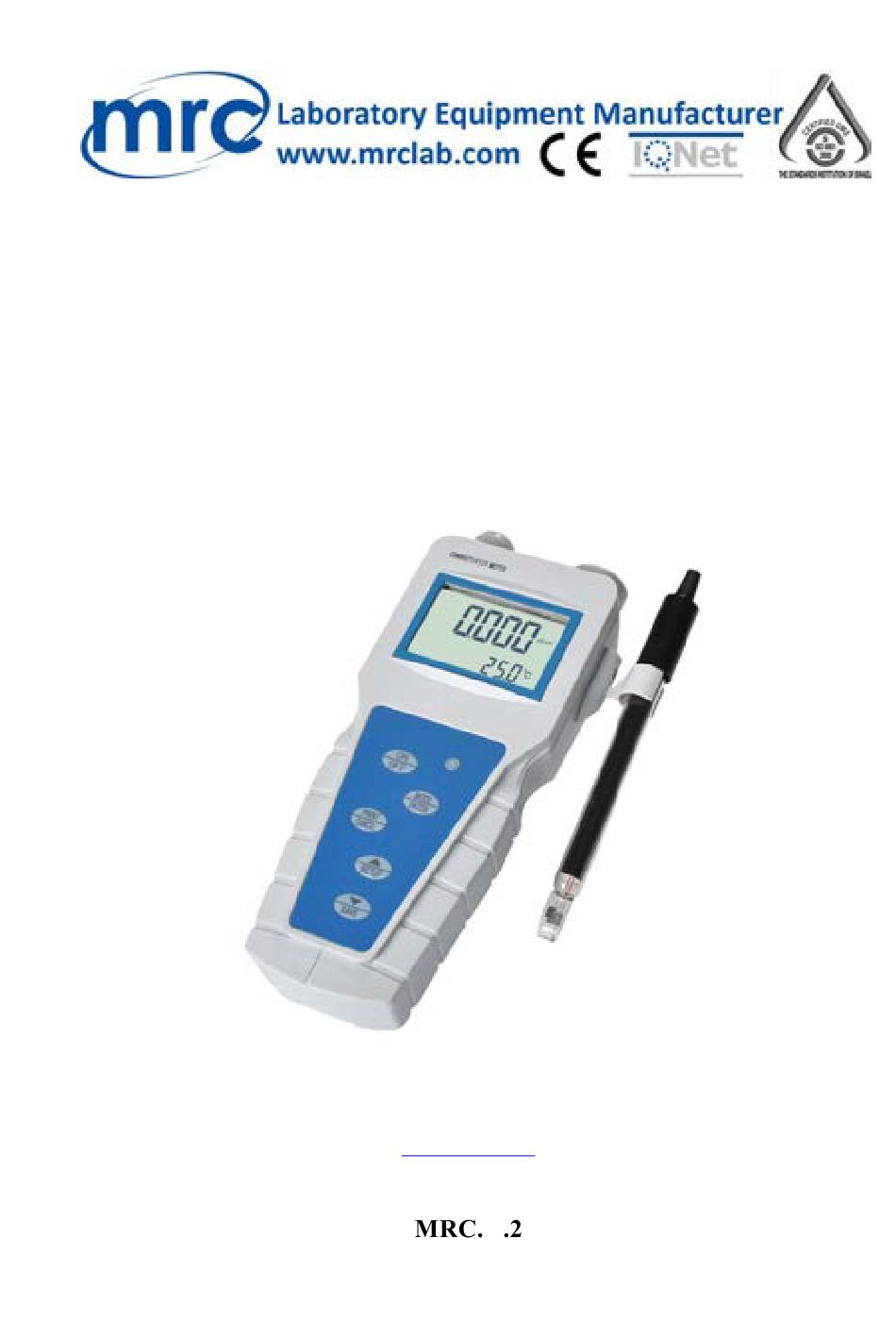

- Page 1 INE-DDBJ-350 Portable Conductivity Meter Instruction Manual 3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com...
- Page 2 INE-DDBJ-350 Conductivity Meter Welcome to choose the INE-DDBJ-350 Portable Conductivity meter, please read this instruction in detail before operating the meter for the first time or after a long time from the last operation, it will help you to operate the meter better.
-
Page 3: Table Of Contents
INE-DDBJ-350 Conductivity Meter CONTENT 1. Installation 2. Specifications and Performance 3. Operation 4. Maintenance and Service 5. The Default Setting of the meter 6. Appendix... -
Page 4: Installation
INE-DDBJ-350 Conductivity Meter 1 INSTALLATION 1.1 Installation of the meter Open the package and take out the conductivity meter, probe holder and accessories. (Diag.1) Front view of the instrument The meter is composed of electronic unit and probe system。 There are three sockets on the panel to connect with probes and RS-232 interface. - Page 5 INE-DDBJ-350 Conductivity Meter Their functions as below: “ON/OFF”: Press this button to switch on or off the meter. “Back-light”: Press and hold the button to turn on the backlight. Release the button to turn off the backlight. ...
- Page 6 INE-DDBJ-350 Conductivity Meter LCD Display a) With LCD display, clear digital. b) The meter has simple operating prompt function to indicate operating states, as measurement state, set state and printing state, etc. c) With under voltage sign, the meter will automatically display the sign when the batteries are low.
- Page 7 INE-DDBJ-350 Conductivity Meter Temperature probe system (1) Pressing cap (2) Washer (3) Cable seal ring (4) Measuring seal sleeve (5) 3-pin plug (6) ATC probe (Diag.5) INE-T-818-B-6F Temperature sensor Temperature probe system is composed of waterproof probe plug system and ATC probe.
-
Page 8: Specifications And Performance
The temp. coefficient is the % change of conductivity with temperature in %/°C. 2.2 Characteristics The INE-DDBJ-350 portable Conductivity Meter is an intelligent analysis instrument; it is suitable for measuring conductivity, temperature, TDS of water solution and salinity. It can also be used to measure purity of pure water, salinity of seawater as treating desalination of seawater (take NaCl as standard). - Page 9 INE-DDBJ-350 Conductivity Meter Measuring conductivity, TDS, salinity and temperature. Auto temperature compensation, auto-calibration, auto-range, Power-off protection. When the meter is manually or automatically shut off, the stored measuring data, calibration data, and setting parameters will not be lost.
- Page 10 INE-DDBJ-350 Conductivity Meter automatically: (0.000~9.99) mg/L (10.00~99.9) mg/L (100.00~999) mg/L (1.00~10.00) g/L (10.00~19.99) g/L (cell constant should be 5 or 10) Note: When measuring high TDS, the conductive probe of large constant is usually used, when TDS≥10.00g/L, the probe of 5 or 10 constant must be used.
-
Page 11: Operation
INE-DDBJ-350 Conductivity Meter c) No strong electromagnetic interference to surrounding except the geomagnetic field; d) Power supply: 4pcs. AA alkaline batteries. Size: L×W×H, mm: 210×86×50 Weight: about 0.5 kg Max. standard power: about 35mW 3 OPERATION 3.1 Turn on (Diag.7) Starting up interface Properly installed and maintained is the first place for successful operation. - Page 12 INE-DDBJ-350 Conductivity Meter 3.2 Function Setup Set Function Mode The function modes are based on present measurement state. 1. In conductivity measuring state, there are 9 function modes: Cell constant setup, Temperature compensation coefficient setup, Probe calibration, View stored data, Printing and Deleting single stored data, Printing and Deleting all stored data, and Auto power off setup.
- Page 13 INE-DDBJ-350 Conductivity Meter (Diag.8) Selecting function modules in conductivity measuring state In which: “SEL.1” means the present function mode is the first one. Detail function modes are showed at left, “Adjust” and “K” is function modules to Set Cell constant. The present measurement state is showed on the bottom of screen.
- Page 14 INE-DDBJ-350 Conductivity Meter (Diag.10) Adjust constant mode In which: “1.003” means the present cell constant (the actual constant of probe). Press “▲/SETUP” or “▼/SAVE” to adjust the constant value; Press “MODE/ENTER” to store the present cell constant value. The meter will back to measuring state automatically;...
- Page 15 INE-DDBJ-350 Conductivity Meter (Diag.11) Set temperature compensation coefficient Press “▲/SETUP” or “▼/SAVE” to adjust temperature compensation coefficient; Press “MODE/ENTER” to store the present temperature compensation coefficient. The meter will back to measuring state automatically; Press “PRINT/CANCEL” to exit Cell constant Setup and return to present measuring state.
- Page 16 INE-DDBJ-350 Conductivity Meter (Diag.12) Set temperature compensation coefficient In which: “0.500” is the present TDS factor value (that is the value actually used) Measuring Mode 3.3.1 Conductivity Measurement Mode Select a correct conductivity probe before measuring. (For detail refer to “Selection Cell Constant”)
- Page 17 INE-DDBJ-350 Conductivity Meter Note: 1. When ATC probe is connected to the meter in measuring state of conductivity and TDS, the meter will automatically compensate the conductivity value to 25.0℃ according to the temperature coefficient; When temperature probe is not connected, the meter displays 25.0℃...
- Page 18 INE-DDBJ-350 Conductivity Meter Selection of cell constant Prepare of electrode 1. Wash the electrode with DI water fully; then rinse the electrode as “4.3 Method of cleaning and reserve”. If it is unstable or mistake continuously, please refer to “4 Maintenance and service”.
- Page 19 INE-DDBJ-350 Conductivity Meter 3.4.2 TDS Measurement TDS range and corresponding cell constant recommending list: Conductivity range (μS/cm) TDS range (mg/l) Recommended cell constant (cm 0～1000 0～2000 1000～10000 2000～20000 1.0，10 1000～19990 2000～40000 3.4.3 Salinity Measurement When measuring salinity, conductive probe of constant 10 is often selected;...
- Page 20 INE-DDBJ-350 Conductivity Meter 3.5 Calibration Calibrate Cell constant Every probe is marked a constant value when it leaves factory. If it is necessary, user can calibrate probe again to obtain correct measurement. According to cell constant, select suitable standard solution (see table 1). Preparation of standard solution see table 2, relation of standard solution and conductivity value see table 3.
- Page 21 INE-DDBJ-350 Conductivity Meter (Diag.16) Finish Calibration After calibration, press “PRINT/CANCEL” button or “MODE/ENTER” button to return to measuring state. The meter will stop calibrating cell constant and return to measuring state directly if users press “PRINT/CANCEL” button during adjusting. Table 1 KCl Standard solution for testing cell constant Cell constant(l/cm) 0.01...
- Page 22 INE-DDBJ-350 Conductivity Meter Calibrate TDS factor According to measured solution's performance and measuring range, select suitable standard solution. Relation of conductivity and TDS standard solution see table 4. Set conductive cell constant (or calibrate conductive cell constant at first), let the meter enter into TDS measuring state;...
- Page 23 INE-DDBJ-350 Conductivity Meter 3.6 Other functions 3.6.1 Back-light Press and hold “Back-light” button to turn on back-light. It is better not to use back-light, because it will consume lots of current. 3.6.2 View stored data In the measuring state, ...
- Page 24 INE-DDBJ-350 Conductivity Meter 3.6.3 Printing Single Data & All Datum Select printing single stored data in the mode of setup function (it shows “PRINT” sign on the screen) and press “MODE/ENTER” to enter into print single stored data mode (shown as diag.18): (Diag.18) Print single data...
- Page 25 INE-DDBJ-350 Conductivity Meter 3.6.4 Delete Single data & All Datum The meter has single data delete function. Select single stored data delete function mode (it shows “DELETE” sign on the screed.) in the mode of setup function and press “MODE/ENTER” button to enter into single stored data delete function mode (shown as diag.19):...
- Page 26 INE-DDBJ-350 Conductivity Meter (Diag.20) Set automatic off time In which: It shows “Sure?” sign and the number “10” indicates the off time is 10 minutes. That is the meter will be switched off automatically after 10 minutes. This diagram shows the time is ten minutes.
-
Page 27: Maintenance And Service
INE-DDBJ-350 Conductivity Meter Constant Degree Default Constant K=0.01 0.01 K=0.1 K=1.00 1.00 K=5.00 5.00 K=10.00 10.00 The operation for restore default setting for TDS factor as following: (1) Turn on and press “Mode” key to enter the state of TDS measurement;... - Page 28 INE-DDBJ-350 Conductivity Meter 4.2 Troubleshooting Check before switching on the meter：Before switching on the meter, make sure if the batteries are installed in safe. Connection of the probe must be reliable, and prevent the meter from corrosive gas. ...
-
Page 29: The Default Setting Of The Meter
INE-DDBJ-350 Conductivity Meter 5 THE DEFAULT SETTING OF THE METER The following table indicates the setting range of various parameters and the default setting of the meter when ex-factory. Parameter Range of setting The default value 0.01；0.1；1.0；5.0；10.0 Cell constant CONT 1.000... - Page 30 INE-DDBJ-350 Conductivity Meter Conductivity Meter INE-DDBJ-350 New Features V1.10 Operation program added in V1.10 are following Reset the instrument by press ON/OFF key when the display freeze Restore default setting for constant of conductive probe and TDS factor 1．When the instrument does not work, press ON/OFF key to turn off the...
