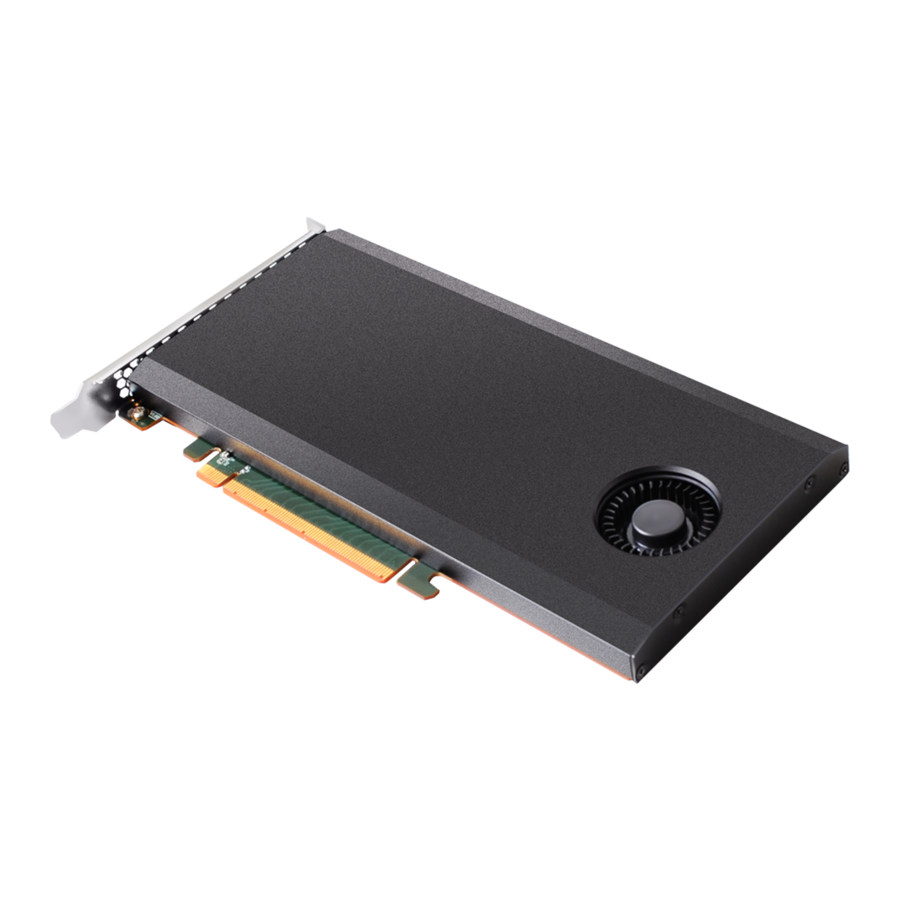

HighPoint SSD7103 Quick Installation Manual

4x m.2 port to pcie 3.0x16 nvme raid controller
Hide thumbs Also See for SSD7103:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
SSD7103
4x M.2 Port to PCIe 3.0x16 NVMe RAID Controller
Quick Installation Guide
V1.04
1

Advertisement

loading

Related Manuals for HighPoint SSD7103

Summary of Contents for HighPoint SSD7103

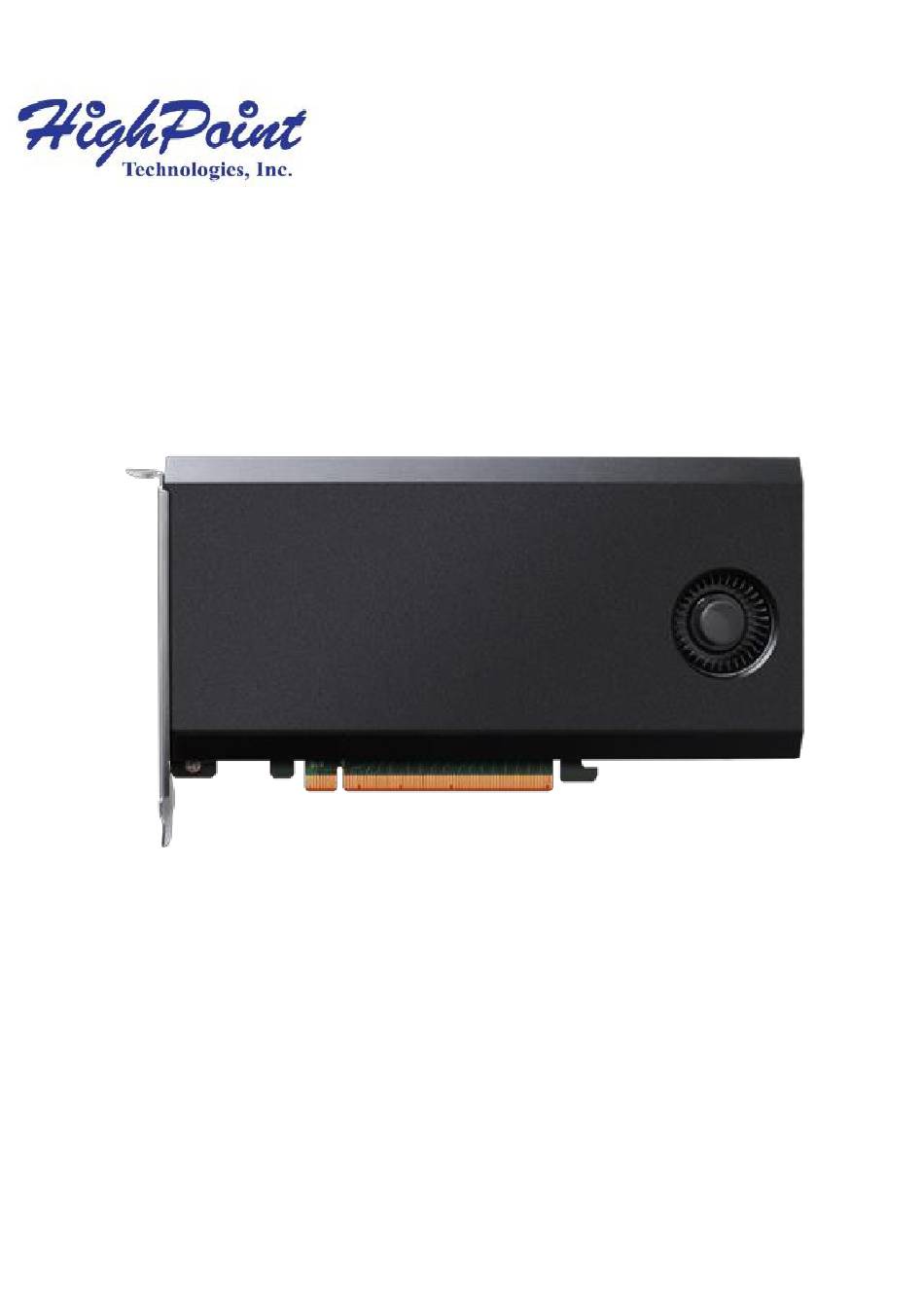

  • Page 1 SSD7103 4x M.2 Port to PCIe 3.0x16 NVMe RAID Controller Quick Installation Guide V1.04...
  • Page 2 System Requirements PC Requirements • System with an empty x16 PCIe 3.0 slot (Please refer to the SSD7103 compatibility list.) • Windows 10 and Windows Sever 2016 or later • Linux kernel 3.10 or later • macOS 10.13 and later SSD7103 Kit Contents •...
  • Page 3 SSD7103 Hardware Front View Aluminum casing with integrated thermal pad Intake for cooling fan Low-Noise cooling fan PCIe 3.0 x16 Host Interface...

  • Page 4: Drive Installation

    NVMe Drive Installation: On the rear of the SSD7103, remove the six screws that secure Step 1. the unit’s front panel to the PCB. After removing the screws, carefully remove the front panel from the SSD7103. Step 2. After removing the casing, carefully turn it over to view the thermal pad.
  • Page 5 Step 3. These 4 screws are used to install the NVMe SSD’s. Step 4. The SSDs should be installed from top to bottom. Remove the top screw.
  • Page 6 Step 5. Gently insert the SSD into the slot. Note: Please make sure all disks are clean before you insert them into the slot to avoid unexpected situations. Step 6. Refasten the screw to secure the SSD. Repeat Steps 4 to 6 to install the remaining SSDs. Note: Make sure the SSD’s are carefully, but securely installed into each M.2 port.
  • Page 7 Prot2 Prot1 Step 7. Replace the front panel after installing all SSDs Step 8. On the rear of the SSD7103, refasten the 6 screws that were removed in step 1. Note ： Make sure the aluminum cover is properly aligned with the controller board (PCB), and that it makes full contact with the thermal pad, before refastening it to the SSD7103.
  • Page 8 We recommend visiting the SSD7103 Product Resources Page for the latest documentation: Software Download: SSD7103 Driver, WebGUI, Installation Guide https://www.highpoint-tech.com/USA_new/series-ssd7103- download.htm Other Reference Information: Motherboard & NVMe SSD Compatibility List SSD7103 User Guide – How To Set Up & Monitor RAID Array https://www.highpoint-tech.com/USA_new/series-ssd7103- resource.htm FAQ & Troubleshooting: https://highpoint-tech.com/USA_new/support-faq-nvme.htm...

  • Page 9: Customer Support

    Customer Support If you encounter any problems while utilizing the SSD7103 drive, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
