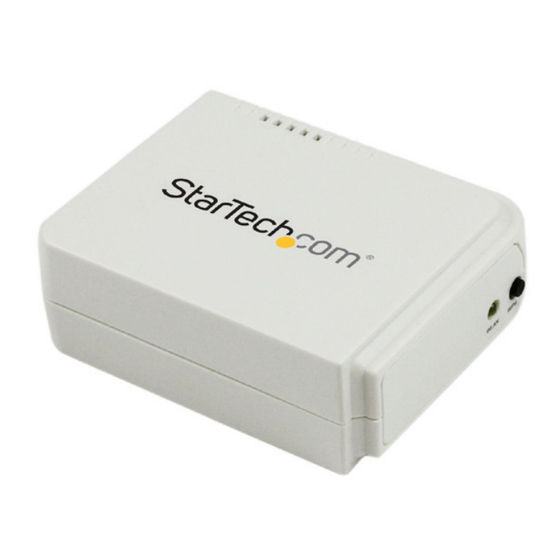

Wireless N USB 2.0 Network Print Server
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 12/20/2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com STCPM1115UW
Summary of Contents for StarTech.com STCPM1115UW
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 12/20/2019...
- Page 2 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.
- Page 3 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 4: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................2 Front View ..............................2 Rear View ..............................2 LED Indicators............................. 3 Reset Button ..............................3 Installation ....................4 Hardware Installation ..........................4 Software Installation ..........................4 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 1x Wireless USB Print Server • 1x Power Adapter • 1x Software CD • 1x Quick Start Guide System Requirements • Windows® 10, 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), Windows Server® 2012, 2008 R2, 2003 (32/64), Mac OS 10.x, 9.x, Linux 2.4.x / 2.6.x / 3.x (tested up to 3.5) Instruction Manual... -
Page 6: Product Diagram
Product Diagram Front View WLAN LED WPS Button Reset Button Rear View LED Indicators Ethernet Port DC Jack USB Port Instruction Manual... -
Page 7: Led Indicators
LED Indicators State Indication When power is connected, the Status Status Blinking for POST (Yellow) indicator will flash five times, and then go solid. LAN Port has a valid network connection On (Green) at 100Mbps. LAN Port has a valid network connection WLAN On (Yellow) at 10Mbps. -
Page 8: Installation
6. (Optional) Connect an RJ45 network cable to the print server, then to your network switch or wall jack. Software Installation For full operating instructions and specifications, please visit www.startech.com/ PM1115UW Windows 1. Find the wireless print server by viewing your available wireless networks and connecting to the PM1115UW SSID. - Page 9 4. Click Next on the following screen and the wizard will automatically discover the print server. At this point of the install, you may Windows Firewall message, click Allow Access if prompted. 5. From the “Select A Print Sever” screen, select the print server that you want to configure and click Next.
- Page 10 • Channel: optional • Data Transmit Rates: select Auto or others • Transmit Mode: select Auto or others • On the Wireless Security screen, enable or disable WEP/WPA/WPA2 encryption, configure according to your wireless network and click Next. • On the TCP/IP Settings screen, specify a fixed or dynamic IP address for the print server, a fixed IP address is highly recommended.
-
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
