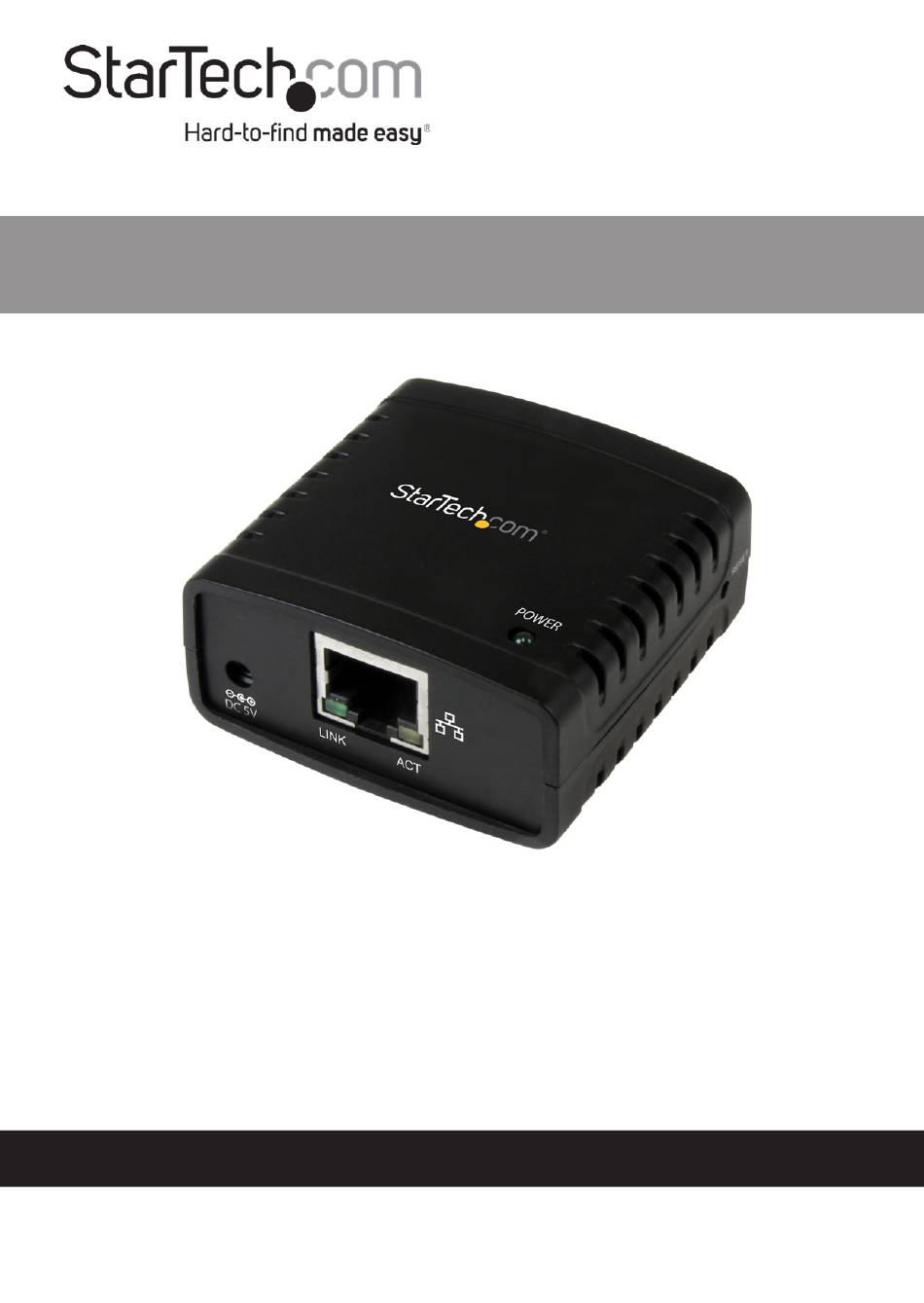

- Page 1 10/100 Mbps Ethernet to USB 2.0 Network LPR Print Server Actual product may vary from photos User Manual SKU#: PM1115U2 For the latest information and specifications visit www.startech.com/PM1115U2 Manual Revision: 04/08/2020...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Safety Statements
• Montering av kabelavslutningar får inte göras när produkten och/eller elledningarna är strömförda. • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Table Of Contents
Manually Setting up the Print Server ....................13 Setting Up a Printer in Windows ............14 Setting Up a Printer in macOS ..............19 Performing a Hard Factory Reset ............23 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 5 Viewing Server Information/Device Information ................24 Viewing/Configuring Network Settings .................... 25 Restarting a Device ........................... 27 Resetting the Device to Factory Settings ..................28 Creating/Changing a Password ......................29 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-

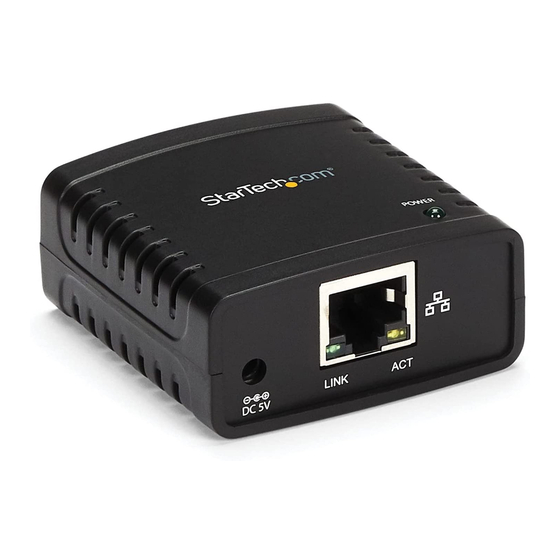

Page 6: Product Diagram
Product Diagram Front View Power LED Power Jack Link LED RJ45 Port Activity LED To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Rear View
Rear View Recessed Reset Button (side) USB-A Port To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Information
• System Requirements Operating system requirements are subject to change. For the latest requirements, please visit www.startech.com/PM1115U2. Operating Systems The Print Server is Operating System (OS) independent. • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Hardware Installation
While holding the Power Clip Release button rotate the Power Clip counter-clockwise until the Power Clip releases from the Power Adapter. Gently pull the Power Clip away from the Power Adapter. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Connecting A Printer
Click on the Support tab, under Drivers and select the appropriate driver package. Once you have download and unzipped the driver. Click on the Installation Guide PDF and follow the instructions. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Setting Up The Print Server Using The Software
Setting Up the Print Server Using the Software Click the Network Printer Wizard shortcut on your desktop. Network Printer Wizard Shortcut The Network Printer Wizard will appear. Network Printer Wizard To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 12 LPR Print Server is powered on and connected to the network. Select a Driver from the list and click the Next button, proceed to step 9. Select a Driver from the List To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 13 Network Printer Wizard. When you have selected the correct Driver from the list click the Finish button. Click on the Finish Button To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 14: Manually Setting Up The Print Server
Disconnect the CAT5e/6 Cable from the Computer and connect it into a RJ45 Port on a Router or Network Device. Add the printer using Operating System (OS) specific steps. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 15: Setting Up A Printer In Windows
Navigate to the Control Panel screen and select the Devices and Printers icon. Device and Printer Screen Click the Add a Printer link at the top of the screen. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 16 Add a Device Screen On the Add Printer screen, select Add a printer using a TCP/IP address or hostname then click the Next button. Add Printer Screen To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 17 Next button, Windows will detect the TCP/IP port and move to the next screen automatically. Add Printer Screen Set the Device Type field to Custom, then click Settings. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 18 On the Configure Standard TCP/IP Port Monitor screen, set the Protocol to LPR. Under LPR Settings, enter lp1 into the Queue Name field then click OK. Configue Standard TCP/IP Port Monitor Screen To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 19 Manufacturer and Model from the Install the Printer Driver screen that appears. Windows will start to install the printer driver. Click the Finish button when the installation is complete. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 20: Setting Up A Printer In Macos
From the System Preferences screen, click on the Printers & Scanners icon. System Preferences Screen The Printers & Scanners screen will appear, click the + icon on the left side of the screen. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 21 Printers & Scanner Screen The Add screen will appear, if the printer appears on the Default tab, select it and click the Add button. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 22 Add screen If the printer does not appear, select the IP tab at the top of the screen. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 23 Set the Protocol to Line Printer Daemon – LPD and Queue as lp1. The wizard should automatically attempt to detect the driver needed for the printer. When it has settled on one, click the Add button. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 24: Performing A Hard Factory Reset
From any screen on the Network Print Server Web Interface, click on the Select Language drop-down list. Select the desired language from the drop-down menu. Select Language Drop-Down To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 25: Viewing Server Information/Device Information
Server Name: The name of the server • Manufacturer: The name of the manufacturer of the • server Model: The server model • Firmware Version: The latest firmware version number • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 26: Viewing/Configuring Network Settings
• the device. Viewing/Configuring Network Settings From any screen on the Network Print Server Web Interface, click on the Network Link. The Network screen will appear. Network Screen To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 27 Note: If no password has been created a password is not required to make changes to the Network Settings. Click the Submit button to save any changed made to the Network Settings. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 28: Restarting A Device
Click the Submit button to restart the device. Click the Clear button to clear a Password if one has been entered in the Password field. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 29: Resetting The Device To Factory Settings
Click the Submit button to reset the device to factory defaults. Click the Clear button to clear a Password if one has been entered in the Password field. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 30: Creating/Changing A Password
1 - 20 characters in length. Re-enter the new password in the Confirm New Password field. Click the Submit button to create/reset the password. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 31 Click the Clear button to clear a Password if one has been entered in the Password field. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
