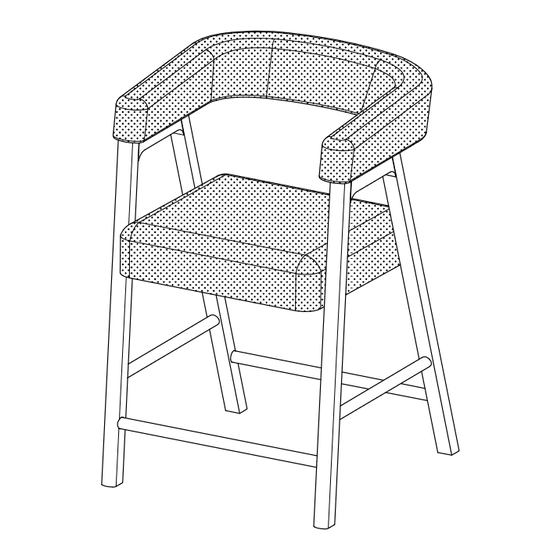

Ezra Mixed Material Counter Stool
SKU# WEEZR13OS2
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved.
Revised 17/06/2024 (F)
©
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Walker Edison Ezra WEEZR13OS2
Summary of Contents for Walker Edison Ezra WEEZR13OS2

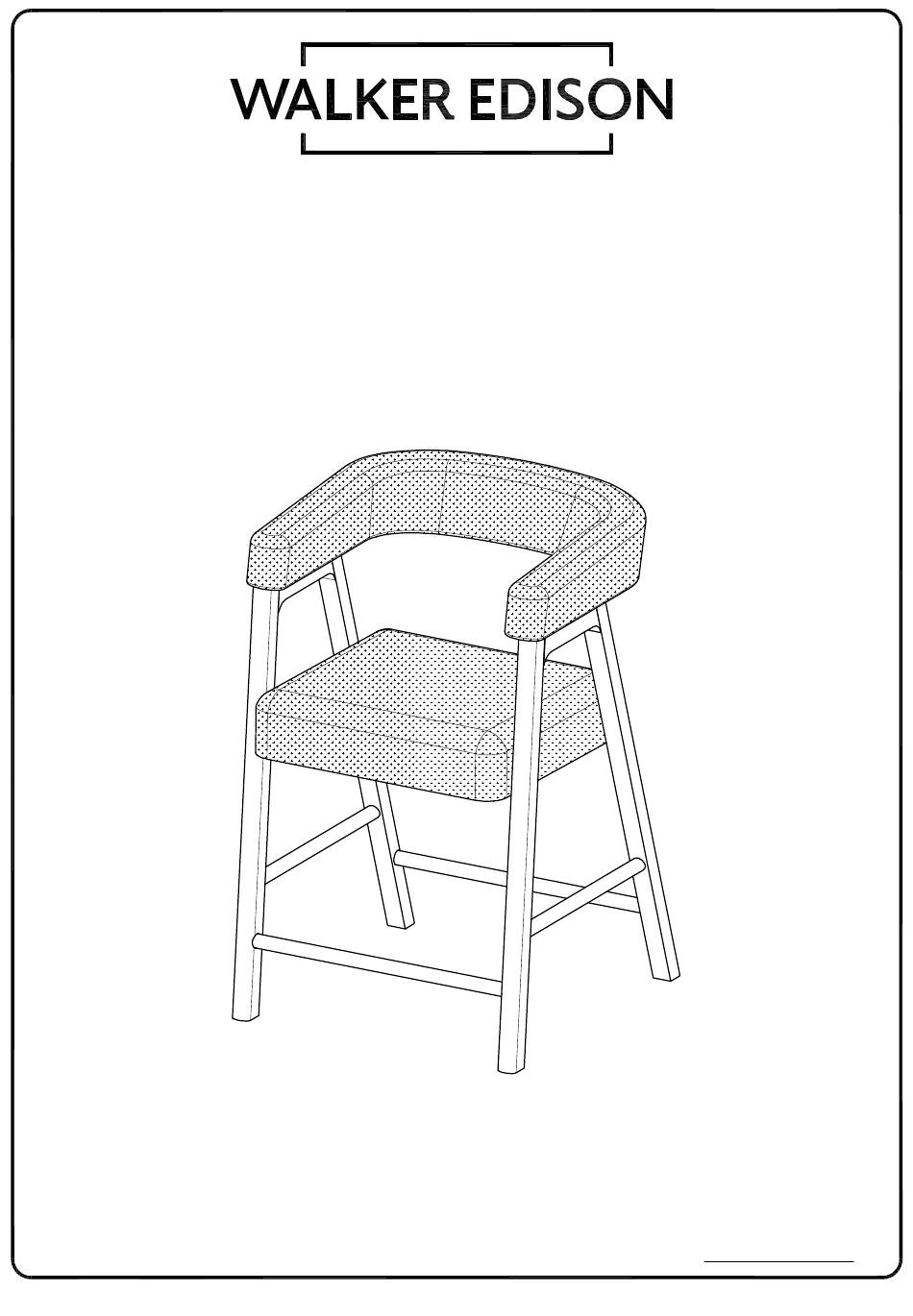

- Page 1 Ezra Mixed Material Counter Stool SKU# WEEZR13OS2 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 17/06/2024 (F) ©...
- Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’ warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.
-
Page 3: Parts List
Parts List Part Number Description Quantity Stool Seat Stool Seat Back Left Leg Frame Right Leg Frame Support Rail... -
Page 4: Hardware List
Hardware List Part Size Name Quantity Ø5/16"x45mm Bolt Ø5/16"x60mm Bolt Ø5/16" Lock Washer Ø5/16"xØ22mm Washer Hex key Ø4x38mm Screw Ø10x30mm Wooden dowel Glue tube The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included. - Page 5 Step 1 Let’s get started! Using the provided glue, secure the Wooden dowels (G) into both the Left Leg Frame (3) and the Right Leg Frame (4). 1: The provided glue is to secure wood dowels in place. When first inserting dowels, locate the appropriate hole for the dowel, place a small amount of glue in the hole and insert the dowel.
- Page 6 Step 2 Lay the Left Leg Frame (3) down. Secure the Stool Seat (1) to the Left Leg Frame (3) using the Bolt (A), Lock washer (C), and Washer (D). Tighten with the Hex key (E).
- Page 7 Step 3 Insert the Support rails (5) into the holes in the Left Leg Frame (3) and the Right Leg Frame (4).
- Page 8 Step 4 Secure the Stool Seat (1) to the Right Leg Frame (4) using the Bolt (A), Lock washer (C), and Washer (D). Tighten with the Hex key (E).
- Page 9 Step 5 Secure the Support Rails (5) to each Leg Frame (3) and (4) using the (F) Screw. Tighten with a screwdriver!
- Page 10 Step 6 You’re in the final stretch! Attach the Stool Seat Back (2) to the chair using the Washer (D), Lock washer (C), and Bolt (B). Tighten with the Hex key (E).
-
Page 11: Final Assembly
Final Assembly You did it! Enjoy your new counter stool! Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome... - Page 12 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
