Anolis Ambiane SP16 User Manual

Recessed us
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QR code for user manual
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ambiane SP16 and is the answer not in the manual?

Questions and answers

Related Manuals for Anolis Ambiane SP16

Summary of Contents for Anolis Ambiane SP16

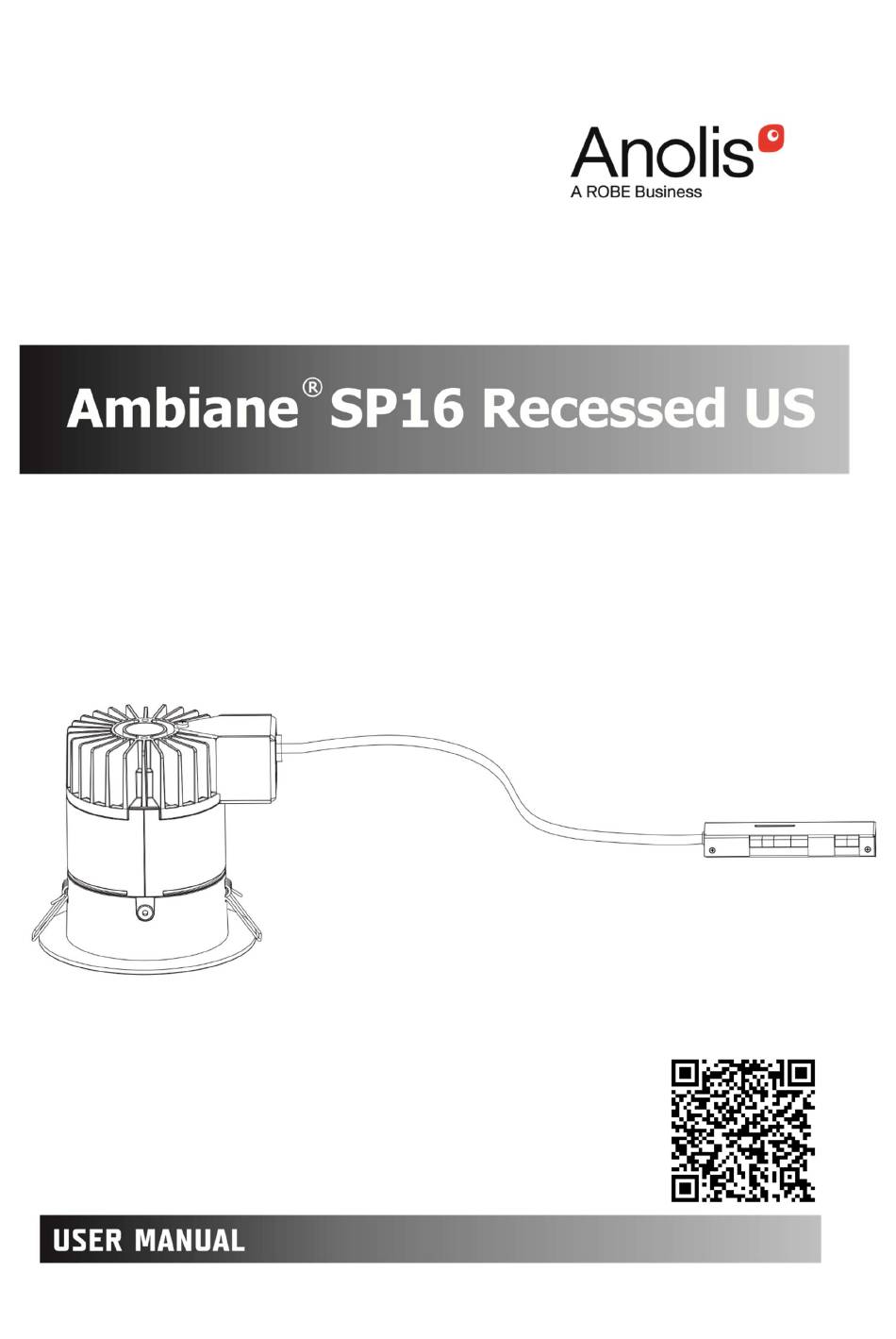

  • Page 1 QR code for user manual Version 1.1...

  • Page 2: Table Of Contents

    Ambiane SP16 Recessed US Table of contents 1. Attention ..................................3 2. Fixture exterior view ..............................4 3. Installation .................................. 5 3.1. DMX and DALI address setting and control ......................9 3.2 0-10V control ..............................10 4. RDM ..................................10 4.1 Example of Control panel in RDM manager ......................

  • Page 3: Attention

    Ambiane SP16 Recessed US 1. Attention The unit must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. The unit was designed for indoor use only. Do not install the unit near highly inflammable liquids or materials.

  • Page 4: Fixture Exterior View

    Ambiane SP16 Recessed US harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.

  • Page 5: Installation

    Ambiane SP16 Recessed US 3. Installation The Ambiane SP16 Recessed must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. Always switch off power supply of the control unit before connecting or disconnecting the control unit or the LED unit.
  • Page 6 Ambiane SP16 Recessed US Example of connection The green LED on the PCB signals way of DMX address setting: LED lights-DMX address is set by means of the DIP switch. LED does not light- DMX address is set by means of RDM.
  • Page 7 Ambiane SP16 Recessed US Recommended diameter of conductors with respect to distance between the Control unit and the power supply (e.g. Ambiane Power AP): Distance/cable length 100 m Diameters of conductors 1 mm DMX connection Connector Function Data + Data-...
  • Page 8 Ambiane SP16 Recessed US 4. After connecting needed cables to the control unit, press both spring clips (6) upwards and insert the LED unit with control unit into prepared hole in the lower ceiling. The LED unit will stay fixed in desired position by means of two springs (6).

  • Page 9: Dmx And Dali Address Setting And Control

    Ambiane SP16 Recessed US 3.1. DMX and DALI address setting and control The DIP switch on the control PCB (RB3729) allows you to set DMX address and run a test light. DIP 10 - if it is switched to ON=test light (the fixture lights at 3200K (for RGBW and TW version)).

  • Page 10: 0-10V Control

    3.2 0-10V control DIP 11 has to be set in ON position. 0-10V operation has priority to DALI and DMX commands. The option is applicable for the PW and TD version of the Ambiane SP16 Recessed only. 4. RDM This fixture supports RDM operation. RDM (Remote Device Management) is a bi-directional communication protocol for use in DM X512 control systems, it is the new open standard for DMX512 device configuration and status monitoring.

  • Page 11: Example Of Control Panel In Rdm Manager

    Ambiane SP16 Recessed US SLOT_INFO SLOT_DESCRIPTION DEFAULT_SLOT_VALUE PARAMETER_DESCRIPTION Example of Control panel in RDM manager Ambiane SP16 RGBW...

  • Page 12: Dmx Protocols

    Ambiane SP16 Recessed US Manufacturer PIDs: DMX hold [00]- last received DMX values are held in case of DMX signal lost. DMX hold [01]- option “DMX lost“ is activated and influences behaviour of the fixture at DMX signal lost. Default value is [00].
  • Page 13 Ambiane SP16 Recessed US Variant TW, version 1.1 Mode 1 Mode 2 Mode 3 Mode 4 Function Type of Channel Channel Channel Channel value control White colour selection 0-255 White from 2700K-->4000K proportional Warm White 0-255 Warm white LEDs saturation control ( proportional 0-->100%)

  • Page 14: Technical Specifications

    Ambiane SP16 Recessed US 6. Technical specifications Nominal input voltage: 48V DC Input voltage range: 44-50V DC Max. power consumption: Light source: 15 x single colour LED CRI: Beam angle: 30°, 60° Projected lumen maintenance: L90B10 >90.000 hrs, Ta = 25°C / 77°F °F)
  • Page 15 Ambiane SP16 Recessed US Dimensions (spring clips version) mm [inch]...
  • Page 16 Ambiane SP16 Recessed US Dimensions (Control unit) mm [inch] Included items 1 x Ambiane SP16 Recessed US 1 x Control unit 1 x Set of cable connectors 1 x User manual Optional items Ambiane Power AP (P/N 10063994) Ambiane Power Rack US (P/N 10063951)

  • Page 17: Cleaning And Maintenance

    The fixture has to be connected to power during software update. Software update by means of the Robe Uploader The ROBE Uploader is a software for automatized software update of Robe and Anolis fixtures. It can take advantage of RDM support.

  • Page 18: Disposing Of The Product

    Ambiane SP16 Recessed US The fixtures have to be connected in a daisy-chain (max. 32 fixtures) and via the Robe Universal Interface/Robe Universal Interface WTX and a USB cable connected to the control PC with the Robe Uploader running. The fixtures have to be connected to power. The control PC should be connected to the Internet.

  • Page 19: Changelog

    Ambiane SP16 Recessed US 8. ChangeLog This section summarizes changes in the user manual. Version of manual Date of issue Description of changes 28/11/2023 Trademark added Specifications are subject to change without notice November 28, 2023 Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
