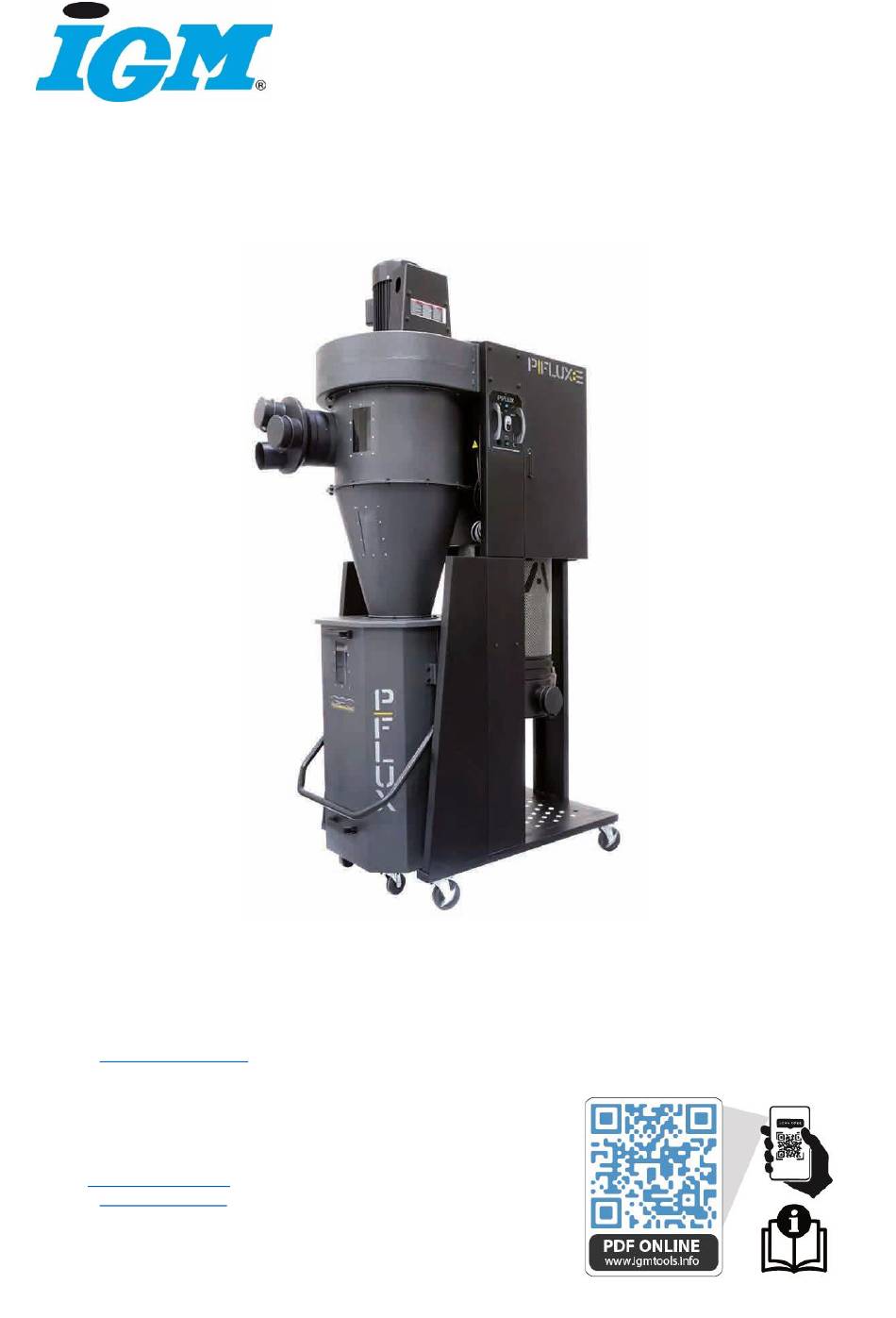

  • Page 1 151-PFlux3Tv2 IGM LAGUNA PFlux 3 mod.2022 Cyclone Dust Collector 400V Manual Producer Laguna Tools Inc. 744 Refuge Way, Suite 200 Grand Prairie, Texas 75050 Phone: +1 800-234-1976 Website: www.lagunatools.com Distributor IGM nástroje a stroje s.r.o. Ke Kopanině 560, 252 67, Tuchoměřice...
  • Page 2: Table Of Contents

    Dear customer, thank you for the confidence you have placed in us with the purchase of your new Laguna machine from IGM. This manual was prepared for the owner and operator of IGM LAGUNA PFlux 3 mod.2022 Cyclone Dust Collector 400V to promote safety during setup, operation and maintenance.
  • Page 3: Declaration Of Conformity

    Machinery Directive. The person who compile technical file established within the EU: Name: IGM nastroje a stroje s.r.o. Address: Ke Kopanine 560, Tuchomerice, CZ-252 67 Tel.: +420 220 950 910 Email: sales@igmtools.com...
  • Page 4: Warranty

    1.1 Warranty IGM always strives to deliver a high-quality and efficient product. The warranty is governed by the valid terms and conditions of IGM. 2. Product Specifications Machine Dimensions (LxWxH): 1168 x 686 x 2286 mm Machine Weight: 175 kg...
  • Page 5: Symbols

    Never leave a running machine unattended. After you finish your work, turn off the machine and disconnect it from the power supply. Do not leave the machine in a damp environment and do not expose it to rain. Do not overload the machine. Do not operate the machine near flammable liquids or gases.
  • Page 6: Environment

    This machine is equipped with a grounded power cord. Insert the plug only into a matching outlet that is properly installed and grounded in accordance with all local regulations. Do not modify the provided plug! Do not use the machine if the power cord or plug is damaged. All repairs may be carried out only by a qualified electrician! 3.6 Environment Do not dispose of the appliance in the municipal waste.
  • Page 7: Parts Description

    AB. Inlet adaptor (3 openings) AC. Autoclean plate AD. Hardware 4.2 Parts Description Control panel A. HEPA filter detection Illuminates when filter cleans (automatic cleaning/manual activation). B. Drum illumination switch Controls the LED light on the drum lid to illuminate inside the drum for visuals of the dust level. C.
  • Page 8: Setup

    A. ON button B. OFF button C. CLEAN button (PFlux only) D. Remote control pair button Pairing remote control 1. Ensure the machine is ON before pairing the remote control. 2. Press the control panel pair button until you hear two beeps. 3.
  • Page 9 Step 1: With the help of another person, remove the dust chute from the package. Step 2: Remove base frame that is bolted to (3x) top upright supports. Keep (6x) 3/8”x3/4” bolts and (6x) 3/8” washers. Step 3: Prepare (16x) 5/16 "x3/4" bolts and (16x) 5/16" washers. Install two casters with brakes (B) to the part of the base with the drum opening and the other two casters (A) on the opposite side of the base.
  • Page 10 Step 4: Turn the base over with it standing on the casters. Mount the (3x) lower upright supports (top of triangles pointing inside) to the base using (6x) 3/8"x3/4" bolts and (6x) 3/8"x7/8" flat washers. A - mount the support with one triangle on the filter side. B - mount the support with two triangles on the front side.
  • Page 11 Step 6: Secure (3x) upright support reinforcement plates where the top and lower upright supports meet using (12x) 5/16 "x3/4" bolts and (12x) 5/16" washers. Step 7: Take the junction box and secure it to the reinforcement plate beneath the control panel using (2x) 1/4”x3/4” bolts and (2x) 1/4”...
  • Page 12 Step 9: Attach the intake cylinder to the dust chute with (4x) 5/16"x5/8" bolts and (4x) 5/16" washers. Then attach the cyclone barrel to the dust chute using (12x) 5/16"x3/4" bolts and (12x) 5/16" washers. Next, attach the cyclone funnel to the dust chute using (12x) 5/16"x3/4"...
  • Page 13 Step 12: Loosen and remove the four bolts, eight washers and four nuts from the motor. Set aside for step 14. Step 13: Take the Autoclean plate and place it over the Autoclean motor. Make sure the four bolt holes on the Autoclean plate match the holes on the Autoclean motor.
  • Page 14 Step 15: Apply foam tape to the edge of the plate (between the edge and screw holes). Attach the filter cover to the dust chute using (12x) 3/16“x1/2“ sheet metal screws. Step 16: Attach the (2x) rotation paddles to the rotation shaft using (4x) 1/4”x5/8” screws, (8x) 1/4" washers a (4x) 1/4“ nuts.
  • Page 15 Step 18: Move HEPA filter assembly under the dust chute. With the help of another person holding the HEPA filter, secure the top end of the rotation shaft to the cleaning spindle inside the dust chute using (1x) 5/16”x1-1/2” bolt, (2x) 5/16”...
  • Page 16 Step 22: Secure the lower triangular support plate to the base using (2x) 5/16”x3/4” bolts and (2x) 5/16” washers. Follow the same steps for the opposite side. Step 23: Secure the lifting mechanism support to the lower upright support using (2x) 5/16”x1/2” bolts, (2x) 5/16” washers and (2x) 5/16”...
  • Page 17 Step 26: Make sure the bar is pushed all the way into the opening on the lower upright support. Secure the bar using (4x) 5/16”x1-3/4” bolts, (8x) 5/16” washers and (4x) 5/16” nuts. Follow the same steps for the opposite side. Step 27: Secure the U-channel (A) to the triangular support plate using (2x) 5/16”x1-3/4”...
  • Page 18 Step 30: Secure with cover. Cover is attached using (1x) M8x30 mm bolt. Follow this step on the opposite side. Step 31: Secure the bar to the handle using (2x) 3/8”x21mm bolts and 3/8” nuts. Make sure the bolt head is on the inside of the handle (A).
  • Page 19 Step 33: Attach the full drum detection sensor to the opening on the drum lid located behind the cyclone funnel. When securing the sensor make sure the end of the sensor (A) is not longer then the drum lid rim (B). If it extends past the rim, the detection will not function correctly.
  • Page 20 Step 37: Attach the handles to the top and bottom end on the front drum panel using (4x) 5/16”x3/4” bolts, (4x) 5/16” washers and (4x) 5/16” nuts. Note that the head of the bolt must be inserted from the handle with the nut and washer on the inside of the drum.
  • Page 21 Step 41: (22x) Cover all (22x) screws with (22x) plastic caps. Step 42: Once assembly is complete, apply silicone (not included) to the top and bottom rim inside the drum. This will seal the drum and prevent any leaks. Step 43: Attach the rubber gasket to the top rim of the drum. Remove excess rubber gasket. Step 44: Insert waste bag in the drum.
  • Page 22 Step 45: Use (24x) 3/16”x1/2” bolts and (24x) 3/16” nuts to assemble the drum insert. Place the drum insert inside over the plastic bag. Step 46: Lift the bar. Push the drum in and align. Lower the bar to seal the drum tight for normal machine operation. Step 47: Make sure when aligning the drum that both the left and right side plates are seated in the lifting mechanism (A).
  • Page 23: Operation

    Step 48: With the white plastic pin, you can adjust the detection rate of a full drum. Insert the tip of the pin into the top end of the sensor. Turn clockwise to lower the full detection rate (less waste in the drum). Turn counterclockwise to increase the full detection rate (more waste in the drum).
  • Page 24: Cleaning The Hepa Filter

    6. After replacing HEPA filter, press the remote control pair button five times. The LED indicator is now reset to zero. 7. Accessories Recommended accessories is listed on the IGM website. Caution! Installing unapproved accessories may cause damage to the machine and serious injury. Use only accessories recommended for this machine by IGM.
  • Page 25: Wiring

    Cyclone collector does not adequately collect dust or Possible Solution: chips; poor performance. Possible Cause: 1) Empty drum and filter end cap. Clean filter. 1) Drum or filter end cap are full. Filter is dirty. 2) Clean inlet adaptor. 2) Clogged dust collection. 3) Move the machine closer to the point of collection.
  • Page 26 Control panel Secondary control box www.igmtools.com...
  • Page 27 Autoclean motor www.igmtools.com...
  • Page 28: Parts List

    10. Parts List www.igmtools.com...
  • Page 29 www.igmtools.com...
  • Page 30 www.igmtools.com...
  • Page 31 No 0BPart Name Description Q’TY Part Name Description Q’TY LOWER UPRIGHT SUPPORT PDCPF22201-1 MOTOR 2HP PDCPF22201-9CV2 TWO DOT (3B) V2.2021 PDCPF32201-1 MOTOR 3HP PDCPF22201-9D HEX BOLT 1/4”x5/8” 1A PDCPF22201-1A MOTOR GASKET PDCPF22201-9E FLAT WASHER 1/4”Xod13x1t PDCPF22201-2 MOTOR SUPPORT BASE PDCPF22201-9F DOOR STOP PLATE 2A PDCPF22201-2A HEX LOCK BOLT 5/16”...
  • Page 32 No Part Name Description Q’TY Part Name Description Q’TY TRIANGULAR SUPPORT PLATE 12 PDCPF22201-12V2 16G PDCPF22201-16G HEX NUT 5/16” V2.2021 OCTAGON DRUM BACK PANEL 12A PDCPF22201-12A HEX BOLT 5/16” x 1-3/4” 16H PDCPF22201-16HV2 V2.2021 12B PDCPF22201-12B FLAT WASHER 5/16”xOD18x2t 16K PDCPF22201-16K LEFT SIDE PLATE 12C PDCPF22201-12C HEX NUT 5/16”...
  • Page 33 No Part Name Description Q’TY Part Name Description Q’TY CANISTER FILTER SHIELD 23E PDCPF22201-23E HEX LOCK NUT 1/4” 31A PDCPF22201-31A DOOR-2 ROTATION SHAFT 23F PDCPF22201-23F 31C PDCPF22201-31C DOOR HANDLE CONNECTION 23G PDCPF22201-23G HEX BOLT 5/16” x 1-1/2” 31D PDCPF22201-31D HINGE 23H PDCPF22201-23H FLAT WASHER 5/16”xOD18x2t 31E PDCPF22201-31E...
