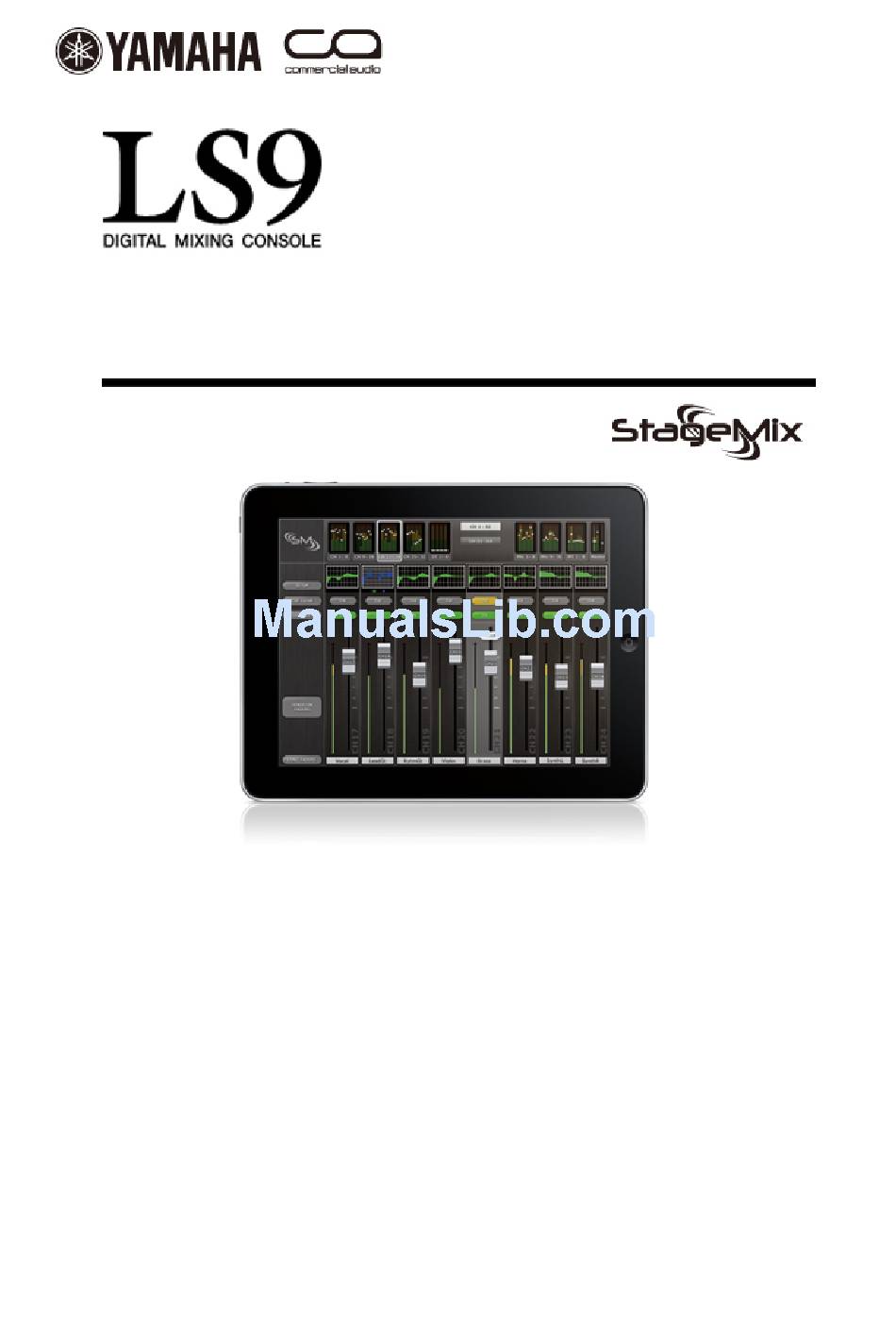

LS9 StageMix User Guide
Welcome:
Thank you for downloading the "LS9 StageMix" iPad app for the Yamaha LS9-16 and
LS9-32 digital mixing consoles.
StageMix provides remote control of LS9 functions via a simple, intuitive
graphical interface from anywhere within wireless range. The software has
been specifically designed to allow engineers to adjust monitor mixes from
the performers' positions on stage, directly controlling mix parameters via the
iPad rather than having to rely on verbal directions to a second engineer.
The result is better mixes in less time: a huge advantage during high-pressure
pre-show setup.
StageMix does not provide remote control of all LS9
parameters, but is focused on the requirements for adjusting monitor mixes on
stage.

Advertisement

Table of Contents
loading

Related Manuals for Yamaha LS9

Summary of Contents for Yamaha LS9

  • Page 1 LS9 StageMix User Guide Welcome: Thank you for downloading the “LS9 StageMix” iPad app for the Yamaha LS9-16 and LS9-32 digital mixing consoles. StageMix provides remote control of LS9 functions via a simple, intuitive graphical interface from anywhere within wireless range. The software has been specifically designed to allow engineers to adjust monitor mixes from the performers’...

  • Page 2: Table Of Contents

    Getting Started LS9 Network Setup iPad WiFi Settings StageMix Setup 3.3.1 OFFLINE DEMO Mode 3.3.2 Configure StageMix to Work with an LS9 3.3.3 Select a Mixer and Begin Working StageMix Operation Mixer Window 4.1.1 Channel Bank Navigation 4.1.2 Layer Navigation 4.1.3 Channel Names and Colors...
  • Page 3 • The software and this Owner’s Manual are the exclusive copyrights of Yamaha Corporation. • Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written consent of the manufacturer.

  • Page 4: System Requirements

    802.11n networks at 5GHz are preferred because they allow faster communication between the iPad and the WiFi access point. Practically, this could result in more accurate level metering with the StageMix app. Also, with 802.11n being a new standard, it is less prone to interference from other wireless networks.

  • Page 5: Getting Started

    CAT5 cable can be used. II. Note the IP address and MAC address of the LS9 - they will need to be entered into the iPad later. They can be found in the console as follows:...

  • Page 6: Stagemix Setup

    Yamaha Commercial Audio LS9 StageMix V1.0 User Guide d. Select [Static]. e. Write an IP Address similar to the one for the LS9, but with just the last number different. (For example, if LS9 is 192.168.0.128, give an address to the iPad such as 192.168.0.127).

  • Page 7: Offline Demo Mode

    3.3.2 Configure StageMix to Work with an LS9 i. Press [ADD MIXER] to open the following screen: ii. Tap on the blank Name field and enter a name for your LS9 using the iPad’s onscreen keyboard. iii. Enter the LS9 IP address noted in 3.1. The default IP Address may not need to be changed but confirm this in the Network Setup screen of the LS9 console (refer to 3.1).

  • Page 8: Select A Mixer And Begin Working

    Press the [ADD MIXER] button at the bottom of the screen 3.3.3 Select a Mixer and Begin Working If your iPad has been configured to work with an LS9 console, select the mixer from the list and press [CONNECT]. (The model of mixer (LS9-32 or LS9-16) will appear in smaller text below the mixer’s name.)

  • Page 9: Stagemix Operation

    LS9 StageMix V1.0 User Guide 4.0 StageMix Operation Mixer Window The main page of the StageMix is called the “Mixer” window. It shows the EQ curve, CUE and ON buttons, fader and level meters, and channel names and colors for eight adjacent channels.

  • Page 10: Channel Names And Colors

    The fader will not “jump” or “ramp” to a new position on the slider. When a fader cap is touched, its background will lighten and its current dB value will be displayed.

  • Page 11: Cue

    Mixer Overview. When the [LAST CUE] button is highlighted yellow, only one channel can be cued at a time. When this button is grey, multiple channels can be cued simultaneously. This is equivalent to Mix Cue mode in the LS9 console.

  • Page 12: Setup

    4.2.2 Filled EQ Graph When this preference is ON, the EQ graph will be filled in, as it is on the LS9 screen. When it is off, only the outline of the graph will be shown.

  • Page 13: Long Faders

    In this view, EQ curves and the “Navigation/Meter Bridge” are not visible. Press the [LONG FADERS] button in the bottom-left corner again to return to the Mixer Overview. Page 13...

  • Page 14: Sends On Faders

    LS9 StageMix V1.0 User Guide SENDS ON FADERS Press the [SENDS ON FADERS] button in the left column of the Mixer screen to access sends to Mix busses. In “SENDS ON FADERS” mode, each fader controls the send level from its channel to the currently selected Mix.

  • Page 15: Mix Sends On

    4.4.1 Mix Sends ON In “SENDS ON FADERS” mode, the [ON] button in each channel strip is used to turn On/Off the Mix Send from each channel to the currently selected target Mix bus. When a Mix, Matrix or Master block is selected in the “Navigation/Meter Bridge”, the [SENDS ON FADERS] button is not available.

  • Page 16: Eq Editing

    If GEQ is available on a channel in addition to PEQ, the user will be able to view the curve for either of these EQs and access the editing screen for either type of EQ.

  • Page 17: Parametric Eq Editing Screen

    Note: the In/Out meters display the levels going In and Out of the EQ section. One band of Parametric EQ can be adjusted at a time. Press one of the green circles to select the band, and it will be highlighted yellow. EQ bands in...

  • Page 18: Hpf

    “Gain Lock” or “Frequency Lock” functions can be used. These buttons are located at the top of the EQ graph. The “Lock” buttons affect all 4 bands (but not the HPF). When a band is adjusted, the locked parameter value becomes red.

  • Page 19: Eq Bands 1

    EQ bands 1 & 4 have additional choices of band-type. Both these bands can be a shelf or a bell, and band 4 can also be a Low Pass Filter. Band 1 can also be a HPF for Mix, Matrix and Stereo/Mono Master channels.

  • Page 20: Graphic Eq Editing Screen

    “next” arrow buttons for navigating to different channels. Pressing these buttons will only access other channels that have GEQs assigned to them. Note: the In/Out meters display the levels going In and Out of the EQ section. 4.7.1 Navigation in the GEQ Overview Section...

  • Page 21: Geq Type

    LS9 StageMix V1.0 User Guide 4.7.3 GEQ Type Next to the Rack position, the type of GEQ is identified as either “31 Band” or “Flex 15”. In the case of a Flex 15 GEQ, a larger-sized number indicates the remaining number of available bands for that GEQ.

  • Page 22: Troubleshooting

    If this message appears after launching StageMix, this indicates that the iPad is not connected to a WiFi access point or that WiFi may be switched off in the iPad. Refer to sections 2.0 and 3.2 for details about WiFi hardware configuration and iPad WiFi settings.
  • Page 23 Graphic EQ Doesn’t Affect the Sound If a Graphic EQ is assigned to an input or output channel but it doesn’t seem to be affecting the sound on that channel, it could be that the Insert for that channel has been switched Off.
  • Page 24 Yamaha Commercial Audio LS9 StageMix V1.0 User Guide Problems Moving Multiple Faders If Multitasking Gestures (in iOS 4.3 or higher) is ON, it may not be possible to move more than three faders simultaneously in StageMix. When using StageMix, it is recommended that Multitasking Gestures be turned OFF.
