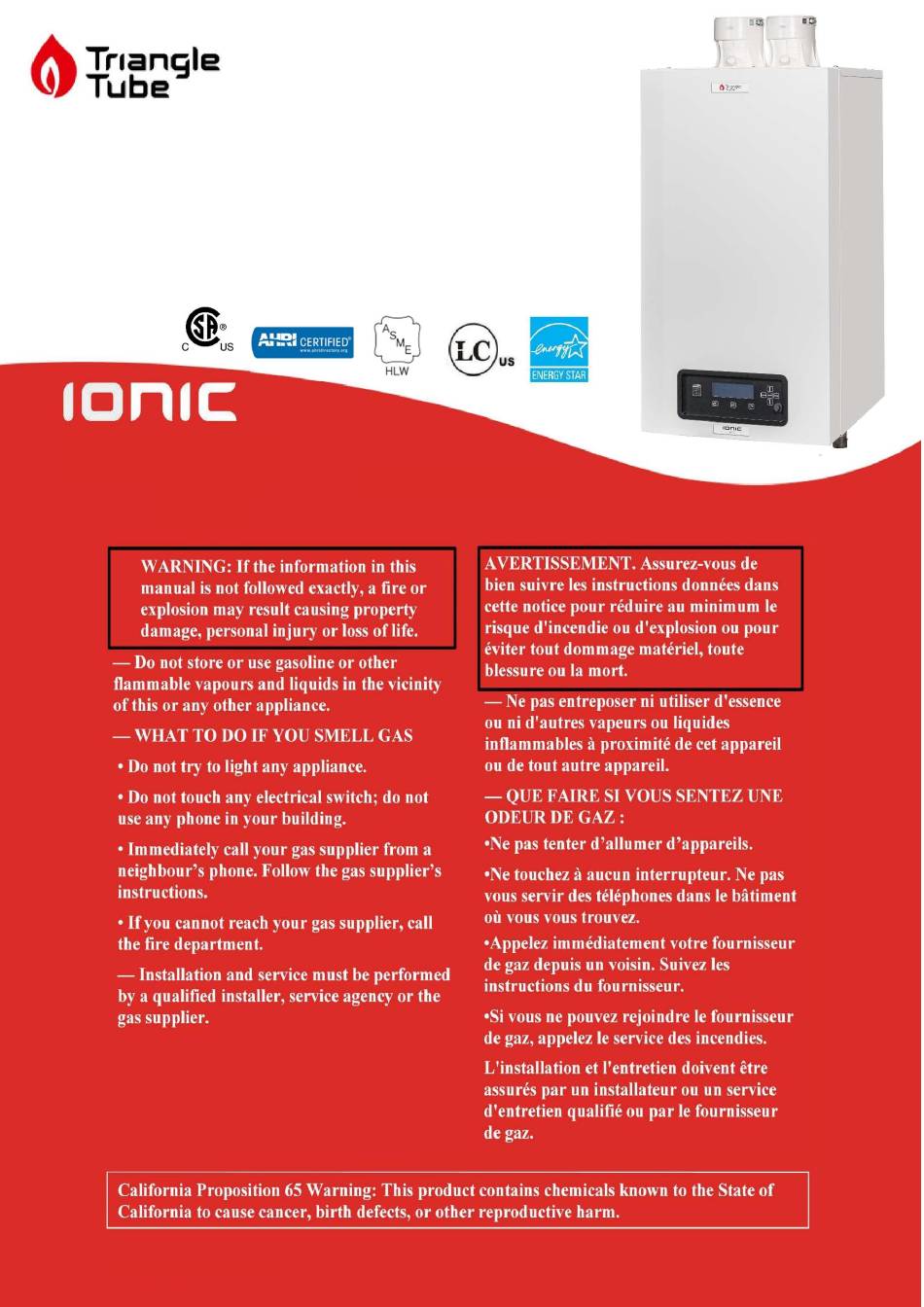

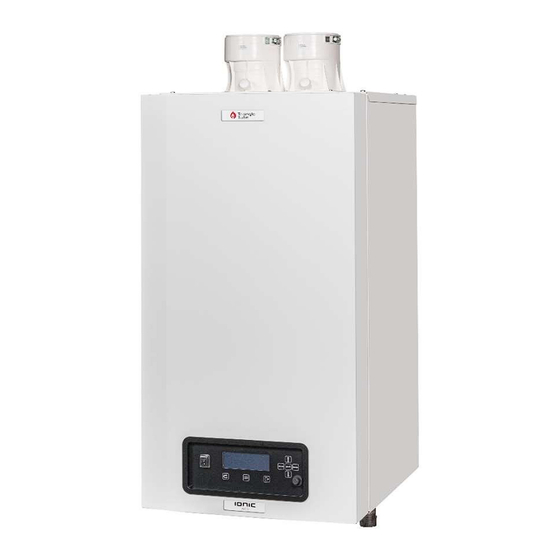

  • Page 1 User Manual Low NOx certified to SCAQMD 1146.2 NSF/ANSI/CAN 372 WH 299W-399W-470W-500W E95.1804.034 – E126100004...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY GUIDELINES ......................... 5 INTRODUCTION ........................... 9 ..................9 XPLANATION OF TYPE MODEL NUMBER ....................9 AINTENANCE AND INSPECTION 2.2.1 On a Continuous basis ....................9 2.2.2 On a Monthly basis ....................... 9 2.2.3 On an Annual basis (every 12 months) ..............10 Display and buttons ..........................
  • Page 4 IMPORTANT READ ALL OF THE FOLLOWING WARNINGS AND STATEMENTS BEFORE READ- ING THE INSTALLATION INSTRUCTIONS DANGER Danger Sign: indicates the presence of an imminently hazardous situation that will cause death, serious personal injury or substantial property damage. WARNING Warning Sign: indicates the presence of a hazardous situation which can cause death, serious personal injury or substantial property damage.

  • Page 5: Safety Guidelines

    1 SAFETY GUIDELINES Use only your hand to turn the manual gas shutoff valve. Never use tools. If the manual valve will not turn by hand, don’t try to repair it, call a qualified service technician. Force or at- tempted repair may result in a fire or explosion STOP! Read the safety information above on this label.
  • Page 6 CONSIGNES DE SÉCURITÉ N’utilisez que votre main pour tourner la vanne d’arrêt manuelle. N’utilisez jamais d’outils. Si la vanne manuelle ne tourne pas à la main, n’essayez pas de la réparer, appelez un technicien sevice qualifié. La force ou la tentative de réparation peut entraîner un incendie ou une explosion.
  • Page 7 This water heater is equipped with an air pressure switch. In the event of a blocked vent the water heater will lockout. No attempt by the user/owner should be made to put the water heater back intro operation. A qualified service technician should be notified of the issue.
  • Page 8 WARNING: Water temperatures over 125 °F (52 °C) can cause severe burns instantly or death from scalding. The water temperature is factory set at 140 °F (60 °C) to minimize legionella risk. Before bathing or showering always check the water temperature. WARNING To meet commercial hot water requirements, the water heater setpoint is adjustable up to 190°F.

  • Page 9: Introduction

    2 INTRODUCTION This manual is written for the user. Ce manuel est écrit pour l’utilisateur Triangle Tube is not accountable for any damage Triangle Tube n'est pas responsable de tout caused by failure to correctly follow these instruc- dommage causé par ne pas suivre correctement de tions.

  • Page 10: On An Annual Basis (Every 12 Months)

    2.2.3 N AN NNUAL BASIS EVERY MONTHS  Have a qualified service technician perform a complete service and maintenance of the water heater in accordance with the Installation, Operation, and Service manual. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal injury (exposure to hazardous materials) * or loss of life.

  • Page 11: Display And Buttons

    3 Display and buttons 13:56 Standby T3:98 °F 55 Psi DHW Store Setpoint 90 °F 3.1 Explanation of buttons ON/OFF. On/off switch. Switches electrical power to the boiler COMPUTER. Connector for computer cable RESET. Reset lockout error MENU. Enter the main menu ESCAPE.

  • Page 12: Display Configuration

    3.2 Display configuration. The Status overview has three different sections that show specific information: 13:56 Header Standby Middle section T3:98 °F 55 Psi Footer 90 °F DHW Store Setpoint Header Left: For single and cascade systems the cascade icon is shown, with the cascade manager indication (M) or the dependent number.

  • Page 13: Starting The Water Heater

    4 Starting the water heater. If the water heater is not on make sure the gas switch beneath the water heater is open and the power cord is connected to the mains, use the on/off button to switch the water heater on. The following screen will occur: This screen is active during power up until communication with the main Control has been established.

  • Page 14: Changing The Dhw Setpoint By The Menu (Button)

    4.1.2 DHW S HANGING THE ETPOINT BY THE MENU UTTON Enter the menu by pressing the MENU button once. The header in the screen shows you are inside the main menu. Whilst scrolling through the menu you will see that the selected menu item is shown in a white rectangle. At the right, there will be an icon shown, depending on the selected item.

  • Page 15: Language Setting

    5.2 Language setting The display supports the following languages:  Chinese  German  Romanian  Croatian  Greek  Russian  Czech  Hungarian  Slovak  Dutch  Italian  Slovene  English  Polish  Spanish  French ...

  • Page 16: Error Logging

    5.3 Error logging Errors will be logged for a stand-alone system or for a complete cascade system (based on the cascade settings). The display will monitor the error number(s) it receives from the water heater(s): new errors will be stored in the error log.

  • Page 17: Available Menu Items

    5.5 Available Menu items Depending on the installed and programmed options (by the installer) following menu items could be visible. Menu / Parameter Description Value / Unit Central Heating (CH) Enter the Central Heating (CH) menu Domestic Hot Water (DHW) Enter the Domestic Hot Water (DHW) menu Information Enter the Information menu...

  • Page 18: Water Heater History

    5.5.6 ATER HEATER ISTORY Menu / Parameter Description Value / Unit Successful Ignitions Display the number of successful ignitions Failed Ignitions Display the number of failed ignitions Flame Failures Display the number of flame losses Operation Days Display the total time in operation days CH Burner Hours Display the amount of burn hours for CH...

  • Page 19: Time Zone Settings

    5.5.14 IME ZONE SETTINGS Menu / Parameter Description Value / Unit Time Zone Correction Set the time zone correction Daylight Savings Time Select the daylight savings time mode 5.5.15 ISPLAY SETTINGS Menu / Parameter Description Value / Unit Time Notation Select 24h or 12h time notation 24h/12h Date Order...
  • Page 22 Your distributor: Triangle Tube 1240 Forest Parkway, Suite 100 West Deptford, NJ 08066 T: (856) 228 8881 F: (856) 228 3584 E: info@triangletube.com E126100004...
