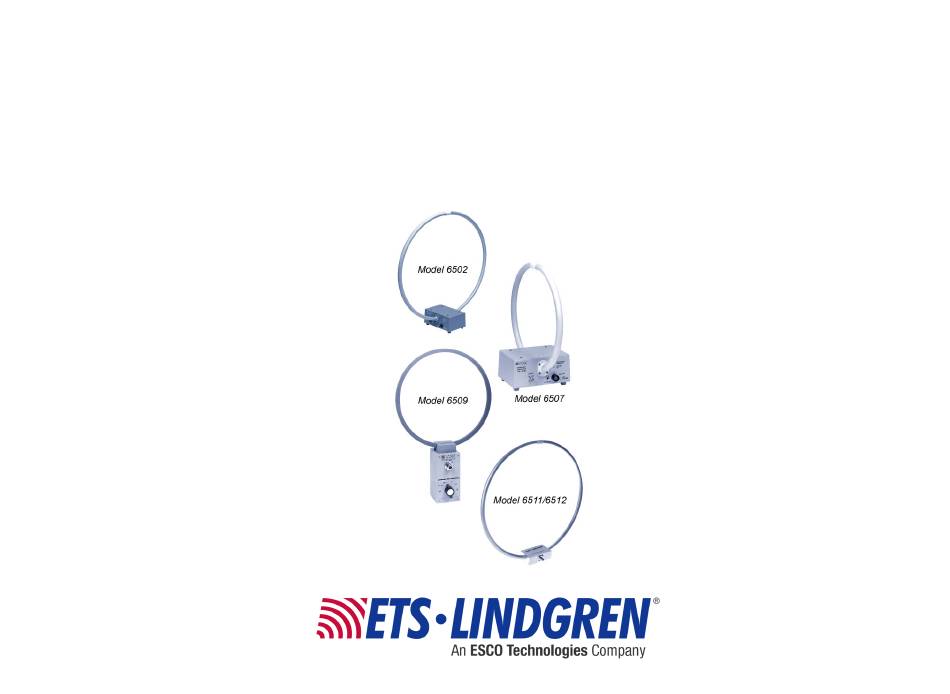

  • Page 1 6500 Series Loop Antennas User Manual...
  • Page 2 ETS-Lindgren Inc. reserves the right to make changes to any product described herein in order to improve function, design, or for any other reason. Nothing contained herein shall constitute ETS-Lindgren Inc. assuming any liability whatsoever arising out of the application or use of any product or circuit described herein.
  • Page 3: Table Of Contents

    Table of Contents Notes, Cautions, and Warnings ..........v   1.0 Introduction ................7     Model 6502 ....................8   Model 6507 ....................9   Model 6509 ....................10   Models 6511 and 6512 ................10   Standard Configuration ................11  ...
  • Page 4   Features and Components – Battery Charger 102615 only ....24   Features and Components – Battery Charger 1719587 only ....25   Fast Charge and Trickle Charge Modes ..........25 6.0 Typical Data ................ 27     Model 6502 ....................27  ...
  • Page 5: Notes, Cautions, And Warnings

    Notes, Cautions, and Warnings Note: Denotes helpful information intended to provide tips for better use of the product. Caution: Denotes a hazard. Failure to follow instructions could result in minor personal injury and/or property damage. Included text gives proper procedures. Warning: Denotes a hazard.
  • Page 6 This page intentionally left blank. www.ets-lindgren.com...
  • Page 7: Introduction

    1.0 Introduction The ETS-Lindgren 6500 Series Loop Antennas include both active and passive antennas. Loop antennas provide a wide range of magnetic field testing. Some models include active electronics for amplification and impedance matching, consistent linear antenna factors, and signal attenuation. Most include a balanced Faraday shield to reduce response to E-fields for pure magnetic field measurements.
  • Page 8: Model 6502

    Model 6502 The Model 6502 Loop Antenna is an active receiving loop antenna designed to perform commercial emissions standards testing, and can be used for any magnetic testing. The Model 6502 has a frequency range of 9 kHz to 30 MHz. A radio frequency preamplifier is built into the base of the antenna and provides a 50 Ω...
  • Page 9: Model 6507

    Model 6507 The Model 6507 Loop Antenna is an active receiving loop antenna designed to perform shielding effectiveness measurements per MIL-STD 285 and NSA-65-6 specifications. The Model 6507 has a frequency range of 1 kHz to 30 MHz. A radio frequency preamplifier is built into the base of the antenna designed for use with most 50 Ω...
  • Page 10: Model 6509

    Model 6509 When using the Model 6509 as a transmitting device, reduce amplifier power to zero Watts before band switching. The Model 6509 Passive Loop Antenna is designed for shielding effectiveness and immunity testing. The Model 6509 operates in the frequency range of 1 kHz to 30 MHz.
  • Page 11: Standard Configuration

    Standard Configuration  Antenna/coil assembly  Mounting base that accepts an ETS-Lindgren tripod or other tripod mount with standard 1/4–20 threaded hardware  Battery charger (included only with Model 6502 and Model 6507) Optional Items ARRYING ASES A custom carrying case is available for some of the loop antenna models. For more information, contact ETS-Lindgren.
  • Page 12: Ets-Lindgren Product Information Bulletin

     7-TR Tripod—Constructed of PVC and fiberglass components, providing increased stability for physically large antennas. The unique design allows for quick assembly, disassembly, and convenient storage. Allows several different configurations, including options for manual or pneumatic polarization. Quick height adjustment and locking wheels provide ease of use during testing.
  • Page 13: Maintenance

    2.0 Maintenance Before performing any maintenance, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. Maintenance of the 6500 Loop Antennas WARRANTY is limited to external components such as cables or connectors. Warranty may be void if the housing is opened.
  • Page 14: Replacement And Optional Parts

    Replacement and Optional Parts ETS-Lindgren may substitute a similar part or new part number with the same functionality for another part/part number. Contact ETS-Lindgren for questions about part numbers and ordering parts. Following are the part numbers for ordering replacement or optional parts for the Model 6500 Series Loop Antennas.
  • Page 15: Specifications

    3.0 Specifications Electrical Specifications 6502 ODEL Frequency Range: 9 kHz—30 MHz 85 dB at 10 kHz Dynamic Range: 125 dB at 1 MHz -1 dB (uA/m) at 10 kHz Sensitivity (Typical): -42 dB (uA/m) at 1 MHz 1 dB Compression Point: 5 V/m Power Required: Battery-operated...
  • Page 16: Model 6509

    6509 ODEL Frequency Range: 1 kHz—30 MHz Band 1: 1 kHz—60 kHz Band 2: 60 kHz—400 kHz Band 3: 400 kHz—1 MHz Band 4: 1 MHz—30 MHz Maximum Input Power: 1 kW Impedance (Nominal): Varies with frequency (calibrated in a 50 Ω system) Connector: Type N female 6511...
  • Page 17: Battery Charger Specifications: Models 6502 And 6507

    Battery Charger Specifications: Models 6502 and 6507 Input Voltage - Charger 102615: 115/230 VAC selectable Input Voltage – Charger 1719587: 100-240 VAC Input Frequency: 50/60 Hz Input Power: 20 VA max Protection Class: Class II double insulated Input Fuse Rating – Charger 102615 200 mA time-delay, Type Only: 5x20 mm...
  • Page 18 This page intentionally left blank. Specifications www.ets-lindgren.com...
  • Page 19: Mounting Instructions

    4.0 Mounting Instructions Each loop antenna is a precision measurement device. Handle your antenna with care. Additional Mounting Options 4-TR M OUNTING PTIONS The 6500 Series Loop Antennas mount directly to an ETS-Lindgren 4-TR Tripod; no additional hardware is required. www.ets-lindgren.com Mounting Instructions...
  • Page 20: 7-Tr And Mast Mounting Options

    7-TR OUNTING PTIONS Following are options for mounting the 6500 Series Loop Antennas onto an ETS-Lindgren 7-TR Tripod or mast. Contact the ETS-Lindgren Sales Department for information on ordering optional mounting hardware. Mast refers to 2070 Series, 2075, and 2175 Antenna Towers. 7-TR refers to these booms: ...
  • Page 21: 2X2 Boom Mounting Options

    OUNTING PTIONS 2x2 boom refers to a typical 2-inch by 2-inch boom. Following are additional options for mounting the 6500 Series Loop Antennas onto a 2x2 boom. Contact the ETS-Lindgren Sales Department for information on ordering optional mounting hardware. www.ets-lindgren.com Mounting Instructions...
  • Page 22 This page intentionally left blank. Mounting Instructions www.ets-lindgren.com...
  • Page 23: Operation

    5.0 Operation Before connecting any components or placing into operation, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. When using the Model 6509 as a transmitting device: Reduce amplifier power to zero watts before band switching, and then select the frequency band by rotating the band switch.
  • Page 24: Battery Charger: Models 6502 And 6507

    Battery Charger: Models 6502 and 6507 The Model 6502 and Model 6507 are powered by two 6-VDC, sealed lead-acid batteries. The included battery charger is intended for charging only the sealed lead-acid batteries in ETS-Lindgren products. The charger included may be PN 102615 or 1719587. The Model 6502 is not designed to operate using the battery charger as a power source.
  • Page 25: Features And Components - Battery Charger 1719587 Only

     Power cord—To maintain safety requirements, use the safety-approved power cord provided. If you use another method to attach the battery charger to the power mains, use only a type HD21 (PVC cord) or type HD22 (rubber cord) with a nominal cross-section of 0.75 mm –...
  • Page 26 This page intentionally left blank. Operation www.ets-lindgren.com...
  • Page 27: Typical Data

    6.0 Typical Data Model 6502 www.ets-lindgren.com Typical Data...
  • Page 28: Model 6507

    Model 6507 Typical Data www.ets-lindgren.com...
  • Page 29: Model 6509

    Model 6509 www.ets-lindgren.com Typical Data...
  • Page 30: Model 6511

    Model 6511 Typical Data www.ets-lindgren.com...
  • Page 31: Model 6512

    Model 6512 www.ets-lindgren.com Typical Data...
  • Page 32 This page intentionally left blank. Typical Data www.ets-lindgren.com...
  • Page 33: Radiation Pattern

    7.0 Radiation Pattern The 6500 Series Loop Antennas are electrically small loops (size is small in wavelengths), giving them identically-shaped radiation patterns. Each loop operates at a frequency under 30 MHz. At 30 Hz the wavelength is 10 m; the largest loops have a circumference of 1.88 m (C=πD), which is much smaller than the wavelength.
  • Page 34: Typical Radiated Pattern For An Electrically Small Loop

    Typical Radiated Pattern for an Electrically Small Loop The following illustrates the typical radiated pattern for an electrically small loop. Radiation Pattern www.ets-lindgren.com...
  • Page 35 www.ets-lindgren.com...
  • Page 36 This page intentionally left blank. www.ets-lindgren.com...
  • Page 37: Appendix A: 6505 Shielding Effectiveness Test Kit

    Appendix A: 6505 Shielding Effectiveness Test Kit The ETS-Lindgren Model 6505 Loop Shielding Effectiveness Test Kit is a set of loop antennas that includes the following:  Model 6507 Active Receiving Loop Antenna  Model 6509 Passive Loop Antenna  Battery Charger Measuring Magnetic Shielding Effectiveness Set the transmitting and receiving antennas apart at a distance equal...
  • Page 38 11. Adjust signal amplitude on signal generator to maximum allowed by amplifier input. Establish a reference level by decreasing the attenuation level unit the signal can be detected by the screen room wall between them. Reduce attenuation further until signal is again seen at the same level as without shielding.
  • Page 39 www.ets-lindgren.com 6505 Shielding Effectiveness Test Kit...
  • Page 40: Shielding Effectiveness Measurements For Magnetic Field

    Shielding Effectiveness Measurements for Magnetic Field Frequency MSA 65-5 Approximate Maximum Minimum Wattage Shielding Attenuation for Required to (Magnetic Field) Magnetic Field meet MSA 65-6 that can be attenuation measured with specifications this setup Band 1 1 kHz 20 dB <...
  • Page 41 Frequency MSA 65-5 Approximate Maximum Minimum Wattage Shielding Attenuation for Required to (Magnetic Field) Magnetic Field meet MSA 65-6 that can be attenuation measured with specifications this setup Band 3 1000 Band 4 1 MHz www.ets-lindgren.com 6505 Shielding Effectiveness Test Kit...
  • Page 42 This page intentionally left blank. 6505 Shielding Effectiveness Test Kit www.ets-lindgren.com...
  • Page 43: Appendix B: Ec Declaration Of Conformity

    Appendix B: EC Declaration of Conformity Model 6502 www.ets-lindgren.com EC Declaration of Conformity...
  • Page 44: Model 6507

    Model 6507 EC Declaration of Conformity www.ets-lindgren.com...
