- Page 1 Model 3159C High-Power Biconical Antenna User Manual...
- Page 2 ETS-Lindgren Inc. reserves the right to make changes to any products herein to improve functioning or design. Although the information in this document has been carefully reviewed and is believed to be reliable, ETS-Lindgren does not assume any liability arising out of the application or use of any product or circuit described herein;...
-
Page 3: Table Of Contents
Table of Contents Notes, Cautions, and Warnings ..........v 1.0 Introduction ................7 ETS-Lindgren Product Information Bulletin ........... 8 2.0 Maintenance ................. 9 Annual Calibration ..................9 Service Procedures ..................9 3.0 Specifications ..............11 ... - Page 4 This page intentionally left blank.
-
Page 5: Notes, Cautions, And Warnings
Notes, Cautions, and Warnings Note: Denotes helpful information intended to provide tips for better use of the product. Caution: Denotes a hazard. Failure to follow instructions could result in minor personal injury and/or property damage. Included text gives proper procedures. Warning: Denotes a hazard. - Page 6 This page intentionally left blank.
-
Page 7: Introduction

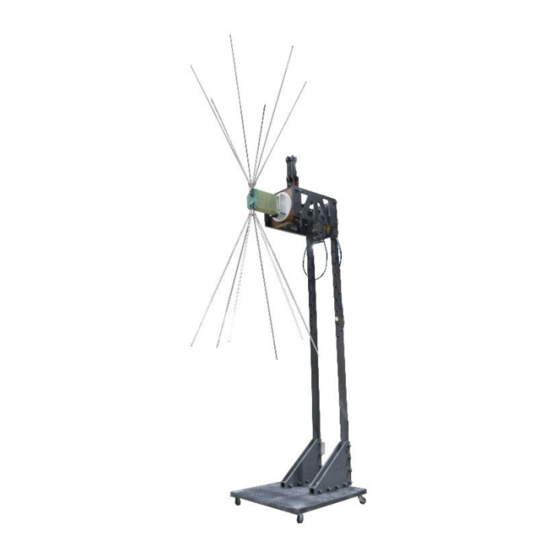

1.0 Introduction The ETS-Lindgren Model 3159C High-Power Biconical Antenna is a broadband, linearly polarized biconical antenna with a 20 MHz to 100 MHz frequency range. This antenna exhibits a wide beamwidth and is designed to handle up to 10 kW input power for generating high electric field strength over a large uniform area. -
Page 8: Ets-Lindgren Product Information Bulletin
Unlike the top hat, capacitive-loaded, log periodic dipole antenna normally used in this frequency range, the phase center/source distance is the same for low and high frequencies. This ensures high field strength at frequencies as low as 20 MHz. The design of the Model 3159C takes advantage of the wide beamwidth feature of a biconical antenna. -
Page 9: Maintenance
2.0 Maintenance Before performing any maintenance, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. Maintenance of the Model 3159C is WARRANTY limited to external components such as cables or connectors. If you have any questions concerning maintenance, contact ETS-Lindgren Customer Service. - Page 10 This page intentionally left blank. Maintenance...
-
Page 11: Specifications
3.0 Specifications Electrical Specifications Frequency: 20 MHz–100 MHz Ω Input Impedance: Typical—2:1 VSWR: Maximum—4:1 Average RF Input Power: 10 kW Maximum RF Input Power: 15 kW RF Connector: 1 5/8 in EIA flange Physical Specifications 3159C A ODEL NTENNA Length: 5.4 m (17.7 ft) -
Page 12: Model 3159C Pedestal
3159C P ODEL EDESTAL Length: 4.47 m (14.7 ft) Width: 160 cm (63 in) Total height with antenna: 6.52 m (21.42 ft) Weight (without antenna): 272.16 kg (600 lbs) Air Pressure Required: 80–120 PSI ERRITE LOOR Length: 130 cm (51.18 in) Width: 150.01 cm (59.06 in) 100 mm x 100 mm x 6.7 mm... -
Page 13: Mounting Instructions
4.0 Mounting Instructions Before connecting any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. Do not cross thread connections or permanent damage could occur. Mounting the Balun Unit Due to the size of the Model 3159C biconical elements, you must mount the balun unit onto the pedestal prior to attaching the elements. -
Page 14: Mounting The Biconical Elements
Mounting the Biconical Elements 1. Once the balun Insert element unit is securely into balun socket connected to the boom, align the threads on one of the biconical elements with the receptacle on the end of the balun, and then turn the biconical element until it is Tighten bolt to... -
Page 15: Adjusting The Tube Extensions
Adjusting the Tube Extensions Each side has a main tube with two (2) screw on extensions. To add and adjust the extensions, screw them onto the elements. To remove the extensions, unscrew them from the elements. Element Extensions Mounting Instructions... - Page 16 This page intentionally left blank. Mounting Instructions...
-
Page 17: Operation
5.0 Operation Before connecting any components or operating the Model 3159C, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. The Model 3159C High-Power Biconical Antenna has a 4:1 Guanella balun for matching the impedance to the amplifier. The balun maintains a low operating temperature due to the efficient radiation pattern and high power design. -
Page 18: Calibration Data
Calibration Data YPICAL NTENNA ACTOR AT 3.5M ALCULATED ORWARD OWER AT A calculation was used to derive the forward power data once the six-meter calibration was complete. The following equation was used to determine the power required to generate the desired field strength at a given distance when antenna factors are known: ��... -
Page 19: Vswr
VSWR VSWR taken August 2017 Operation...
