Summary of Contents for ESCO Technologies ETS-Lindgren 3109
Page 1

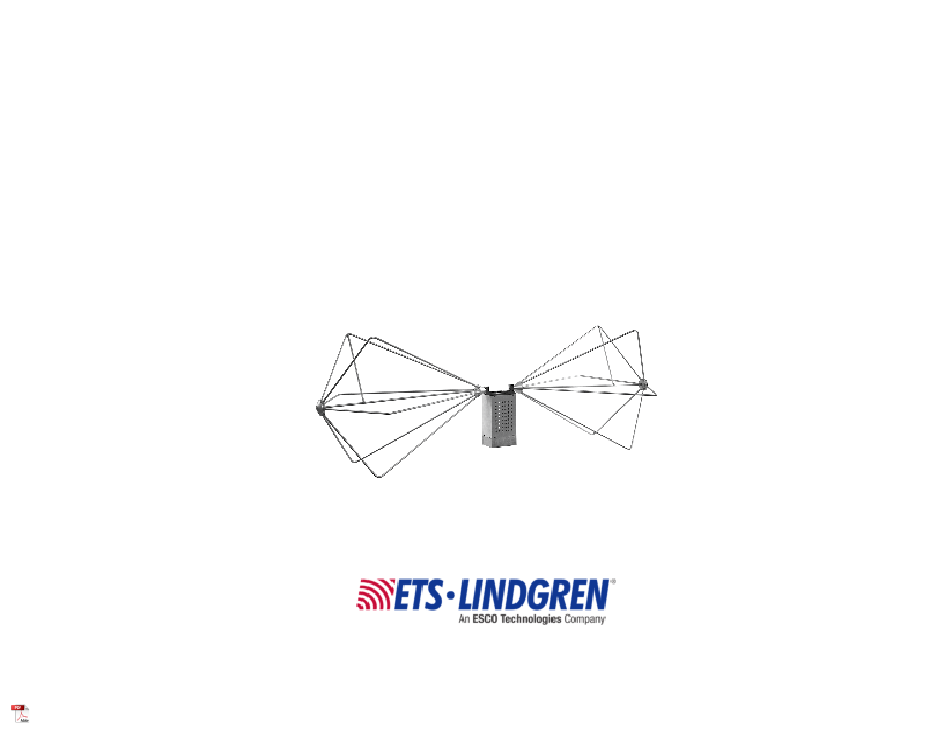

Model 3109 Biconical Antenna User Manual...
Page 2
ETS-Lindgren Inc. reserves the right to make changes to any products herein to improve functioning or design. Although the information in this document has been carefully reviewed and is believed to be reliable, ETS-Lindgren does not assume any liability arising out of the application or use of any product or circuit described herein;...
Table of Contents Notes, Cautions, and Warnings ..........v 1.0 Introduction ................7 Application ..................... 8 Optional Items ....................8 Portable Elements ................. 8 Extended Portable Elements ..............8 DIN Connector ..................9 ...
Page 4
Model 3109 Antenna Factor ..............25 Model 3109 Gain ................. 26 Model 3109 VSWR ................27 Model 3109 Half-Power Beamwidth ............ 28 Model 3109 Forward Power @ 1 M–Derived from AF ......29 Model 3109 Forward Power @ 3 M–Derived from AF ......30 Model 3109 Forward Power @ 3 M–Measured over ...
Notes, Cautions, and Warnings Note: Denotes helpful information intended to provide tips for better use of the product. Caution: Denotes a hazard. Failure to follow instructions could result in minor personal injury and/or property damage. Included text gives proper procedures. Warning: Denotes a hazard.
Page 6
This page intentionally left blank. ets-lindgren.com...
1.0 Introduction The ETS-Lindgren Model 3109 Biconical Antenna is designed to operate over the 20 MHz to 300 MHz frequency range for generating high levels of electromagnetic (EM) fields. The ability to handle high power levels over a broadband makes the Model 3109 excellent for use in radiated susceptibility testing.
Application The Model 3109 provides a broad frequency and a high input power, making it ideal for IEC 61000-4-3 testing. The antenna uses a modified Guanella balun for impedance transformation and matching, and it is constructed of much heavier materials so that maximum continuous input power can reach 2 kW. While this antenna typically has a high VSWR at frequencies below 70 MHz, it is still capable of generating high field strength with acceptable input power in this region of the band.
DIN C ONNECTOR The standard connector for the Model 3109 is a Type N. As an alternative, the Model 3109 may be ordered with a 7/16 DIN connector. Type N Connector (Standard) 7/16 DIN Connector (Optional) ARRYING ASES Carrying cases for biconical antennas and portable elements are available. Contact ETS-Lindgren for ordering information.
RIPOD PTIONS ETS-Lindgren offers the following non-metallic, non-reflective tripods for use at both indoor and outdoor EMC test sites. Contact ETS-Lindgren for ordering information. 4-TR Tripod—Constructed of linen phenolic and Delrin®, designed with an adjustable center post for precise height adjustments.
ETS-Lindgren Product Information Bulletin See the ETS-Lindgren Product Information Bulletin included with your shipment for the following: Safety, regulatory, and other product marking information Steps to receive your shipment Steps to return a component for service ETS-Lindgren calibration service ...
Page 12
This page intentionally left blank. Error! No text of specified style in ets-lindgren.com document.
2.0 Maintenance CAUTION: Before performing any maintenance, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. WARNING: Maintenance of the Model 3109 is limited to external components such as cables or connectors. If you have any questions concerning WARRANTY maintenance, contact ETS-Lindgren Customer Service.
Service Procedures ETS-L ONTACTING INDGREN Note: Please see www.ets-lindgren.com for a list of ETS-Lindgren offices, including phone and email contact information. ENDING A OMPONENT FOR ERVICE For the steps to return a system or system component to ETS-Lindgren for service, see the Product Information Bulletin included with your shipment. ALIBRATION ERVICES AND NNUAL...
3.0 Specifications Electrical Specifications Frequency Range: 20 MHz–300 MHz VSWR Ratio (Average): 1.9:1 Maximum Continuous Power: 1 kW (N) 1.5 kW (7/16 DIN) Peak Power: 2 kW 50 Ω Impedance (Nominal): Connector: Standard: Type N female Optional: 7/16 DIN (must be specified at time of purchase) Error! No text of specified style in ets-lindgren.com...
Physical Specifications 3109 ODEL Note: One element is shown for illustrative purposes only; all specifications are based on the balun plus both elements. Width (includes elements and balun): 131.1 cm (51.6 in) Diameter: 51.1 cm (20.1 in) Weight (includes elements and balun): 2.6 kg (5.8 lb) Error! No text of specified style in ets-lindgren.com...
3109 W ODEL ORTABLE LEMENTS Note: One element is shown for illustrative purposes only; all specifications are based on the balun plus both elements. Width (includes elements and balun): 120.9 cm (47.6 in) Diameter: 64.1 cm (25.3 in) Weight (includes elements and balun): 2.4 kg (5.4 lb) Error! No text of specified style in ets-lindgren.com...
3109 W ODEL XTENDED ORTABLE LEMENTS Note: One element is shown for illustrative purposes only; all specifications are based on the balun plus both elements. Width (includes elements and balun): 223.0 cm (87.8 in) Diameter: 123.3 cm (48.6 in) Weight (includes elements and balun): 3.1 kg (6.8 lb) Error! No text of specified style in ets-lindgren.com...
4.0 Assembly Instructions CAUTION: Before connecting any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. The Model 3109 Biconical Antenna is shipped unassembled, and includes these parts: Balun Biconical element (2) ...
Page 20
To assemble the Model 3109: Slide a belleville washer onto the threaded screw end of one of the biconical elements. Line up the screw threads with the receptacle hole on the balun and turn the biconical element until it is firmly secured in the balun. Caution: Do not cross thread this connection or permanent damage to the joint could occur.
5.0 Mounting Instructions CAUTION: Before connecting any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. Caution: The Model 3109 is a precision measurement device. Handle with care. Using Included Mounting Connectors The Model 3109 Biconical Antenna balun includes two 1/4–20 thread connectors for mounting;...
Additional Mounting Options 4-TR M OUNTING PTIONS Following are additional options for mounting the Model 3109 onto an ETS-Lindgren 4-TR Tripod. Contact the ETS-Lindgren Sales Department for information on ordering optional mounting hardware. Error! No text of specified style in ets-lindgren.com document.
7-TR OUNTING PTIONS Following are options for mounting the Model 3109 onto an ETS-Lindgren 7-TR Tripod or mast. Contact the ETS-Lindgren Sales Department for information on ordering optional mounting hardware. Note: Mast refers to 2070 Series, 2075, and 2175 Antenna Towers. 7-TR refers to these booms: ...
OUNTING PTIONS Following are additional options for mounting the Model 3109 onto a 2x2 boom. Contact the ETS-Lindgren Sales Department for information on ordering optional mounting hardware. Note: 2x2 boom refers to a typical 2-inch by 2-inch boom. Error! No text of specified style in ets-lindgren.com document.
