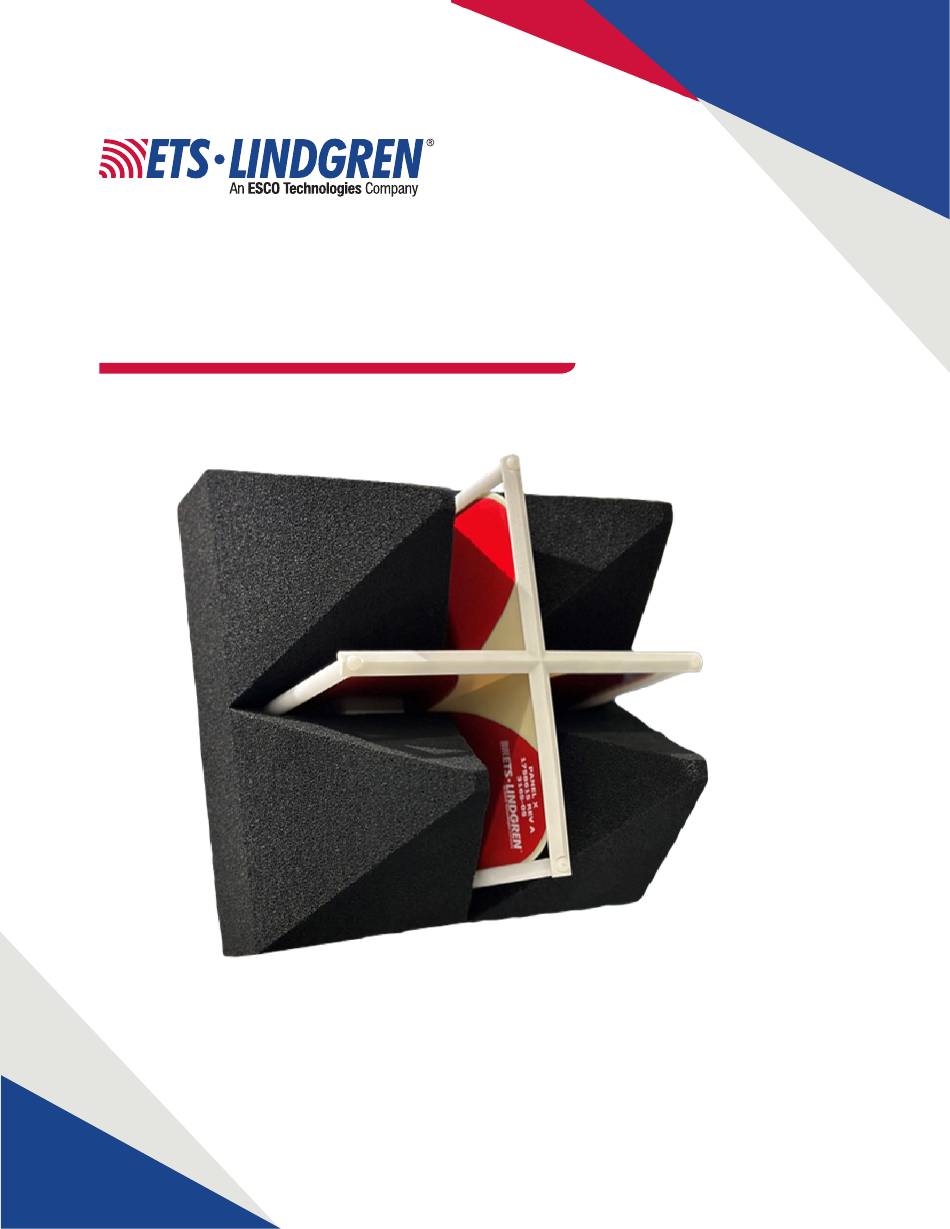

- Page 1 Dual-Polarized Dual-Vivaldi Array Antenna 3165 Series Antenna User Manual 399322 Rev E May, 2023 ets-lindgren.com...
- Page 2 ETS-Lindgren Inc. reserves the right to make changes to any products herein to improve functioning or design. Although the information in this document has been carefully reviewed and is believed to be reliable, ETS-Lindgren does not assume any liability arising out of the application or use of any product or circuit described herein;...
-
Page 3: Table Of Contents
TABLE OF CONTENT NOTES, CAUTIONS, AND WARNINGS INTRODUCTION Product Introduction .............................. 6 Model 3165-01..............................6 Model 3165-04..............................6 Model 3165-05..............................6 Mounting Options ..............................7 MG Series ................................ 7 SQ Series ................................. 7 RD Series ................................. 7 ETS-Lindgren Product Information Bulletin ......................7 Maintenance Annual Calibration .............................. - Page 4 3165-04 at 1500 MHz and 2000MHz ......................14 3165-04 at 2500 MHz and 3000MHz ......................15 3165-04 at 3500 MHz and 4000MHz ......................15 3165-04 at 4500 MHz and 5000MHz ......................16 3165-04 at 5500 MHz and 6000MHz ......................16 3165-04 at 6500 MHz and 7000MHz ......................
-
Page 5: Notes, Cautions, And Warnings
NOTES, CAUTIONS, AND WARNINGS Note: Denotes helpful information intended to provide tips for better use of the product. CAUTION: Denotes a hazard. Failure to follow instructions could result in minor personal injury and/or property damage. Included text gives proper procedures. WARNING: Denotes a hazard. -
Page 6: Introduction
1.0 INTRODUCTION Product Introduction The ETS-Lindgren 3165 Series Absorber Nested Dual Polarized Dual Vivaldi Array Antenna is designed for applications that require minimum effect from the source antenna, such as in chambers where the Device Under Test (DUT) is illuminated from different directions. Each antenna in the 3165 Series is dual-linearly polarized and capable of simultaneously measuring two orthogonal components in the field. -
Page 7: Mounting Options
Mounting Options Following are the mounting options available for the 3165-01/3165-04/3165-05; for more information on mounting, contact ETS-Lindgren Technical Support. MG Series The MG Series allows you to magnetically attach the 3165-01-RD 3165-04-MG antenna to a positioning system, existing bracket, or shielding. -
Page 8: Maintenance
2.0 Maintenance Before performing any maintenance, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. Maintenance of the 3165-01, 3165-04, and 3165-05 is limited to external components such as cables or connectors. If you have any questions concerning maintenance, contact ETS-Lindgren Technical Support. -
Page 9: Specifications
3.0 Specifications Electrical Specifications Model 3165-01 Model 3165-04 Model 3165-05 Frequency Range: 700 MHz–6 GHz 600 MHz-10 GHz 400 MHz to 7.2 GHz Cross Polarization Isolation: >25 dB Maximum Continuous Power: 5 Watts Impedance (Nominal): 50 Ω Connectors: SMA female (2) Physical Specifications 3165-01 Series Antennas with Absorber Length:... -
Page 10: 3165-01 Typical Data
4.0 3165-01 Typical Data 3165-01 Typical Gain 3165-01 Typical VSWR... -
Page 11: 3165-01 Typical Cross-Port Isolation
3165-01 Typical Cross-Port Isolation... -
Page 12: 3165-01Typical Radiation Patterns
3165-01Typical Radiation Patterns 3165-01 Typical E-Plane 3165-01 Typical H-Plane... -
Page 13: 3165-04 Typical Data
5.0 3165-04 Typical Data 3165-04 Typical Gain 3165-04 Typical VSWR... -
Page 14: 3165-04 Typical Radiation Patterns
3165-04 Typical Radiation Patterns 3165-04 at 600 MHz and 1000MHz 3165-04 at 1500 MHz and 2000MHz... -
Page 15: 3165-04 At 2500 Mhz And 3000Mhz
3165-04 at 2500 MHz and 3000MHz 3165-04 at 3500 MHz and 4000MHz... -
Page 16: 3165-04 At 4500 Mhz And 5000Mhz
3165-04 at 4500 MHz and 5000MHz 3165-04 at 5500 MHz and 6000MHz... -
Page 17: 3165-04 At 6500 Mhz And 7000Mhz
3165-04 at 6500 MHz and 7000MHz 3165-04 at 7500 MHz and 8000MHz... -
Page 18: 3165-04 At 8500 Mhz And 9000Mhz
3165-04 at 8500 MHz and 9000MHz 3165-04 at 9500 MHz and 10000MHz... -
Page 19: 3165-05 Typical Data
6.0 3165-05 Typical Data 3165-05 Typical Gain 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 Frequency (MHz) Panel X Panel Y 3165-05 Typical VSWR 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 Frequency (MHz) Panel X Panel Y... -
Page 20: 3165-05 Cross Pol
3165-05 Cross Pol 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 Frequency (MHz) Panel X Cross Pol Panel Y Cross Pol 3165-05 Port Isolation 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 Frequency (MHz) -
Page 21: 3165-05 Half Power Beamwidth
3165-05 Half Power Beamwidth 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 Frequency (MHz) E Plane BW Port X (deg) H Plane BW Port X (deg) E Plane BW Port Y (deg) H Plane BW Port Y (deg) -
Page 22: 3165-05 Typical Radiation Patterns
Horizontal Log Magnitude Data Set 1 Data Set 2 3165-05 Typical Radiation Patterns 0.4 GHz E-Plane H-Plane Horizontal Log Magnitude Data Set 1 Data Set 2 E Plane H Plane 1 GHz E-Plane H-Plane Max: 3 Min: -24 Scale: 3/div Angle (°) E Plane H Plane... -
Page 23: Ghz E-Plane H-Plane
Data Set 1 Data Set 2 2 GHz E-Plane H-Plane Horizontal Log Magnitude Data Set 1 Data Set 2 E Plane H Plane 3 GHz E-Plane H-Plane Max: 3 Min: -30 Scale: 3/div Angle (°) E Plane H Plane Max: 3 Min: -30 Scale: 3/div Angle (°) -
Page 24: Ghz E-Plane H-Plane
Data Set 1 Data Set 2 4 GHz E-Plane H-Plane Horizontal Log Magnitude Data Set 1 Data Set 2 E Plane H Plane 5 GHz E-Plane H-Plane Max: 3 Min: -30 Scale: 3/div Angle (°) E Plane H Plane Max: 3 Min: -30 Scale: 3/div Angle (°) -
Page 25: Ghz E-Plane H-Plane
Data Set 1 Data Set 2 6 GHz E-Plane H-Plane Horizontal Log Magnitude Data Set 1 Data Set 2 E Plane H Plane 7 GHz E-Plane H-Plane Max: 3 Min: -30 Scale: 3/div Angle (°) E Plane H Plane Max: 3 Min: -30 Scale: 3/div Angle (°) -
Page 26: Ghz E-Plane H-Plane
Data Set 1 Data Set 2 8 GHz E-Plane H-Plane Horizontal Log Magnitude Data Set 1 Data Set 2 E Plane H Plane 9 GHz E-Plane H-Plane Max: 3 Min: -30 Scale: 3/div Angle (°) E Plane H Plane Max: 3 Min: -30 Scale: 3/div Angle (°) -
Page 27: 10 Ghz E-Plane H-Plane
Data Set 1 Data Set 2 10 GHz E-Plane H-Plane Horizontal Log Magnitude Data Set 1 Data Set 2 E Plane H Plane 10.6 GHz E-Plane H-Plane Max: 3 Min: -30 Scale: 3/div Angle (°) E Plane H Plane Max: 3 Min: -30 Scale: 3/div...
