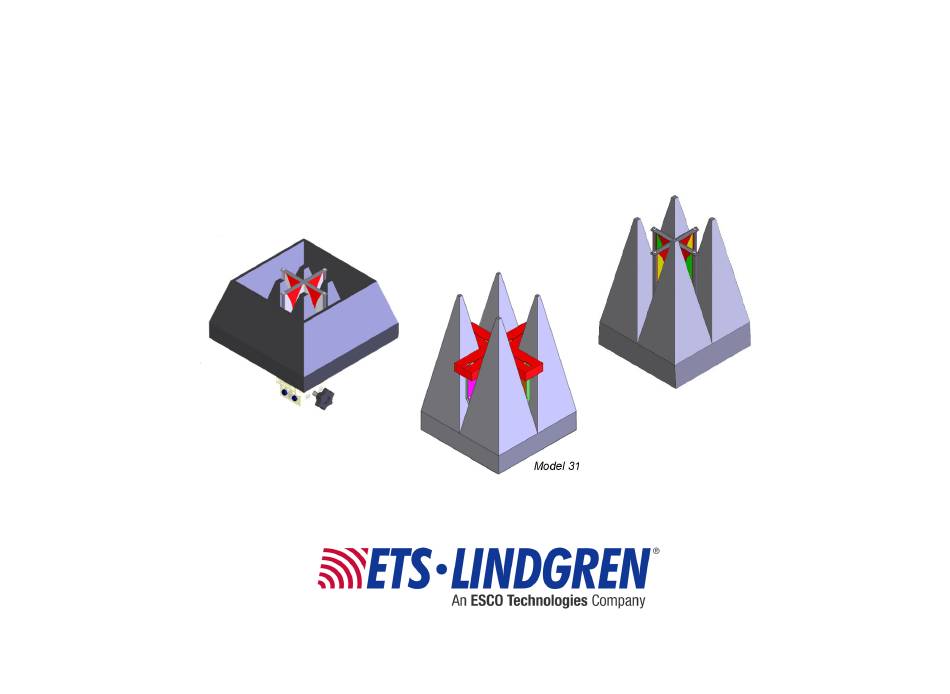

- Page 1 Models 3165-01, 3165-02, 3165-04 Dual-Polarized Dual-Vivaldi Array Antenna User Manual Model 3165-04 Model 3165-01-SQ Model 3165-02-MG...
- Page 2 ETS-Lindgren Inc. reserves the right to make changes to any product described herein in order to improve function, design, or for any other reason. Nothing contained herein shall constitute ETS-Lindgren Inc. assuming any liability whatsoever arising out of the application or use of any product or circuit described herein.
-
Page 3: Table Of Contents
Table of Contents Notes, Cautions, and Warnings ..........v 1.0 Introduction ................7 Model 3165-01 ....................8 Model 3165-02 ....................8 Model 3165-04 ....................8 Mounting Options ................... 9 3165-01-MG / 3165-02-MG ..............9 ... - Page 4 3165-02 Typical Radiation Patterns ............. 27 3165-02 at 400 MHz and 500MHz ............27 3165-02 at 600 MHz and 700 MHz ............28 3165-02 at 800 MHz and 900 MHz ............29 3165-02 at 1000 MHz and 1250 MHz ..........30 ...
-
Page 5: Notes, Cautions, And Warnings
Notes, Cautions, and Warnings Note: Denotes helpful information intended to provide tips for better use of the product. Caution: Denotes a hazard. Failure to follow instructions could result in minor personal injury and/or property damage. Included text gives proper procedures. Warning: Denotes a hazard. - Page 6 This page intentionally left blank. www.ets-lindgren.com...
-
Page 7: Introduction
1.0 Introduction The ETS-Lindgren 3165 Series Absorber Nested Dual-Polarized Dual-Vivaldi Array Antenna is designed for applications that require minimum effect from the source antenna, such as in chambers where the Equipment Under Test (EUT) is illuminated from different directions. Model 3165-01-SQ Each antenna in the 3165 Series is dual-linearly polarized and capable of simultaneously measuring two orthogonal components in the field. -
Page 8: Model 3165-01
Model 3165-01 The Model 3165-01 has a frequency range of 700 MHz to 6 GHz, which covers most cell phone, Wi-Fi, WiMAX™, and GPS bands. It is designed to be nested in the anechoic absorber lining of a chamber, and when installed in this configuration, will exhibit very low reflectivity, even when the input ports are mismatched. -
Page 9: Mounting Options
Mounting Options Following are the mounting options available for the 3165-01/3165-02/3165-04; for more information on mounting, contact ETS-Lindgren Sales. 3165-01-MG / 3165-02-MG/3165-04 The MG Series allows you to magnetically attach the antenna to a positioning system, existing bracket, or shielding. 3165-02-MG 3165-01-MG 3165-04... -
Page 10: 3165-01-Sq / 3165-02-Sq
3165-01-SQ / 3165-02-SQ The SQ Series includes brackets that allow you to manually adjust the pan and tilt of the antenna. These brackets mount to a 50-mm square tube. 3165-02-SQ 3165-01-SQ 3165-01-RD / 3165-02-RD The RD Series includes a fixture that allows you to manually adjust the pan and tilt of the antenna. -
Page 11: Ets-Lindgren Product Information Bulletin
ETS-Lindgren Product Information Bulletin See the ETS-Lindgren Product Information Bulletin included with your shipment for the following: Safety, regulatory, and other product marking information Steps to receive your shipment Steps to return a component for service ETS-Lindgren calibration service ... - Page 12 This page intentionally left blank. Introduction www.ets-lindgren.com...
-
Page 13: Maintenance
2.0 Maintenance Before performing any maintenance, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. Maintenance of the 3165-01/3165-02 is WARRANTY limited to external components such as cables or connectors. If you have any questions concerning maintenance, contact ETS-Lindgren Customer Service. -
Page 14: Replacement And Optional Parts
Replacement and Optional Parts ETS-Lindgren may substitute a similar part or new part number with the same functionality for another part/part number. Contact ETS-Lindgren for questions about part numbers and ordering parts. Following are the part numbers for ordering replacement or optional parts for the 3165 Series Absorber Nested Dual-Polarized Dual-Vivaldi Array Antenna. -
Page 15: Specifications
3.0 Specifications Electrical Specifications Model 3165-01 Model 3165-02 Model 3165-04 Frequency 700 MHz–6 GHz 400 MHz–7 GHz 700 MHz-10 GHz Range: Cross Polarization >25 dB Isolation: Maximum Continuous 5 Watts Power: Impedance 50 Ω (Nominal): Connectors: SMA female (2) Physical Specifications 3165-01 S ERIES 3165-01-MG... -
Page 16: 3165-02 Series
3165-02 S ERIES 3165-02-SQ 3165-02-RD (with absorber (with absorber 3165-02-MG and mounting and mounting bracket) bracket) LENGTH No Absorber: 25 cm (9.8 in) 58 cm (22.8 in) 66 cm (26 in) With Absorber: 42 cm (18.5 in) HEIGHT No Absorber: 24 cm (9.4 in) 27 cm (10.6 in) 27 cm (10.6 in) -
Page 17: 3165-04 Series
3165-04 S ERIES 3165-04 (with absorber 3165-04 and mounting bracket) LENGTH No Absorber: 17.1 cm (6.75 in) 21.3 cm (8.4 in) With Absorber: 27.2 cm (10.72 in) HEIGHT No Absorber: 26.5 cm (10.45 in) 31.2 cm (12.25 in) With Absorber: 40.6 cm (16.0 in) WIDTH: No Absorber:... -
Page 18: 3165-01 Typical Data
4.0 3165-01 Typical Data 3165-01 Typical Gain 3165-01 Typical Data www.ets-lindgren.com... -
Page 19: 3165-01 Typical Vswr
3165-01 Typical VSWR www.ets-lindgren.com 3165-01 Typical Data... -
Page 20: 3165-01 Typical Cross-Port Isolation
3165-01 Typical Cross-Port Isolation 3165-01 Typical Data www.ets-lindgren.com... -
Page 21: 3165-01 Typical Reflectivity
3165-01 Typical Reflectivity www.ets-lindgren.com 3165-01 Typical Data... -
Page 22: 3165-01 Typical E-Plane
3165-01 Typical E-Plane 3165-01 Typical Data www.ets-lindgren.com... -
Page 23: 3165-01 Typical H-Plane
3165-01 Typical H-Plane www.ets-lindgren.com 3165-01 Typical Data... -
Page 24: 3165-02 Typical Data
5.0 3165-02 Typical Data 3165-02 Typical Gain 3165-02 Typical Data www.ets-lindgren.com... -
Page 25: 3165-02 Typical Vswr
3165-02 Typical VSWR www.ets-lindgren.com 3165-02 Typical Data... -
Page 26: 3165-02 Typical Cross-Port Isolation
3165-02 Typical Cross-Port Isolation 3165-02 Typical Data www.ets-lindgren.com... -
Page 27: 3165-02 Typical Radiation Patterns
3165-02 Typical Radiation Patterns 3165-02 400 MH 500MH Z AND www.ets-lindgren.com 3165-02 Typical Data... -
Page 28: 3165-02 At 600 Mhz And 700 Mhz
3165-02 600 MH 700 MH Z AND 3165-02 Typical Data www.ets-lindgren.com... -
Page 29: 3165-02 At 800 Mhz And 900 Mhz
3165-02 800 MH 900 MH Z AND www.ets-lindgren.com 3165-02 Typical Data... -
Page 30: 3165-02 At 1000 Mhz And 1250 Mhz
3165-02 1000 MH 1250 MH Z AND 3165-02 Typical Data www.ets-lindgren.com... -
Page 31: 3165-02 At 1500 Mhz And 1750 Mhz
3165-02 1500 MH 1750 MH Z AND www.ets-lindgren.com 3165-02 Typical Data... -
Page 32: 3165-02 At 2000 Mhz And 2500 Mhz
3165-02 2000 MH 2500 MH Z AND 3165-02 Typical Data www.ets-lindgren.com... -
Page 33: 3165-02 At 3000 Mhz And 3500 Mhz
3165-02 3000 MH 3500 MH Z AND www.ets-lindgren.com 3165-02 Typical Data... -
Page 34: 3165-02 At 4000 Mhz And 4500 Mhz
3165-02 4000 MH 4500 MH Z AND 3165-02 Typical Data www.ets-lindgren.com... -
Page 35: 3165-02 At 5000 Mhz And 6000 Mhz
3165-02 5000 MH 6000 MH Z AND www.ets-lindgren.com 3165-02 Typical Data... -
Page 36: 3165-04 Typical Data
6.0 3165-04 Typical Data 3165-04 Typical Gain 3165-04 Typical Data www.ets-lindgren.com... -
Page 37: 3165-04 Typical Vswr
3165-04 Typical VSWR www.ets-lindgren.com 3165-04 Typical Data... -
Page 38: 3165-04 Cross Pol
3165-04 Cross Pol 3165-04 Typical Data www.ets-lindgren.com... -
Page 39: 3165-04 Typical Radiation Patterns
3165-04 Typical Radiation Patterns 3165-04 600 MH 1000MH Z AND www.ets-lindgren.com 3165-04 Typical Data... -
Page 40: 3165-04 At 1500 Mhz And 2000Mhz
3165-04 1500 MH 2000MH Z AND 3165-04 Typical Data www.ets-lindgren.com... -
Page 41: 3165-04 At 2500 Mhz And 3000Mhz
3165-04 2500 MH 3000MH Z AND www.ets-lindgren.com 3165-04 Typical Data... -
Page 42: 3165-04 At 3500 Mhz And 4000Mhz
3165-04 3500 MH 4000MH Z AND 3165-04 Typical Data www.ets-lindgren.com... -
Page 43: 3165-04 At 4500 Mhz And 5000Mhz
3165-04 4500 MH 5000MH Z AND www.ets-lindgren.com 3165-04 Typical Data... -
Page 44: 3165-04 At 5500 Mhz And 6000Mhz
3165-04 5500 MH 6000MH Z AND 3165-04 Typical Data www.ets-lindgren.com... -
Page 45: 3165-04 At 6500 Mhz And 7000Mhz
3165-04 6500 MH 7000MH Z AND www.ets-lindgren.com 3165-04 Typical Data... -
Page 46: 3165-04 At 7500 Mhz And 8000Mhz
3165-04 7500 MH 8000MH Z AND 3165-04 Typical Data www.ets-lindgren.com... -
Page 47: 3165-04 At 8500 Mhz And 9000Mhz
3165-04 8500 MH 9000MH Z AND www.ets-lindgren.com 3165-04 Typical Data... -
Page 48: 3165-04 At 9500 Mhz And 10000Mhz
3165-04 9500 MH 10000MH Z AND 3165-04 Typical Data www.ets-lindgren.com...
