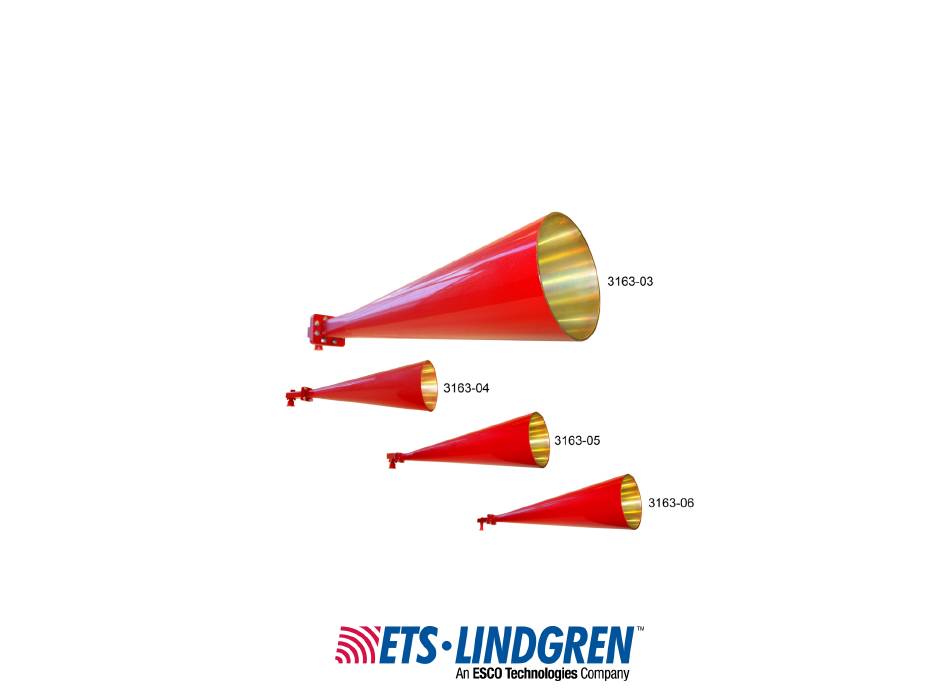

- Page 1 Model 3163 Series High Gain Conical Horn Antenna User Manual...
- Page 2 ETS-Lindgren L.P. reserves the right to make changes to any product described herein in order to improve function, design, or for any other reason. Nothing contained herein shall constitute ETS-Lindgren L.P. assuming any liability whatsoever arising out of the application or use of any product or circuit described herein.
-
Page 3: Table Of Contents
Table of Contents Notes, Cautions, and Warnings ..........v 1.0 Introduction ................7 Model 3163-03 ....................7 Model 3163-04 ....................7 Model 3163-05 ....................7 Model 3163-06 ....................7 Tripod Options ....................8 ... - Page 4 This page intentionally left blank.
-
Page 5: Notes, Cautions, And Warnings
Notes, Cautions, and Warnings Note: Denotes helpful information intended to provide tips for better use of the product. Caution: Denotes a hazard. Failure to follow instructions could result in minor personal injury and/or property damage. Included text gives proper procedures. Warning: Denotes a hazard. - Page 6 This page intentionally left blank.
-
Page 7: Introduction
1.0 Introduction The ETS-Lindgren Model 3163 Series High Gain Conical Horns include these antennas: Model 3163-03 • C Band • 4 GHz to 8 GHz Model 3163-04 • X Band • 8 GHz to 12 GHz Model 3163-05 • Ku Band •... -
Page 8: Tripod Options
The Model 3163 Series exhibits high gain performance, with the 3163-03 C band horn having a gain of 16 dBi or higher across the range. The X band to K band horns exhibit gain increasing from 16.5 dBi to 25 dBi. The VSWR of the Model 3163 Series is low, with an average level of less than 1.5:1 for most of the range. -
Page 9: Ets-Lindgren Product Information Bulletin
• 7-TR Tripod—Constructed of PVC and fiberglass components, providing increased stability for physically large antennas. The unique design allows for quick assembly, disassembly, and convenient storage. Allows several different configurations, including options for manual or pneumatic polarization. Quick height adjustment and locking wheels provide ease of use during testing. - Page 10 This page intentionally left blank. Introduction...
-
Page 11: Maintenance
2.0 Maintenance Before performing any maintenance, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. Maintenance of the Model 3163 Series is WARRANTY limited to external components such as cables or connectors. If you have any questions concerning maintenance, contact ETS-Lindgren Customer Service. - Page 12 This page intentionally left blank. Maintenance...
-
Page 13: Specifications
3.0 Specifications Electrical Specifications 3163-03 3163-04 3163-05 3163-06 4 GHz to 8 GHz to 12 GHz to 18 GHz to Frequency 8 GHz 12 GHz 18 GHz 26.5 GHz Range: 3.2:1 Max 2.5:1 Max 2:1 Max 2:1 Max VSWR Ratio (Avg): 1.5:1 Avg 1.5:1 Avg... - Page 14 This page intentionally left blank. Specifications...
-
Page 15: Mounting Instructions
4.0 Mounting Instructions Before connecting any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. The Model 3163 Series antennas are precision measurement devices. Handle your antenna with care. Backplate Diagrams for Custom Mounts The backplate on each Model 3163 Series High Gain Conical Horn provides threaded holes for mounting directly into the feed section of a tapered chamber. -
Page 16: Model 3163-03
3163-03 ODEL Mounting Instructions... -
Page 17: Model 3163-04
3163-04 ODEL Mounting Instructions... -
Page 18: Model 3163-05
3163-05 ODEL Mounting Instructions... -
Page 19: Model 3163-06
3163-06 ODEL Mounting Instructions... -
Page 20: 4-Tr Mounting Options
4-TR Mounting Options The Model 3163 Series High Gain Conical Horns include a built-in 1/4–20 thread mount for connecting directly to an ETS-Lindgren 4-TR Tripod. No additional hardware is required. 7-TR and Mast Mounting Options In addition to the 1/4–20 thread mount attached to the Model 3163 Series, here is an additional option for mounting onto... -
Page 21: 2X2 Boom Mounting Options
2x2 Boom Mounting Options Following are additional options for mounting the Model 3163 Series onto a 2x2 boom. Contact the ETS-Lindgren Sales Department for information on ordering optional mounting hardware. Mounting Instructions... - Page 22 This page intentionally left blank. Mounting Instructions...
-
Page 23: Typical Data
5.0 Typical Data Typical Data... - Page 24 This page intentionally left blank. Typical Data...
-
Page 25: Appendix A: Warranty
Appendix A: Warranty See the Product Information Bulletin included with your shipment for the complete ETS-Lindgren warranty for your Model 3163 Series. 3163 S URATION OF ARRANTIES FOR ODEL ERIES All product warranties, except the warranty of title, and all remedies for warranty failures are limited to two years.
