This section contains check\ card reading procedures, the LED indicator states and cleaning
procedures.

CHECK READING PROCEDURE

1. Orient the check so the MICR line is down and the printed side faces the center of the
MDX as indicated in Figure 3-1. For more information about the MICR line refer to
Appendix A.
2. Place the check so the leading edge is in the open slot. Slide the check forward.
3. When the MDX detects the presence of the check, the motor will turn on. At this
time press the check forward until the unit grabs the check. When this happens,
release the check. The check will then be transported around the check path and will
exit through the other side.
4. After the check is read, the MDX will transmit the data as specified by the
parameters.
5. Remove the check.

SECTION 3. OPERATION

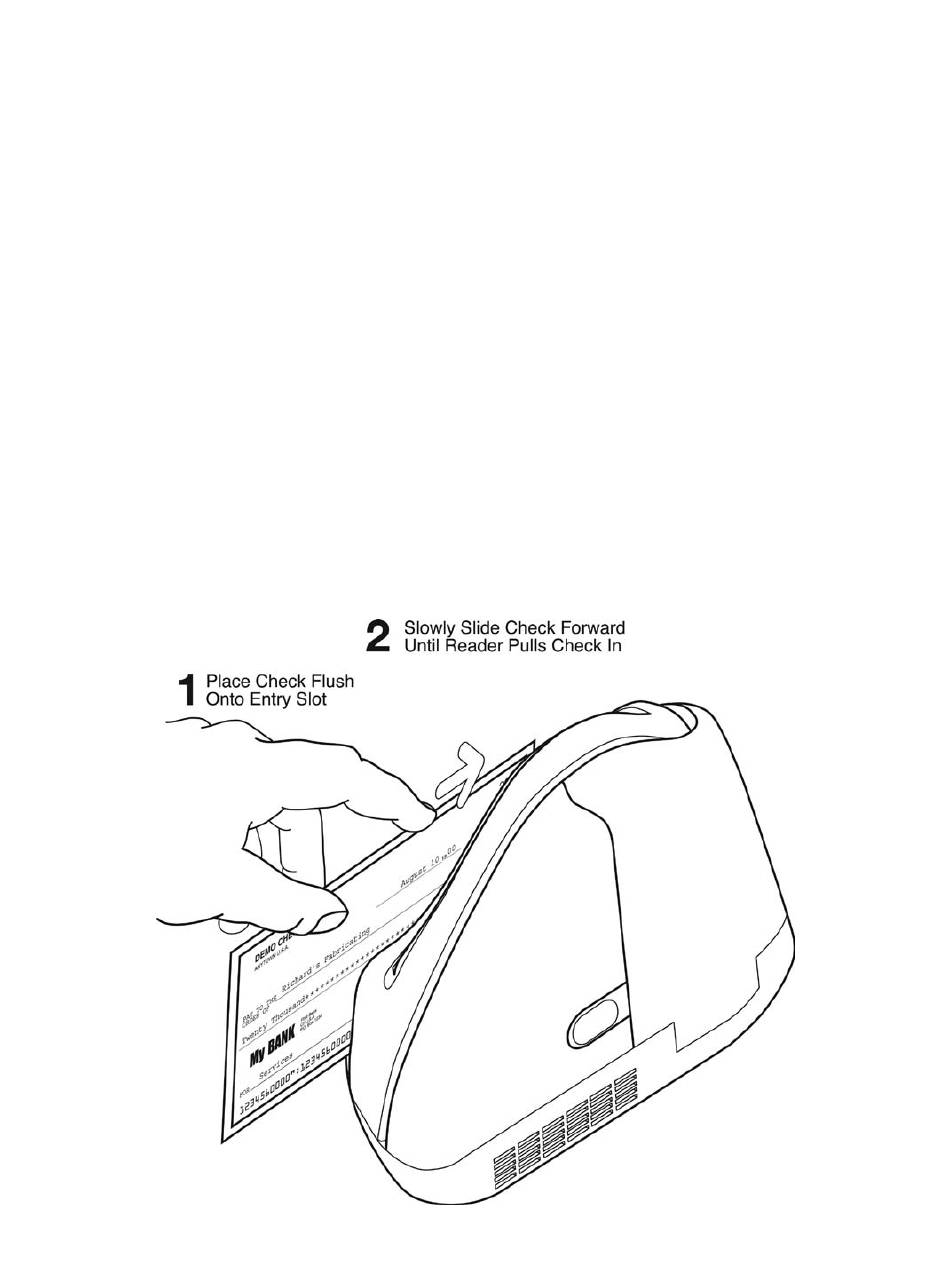

Figure 3-1. Check Orientation - Insertion
