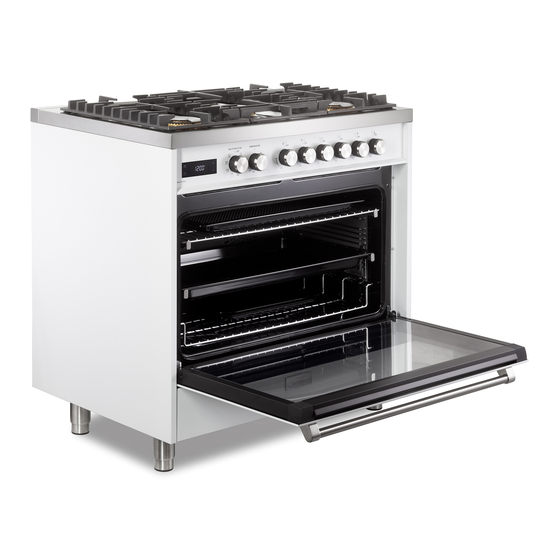

SINGLE OVEN DUAL FUEL RANGE
VUFSGE365.., VMFSGE365..
Models:
USERS OPERATING INSTRUCTIONS
IMPORTANT - PLEASE READ AND FOLLOW
•
Before beginning, please read these instructions completely and carefully.
•
Do not remove permanently affixed labels, warnings, or plates from the product. This may
void the warranty.
•
Please observe all local and national codes and ordinances.
•
Please ensure that this product is properly grounded.
The installer should leave these instructions with the consumer who should retain
•
for local inspector's use and for future reference.
IN CANADA: The electrical plug should always be accessible.
•
Installation must conform with local codes or in the absence of codes, the National Fuel Gas
Code ANSI Z223.1/NFPA 54 - Iatest edition. Electrical installation must be in accordance
with the National Electrical Code, ANSI/NFPA70 - latest edition and/or local codes. IN
CANADA: Installation must be in accordance with the current CAN/CGA-B149.1 National
Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code and/or local codes.
Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical
Codes Part 1 and/or local codes.
INSTALLATION IN MANUFACTURED (MOBILE) HOME: The installation must conform
with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280
[formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD
(Part 280)] or, when such standard is not applicable, the Standard for Manufactured Home
Installations, ANSI/NCSBCS A225.1, or with local codes where applicable.
INSTALLATION IN RECREATIONAL PARK TRAILERS: The installation must conform with
state or other codes or, in the absence of such codes, with the Standard for Recreational
Park Trailers, ANSI A119.5.
Installation of any gas-fired equipment should be made by a Iicensed plumber. A manual
shut-off valve must be installed in an accessible location in the gas line external to the
appliance for the purpose of turning on or shutting off gas to the appliance (In Massachusetts
such shutoff devices should be approved by the Board of State Examiners of Plumbers &
Gas Fitters).
If an external electrical source is utilized, the appliance, when installed, must be electrically
grounded in accordance with local codes or, in the absence of local codes, with the national
Electrical Code, ANSI/NFPA 70.
Some models are supplied with a protective film on steel and aluminum parts.
This film must be removed before installing/using the appliance.
THIS RANGE IS FOR RESIDENTIAL USE ONLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VUFSGE365 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Verona VUFSGE365 Series

Summary of Contents for Verona VUFSGE365 Series

  • Page 1 SINGLE OVEN DUAL FUEL RANGE VUFSGE365.., VMFSGE365.. Models: USERS OPERATING INSTRUCTIONS IMPORTANT - PLEASE READ AND FOLLOW • Before beginning, please read these instructions completely and carefully. • Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
  • Page 2 WARNING See installation instructions for details. Tip-Over Hazard A child or adult can tip the range and be killed. Check installation of anti-tip device per installation Anti-tip bracket instructions. Adjustable bracket Check engagement of anti-tip device if range assembly to be xed to the back of the range is moved per installation.
  • Page 3 Dear Customer, Thank you for having purchased and given your preference to our product. The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance. Please preserve this booklet carefully.

  • Page 4: General Information

    USER INSTRUCTIONS GENERAL INFORMATION WARNING!! WARNING!! ELECTRICAL GROUNDING INSTRUCTIONS This appliance shall not be used for space heating. This The range must be electrically grounded in accordance with information is based on safety considerations. local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA No.

  • Page 5: Important Precautions And Recommendations

    IMPORTANT PRECAUTIONS AND RECOMMENDATIONS After having unpacked the appliance, check to ensure that it is not damaged. In case of doubt, do not use it and consult your supplier or a professionally qualified technician. Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries.

  • Page 6: Cooking Hob

    features Backguard fitted 3” backguard Island trim Island trim fitted (level with cooktop) Fig. 1.1 COOKING HOB Semi-rapid burner (SR) - 8000 BTU/hr Double-ring compact burner (DCC) - 12000 BTU/hr Dual burner (DB) (*) - 17000 BTU/hr Inner crown - 2800 BTU/hr Outer crown - 14200 BTU/hr IMPORTANT: The Dual burner is controlled by two separate knobs;...

  • Page 7: Controls Description

    Fig. 1.2 CONTROLS DESCRIPTION Electronic clock/programmer “Touch-control” Multifunction oven switch knob Multifunction oven thermostat knob Front left burner control knob Rear left burner control knob Central dual burner control knob (inner crown) Central dual burner control knob (outer crown) Rear right burner control knob Front right burner control knob 10.
  • Page 8 how to use the top burners GAS BURNERS (Semi-rapid and double-ring compact) Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 2.1) which control the valves. Turning the knob, so that the indicator line points to the symbols printed on the panel, achieves the following functions: Knob DOUBLE-RING...
  • Page 9 LIGHTING GAS BURNERS FITTED WITH FLAME FAILURE SAFETY DEVICE In order to light the burner, you must: 1 – Push and turn the knob in a counterclockwise direction up to the position (maximum rate), push in and hold the knob until the flame has been lit (fig. 2.2). The sparks produced by the lighter situated inside the relative burner will light the flame.
  • Page 10 GAS BURNERS (Dual) The Dual Burner is a very flexible burner which allows different regulations for optimal cooking. It is composed by one inner and one outer crown: the inner and outer crown can be used together or separately. The Dual burner is controlled by two separate knobs: •...
  • Page 11 Turning the dial so that the symbols printed on the dial point to the mark on the bezel achieves the following functions: DUAL BURNER OPERATION / CONTROL KNOBS Fig. 2.5...
  • Page 12 CHOICE OF BURNER (fig. 2.6) The symbols printed on the panel above the gas knobs indicate the correspondence between the knob and the burner. The most suitable burner is to be chosen according to the diameter and volume capacity of the container to be warmed. It is important that the diameter of the pots or pans suitably match the heating potential of the burners in order not to jeopardise the efficiency of the burners, bringing about a waste of gas fuel.

  • Page 13: General Features

    how to use the multifunction electric oven GENERAL FEATURES ATTENTION: the range becomes very As its name indicates, this is an oven that presents particular features from an operational hot during operation. point of view. In fact, it is possible to insert 7 different programs to satisfy every cooking need. ATTENTION: the oven door becomes The 7 positions, thermostatically controlled, are obtained by 4 heating elements which very hot during operation.
  • Page 14 (fig. 3.2) THERMOSTAT KNOB To turn on the heating elements of the oven, set the switch knob on the desired program and the thermostat knob onto the desired temperature. To set the temperature, it is necessary to make the chosen number, printed on the knob, to match with the control panel indicator.
  • Page 15 VENTILATED COOKING The circular element and fan come on. The heat is dispersed by forced convection and the temperature can be regulated to between 120 °F (50 °C) and 480 °F (250 °C) via the thermostat knob. The oven does not require preheating.
  • Page 16 COOKING ADVICE STERILIZATION WARNING!! Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the WARNING following way: VERY IMPORTANT Turn the switch to position Set the thermostat knob to position 350 °F (175 °C) and preheat the oven. It is advisable to handle Fill the grill pan with hot water.
  • Page 17 Fig. 3.5 BROILING Very important: the broil burner must always be used with the oven door closed. - Position the shelf on the first level from the top (fig. 3.5). - Turn on the broil burner, as explained in the preceding paragraphs and let the broil burner preheat for about 5 minutes with the door closed.

  • Page 18: Setting The Clock

    how to use the electronic programmer 10 9 8 7 6 2 3 4 Description of display symbols: During semi-automatic Oven on automatic oven cooking program, Cooking time once completed the programming End of cooking time procedure the oven lamp/s will be lit Timer until the end of the cooking program.

  • Page 19: Using The Timer

    USING THE TIMER You can use the timer at any time, even when the oven is not in use. ATTENTION - MOST IMPORTANT: This is only an alarm that DOES NOT switch off the oven or grill. REMEMBER TO TURN OFF THE OVEN/GRILL MANUALLY. The timer can be set for a maximum time of 23 hours and 59 minutes.
  • Page 20 USER PREFERENCES SETTINGS PROGRAMMER ‘TOUCH-CONTROL’ PANEL KEY LOCK This function is used to prevent the accidental touch of the programmer selection keys and to avoid unintentionally activating or modifying its functions. The key lock can be activated at any time, with a cooking in progress or with the oven off. To lock: "...
  • Page 21 cleaning and maintenance GENERAL RECOMANDATION WARNING Important: Before any operation of cleaning and maintenance disconnect the • appliance from the electrical supply. • It is advisable to clean when the appliance is cold and especially for cleaning the enamelled parts. •...
  • Page 22 BURNERS AND GRIDS • These parts can be removed and cleaned with appropriate products. • After cleaning, the burners and their flame distributors must be well dried and correctly replaced. • It is very important to check that the burner flame distributor and the cap has been correctly positioned - failure to do so can cause serious problems.
  • Page 23 DUAL BURNER Fig. 5.5 Fig. 5.4 Note: Continuous use may cause a change in the glaze around the burners and grids, corresponding to the areas exposed to the heat. This is a natural phenomenon and does not prevent the parts from working properly. OVEN FITTING OUT Assemble the wire racks to the oven walls using the 2 screws (fig.
  • Page 24 TELESCOPIC SLIDING SHELF SUPPORTS (SUPPLIED WITH SOME MODELS ONLY) The telescopic sliding shelf supports make it safer and easier to insert and remove the oven shelves and trays. They stop when they are pulled out to the maximum position. Important! When fitting the sliding shelf supports, make sure that you fit: The slides to the top wire of a rack.

  • Page 25: Replacing The Oven Lights

    ADVICE FOR USE AND MAINTENANCE OF CATALYTIC PANELS The catalytic panels are covered with special microporous enamel which absorbs and does away with oil and fat splashes during normal baking over 200 °C. If, after cooking very fatty foods, the panels remain dirty, operate the oven “idling” on max temperature for about 30 minutes.

  • Page 26: Removing The Storage Drawer

    REMOVING THE STORAGE DRAWER Open the drawer completely (fig. 5.11) Move down the lever of left guide (fig. 5.12) and up the lever of right guide WARNING: (fig. 5.13). • Do not remove drawer while hot. Do not remove drawer during Remove the drawer;...

  • Page 27: Removing The Oven Door

    REMOVING THE OVEN DOOR The oven door can easily be removed as follows: Open the door to the full extent (fig. 5.15). • Open the lever “A” completely on the left and right hinges (fig. 5.16). • Hold the door as shown in fig. 5.17. •...

  • Page 28: Do's And Do Not's

    DO’S AND DO NOT’S • Do always use the oven with the door closed. • Do always broil with the door closed. • Do read the user instructions carefully before using the range for first time. • Do allow the oven to heat for about two hours, before using for the first time, in order to expel any smell from the new oven insulation, without the introduction of food.
  • Page 32 The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in the present booklet. The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacture or commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances.
