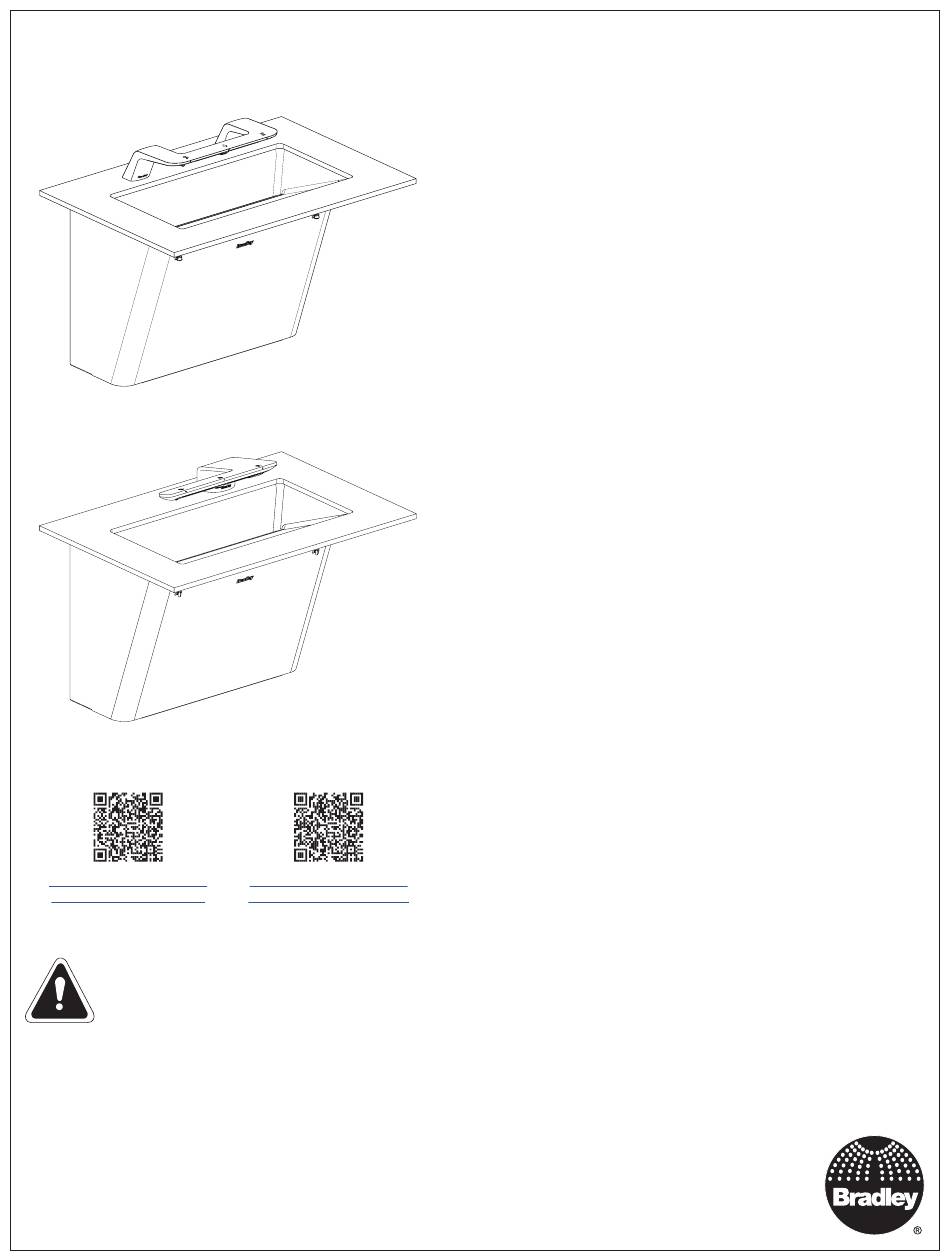

Installation Guide (French)
Read the instructions in this manual before
beginning installation. Save these instructions
and refer to them for inspection, maintenance,
and troubleshooting information.
For questions regarding the operation, installation or maintenance of this
product, visit bradleycorp.com or call 800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found under
"Resources" on our website at bradleycorp.com.
215-1893 Rev. M: ECO 23-08-045
© 2023 Bradley
Page 1 of 46
11/8/2023
Shown with WB1
Shown with WB2
Scan or click code to view
Installation Guide (Spanish)
Installation
WB1-WB-ER1
WB1-WB-TR1
WB2-WB-ER1
WB2-WB-TR1

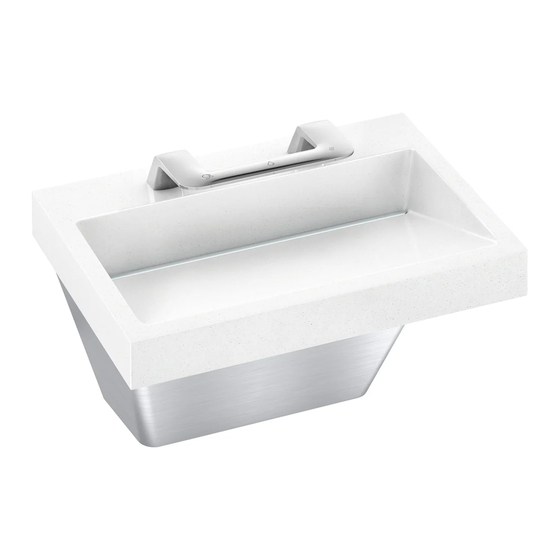

WashBar
with Undermount
®
Table of Contents
Safety Information .......................................................................... 2
Supplies Required .......................................................................... 2
Components .................................................................................. 3
Dimensions .................................................................................... 7
Structural Rough-Ins .................................................................... 13
Plumbing and Electrical Rough-In................................................. 15
Bowl Attachment .......................................................................... 16
Drain Assembly ............................................................................ 19
WashBar Installation ..................................................................... 19
Aerator Installation ........................................................................ 20
Top Fill Soap - Mount Tank Assembly & Control Box ................... 21
Top Fill Soap - Control Box & Soap Supply Connections ............. 22
Top Fill Soap - Tank Assembly (Part 1) ......................................... 22
Lavatory Mounting to Wall ............................................................ 24
Top Fill Soap - Tank Assembly (Part 2) ......................................... 25
Soap Container Bracket ............................................................... 26
Strainer and Standard Drain Cap ................................................. 27
Strainer and Slotted Drain Cap ..................................................... 27
Dryer Motor Assembly .................................................................. 28
Attach Supply Power Enclosure ................................................... 29
Control Box and Valve Installation ................................................ 30
Top Fill Soap - Soap Installation ................................................... 31
Bottom Fill Soap - Soap Installation ............................................. 34
Electrical Connections - Brushless Motors ................................... 36
Adjust Temperature with Water Running ....................................... 37
Access Panel ............................................................................... 38
Master Control Box ...................................................................... 39
Software Update .......................................................................... 43
Cleaning and Maintenance .......................................................... 44
