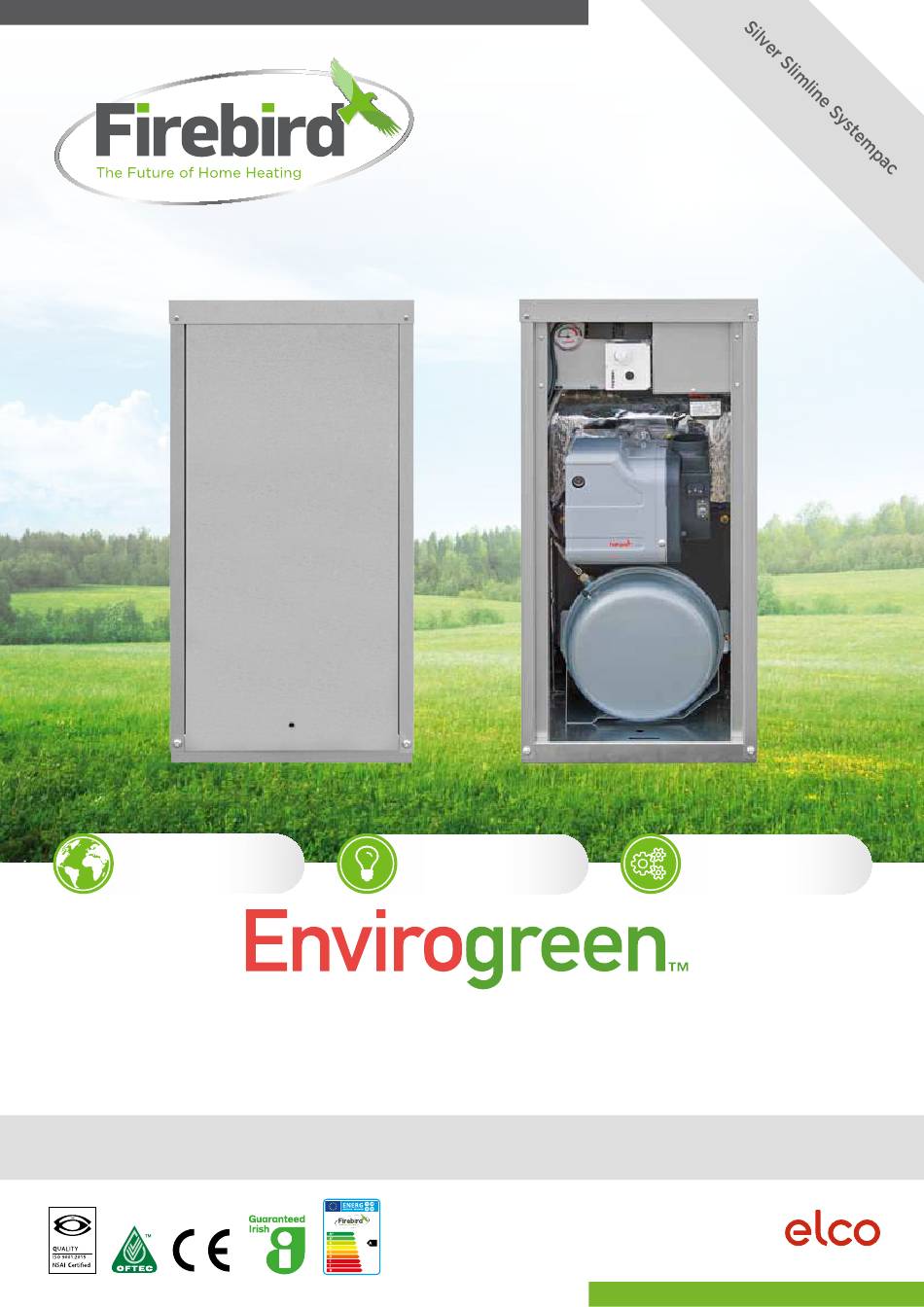

- Page 1 Environment Innovation Technology Condensing Boiler TEC HNIC A L MANU AL This manual must remain with the householder once installation is complete February 2024...
-
Page 2: Table Of Contents
Contents FoReWoRD We would like to thank you for purchasing a high efficiency Firebird condensing liquid fuel boiler with an Elco low NOx burner. This instruction manual is produced for the reference and guidance of qualified installation engineers, preferably OFTEC (Oil Firing Technical Association) registered. EU legislation governs the manufacture, operation and efficiency of all domestic central heating oil boilers. -
Page 3: Safety
saFety safety - conformity was demonstrated by meeting the HealtH & saFety inFoRmation following standards: The installer should be aware of his/her responsibilities under the current, local Health and Safety at Work Act. The BS EN 60335-1: 2012 + A2: 2019: Household and Similar interests of safety are best served if the boiler is installed Electrical Appliances - Safety - Part 1: general Requirements and commissioned by a competent, qualified engineer,... -
Page 4: Standards & Regulations
stanDaRDs & Regulations to ensure the highest standards of installation & safety, it Regional water supply (water fittings) regulations/ is important that the boiler is installed and commissioned byelaws. by a competent, qualified engineer, preferably oFteC trained and registered. it is the responsibility of the Regional control of pollution (oil storage) regulations. -
Page 5: Condensate Disposal
2.1 stanDaRDs & Regulations - ConDensate Disposal Firebird condensing boilers, when in condensing mode, extract more heat from the flue products and the resulting condensate which is mildly acidic, needs to be drained from the boiler via a condensate pipe to the drainage system. provision must be made for the removal of condensate from the boiler to an internal soil stack, waste pipe, external soil stack, gully or soak-away, as per Bs 6798: 2014. - Page 6 2.1 stanDaRDs & Regulations - ConDensate Disposal system no. 2 ConDensate pump Control panel Burner plug Condensate pump wired in to come on with burner. Inlet connected to condensate trap at base of boiler. Condensate trap Condensate pump Condensate pump can be positioned within the casing of the boiler, on the base, fixed to the casing of the boiler or mounted on the wall alongside the boiler.
- Page 7 2.1 stanDaRDs & Regulations - ConDensate Disposal Condensate trap Fitting 1. Push washer into trap socket and screw trap onto boiler socket in the desired direction. Washer S/S trap 2. Push flexible pipe onto trap socket. 3. Final assembly.
-
Page 8: Flue Regulations
2.2 stanDaRDs & Regulations - Flue Regulations Flue teRminal siting The terminal should be positioned to avoid combustion products entering the building or accumulating in stagnant pockets around buildings. The terminal must be protected by a guard if it is less than 2 metres above ground level or in a position where any person has access to it (i.e. - Page 9 2.2 stanDaRDs & Regulations - Flue Regulations notes: these notes form an integral part of the information shown on the previous page. 1. Terminals should be positioned to avoid products of combustion accumulating in stagnant pockets around the building, or entering into buildings. 2.
- Page 10 2.2 stanDaRDs & Regulations - Flue Regulations Condensate Plume disPersal When choosing the location for a condensing boiler, special consideration must be given to the positioning of the flue terminal. Care should be taken to locate it so as to prevent either the end user or their neighbours perceiving the plume to be a nuisance.
-
Page 11: Flue Systems
2.3 stanDaRDs & Regulations - Flue systems PLUME KIT 80 mm 45˚ bend Wall bracket Extensions X=250mm / 500mm / 1000mm 80 mm 90˚ bend Maximum 5m flue length... -
Page 12: Fuel Supply
2.4 stanDaRDs & Regulations - Fuel supply Fuel stoRage tanK sitting Regulations & stanDaRDs Consult OFTEC Manuals Please consult all local and regional regulations, relevant to water resources (control of pollution and oil storage) as It is unlikely that a fire will start at a fuel tank. However, well as OFTEC Book Three. - Page 13 3.1 silveR slimline systempaC - HouseHolDeR/enD useR inFoRmation please consult with your installer regarding the operation of your boiler. this should include timer operation/room thermostat operation and any other additional operational features. the basic features of the control panel are outlined below. Minimum Medium Maximum...
-
Page 14: Installer Guidelines
3.2 silveR slimline systempaC - installeR guiDelines please note the following important points before and protect the boiler from the damaging, long-term effects commencing installation. of “magnetite” (black iron sludge). It is essential that the filter is sized similar to the return pipework. The magnetic filter installation should only be carried out by a competent, must be installed in accordance with the manufacturer’s qualified engineer, preferably oFteC registered,... - Page 15 3.2 silveR slimline systempaC - installeR guiDelines Filling loop WiRing Connect the filling loop. Open both valves. Do not allow the electrical supply unit to exceed 1 bar while filling and a maximum of 2 bar the boiler and controls require a 230v 50Hz mains when the radiators are at full operating temperature.
- Page 16 3.2 silveR slimline systempaC - installeR guiDelines tHRee DiReCtional Flue Kit installation Fig. 1 Fig. 2 Fig. 3 Fig. 4 Apply grease inside Fig. 5 Fig. 6...
-
Page 17: Technical Details
3.3 silveR slimline systempaC - teCHniCal Details teCHniCal Details Front View Side View Rear View Base Dimensions (mm) Weight model - silver (output range) silver slimline systempac 20-26kW 920 465 760 794 798 115 104 116 145 277 126 415... - Page 18 3.3 silveR slimline systempaC - teCHniCal Details No. Qty Description 20-26 kW Tube baffle BA112379 Smoke baffle BA212028 Duroboard ACC000DDS Flue gasket ACC000FRG Stat 3 pocket ACC003PKT Condensate trap ACC000TRP Condensate hose ACC000FLX Drain cock ACC012DRC Heat deflector ACC000HTD Flap valve adapter ACC000FVA Flap valve ACC000FLP...
- Page 19 Flow rate to give a nominal Output at 20K differential Flow Rate Measured 1131 kg/h Waterside Resistance 0.19 mbar Burner Model Elco FB2 K LN Fuel Kerosene 28 Second Class C2 Nozzle Type Danfoss Nozzle Size 0.65 x 80 ES Pump Pressure 9.3 bar...
-
Page 20: Commissioning
Commissioning Boiler check: Commissioning u Baffles should be checked as they may have been disturbed during transport. u it is the responsibility of the installer to ensure u Check that the condensate trap is fitted securely, that the boiler is properly commissioned when first primed with water and piped out into a suitable drain. -
Page 21: Servicing
seRviCing tHe BuRneR annual servicing must be carried out by a competent, qualified engineer, preferably oFteC registered and familiar with Firebird products. please refer to the burner manual for specification and combustion check information. Do not commence service until both the electrical and fuel supply to the boiler have been safely isolated. -
Page 22: Terms & Conditions Of Warranty
teRms & ConDitions oF WaRRanty Firebird products are designed and manufactured to give teRms & ConDitions oF WaRRanty many years of trouble free service. 1. Warranty implies that the product shall be free from The terms laid down in the warranty must be adhered to. defective parts or workmanship for a period of warranty cover, which begins from the date of installation. -
Page 23: Product Fiche
pRoDuCt FiCHe ErP A Rated Auxiliary Electrical Consumption Seasonal Rated heat Annual energy Sound power Energy Efficiency Full Part Stand by Model output consumption level Base Model efficiency Load Load Mode Identifier class elmax elmin (kW) (kW) (kW) SilvER SlimlinE SyStEmPAc 20-26kW 90.04 83.17... - Page 24 For further information on Firebird products please contact: Ireland Firebird Údáras Industrial Estate Baile Mhic Íre Co. Cork P12 HK51 Ireland +353 (0)26 45253 +353 (0)26 45309 sales@firebird.ie www. firebird.ie Northern Ireland Firebird Shean Forkhill Newry BT35 9SY Northern Ireland +44 (0)28 3088 8330 +44 (0)28 3088 9096 salesni@firebird.ie...
