Omega
4K/UHD
™
Wallplate Transmitter for HDMI with HDBaseT Output and
USB
AT-OME-EX-TX-WP-E

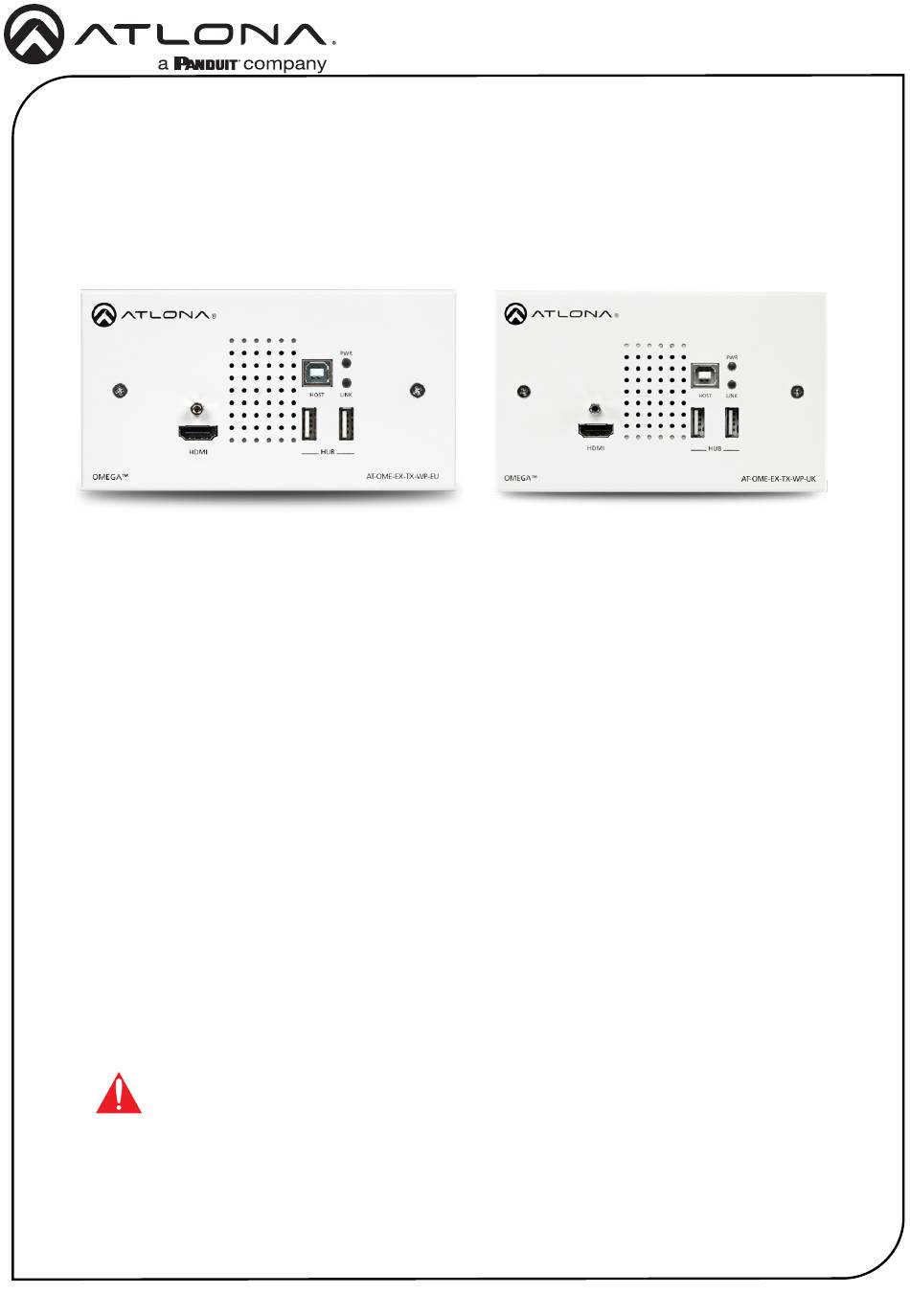

The Atlona AT-OME-EX-TX-WP-E is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus
embedded audio, control, and USB over distances up to 330 feet (100 meters). It is designed
for commercial installations in Europe, and includes interchangeable EU and UK faceplates and
brackets. Part of the Omega™ Series of integration products for modern AV communications
and collaboration, the OME-EX-TX-WP-E is HDCP 2.2 compliant and transmits RS-232 control
signals. With a matching HDBaseT receiver, the integrated USB extension addresses the
challenge of connecting between USB devices at remote locations, and is ideal for software
video conferencing and touch or interactive displays. The OME-EX-TX-WP-E includes a USB
2.0 host interface for a PC, plus two peripheral devices such as a speakerphone, microphone,
or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as
switchers with HDBaseT inputs.
Package Contents
1 x AT-OME-EX-TX-WP-E
1 x White EU wallplate
1 x White UK wallplate
1 x 3-pin captive screw connector
2 x Mounting screws
1 x Installation guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OME-EX-TX-WP-E for
the latest firmware updates and User Manual.
* The AT-OME-EX-TX-WP-E is not compatible with the AT-UHD-HDVS-300 system for extending
USB.
1
Installation Guide
AT-OME-EX-TX-WP-E
Advertisement
Table of Contents
Related Manuals for Panduit Atlona Omega AT-OME-EX-TX-WP-E
Summary of Contents for Panduit Atlona Omega AT-OME-EX-TX-WP-E
- Page 1 Installation Guide AT-OME-EX-TX-WP-E Omega 4K/UHD ™ Wallplate Transmitter for HDMI with HDBaseT Output and AT-OME-EX-TX-WP-E The Atlona AT-OME-EX-TX-WP-E is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It is designed for commercial installations in Europe, and includes interchangeable EU and UK faceplates and brackets.
- Page 2 Installation Guide AT-OME-EX-TX-WP-E HOST LINK HDMI OMEGA AT-OME-EX-TX-WP-EU HOST LINK AT-OME-EX-TX-WP-EU NOTE: Note that the AT-OME-EX-TX-WP-EU and AT-OME-EX-TX-WP-UK are functionally identical, except for the size of the wallplate. The AT-OME-EX-TX- WP-EU is shown above. HOST Connect a USB cable from the computer Connect up to two USB devices, such as to this port.
- Page 3 Installation Guide AT-OME-EX-TX-WP-E RS-232 The AT-OME-EX-TX-WP-E provides an RS-232 port which allows communication between a control system and an RS-232 device. This step is optional. Use wire strippers to remove a portion of the RS-232 cable jacket. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires. Insert the TX, RX, and GND wires into correct terminal using the included 3-pin captive screw connector.
- Page 4 Installation Guide AT-OME-EX-TX-WP-E Faceplate Removal and Assembly Removal of the faceplate requires that the AT-OME-EX-TX-WP-E be disassembled from the electrical box or mud ring. A small Phillips-head screwdriver is required to remove the faceplate. Unscrew both Phillips-head screws and the HDMI connector hex bolt from the front of the faceplate, as shown: Gently remove the faceplate by pulling it toward you.
-
Page 5: Installation
Installation Guide AT-OME-EX-TX-WP-E Installation Connect a UHD/HD source to the HDMI port. OPTIONAL: Connect a USB cable from the host computer to the HOST port. OPTIONAL: Connect up to two USB devices, such as a speakerphone or keyboard to the HUB ports. -
Page 6: Led Indicators
Installation Guide AT-OME-EX-TX-WP-E LED Indicators The PWR and LINK LED indicator on both the transmitter and receiver unit provides basic information on the current status of the AT-OME-EX-TX-WP-E. Description Solid green Unit is powered. Normal operating mode. Blinking green Unit is in firmware update mode. Refer to Updating the Firmware (page 7) for more information. -
Page 7: Updating The Firmware
Installation Guide AT-OME-EX-TX-WP-E Updating the Firmware Requirements: • AT-OME-EX-TX-WPC • Firmware file • Computer running Windows • USB-A to micro-USB cable • USB Firmware Update Tool IMPORTANT: Do not disconnect power from the unit while performing the firmware update procedure. Disconnect power from the unit, which can be done by disconnecting the category cable from the HDBaseT port on the receiver. - Page 8 Installation Guide AT-OME-EX-TX-WP-E Launch the USB Update Tool. The drive letter of the mounted drive for the unit will be displayed in the Disk Drive field. If it is not, click the Refresh button. Mounted drive letter Refresh button Click the Browse button and select the firmware file. Once the firmware file is selected, it will appear in the Firmware File field.
- Page 9 Installation Guide AT-OME-EX-TX-WP-E 10. The firmware update process will begin and will be monitored by a progress bar. IMPORTANT: Do not disconnect power from the unit while performing the firmware update procedure. Progress bar 11. After the update process has completed, the Copy process completed message will be displayed in the message window.
- Page 10 Installation Guide AT-OME-EX-TX-WP-E The PWR LED indicator, on the front panel, will flash green while the unit is being updated. Do not disconnect the USB cable during the update process. When the PWR LED stops flashing and is solid green, the update process will be complete. 12.
- Page 11 Installation Guide AT-OME-EX-TX-WP-E Notes...
-
Page 12: Warranty
Installation Guide AT-OME-EX-TX-WP-E Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-ome-ex-tx-wp-e/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. ®...
