Three-Input HDBaseT Transmitter for HDMI and VGA
AT-HDVS-200-TX / AT-HDVS-200-TX-PSK

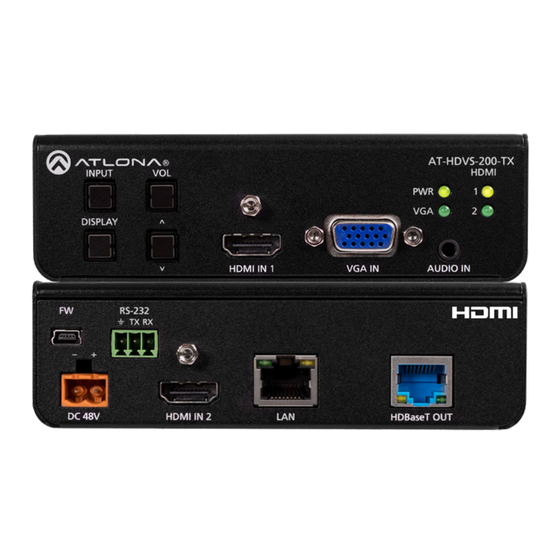

The Atlona AT-HDVS-200-TX is a 3×1 switcher and HDBaseT transmitter with two HDMI inputs
and a VGA input with audio. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsa-
mpling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100
meters). The two-channel audio input can be assigned to any of the video inputs and embedded
for HDBaseT transmission. The HDVS-200-TX is designed for use with the AT-OME-RX21 4K
scaling receiver, but can also be used with Atlona switchers and matrix switchers with HDBaseT
inputs. This transmitter can serve as an integral component of a fully automated AV system, with
the convenience of automatic input selection and display control. It is remotely powered by the
OME-RX21 or other Atlona devices over HDBaseT.
The AT-HDVS-200-TX-PSK is identical to the AT-HDVS-200-TX, with the addition of local power-
ing capability and an external power supply.
Package Contents
AT-HDVS-200-TX
1 x AT-HDVS-200-TX
1 x Captive screw connector, 3-pin
1 x Mounting brackets
1 x Installation Guide
IMPORTANT: Visit https://www.atlona.com/product/AT-HDVS-200-TX or
https://www.atlona.com/product/AT-HDVS-200-TX-PSK for the latest firmware
updates and Installation Guide.
AT-HDVS-200-TX-PSK
1 x AT-HDVS-200-TX-PSK
1 x Captive screw connector, 3-pin
1 x 48V DC power supply
1 x Mounting brackets
1 x Installation Guide
1
Installation Guide
AT-HDVS-200-TX / AT-HDVS-200-TX-PSK
