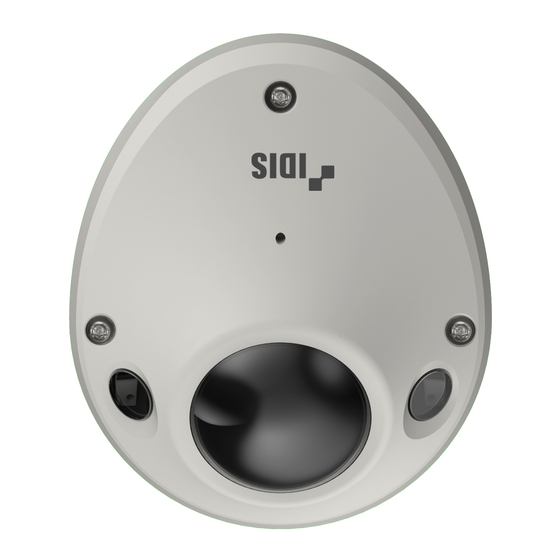

- Page 1 Network Camera Installation Manual DC-M4211WX DC-M4211WRX DC-M4211HRX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
In addition, the embedded web server improved video quality in high-contrast situations (IDIS Web) lets you remotely view live video or scan recorded video using a web browser. Alternatively, you • Slow shutter support for improved low-lighting video... -
Page 7: Accessories
Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. DC-M4211WX/DC-M4211WRX DC-M4211HRX Bushing (DC-M4211WX, DC-M4211WRX: 3 ea./ Network Camera DC-M4211HRX: 4ea.) DC-M4211WX/DC-M4211WRX DC-M4211HRX (4ea.) (3ea.) -
Page 8: Overview
Part 1 – Introduction Overview Body Product color and design may vary depending on the model. DC-M4211WX Dome Cover DC-M4211WX/DC-M4211WRX Lens Dome Cover Assembly part Wall/ Ceiling Installation Hole Factory Reset Button SD Memory Card Slot Rubber Gasket DC-M4211HRX DC-M4211WRX... - Page 9 Part 1 – Introduction DC-M4211HRX • Check your local laws and regulations on making video or audio recordings. The user will be held liable for any violation of the law. (Article 25-5 of the Personal Information Protection Act: Operators of image data processing devices may not operate such devices for purposes other than as originally intended during device installation, place such devices at locations other than as originally...
-
Page 10: I/O Device Port
INIT operation manual. images from a remote computer over the network. For more information on network connection setup, refer to the IDIS Discovery operation manual. The following table describes the network cable specifications. <The network cable specifications>... -
Page 11: Installation
Product color and design may vary depending on the model. Removing the Dome Cover DC-M4211WX/DC-M4211WRX Loosen the screws counterclockwise using the allen wrench provided with the product. DC-M4211HRX Loosen the screws counterclockwise using the allen... -
Page 12: Inserting A Sd Memory Card
Part 1 – Introduction Remove the dome cover. DC-M4211HRX Waterproof Cable Installation Inserting a SD Memory Card DC-M4211WX/DC-M4211WRX Install the Protect Guard over the network cable. Insert the network cable into the RJ45 Boot. Insert the cable through the RJ45 Boot. -
Page 13: Installation
• Install the camera in a shaded area. If the camera is installed in direct sunlight, it may affect adversely. DC-M4211WX/DC-M4211WRX After you insert the SD memory card in the camera, secure the body on a wall or ceiling using the screws and anchors that came with the camera. -
Page 14: Angle Adjustment
Closing the dome cover Angle Adjustment. A powered screwdriver may be used with the lowest torque setting. (7 Kgf·cm) Angle Adjustment DC-M4211WX/DC-M4211WRX DC-M4211WX/DC-M4211WRX Secure the top cover to the body by turning clockwise DC-M4211HRX DC-M4211HRX Secure the top cover to the body by turning clockwise. -
Page 15: Dimensions
Part 1 – Introduction Dimensions DC-M4211HRX DC-M4211WX/DC-M4211WRX 140mm 104mm... -
Page 16: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP® NVR or non DirectIP® NVR, VMS such as IDIS Solution Suite Compact. With DirectIP® NVR-based Layout DirectIP® NVR makes it easy to use cameras without extra network configurations. -
Page 17: With Non Directip® Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP® NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 18: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 10 or below. -
Page 19: Specifications
These product specifications may change without prior notice. Camera Image Sensor 1/2.8" CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length DC-M4211WX 2.3mm DC-M4211WRX 2.8mm, 3.3mm DC-M4211HRX 3.3mm Aperture DC-M4211WX F2.2 DC-M4211WRX, F2.0 DC-M4211HRX... - Page 20 Audio In/Out Internal Mic 1ea DC-M4211WRX only General Operating DC-M4211WX, - 30°C ~ 55°C (-22°F ~ 131°F) (Starting up at above 0°C ) Temperature DC-M4211WRX DC-M4211HRX - 40°C ~ 60°C (-40°F ~ 140°F) (Starting up at above -20 0°C )
- Page 21 Part 3 - Appendix Weight (Main DC-M4211WX 0.37 kg (0.81 lbs) Unit) DC-M4211WRX 0.361kg (0.79lbs) DC-M4211HRX 0.66kg(1.46lbs)(PC) 0.67kg(1.48lbs)(TG) V1.5...
- Page 22 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
