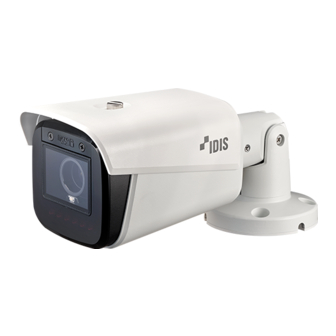

Idis DC-T4248HRA Installation Manual
  1. Manuals
  2. Brands
  3. Idis Manuals
  4. Security Camera
  5. DC-T4248HRA
  6. Installation manual

Idis DC-T4248HRA Installation Manual

Hide thumbs Also See for DC-T4248HRA:
Table of Contents

Advertisement

Quick Links

Download this manual
DC-T
Series
Installation Manual
DC-T4238HRA
DC-T4248HRA
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-T4248HRA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Idis DC-T4248HRA

Summary of Contents for Idis DC-T4248HRA

  • Page 1 DC-T Series Installation Manual DC-T4238HRA DC-T4248HRA Powered by...
  • Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 – Introduction ......... 6 Product Features .

  • Page 6: Part 1 - Introduction

    Web) lets you remotely view live video using a web • Easy network access via UPnP (Universal Plug and browser. In addition, you can use the IDIS Solution Suite Play) function and embedded mDNS (Multicast DNS) Compact to manage network cameras and view/record protocol video.

  • Page 7: Accessories

    Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Quick Guide Bushings (4 ea.) Camera Sun Shield Sun Shield Screw Screws, Anchors (each 4 ea.)

  • Page 8: Overview

    Part 1 – Introduction Overview • Lens Motorized focus and zoom lens is installed. • IR LED Product color and design may vary depending on the A sensor in the bottom middle monitors lighting model. levels and activates the IR LED during low-lighting conditions.

  • Page 9: Cable

    For more information on network connection setup, into a power outlet shared by a number of other refer to the IDIS Discovery operation manual. devices. • The network connector is not designed to be •...

  • Page 10: Factory Reset

    It's also possible to do a factory reset by pressing and releasing the reset switch while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system.
  • Page 11 Part 1 – Introduction Waterproof Cable Installation RJ45 waterproof rubber ring RJ45 modular jack RJ45 waterproof rubber ring RJ45 modular jack RJ45 connector protect cover RJ45 waterproof rubber ring RJ45 modular jack cable waterproof rubber ring (The waterproof rubber ring is fastened to the connector protect cover.) RJ45 connector back cover RJ45 connector protect cover cable waterproof rubber ring...
  • Page 12 Part 1 – Introduction Plug in the network cable. Installation • Check the wall or ceiling to see if it needs to be reinforced. The camera may fall off if the wall or ceiling is not strong enough to support its weight. •...

  • Page 13: Angle Adjustment

    Part 1 – Introduction Dimensions Connect the external devices, network and power adapter. 277.6mm Apply power. Angle Adjustment 147.5mm 115.9mm Screw B Screw A Vertical (Tilt) Rotation Horizontal (Pan) Rotation Lens Rotation • Vertical (Tilt) Rotation After fully assembling the screw B, loosen the 2 to 2.5 wheels again and move the cover of the 2 joints on the left side to slightly open.

  • Page 14: Part 2 - Camera Connection

    Part 2 - Camera Connection Use the camera by connecting to DirectIP® NVR or non DirectIP® NVR, VMS such as IDIS Solution Suite Compact. With DirectIP® NVR-based Layout Audio In Power Audio Out Alarm In Alarm Out Network Camera Monitor Out...

  • Page 15: With Non Directip® Nvr-Based Layout

    Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP® NVR connection or VMS connection such as IDIS Solution Suite Compact.

  • Page 16: Part 3 - Appendix

    Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 10 or below.

  • Page 17: Specifications

    1/2.8" CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Motorized Vari-focal Focal Length DC-T4238HRA f= 2.8 - 12mm DC-T4248HRA f= 7.0 - 22mm Aperture DC-T4238HRA F1.4-F3.1 DC-T4248HRA F1.4-F2.8 Iris Control DC Iris Angular Field of DC-T4238HRA H : 105.7°(WIDE) ~ 34°(TELE)
  • Page 18 Part 3 - Appendix Ethernet RJ45(10/100BASE-T) Edge Storage* (Optional) (micro SD/SDHC/SDXC memory card (class 6 or higher, max. 512GB) * An SLC (Single Level Cell) or MLC (Multi Level Cell) card by SanDisk or Transcend is recommended to ensure stable recording performance.
  • Page 20 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
