BEGA 50 310 l Instructions For Use Manual

Ceiling and wall luminaire for indoor use

Advertisement

23.17 · Technische Änderungen vorbehalten · Technical amendments reserved · Modifications techniques réservées
!
Decken- und Wandleuchte für die Verwendung im Innenbereich
Ceiling and wall luminaire for indoor use
Plafonnier et applique pour utilisation à l'intérieur
□ 240
Gebrauchsanweisung
Anwendung
Decken- und Wandleuchte · Innenleuchte aus
mundgeblasenem Opalglas mit Metallgehäuse,
für alle Beleuchtungsaufgaben. Überall
dort, wo eine weiche und gleichmäßige
Lichtstärkeverteilung benötigt wird.
Leuchte mit Bewegungssensor.
Produktbeschreibung
Metallgehäuse, Oberfläche Farbe weiß
Mundgeblasenes Opalglas, seidenmatt
Integrierter HF-Bewegungssensor,
maximale Reichweite 10 m
2 Befestigungsbohrungen ø 6 mm
Abstand 180 mm
2 Leitungseinführungen zur Durchverdrahtung
der Netzanschlussleitung bis ø 10,5 mm
max. 3 × 1,5@
Anschlussklemme 2,5@
Schutzleiteranschluss
LED-Netzteil
230 V y 50 Hz
BEGA Thermal Switch
®
Temporäre thermische Abschaltung zum
Schutz temperaturempfindlicher Bauteile
Schutzklasse I
c  – Konformitätszeichen
Leuchtmittel
Modul-Anschlussleistung
Leuchten-Anschlussleistung
Bemessungstemperatur
Umgebungstemperatur
50 310 K3
Farbtemperatur
Farbwiedergabeindex
Modul-Lichtstrom
Leuchten-Lichtstrom
Leuchten-Lichtausbeute
50 310 K2
Farbtemperatur
Farbwiedergabeindex
Modul-Lichtstrom
Leuchten-Lichtstrom
Leuchten-Lichtausbeute
50 310 K4
Farbtemperatur
Farbwiedergabeindex
Modul-Lichtstrom
Leuchten-Lichtstrom
Leuchten-Lichtausbeute
Instructions for use
Application
Ceiling and wall luminaire · indoor luminaire
made of hand-blown opal glass and metal
housing, for all lighting tasks. They are ideal
for places where a soft and uniform lighting
distribution is required.
Luminaire with motion sensor.
Product description
Metal housing, finish Colour white
Hand-blown opal glass, satin matt
Integrated HF-motion sensor,
maximum range 10 m
2 mounting holes ø 6 mm
Distance apart 180 mm
2 cable entries for through-wiring for mains
cable up to ø 10.5 mm max. 3 × 1.5@
Connection terminal 2.5@
Earth conductor connection
LED power supply unit
230 V y 50 Hz
BEGA Thermal Switch
Temporary thermal shutdown to protect
temperature-sensitive components
Safety class I
c  – Conformity mark
Lamp
7,6 W
Module connected wattage
10,5 W
Luminaire connected wattage
t
= 25 °C
Rated temperature
a
t
= 45 °C
Ambient temperature
a max
50 310 K3
3000 K
Colour temperature
CRI > 90
Colour rendering index
1280 lm
Module luminous flux
957 lm
Luminaire luminous flux
91,1 lm / W
Luminaire luminous efficiency
50 310 K2
2700 K
Colour temperature
CRI > 90
Colour rendering index
1260 lm
Module luminous flux
942 lm
Luminaire luminous flux
89,7 lm / W
Luminaire luminous efficiency
50 310 K4
4000 K
Colour temperature
CRI > 90
Colour rendering index
1350 lm
Module luminous flux
1009 lm
Luminaire luminous flux
96,1 lm / W
Luminaire luminous efficiency
BEGA Gantenbrink-Leuchten KG · Postfach 31 60 · 58689 Menden · info @ bega.com · www.bega.com
19
90
Fiche d'utilisation
Utilisation
Plafonnier et applique · luminaire d'intérieur en
verre opale soufflé à la bouche avec armature
métallique, pour toutes sortes d'éclairages.
Partout là où l'on exige une répartition
lumineuse douce et uniforme.
Luminaire avec détecteur de mouvement.
Description du produit
Armature métallique, finition Couleur blanc
Verre opale soufflé à la bouche, satiné mat
Détecteur de mouvement HF incorporé,
portée maximale de 10 m
2 trous de fixation ø 6 mm
Entraxe 180 mm
2 entrées de câble pour branchement en
dérivation câble de raccordement jusqu'à
ø 10,5 mm max. 3 × 1,5@
Bornier 2,5@
Raccordement à la terre
Bloc d'alimentation LED
230 V y 50 Hz
®
BEGA Thermal Switch
Interruption thermique temporaire pour
protéger les composants sensibles à la
température
Classe de protection I
c  – Sigle de conformité
Lampe
7.6 W
Puissance raccordée du module
10.5 W
Puissance raccordée d'un luminaire
t
= 25 °C
Température de référence
a
t
= 45 °C
Température d'ambiance
a max
50 310 K3
3000 K
Température de couleur
CRI > 90
Indice de rendu des couleurs
1280 lm
Flux lumineux du module
957 lm
Flux lumineux du luminaire
91,1 lm / W
Rendement lum. d'un luminaire
50 310 K2
2700 K
Température de couleur
CRI > 90
Indice de rendu des couleurs
1260 lm
Flux lumineux du module
942 lm
Flux lumineux du luminaire
89,7 lm / W
Rendement lum. d'un luminaire
50 310 K4
4000 K
Température de couleur
CRI > 90
Indice de rendu des couleurs
1350 lm
Flux lumineux du module
1009 lm
Flux lumineux du luminaire
96,1 lm / W
Rendement lum. d'un luminaire

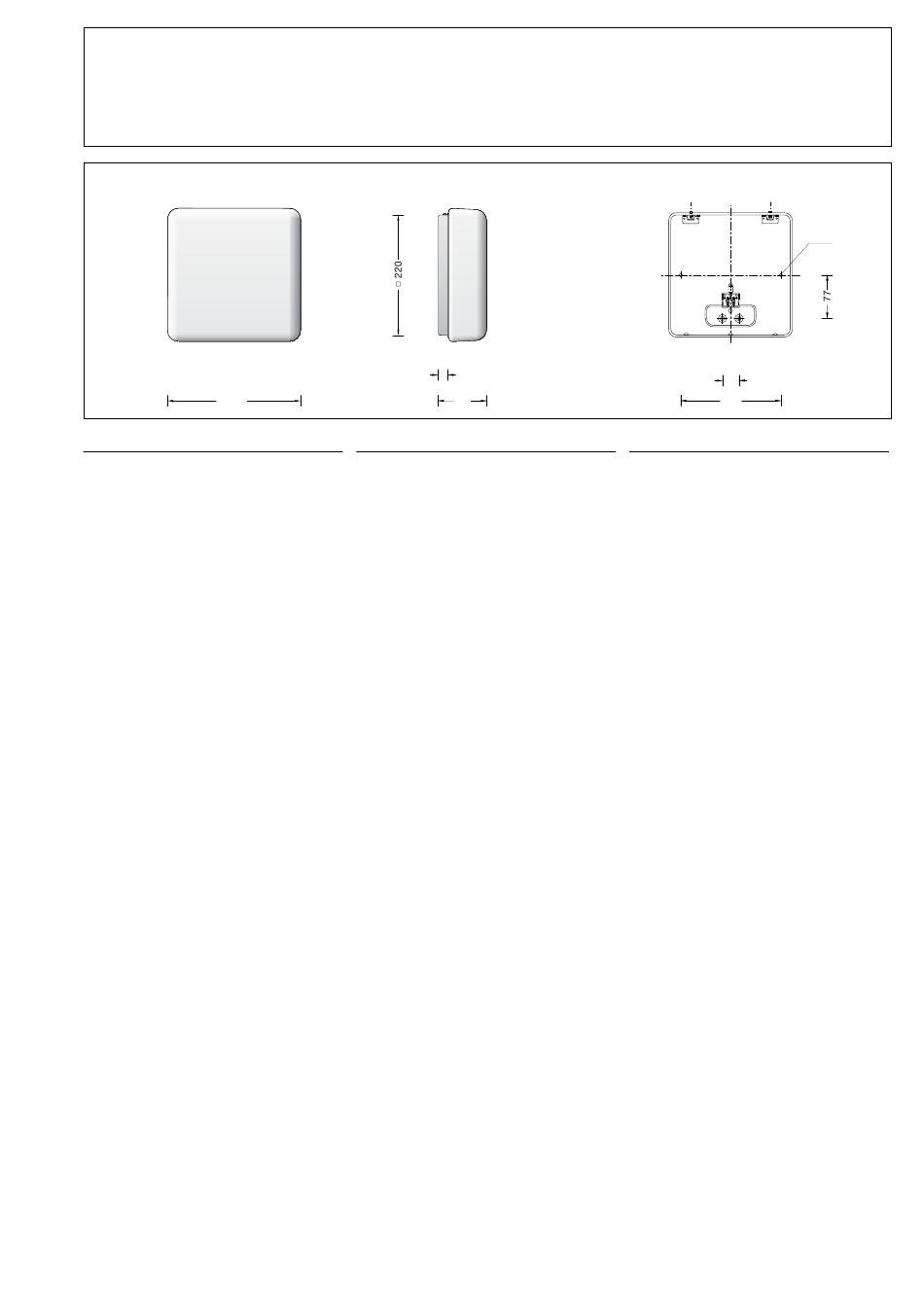

50 310
Ø 6
30
180
®
7,6 W
10,5 W
t
= 25 °C
a
t
= 45 °C
a max
3000 K
CRI > 90
1280 lm
957 lm
91,1 lm / W
2700 K
CRI > 90
1260 lm
942 lm
89,7 lm / W
4000 K
CRI > 90
1350 lm
1009 lm
96,1 lm / W
1 / 6
