BEGA 99 499 Installation And Technical Information

BEGA
Installation and Technical Information
Tools Required:
4mm hex key
13mm socket wrench
Protection Class: IP66
Weight: 9.7 lbs.
Notice to Installer for 99 499:
1. See page 2 for specific product safety warnings.
2. For pole top applications only.
3. Slip fits 3" O.D. poles only.
4. Pole inner dimension 2-5/16" MINIMUM.
5. LED module and integral driver provided by BEGA.
6. Pole top luminaire supplied with 25 feet of cable to route through pole.
7. Do NOT remove moisture absorption packet from luminaire housing.

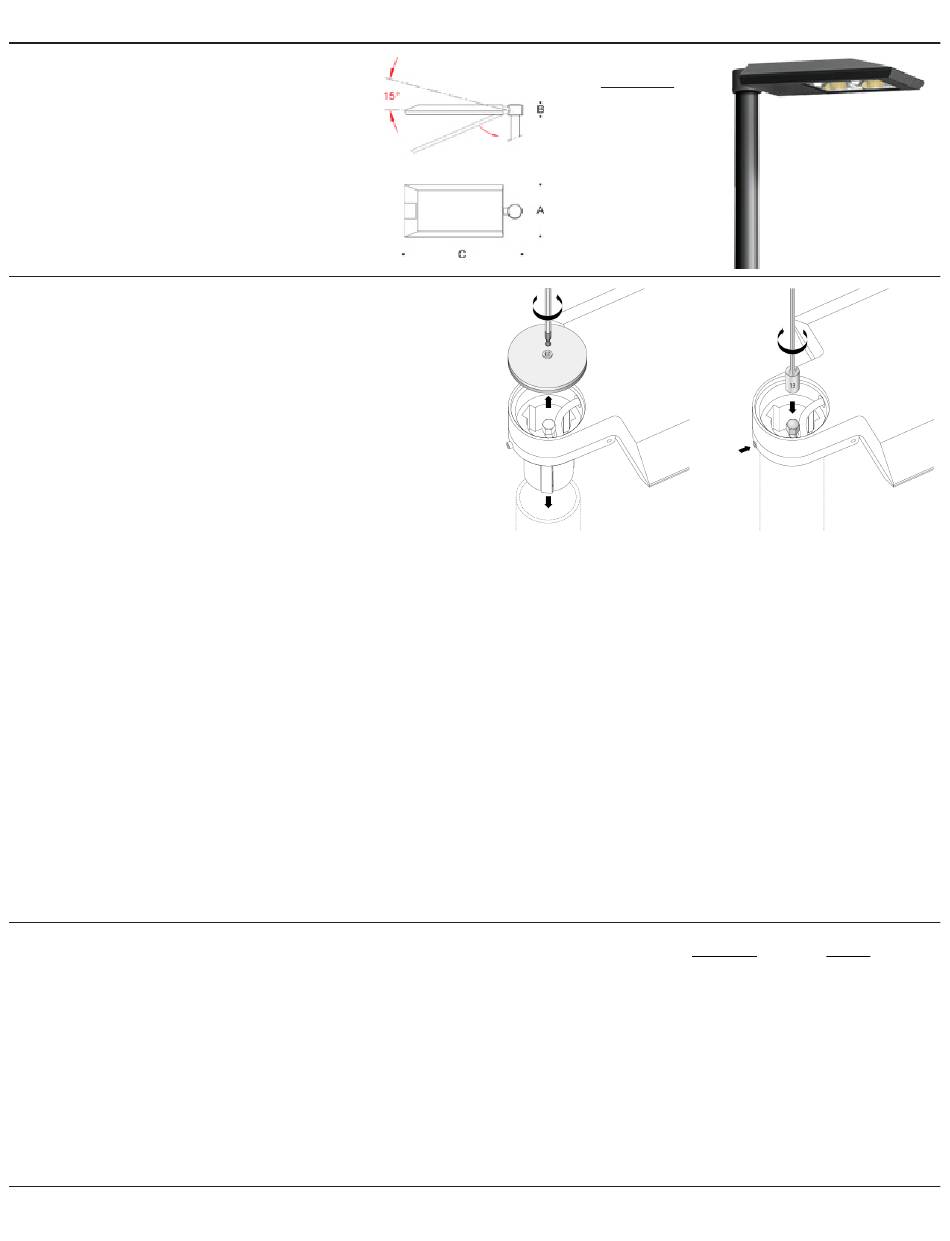

99 499 - installation:
1. Loosen hex scew on ploe cap and remove pole cap.
2. Lead luminaire wires into top of pole and through to the base.
3. Secure luminaire head to pole by tightening 13mm hex nut to engage pole
fitter expansion mechanism (See Figure). Torque - 8.85 ft-lb MAXIMUM.
Note: IF TORQUE ALLOWANCE IS EXCEEDED POLE FITTER CAN BE
DAMAGED AND LUMINAIRE WARRANTY WILL BE VOID.
4. Secure outer 4mm set screw on luminaire housing.
5. Replace slip fitter cap and tighten cap hex screw.
6. Make supply wiring and luminaire wiring connections inside pole base:
MAIN VOLTAGE SUPPLY WIRE TO BLACK LUMINAIRE WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE LUMINAIRE WIRE
GREEN GROUND WIRE TO GREEN LUMINAIRE WIRE
Dimming (if applicable):
DIMMING CONTROL WIRE (+) TO POSITIVE LUMINAIRE DIM CONTROL WIRE
DIMMING CONTROL WIRE (-) TO NEGATIVE LUMINAIRE DIM CONTROL WIRE
Relamping/Maintenance
No relamping necessary.
Lamp: 23.6W LED Module
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA-US 2018

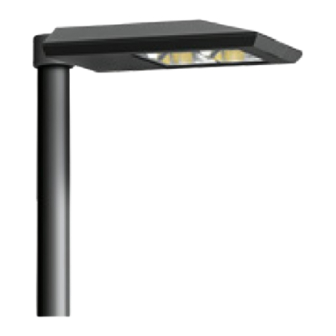

LED Area/Roadway Luminaire
Accessories
Please refer to the appropriate
accessory installation sheet for
further instruction when applicable.
Dimensions
A:
10 "
B: 2-3/8 "
C: 17-3/8 "
Replacement Parts
Description
LED Driver
LED Module (3000K)
LED Module (4000K)
99 499
Part No
75985-01
(x2) LED-0283/830
(x2) LED-0283/840
99 499
3/21/2018
Page 1 of 2
