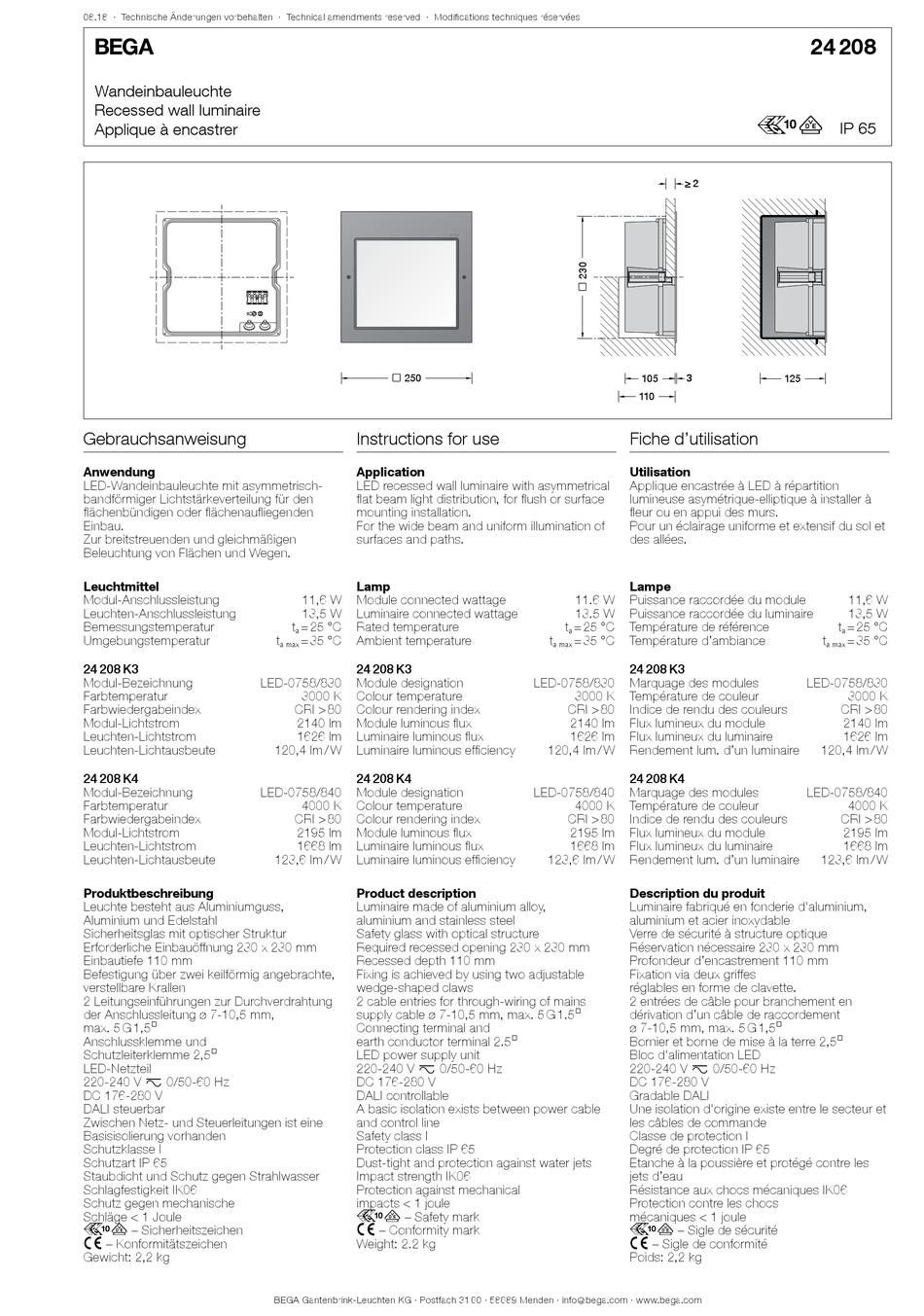

08.18 · Technische Änderungen vorbehalten · Technical amendments reserved · Modifications techniques réservées
!
Wandeinbauleuchte

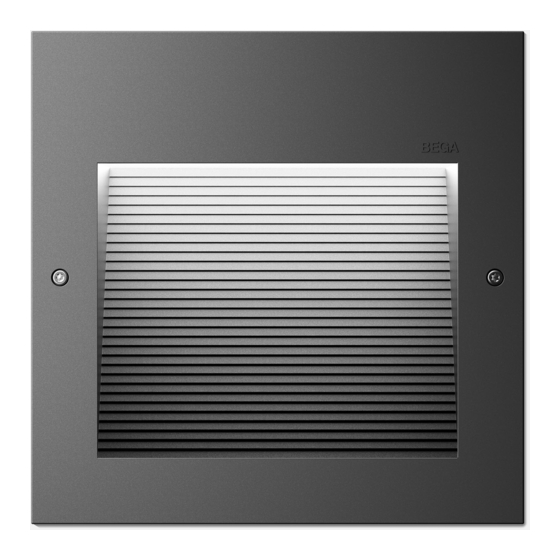

Recessed wall luminaire
Applique à encastrer
Gebrauchsanweisung
Anwendung
LED-Wandeinbauleuchte mit asymmetrisch-
bandförmiger Lichtstärkeverteilung für den
flächenbündigen oder flächenaufliegenden
Einbau.
Zur breitstreuenden und gleichmäßigen
Beleuchtung von Flächen und Wegen.
Leuchtmittel
Modul-Anschlussleistung
Leuchten-Anschlussleistung
Bemessungstemperatur
Umgebungstemperatur
24 208 K3
Modul-Bezeichnung
Farbtemperatur
Farbwiedergabeindex
Modul-Lichtstrom
Leuchten-Lichtstrom
Leuchten-Lichtausbeute
24 208 K4
Modul-Bezeichnung
Farbtemperatur
Farbwiedergabeindex
Modul-Lichtstrom
Leuchten-Lichtstrom
Leuchten-Lichtausbeute
Produktbeschreibung
Leuchte besteht aus Aluminiumguss,
Aluminium und Edelstahl
Sicherheitsglas mit optischer Struktur
Erforderliche Einbauöffnung 230 x 230 mm
Einbautiefe 110 mm
Befestigung über zwei keilförmig angebrachte,
verstellbare Krallen
2 Leitungseinführungen zur Durchverdrahtung
der Anschlussleitung ø 7-10,5 mm,
max. 5 G 1,5@
Anschlussklemme und
Schutzleiterklemme 2,5@
LED-Netzteil
220-240 V x 0/50-60 Hz
DC 176-280 V
DALI steuerbar
Zwischen Netz- und Steuerleitungen ist eine
Basisisolierung vorhanden
Schutzklasse I
Schutzart IP 65
Staubdicht und Schutz gegen Strahlwasser
Schlagfestigkeit IK06
Schutz gegen mechanische
Schläge < 1 Joule
r – Sicherheitszeichen
c – Konformitätszeichen
Gewicht: 2,2 kg
9 250
9 250
Instructions for use
Application
LED recessed wall luminaire with asymmetrical
flat beam light distribution, for flush or surface
mounting installation.
For the wide beam and uniform illumination of
surfaces and paths.
Lamp
11,6 W
Module connected wattage
13,5 W
Luminaire connected wattage
t
= 25 °C
Rated temperature
a
t
= 35 °C
Ambient temperature
a max
24 208 K3
LED-0758/830
Module designation
3000 K
Colour temperature
CRI > 80
Colour rendering index
2140 lm
Module luminous flux
1626 lm
Luminaire luminous flux
120,4 lm / W
Luminaire luminous efficiency
24 208 K4
LED-0758/840
Module designation
4000 K
Colour temperature
CRI > 80
Colour rendering index
2195 lm
Module luminous flux
1668 lm
Luminaire luminous flux
123,6 lm / W
Luminaire luminous efficiency
Product description
Luminaire made of aluminium alloy,
aluminium and stainless steel
Safety glass with optical structure
Required recessed opening 230 x 230 mm
Recessed depth 110 mm
Fixing is achieved by using two adjustable
wedge-shaped claws
2 cable entries for through-wiring of mains
supply cable ø 7-10,5 mm, max. 5 G 1.5@
Connecting terminal and
earth conductor terminal 2.5@
LED power supply unit
220-240 V x 0/50-60 Hz
DC 176-280 V
DALI controllable
A basic isolation exists between power cable
and control line
Safety class I
Protection class IP 65
Dust-tight and protection against water jets
Impact strength IK06
Protection against mechanical
impacts < 1 joule
r – Safety mark
c – Conformity mark
Weight: 2.2 kg
BEGA Gantenbrink-Leuchten KG · Postfach 31 60 · 58689 Menden · info @ bega.com · www.bega.com
≥ 2
≥ 2
3 3
105
105
110
110
Fiche d'utilisation
Utilisation
Applique encastrée à LED à répartition
lumineuse asymétrique-elliptique à installer à
fleur ou en appui des murs.
Pour un éclairage uniforme et extensif du sol et
des allées.
Lampe
11.6 W
Puissance raccordée du module
13.5 W
Puissance raccordée du luminaire
t
= 25 °C
Température de référence
a
t
= 35 °C
Température d'ambiance
a max
24 208 K3
LED-0758/830
Marquage des modules
3000 K
Température de couleur
CRI > 80
Indice de rendu des couleurs
2140 lm
Flux lumineux du module
1626 lm
Flux lumineux du luminaire
120,4 lm / W
Rendement lum. d'un luminaire
24 208 K4
LED-0758/840
Marquage des modules
4000 K
Température de couleur
CRI > 80
Indice de rendu des couleurs
2195 lm
Flux lumineux du module
1668 lm
Flux lumineux du luminaire
123,6 lm / W
Rendement lum. d'un luminaire
Description du produit
Luminaire fabriqué en fonderie d'aluminium,
aluminium et acier inoxydable
Verre de sécurité à structure optique
Réservation nécessaire 230 x 230 mm
Profondeur d'encastrement 110 mm
Fixation via deux griffes
réglables en forme de clavette.
2 entrées de câble pour branchement en
dérivation d'un câble de raccordement
ø 7-10,5 mm, max. 5 G 1,5@
Bornier et borne de mise à la terre 2,5@
Bloc d'alimentation LED
220-240 V x 0/50-60 Hz
DC 176-280 V
Gradable DALI
Une isolation d'origine existe entre le secteur et
les câbles de commande
Classe de protection I
Degré de protection IP 65
Etanche à la poussière et protégé contre les
jets d'eau
Résistance aux chocs mécaniques IK06
Protection contre les chocs
mécaniques < 1 joule
r – Sigle de sécurité
c – Sigle de conformité
Poids: 2,2 kg
24 208
r
IP 65
125
125
11,6 W
13,5 W
t
= 25 °C
a
t
= 35 °C
a max
LED-0758/830
3000 K
CRI > 80
2140 lm
1626 lm
120,4 lm / W
LED-0758/840
4000 K
CRI > 80
2195 lm
1668 lm
123,6 lm / W
