Gen-Eye™ Hot Spot™
Operator's Manual
Issue 1.0
053-2672
ORIGINAL INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gen-Eye Hot Spot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for General Pipe Cleaners Gen-Eye Hot Spot

Summary of Contents for General Pipe Cleaners Gen-Eye Hot Spot

  • Page 1 Gen-Eye™ Hot Spot™ Operator’s Manual Issue 1.0 053-2672 ORIGINAL INSTRUCTION...

  • Page 2: Table Of Contents

    Gen-Eye™ Hot Spot™ Operator’s Manual Overview - 1 Overview Chapter Contents Serial Number Location ..... . 2 System Components ......2 Intended Use .

  • Page 3: Serial Number Location

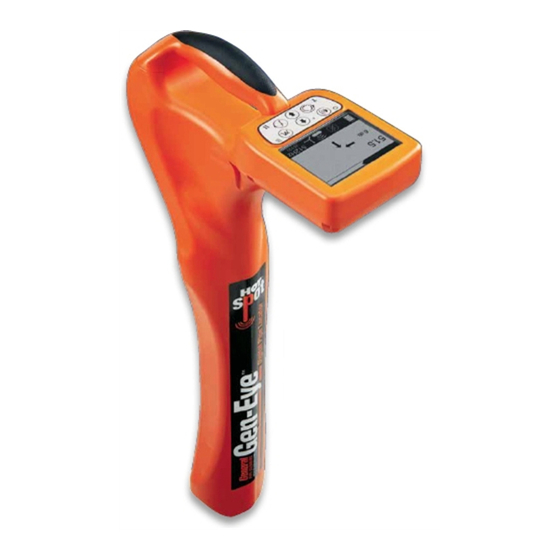

    & serial number: System Components Receiver (RX): Gen-Eye Hot Spot receiver with 10frequencies: 512B kHz, 1 kHz, 8 kHz, 33 kHz, 33B kHz, 50 kHz, 60 kHz, 65 kHz, 150 kHz, 180 kHz. Transmitter (TX): Gen-Eye Hot Spot transmitter with 5-watt power output, 4 frequencies: 1 kHz, 8 kHz, 33, kHz, 65 kHz.

  • Page 4: Intended Use

    The Gen-Eye Hot Spot transmitter places a signal on target cables to be detected by Gen-Eye Hot Spot receiver. The signal is placed through either direct connection, induction clamping, or broadcast mode.

  • Page 5: Fcc Statement

    Connect the equipment into an outlet on a circuit different from that which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC ID The Gen-Eye Hot Spot may contain FCC ID: QOQWT41 and IC: 5123A-BGWT41. ®...

  • Page 6: About This Manual

    Gen-Eye™ Hot Spot™ Operator’s Manual Overview - 5 About This Manual About This Manual This manual contains information for the proper use of this equipment. Cross references such as “See page 50” will direct you to detailed procedures. Bulleted Lists Bulleted lists provide helpful or important information or contain procedures that do not have to be performed in a specific order.
  • Page 7 Gen-Eye™ Hot Spot™ Operator’s Manual Overview - 6 About This Manual ®...

  • Page 8: Foreword

    If you sell your equipment, be sure to give this manual to the new owner. If you need a replacement copy, contact your Gen-Eye Hot Spot dealer. If you need assistance in locating a dealer, call 800-245-6200 or 412-771-6300 or write to the following address:...
  • Page 9 Gen-Eye™ Hot Spot™ Operator’s Manual Foreword - 8 Gen-Eye™ Hot Spot™ Operator’s Manual Issue number 1.0/OM-6/13 Part number 053-2672 Copyright 2013 by The Charles Machine Works, Inc. ®...
  • Page 10 Gen-Eye™ Hot Spot™ Operator’s Manual Contents - 9 Contents Overview machine serial number, information about the type of work this machine is designed to perform, basic machine components, and how to use this manual Foreword part number, revision level, and publication date of this manual, and factory contact information Safety machine safety alerts and emergency procedures...
  • Page 11 Gen-Eye™ Hot Spot™ Operator’s Manual Contents - 10 ®...

  • Page 12: Safety

    Gen-Eye™ Hot Spot™ Operator’s Manual Safety - 11 Safety Chapter Contents Guidelines ....... . 12 Safety Alert Classifications .
  • Page 13 Gen-Eye™ Hot Spot™ Operator’s Manual Safety - 12 Guidelines Guidelines Follow these guidelines before operating any jobsite equipment: • Complete proper training and read operator’s manual before using equipment. • Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and Canada) to have underground utilities located before working.
  • Page 14 Gen-Eye™ Hot Spot™ Operator’s Manual Safety - 13 Safety Alert Classifications Safety Alert Classifications These classifications and the icons defined on the following pages work together to alert you to situations which could be harmful to you, jobsite bystanders or your equipment. When you see these words and icons in the book or on the unit, carefully read and follow all instructions.
  • Page 15 Gen-Eye™ Hot Spot™ Operator’s Manual Safety - 14 Safety Alerts Safety Alerts Electric shock. Contacting electric lines will cause death or serious injury. Know location of lines and stay away. Jobsite hazards could cause death or serious injury. Use correct equipment and work methods. Use and maintain proper safety equipment.
  • Page 16 Gen-Eye™ Hot Spot™ Operator’s Manual Safety - 15 Safety Alert Safety Alert Read and follow all safety precautions. Do not operate equipment unless you have completed proper training and have read the operator’s manual. Check that equipment is in good condition and that test leads are clean and have no cracked insulation. HIGH VOLTAGE.
  • Page 17 Gen-Eye™ Hot Spot™ Operator’s Manual Safety - 16 Safety Alert ®...

  • Page 18: Control Icons

    Gen-Eye™ Hot Spot™ Operator’s Manual Control Icons - 17 Control Icons Chapter Contents Receiver ....... . . 18 •...

  • Page 19: Receiver

    Gen-Eye™ Hot Spot™ Operator’s Manual Control Icons - 18 Receiver Receiver Receiver Keypad Keypad buttons perform several functions depending on operating mode. To activate most functions, press and release the button. For other functions, press and hold the button until the function activates. Receiver Keypad Icons Power ON/OFF Antenna Configuration...

  • Page 20: Display

    Gen-Eye™ Hot Spot™ Operator’s Manual Control Icons - 19 Receiver Receiver Display 1. Gain 5. Estimated depth 2. Signal strength 6. Current meter 3. Peak signal 7. Unit status bar (see below) 4. Compass Status Bar Icons Battery level Power mode Twin peak antenna Volume level Beacon mode...

  • Page 21: Menus

    Gen-Eye™ Hot Spot™ Operator’s Manual Control Icons - 20 Receiver Receiver Menus Menus allow the operator to set user interface preferences. Use the up, down, select/next, and back buttons on the keypad to navigate the menu. Receiver Menu Icons Frequency Select frequencies to Icons show which mode is suited for each activate.

  • Page 22: Transmitter

    Gen-Eye™ Hot Spot™ Operator’s Manual Control Icons - 21 Transmitter Transmitter Transmitter Keypad Keypad buttons perform several functions depending on operating mode. To activate most functions, press and release the button. For other functions, press and hold the button until the function activates. Transmitter Keypad Icons Power ON/OFF Power output...

  • Page 23: Display

    Gen-Eye™ Hot Spot™ Operator’s Manual Control Icons - 22 Transmitter Transmitter Display The transmitter display shows the status of selected options as well as the active frequency and meter reading. Transmitter Display Icons Battery level Volume on Linked to receiver USB connected Volume off Inductive clamp...

  • Page 24: Menus

    Gen-Eye™ Hot Spot™ Operator’s Manual Control Icons - 23 Transmitter Menus Menus allow the operator to set user interface preferences. Use the up, down, select/next, and back keypad buttons to navigate the menu. Transmitter Menu Icons Settings Backlight Select backlight setting Meter Select meter setting Options...
  • Page 25 Gen-Eye™ Hot Spot™ Operator’s Manual Control Icons - 24 ®...

  • Page 26: Locate

    Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 25 Locate Chapter Contents Prepare........26 •...

  • Page 27: Prepare

    Locate - 26 Prepare Prepare Select Signal Mode Gen-Eye Hot Spot receivers detect active and passive signals. Select the signal best suited for the locating jobsite. Depending on the receiver model, all modes might not be available. Signal Mode/Type Description...

  • Page 28: Select Antenna Configuration

    Select Frequency The Gen-Eye Hot Spot transmitter can send signals in 4 frequencies at 5 watt power levels. Likewise, the receiver can display information in over 70 frequencies. Optimal frequencies for your area can be configured for each unit using software. Then, use the transmitter and receiver frequency menus to activate only the frequencies most suited for a particular jobsite.

  • Page 29: Adjust Receiver Gain

    Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 28 Prepare Activate Frequencies To activate frequencies on the transmitter as well as the receiver: 1. Navigate to Settings>Frequency menu. 2. Select the frequencies best suited for the jobsite conditions. When the box is checked, the frequency is active.

  • Page 30: Locate Active Signals

    Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 29 Locate Active Signals Locate Active Signals Setup Follow setup procedures for the type of locating you will be doing: direct connection, induction clamp, or broadcast. For all types of active location that require leads, connect leads to transmitter at connector (2).
  • Page 31 Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 30 Locate Active Signals Direct Connection Jobsite hazards could cause death or serious injury. Use correct equipment and work methods. Use and maintain proper safety equipment. NOTICE: • Electric shock or equipment damage can result if transmitter is connected to live cable. Contact qualified utility personnel and follow all standards and requirements for disconnecting and grounding cables.
  • Page 32 Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 31 Locate Active Signals Induction To set up transmitter for induction: 1. Remove cable, stake, clamp and any other metal objects from transmitter. 2. Place transmitter parallel to and directly above suspected cable as shown. Note: Transmitter must be parallel to object, as shown, in order to produce the best signal.

  • Page 33: Technique

    Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 32 Locate Active Signals Technique IMPORTANT: Follow steps below for all types of active location. For reference, the illustration above shows direct connection method. If using broadcast induction, ensure that transmitter is in line with and above suspected cable, as shown on previous page.
  • Page 34 Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 33 Locate Active Signals Mark the Cable Sweep, focus, and trace all detected signals in the area. Mark cable paths with colored paint or flags. See the chart below for standard color markings for cable locations. Utility Color Marking Symbol...

  • Page 35: Locate Passive Signals

    Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 34 Locate Passive Signal Locate Passive Signal Setup Follow setup procedures for the type of locating you will be doing. Always check receiver battery level at startup. NOTICE: Cables with no A/C current flowing through them are hard to detect and may be hazardous because they may still have voltage potential.
  • Page 36 Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 35 Locate Passive Signal Trace the Cable Walk along the suspected path while moving the receiver from side to side across the area. IMPORTANT: Keep receiver handle parallel to the suspected cable path. ss1080a-d.eps Mark the Cable Sweep, focus, and trace all detected signals in the area.

  • Page 37: Locate Beacon Signals

    Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 36 Locate Beacon Signal Locate Beacon Signal Trace metallic pipes or conduits by locating and following a beacon signal. IMPORTANT: Large metal objects and other signals (such as railroad signals or overhead power lines) will distort signal.
  • Page 38 Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 37 Locate Beacon Signal Peak Signal Method: When the peak signal is in range, rotation arrows will appear. Follow arrows (2) to rotate the receiver so that it is perpendicular to the beacon. Follow fore/aft arrow (1) to locate the strongest signal response.
  • Page 39 Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 38 Locate Beacon Signal 6. When the beacon is correctly located, a diamond (1) will form in the center of the compass, the exterior arrows (2) will appear, and the depth reading will display. 7.

  • Page 40: Common Signal Problems

    Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 39 Common Signal Problems Common Signal Problems Distortions in the electromagnetic field around a cable can affect location accuracy. Tees, bends, parallel cables, crossing cables, or large metallic objects can distort signals. IMPORTANT: If target depth and location are critical, confirm by hand-digging or vacuum excavation. Learn to recognize the following kinds of distortion: Shadows Shadows, also called blind spots, often happen when a metallic object partially obstructs the signal, or a...
  • Page 41 Gen-Eye™ Hot Spot™ Operator’s Manual Locate - 40 Common Signal Problems ®...

  • Page 42: Service

    Gen-Eye™ Hot Spot™ Operator’s Manual Service - 45 Service Chapter Contents General Care ......46 As Needed .
  • Page 43 Gen-Eye™ Hot Spot™ Operator’s Manual Service - 46 General Care General Care Under normal operating conditions, receiver, transmitter and A-frame detector need only minor maintenance. Following these care instructions can ensure longer equipment life: • Do not drop the equipment. •...
  • Page 44 Gen-Eye™ Hot Spot™ Operator’s Manual Service - 47 As Needed Transmitter Unit Change Batteries Use ten D-cell alkaline batteries or a Lithium-ion battery pack in transmitter. Battery cells inside may vent or rupture. Do not crush, do not heat or incinerate, do not short circuit, do not dismantle, do not immerse in any liquid.
  • Page 45 Gen-Eye™ Hot Spot™ Operator’s Manual Service - 48 Update Software Update Software The manufacturer updates software periodically to fix bugs and improve functionality. These updates are accessible through web-based software available with this product. To install updates: 1. Use a USB cable to connect the unit to a personal computer.

  • Page 46: Specifications

    Gen-Eye™ Hot Spot™ Operator’s Manual Specifications - 49 Receivers Specifications Receivers Dimensions U.S. Metric Height 27.2” 69.09 cm Length 12.8 ” 32.50 cm Width 4.8” 12.19 cm Weight 4.8 lb 2.18 kg Operation U.S. Metric Operating temperature range -4°F to 122°F -20°C to 50°C Antenna configurations: single peak, twin peak, null, left/right (cable only) Audio output: speaker...
  • Page 47 Gen-Eye™ Hot Spot™ Operator’s Manual Specifications - 50 Transmitters Transmitters Dimensions U.S. Metric Height 10” 25.40 cm Length 12” 30.48 cm Width 7.8” 19.1 cm Weight 7.8 lb 3.54 kg Operation U.S. Metric Operating temperature range -4°F to 122°F -20°C to 50°C Maximum power output: 5 watts Standard operating frequency: 1 kHz, 8 kHz, 33 kHz, 65 kHz Timer: unit runs continuously or shuts off after running for a selected hour interval (8-hour maximum).
  • Page 48 Gen-Eye™ Hot Spot™ Operator’s Manual Specifications - 51 System Operation System Operation Operating Modes and Frequencies Active cable, standard: 6 active frequencies Passive cable, standard: 60 Hz, 120 Hz, 180 Hz, 50 Hz, 100 Hz, 150 Hz Beacon (locate/depth only): 512 kHz and 33 kHz Locating Ranges U.S.
  • Page 49 Gen-Eye™ Hot Spot™ Operator’s Manual Specifications - 52 System Operation ®...

  • Page 50: Support

    All repairs must be done by an authorized repair facility. Repairs done elsewhere will void warranty. Resources Publications Contact your Gen-Eye Hot Spot dealer for publications and videos covering safety, operation, service, and repair of your equipment. Training For information about on-site, individualized training, contact your Gen-Eye Hot Spot dealer.
  • Page 51 Gen-Eye™ Hot Spot™ Series Operator’s Manual Warranty - 54 Electronics Limited Warranty Policy Warranty Electronics Limited Warranty Policy Subject to the limitation and exclusions herein, free replacement parts and labor will be provided when a unit fails due to a defect in material or workmanship within one (1) year of first commercial use (See Exceptions below for specific products).
  • Page 52 ANY IMPLIED WARRANTIES, INCLUDING WARRATIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE ARE EXPRESSLY DISCLAIMED. IN NO EVENT SHALL GENERAL PIPE CLEANERS, THE CHARLES MACHINE WORKS, INC., OR ANY AUTHORIZED SERVICING AUTHORITY BE RESPONSIBLE FOR ANY LOSSES, INCLUDING CONSEQUENTIAL AND INCIDENTAL DAMAGES, EXCEPT AS EXPRESSLY PROVIDED HEREIN.
  • Page 53 Gen-Eye™ Hot Spot™ Series Operator’s Manual Warranty - 56 Electronics Limited Warranty Policy ®...
