OWNER'S MANUAL
Model: F500P

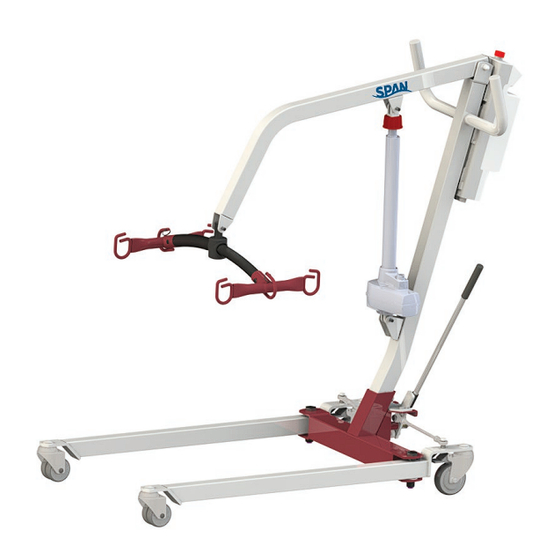

FULL BODY PATIENT LIFT
Span-America Medical Systems, Inc.
Greenville, SC 29606
(800) 888-6752
Ensure the product has been assembled according to the instructions in this manual.
All operators should read and understand the instructions for safe and proper operation of the
patient lift.
P11585
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SPAN F500P
Summary of Contents for SPAN F500P
- Page 1 OWNER’S MANUAL Model: F500P FULL BODY PATIENT LIFT Span-America Medical Systems, Inc. Greenville, SC 29606 (800) 888-6752 Ensure the product has been assembled according to the instructions in this manual. All operators should read and understand the instructions for safe and proper operation of the patient lift.
-
Page 2: Safety Instructions
• Never leave the user/patient unattended during lifting. and fi le a claim. For further assistance, contact your local dealer or Span-America. The F500P allows a person to be lifted and transferred safely, with minimum physical DEFINITIONS & SYMBOLS effort provided by the caregiver. Before attempting to lift anyone, please practice n this manual the user refers to the patient or resident and may be used operating the lift. -
Page 3: Features And Overview
* F500P model shown • DO NOT replace any components of the lift without consulting with Span, and follow proper instructions when replacing any components. • DO NOT service any parts of the lift while in use with a patient. -
Page 4: Specifications And Options
69.1” Lift Weight Unloaded (kg) 45.7 33.4 (1.3) Turning Diameter 61.3” * Span-America is committed to continuous improvements of our products therefore the specs, dimensions, and features listed above are for guidance only and subject to change without prior notice. - Page 5 Installation 1: Base and Mast Installation 3: Actuator S e c u r e M a s t by tightening bolt Installation 2: Boom Installation 4: Spreader Bar...
- Page 6 Installation 5: Power Control Unit Power Control Unit Overview Emergency Stop Button Up / Down Button Battery Pack Release Handle LCD Display Panel Battery Pack Charger DC In Not Used Additional Battery Pack (Optional) Charging Cradle Actuator (Optional) Hand Control 1.
- Page 7 Operating Instructions Release Pressed in Double check all assemblies for tightness and read operating LCD Display Panel Signs instructions carefully prior to use. When the emergency stop button is released, the LCD Display Panel will show one of the four For optimum performance the lift should be transported and stored in signs below.
- Page 8 Operating Lift: Using Hand Control Warning! - Battery Low and Charging is Needed If the battery needs to be charged, the LCD LED Indicator Lifting Display Panel will show a blinking low battery sign * Green = In Use * Blank = Standby shown on the left either when the emergency stop Lowering button is released or when a button on the LCD...
- Page 9 Available slings compatible with F500P Sling Hook-Up Guide Sling Type Material Sizes S (M920276) XS (M920930) Universal with head support (Span-America) Mesh with padding M (M920277) XL (M920931) L (M920278) XXL (M920932) S (M920667) XS (M920936) Universal without head support (Span-America)
-
Page 10: Maintenance And Inspection
• The expected lifetime of the electrical components are 3 years. • Lift the user above the bed by using the hand control. • Contact Span-America for any recycling information • Pull lift away from bed. Position user over the wheelchair or chair then lower the... -
Page 11: Cleaning And Disinfecting
• REPLACE a sling when it show signs of deterioration. Deterioration of sling • Contact Span for “Guideline for Identifying Deteriorated Slings” if needed. Disinfecting of the lift and sling • Inspect slings prior to each use for contamination from previous use. -
Page 12: Troubleshooting Guide
Your hand control needs to be replaced as it is at the end of its life cycle Patient lifts may not be returned unless the wrong lift is shipped in error by Span or the lift is heavily damaged or defective out of the box. - Page 13 Span-America Medical Systems, Inc. Greenville, SC 29606 (800) 888-6752 P11585 www.spanamerica.com | © 2019 Span-America...
