Turnstiles AG Series Installation Manual

Tandem turnstile
Hide thumbs Also See for AG Series:

Advertisement

Table of Contents

AG-Series Tandem Turnstile
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG Series and is the answer not in the manual?

Questions and answers

Related Manuals for Turnstiles AG Series

Summary of Contents for Turnstiles AG Series

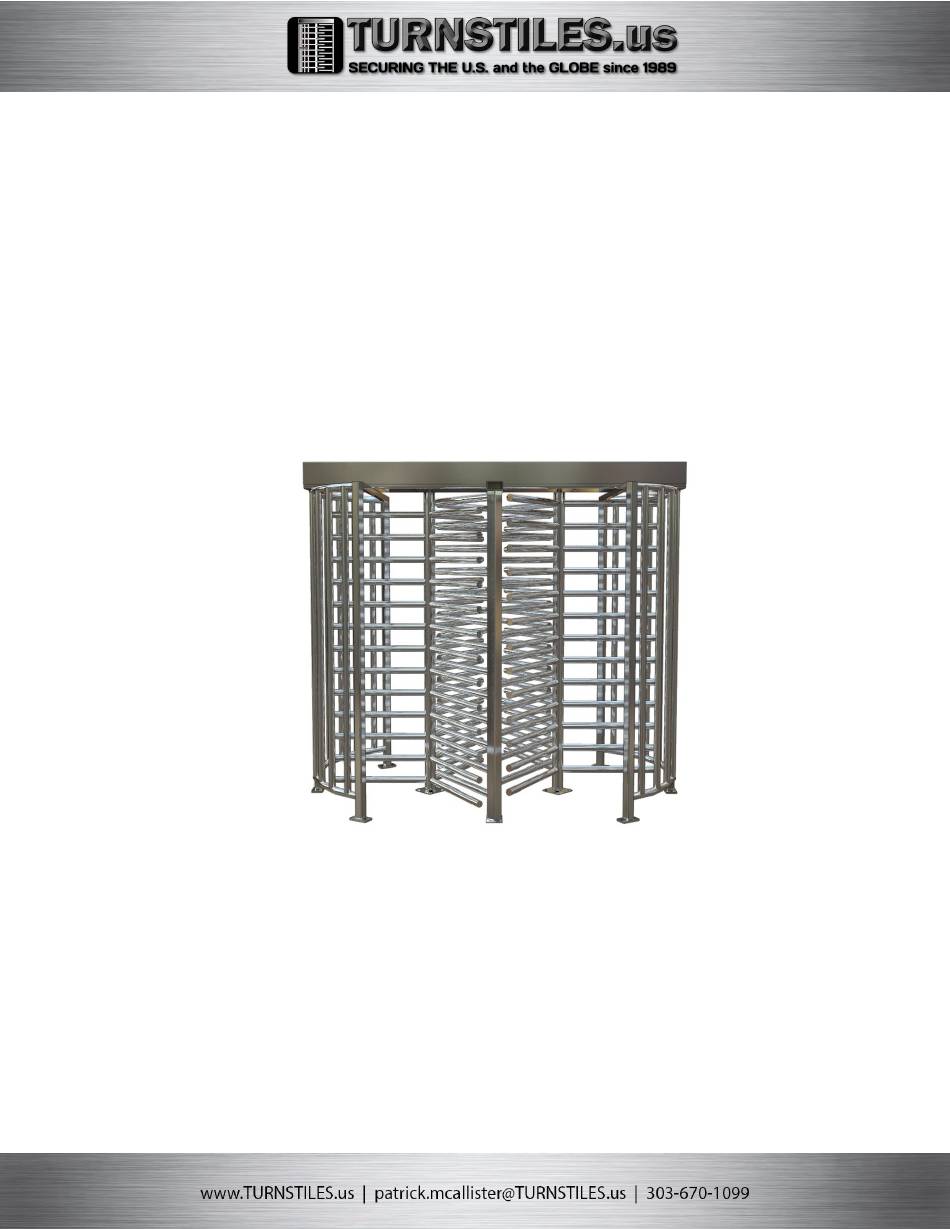

  • Page 1 AG-Series Tandem Turnstile Installation Manual...
  • Page 2 Tandem Full Height Turnstile General Dimensions Model Ag-30- 102 1/4” 60 9/16” 51 1/8” 31 1/8” 33 1/8” tt-SS-2E...
  • Page 3 Unpackaging Verify you have all parts and hardware listed below 1.1-Turnstile header with 2 -locking mechanisms and lid 2.2 - Rotors 3.2 -bottom bearing assemblies 4.2 -Cages 5.2 -Combs 6.1 -Crossmember 7.Included installation hardware box Tandem Full Height Turnstile Nomenclature Series Passage width SS- Stainless...

  • Page 4: Installation

    Installation 1. Starting with a level concrete slab or equivalent, begin the layout process by snapping a center line and a cross line for the turnstile entrance. Stand up the on the center line and measure the appropriate distance for the model of turnstile. (see general dimensions chart for measurements)
  • Page 5 2. Loosely bolt the header to cages and square them up by measuring to the center point. Refer to the general dimensions to see what this measurement would be for each model of turnstile. Once square, mark the holes on the cage feet and anchor using provided anchors.
  • Page 6 3. Attach the comb crossmember with provided bolts.
  • Page 7 4. The combs will be labeled top and bottom on the anchor and bolt plates. Attach the combs to the crossmember with provided bolts loosely. Align and anchor the bottom of the combs referring to the general dimensions for the model of tandem turnstile.
  • Page 8 5. Install the bottom bearing plates with the supplied anchors referring to the general dimensions for the model of tandem turnstile.
  • Page 9 6. The rotors are not the same on a tandem turnstile. Install the rotors so that the arms fit in between the comb arms. Once placed on the bottom bearing assembly tip the rotor into place and install the spline shaft. Below is correct alignment of the rotors while locked.
  • Page 10 7. If you have additional turnstiles or ada gates that go in the entrance array, use the bolts in the hardware box to bolt them together with the ½” spacers between the headers. Bolts with ½” spacers between the headers are used to space the headers apart properly.
  • Page 11 8. Install the Lid. Consult with electricians and access control contractors to apply power and control the turnstile with access control system. There is a wire chase for wiring through the cage so that no wiring is exposed. We recommend using a Mini Mullion reader that will fit on the cage 2x2 and...
  • Page 12 Electrical Requirements Input Voltage 120V (240v Special Order) Frequency 50/60 hz Amperage Draw .5 – 1 amps (unless enclosure heater is added = +5 amps) Operating Temperature -40 °F – 120 °F Access Control Requirements Input trigger Normally open dry contact / no voltage Minimum Trigger Pulse 1 second...
