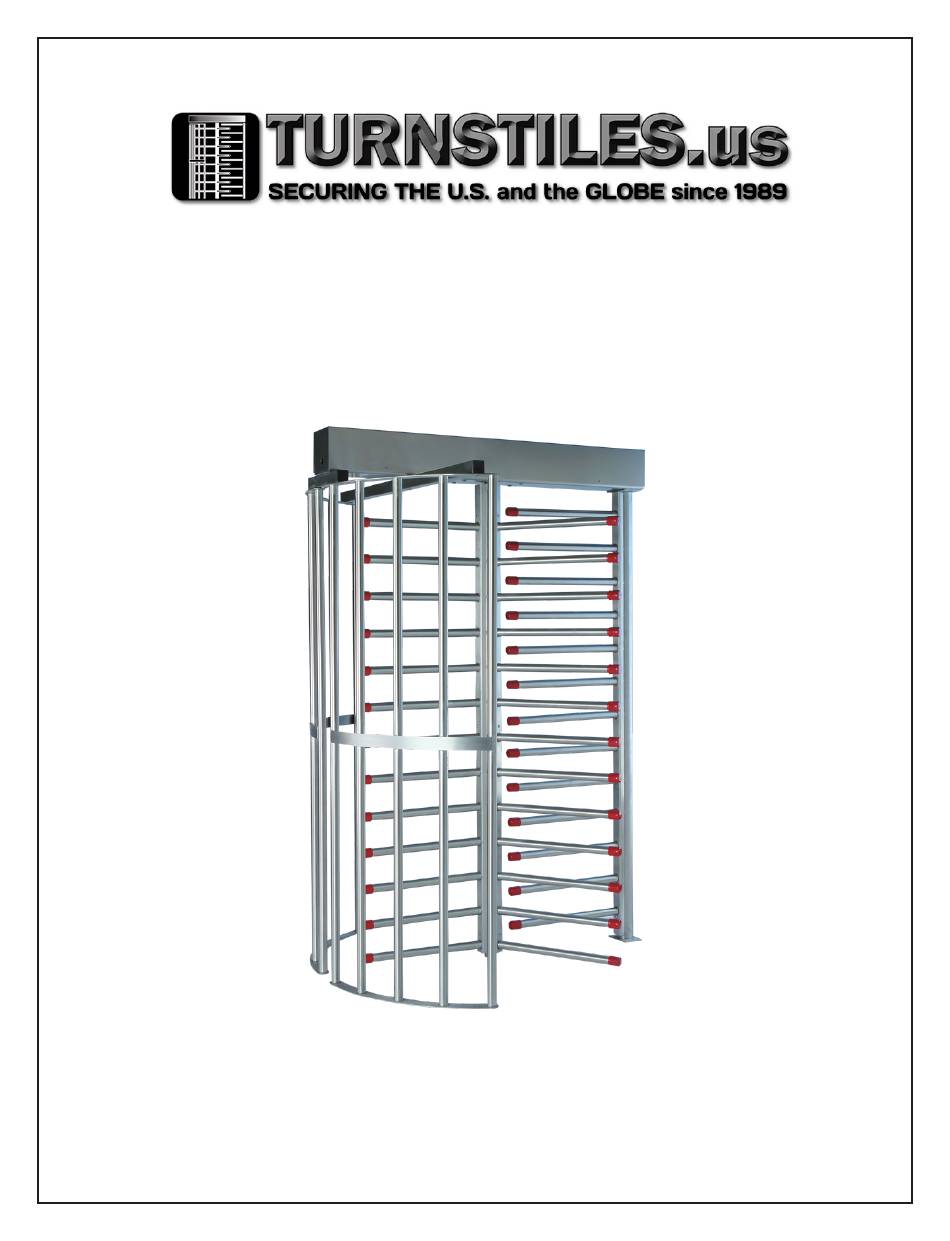

HS400 Series Single Full Height Turnstile Service & Installation Manual
HS400 Series Single Full Height Turnstile
Service & Installation Manual
Note: Successful turnstile installation depends on reading this manual.
Please keep this service manual after installation. If an installation is done by a construction company
or outside installer, please pass this book along to the end user. This book is required for maintainence,
troubleshooting & repairs.
Service Manual: 0740 E Gen. 3
0740E Gen 3.
www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099
1
Advertisement
Table of Contents
Related Manuals for Turnstiles HS400 Series
Summary of Contents for Turnstiles HS400 Series
- Page 1 HS400 Series Single Full Height Turnstile Service & Installation Manual HS400 Series Single Full Height Turnstile Service & Installation Manual Note: Successful turnstile installation depends on reading this manual. Please keep this service manual after installation. If an installation is done by a construction company or outside installer, please pass this book along to the end user.
-
Page 2: Important Electrical Information
HS400 Series Single Full Height Turnstile Service & Installation Manual Important Electrical Information Installation of the control head mechanism into the turnstile requires a grounding-type outlet recep- tacle installed inside of the frame or cabinet through the provided conduit access points. -
Page 3: Table Of Contents
HS400 Series Single Full Height Turnstile Service & Installation Manual Table of Contents Important Electrical Information HS400 Series Single Full Height Data Sheet HS400 Series Single Full Height Components HS400 Series Single Full Height Fastener List Pre-Installation Electrical Tips Wedge Type Concrete Anchor Instructions... -
Page 4: Hs400 Series Single Full Height Data Sheet
We’re the #1 Choice of Top Architects, Depth Width Width Height Height Security Pros and Engineers For more than 30 years, TURNSTILES.us has been the globally trusted name in 57.375” 62” 27” 84” 91” HS427-S pedestrian control equipment. Made in the USA and shipped worldwide, we are (1457.3mm) - Page 5 HS400 Series Single Full Height Turnstile Service & Installation Manual The High-Security Series HS427-S | HS430-S | HS439-S | HS448-S Full-Height Turnstile (Single) | Interior & Exterior Application Applications: Available Finishes: Ideal for controlling orderly flow of foot traffic in •...
-
Page 6: Hs400 Series Single Full Height Components
HS400 Series Single Full Height Turnstile Service & Installation Manual HS400 Series Single Full Height Components Each HS400 Series single full height turnstile comes with the following components: 1x Main Channel Wrapped in foam & cardboard to protect the cover’s nish. -
Page 7: Hs400 Series Single Full Height Fastener List
HS400 Series Single Full Height Turnstile Service & Installation Manual High Security Series Single Full Height Turnstile Fasteners All High Security Series Full Height Single Turnstiles Qty 4 - 3/8”-16 x 1.5” carriage bolts with nuts, washers & lock washers... -
Page 8: Pre-Installation Electrical Tips
HS400 Series Single Full Height Turnstile Service & Installation Manual Full Height Pre-Installation Electrical Tips If the unit is to be electronically controlled, pre-plan how it will be wired. We provide several options for running conduit to each turnstile. Each end of the main channel is designed to accept up to two 3/4” conduits, and also allow for multiple units to be bolted together. -
Page 9: Wedge Type Concrete Anchor Instructions
HS400 Series Single Full Height Turnstile Service & Installation Manual Wedge Type Concrete Anchor Instructions Select a carbide drill bit with a diameter equal to the anchor diameter. Drill hole at least 1/4” deeper than nominal anchor embedment. Clean hole with pressurized air or vacuum to remove any excess dust/debris. -
Page 10: Installation Instructions
HS400 Series Single Full Height Turnstile Service & Installation Manual Installation Instructions 1.) If needed, pour a level concrete pad at least 4” thick and 4” greater than the unit’s length and width in each direction. Model speci c diagrams are available if needed. - Page 11 HS400 Series Single Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 5.) Assemble cross arms to mainframe using the provided 3/8” x 3” carriage bolts as illustrated below. Ensure cross arms are square to mainframe and that the cross arms are ipped the correct way before attaching.
- Page 12 HS400 Series Single Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 7.) Following the concrete anchor installation directions, drill each of the marked holes marked for the 3/8” anchors. Be sure to remove debris from holes before installing the anchors.
- Page 13 HS400 Series Single Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 9.) If ordered with optional card reader mounting enclosures, remove the plastic plugs from the side holes of the long cross arm and install the elbow tting (packaged with enclosures in control head box) by placing the threaded chase nipples inside of the box tubing and spinning the ttings into place.
- Page 14 HS400 Series Single Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 11.) If necessary, level the mainframe by shimming from under the yokes and the barrier. Once level, secure these components to the concrete by adding the nuts to the anchors.
- Page 15 HS400 Series Single Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 14.) If unit is a carbon steel 439 or 448, attach arm assemblies to center column using provided 1/2” socket head cap screws and lock washers. The arms should be arranged so that the lowest arm is nearly ush with the bottom of the rotor (bearing race side).
- Page 16 HS400 Series Single Full Height Turnstile Service & Installation Manual Installation Instructions (continued) 16.) With the rotor in the correct position, install the 6500 Series Control Head into the mainframe by feeding the hex output shaft into the hex insert in the top of the rotor assembly.
-
Page 17: 6500 Series Control Head Mechanical Overview
6500 Series Control Head Mechanical Information All of our turnstiles and ADA gates operate with a mechanism called the 6500 Series Control Head. This sturdy and easy to maintain drive for the turnstile has replaced all previous model control heads. -
Page 18: Internal Parts Breakdown
HS400 Series Single Full Height Turnstile Service & Installation Manual 0740E Gen 3. www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099... -
Page 19: Control Head Parts List
HS400 Series Single Full Height Turnstile Service & Installation Manual Complete control heads are available upon request. Contact us for pricing details. www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80433 / 303-670-1099 Control Head Castings Locking Bar Assemblies –... -
Page 20: Control Head Con Gurations
Manual both ways: Unit rotates freely in both directions. This unsecure con guration is used as a means to direct tra c through one area. Full height turnstiles can be also be purchased with an out of service lockout bar which would allow the end user to lock the turnstile with a standard pad lock. -
Page 21: Locking Bar Information
HS400 Series Single Full Height Turnstile Service & Installation Manual 6500 Series Control Head Locking Bar Information The 6500 Series Control Head is built to order based on a direction set up sheet sent with each quote. This sheet de nes how each direction of passage functions. - Page 22 HS400 Series Single Full Height Turnstile Service & Installation Manual 6500 Series Control Head Locking Bar Information (Continued) The 6500 Series Control Head can be recon gured from fail lock to fail open and vice versa. Extra components are required to do so.
-
Page 23: Hydraulic Shock & Indexing
HS400 Series Single Full Height Turnstile Service & Installation Manual 6500 Series Control Head Hydraulic Shock Information The 6500 Series Control Head utilizes a spring loaded index pin for auto-centering the cam while a hydraulic shock o ers counter resistance to slow the rotation down. -
Page 24: Electrical Introduction
HS400 Series Single Full Height Turnstile Service & Installation Manual 6500 Series Control Head Electrical Information Each electronic control head comes with a power supply, a programmable logic controller (PLC), limit switches (or optionally, proximity sensors) and solenoids. For safety purposes, it is recommended that you read all literature on the electrical components before attempting to install the control head into a turnstile. -
Page 25: Wiring Diagram
HS400 Series Single Full Height Turnstile Service & Installation Manual 6500 Series Control Head w/ XD10 Controller Standard Wiring Diagram Input Voltage: Direction 1 Direction 2 Direction 1 Direction 2 100-240 VAC Access Control Relay Access Control Relay Override Relay... -
Page 26: Wiring Legend
6500 Series Control Head w/ XD10 Controller Standard Wiring Legend – I2 IB IC ID IE General de nitions: Direction 1 - Clockwise on full height turnstiles or cabinet on right for waist high turnstiles & ADA gates. Inputs Dir 1... -
Page 27: Limit Switch & Limit Switch Cam Information
Options and con gurations may alter the quantity or layout of the limit switches. Some examples of this would be electronically controlled one direction turnstiles, turnstiles with counters and turnstiles equipped with home position switches. -
Page 28: Logic Controller Settings
HS400 Series Single Full Height Turnstile Service & Installation Manual 6500 Series Control Head w/ XD10 Controller Standard Turnstile Settings The XD10 logic controller on the 6500 Series Control Head has a text based menu screen to adjust settings and view statistics of the turnstile. Pressing the A button will cycle to each of the screens available on the device. -
Page 29: Testing Procedure
HS400 Series Single Full Height Turnstile Service & Installation Manual 6500 Series Control Head w/ XD10 Controller Standard Turnstile Testing The XD10 logic controller on the 6500 Series Control Head can be activated by contact closures between 24VDC+ and the relevant input. New technology allows for simpler on-board testing as well. -
Page 30: Maintenance & Cleaning
HS400 Series Single Full Height Turnstile Service & Installation Manual Maintenance & Cleaning To ensure long life on any turnstile, the following maintenance is recommended. Note: these gures are assuming a maximum 75000 passages per year. Turnstiles with heavier tra c should be main- tained more frequently. Annual Servicing - Secure all nuts &... -
Page 31: Troubleshooting
HS400 Series Single Full Height Turnstile Service & Installation Manual 6500 Series Control Head w/ XD10 Controller Troubleshooting Symptoms Causes Solutions Verify outlet receptacle installed Power supply is not receiving in mainframe / cabinet is input voltage. operating correctly and that the power supply is plugged in. - Page 32 HS400 Series Single Full Height Turnstile Service & Installation Manual 6500 Series Control Head w/ XD10 Controller Troubleshooting Symptoms Causes Solutions Access control device output Wire access control to I1 or I2 connected to override inputs. with one-shot timer enabled.
- Page 33 HS400 Series Single Full Height Turnstile Service & Installation Manual 6500 Series Control Head w/ XD10 Controller Troubleshooting Symptoms Causes Solutions Remove locking bar assembly from control head (easiest way on Mechanical bind between locking Unit remains locked after access...
-
Page 34: Proper Turnstile Usage
HS400 Series Single Full Height Turnstile Service & Installation Manual Proper Turnstile Usage The 6500 Series Control head is easy to use. There are a few things that users should be trained on and informed of. - In the case of an electronic turnstile, approach the unit and present access control credentials. -
Page 35: Warranty
HS400 Series Single Full Height Turnstile Service & Installation Manual Warranty Information Seller warrants the goods against defective workmanship and materials provided that Buyer notify Seller within one (1) year after receipt by Buyer of the goods of any claim under this Warranty. The liability of Seller shall be limited to replacing or repairing defective goods returned by Buyer and delivered to the factory of the Seller, transportation charges prepaid.
