AG-Series Tandem Turnstile
Installation Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AG Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Turnstiles AG Series

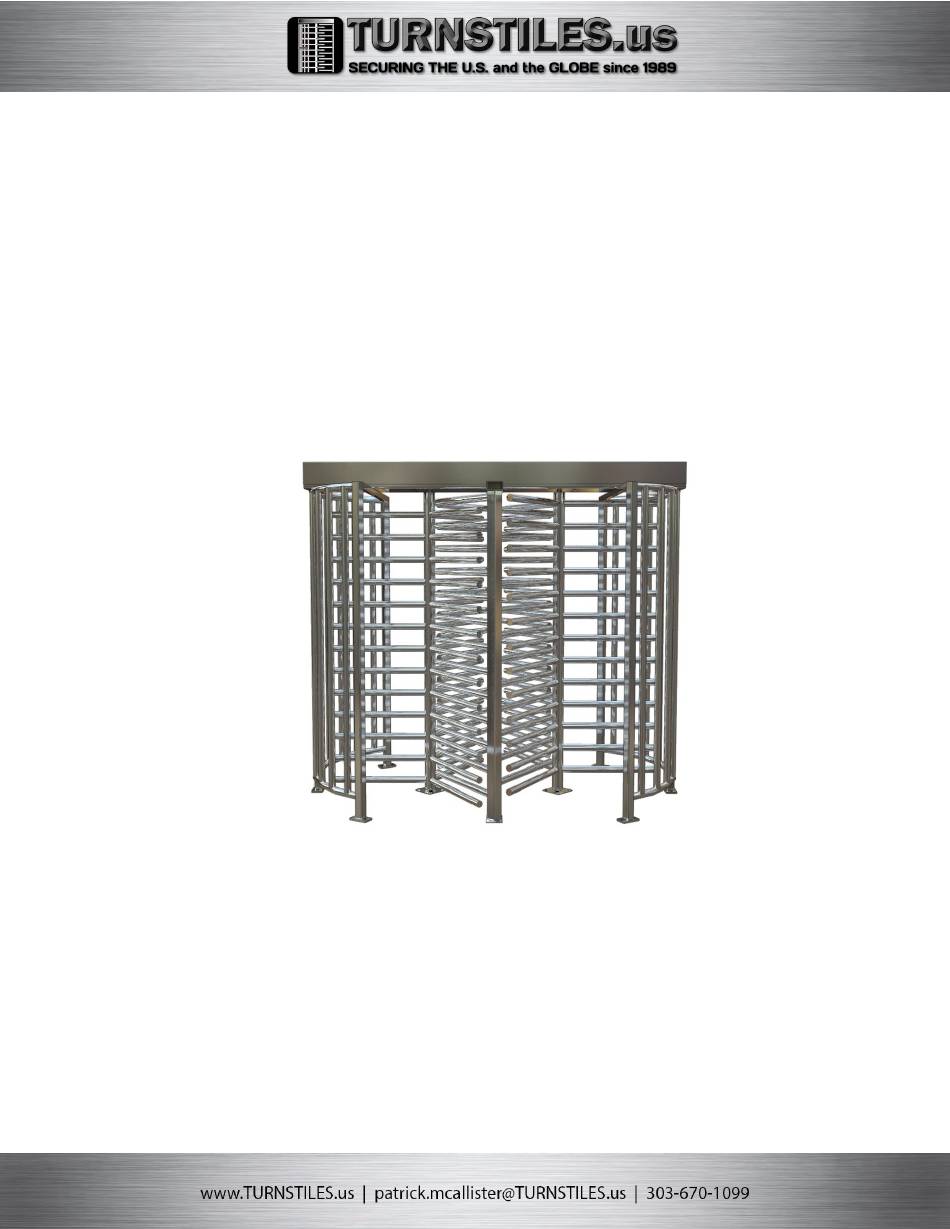

  • Page 1 AG-Series Tandem Turnstile Installation Manual...
  • Page 2: Table Of Contents

    Contents Unpackaging ....................... 2 Tandem Full Height Turnstile General Dimensions ....3 Tandem Full Height Turnstile Nomenclature ....... 4 Installation ....................... 5 Electrical Requirements ................13 Access Control Requirements ............. 13 Wiring Schematic ................... 14 Warranty and Disclaimer ................. 15 Unpackaging Verify you have all parts and hardware listed below 1.
  • Page 3: Tandem Full Height Turnstile General Dimensions

    Tandem Full Height Turnstile General Dimensions Model ag-27- 91 ¼” 55 7/16 46 5/8” 28 1/8” 30 1/8” Ag-30- 102 1/4” 60 9/16” 51 1/8” 31 1/8” 33 1/8”...
  • Page 4: Tandem Full Height Turnstile Nomenclature

    Tandem Full Height Turnstile Nomenclature Series Passage width in inches For tandem Galvanized 2 way turnstile electronic HHTT- passage Powder Coated control Half height POG- Tandem Powder coated turnstile 1 way over TQHTT- electronic galvanized passage Three quarter control height Tandem Stainless turnstile steel...
  • Page 5: Installation

    Installation 1. Starting with a level concrete slab or equivalent, begin the layout process by snapping a center line and a cross line for the turnstile entrance. Stand up the on the center line and measure the appropriate distance for the model of turnstile. (see general dimensions chart for measurements)
  • Page 6 2. Loosely bolt the header to cages and square them up by measuring to the center point. Refer to the general dimensions to see what this measurement would be for each model of turnstile. Once square, mark the holes on the cage feet and anchor using provided anchors.
  • Page 7 3. Attach the comb crossmember with provided bolts.
  • Page 8 4. The combs will be labeled top and bottom on the anchor and bolt plates. Attach the combs to the crossmember with provided bolts loosely. Align and anchor the bottom of the combs referring to the general dimensions for the model of tandem turnstile.
  • Page 9 5. Install the bottom bearing plates with the supplied anchors referring to the general dimensions for the model of tandem turnstile.
  • Page 10 6. The rotors are not the same on a tandem turnstile. Install the rotors so that the arms fit in between the comb arms. Once placed on the bottom bearing assembly tip the rotor into place and install the spline shaft. Below is correct alignment of the rotors while locked.
  • Page 11 7. If you have additional turnstiles or ada gates that go in the entrance array, use the bolts in the hardware box to bolt them together with the ½” spacers between the headers. Bolts with ½” spacers between the headers are used to space the headers apart properly.
  • Page 12 1. Install the Lid. Consult with electricians and access control contractors to apply power and control the turnstile with access control system. There is a wire chase for wiring through the cage so that no wiring is exposed. We recommend using a Mini Mullion reader that will fit on the cage 2x2 and...
  • Page 13: Electrical Requirements

    Electrical Requirements Input Voltage 120V (240v Special Order) Frequency 50/60 hz Amperage Draw .5 – 1 amps (unless enclosure heater is added = +5 amps) Operating Temperature -40 °F – 120 °F Access Control Requirements Input trigger Normally open dry contact / no voltage Minimum Trigger Pulse 1 second...
  • Page 14: Wiring Schematic

    Call 303 670 1099 * Text 303 918 9787 patrick.mcallister@turnstiles.us...
  • Page 15 AG-Series Turnstile MAINTENANCE Annual Recommended Inspection and Maintenance for AG Series Turnstiles • Remove the lid from the header. • Clean out the header of any dust and debris. • Take out center shaft by lifting it out of the top of the locking mechanism (you may need a pair of channel locks to grip the shaft).
  • Page 16: Warranty And Disclaimer

    Warranty and Disclaimer Warranty Thank you for your interest in our products and services. This Limited Warranty applies to physical goods, and only for physical goods, purchased from Outlaw industries. What does this limited warranty cover? This Limited Warranty covers any defects in material or workmanship under normal use during the Warranty Period.
