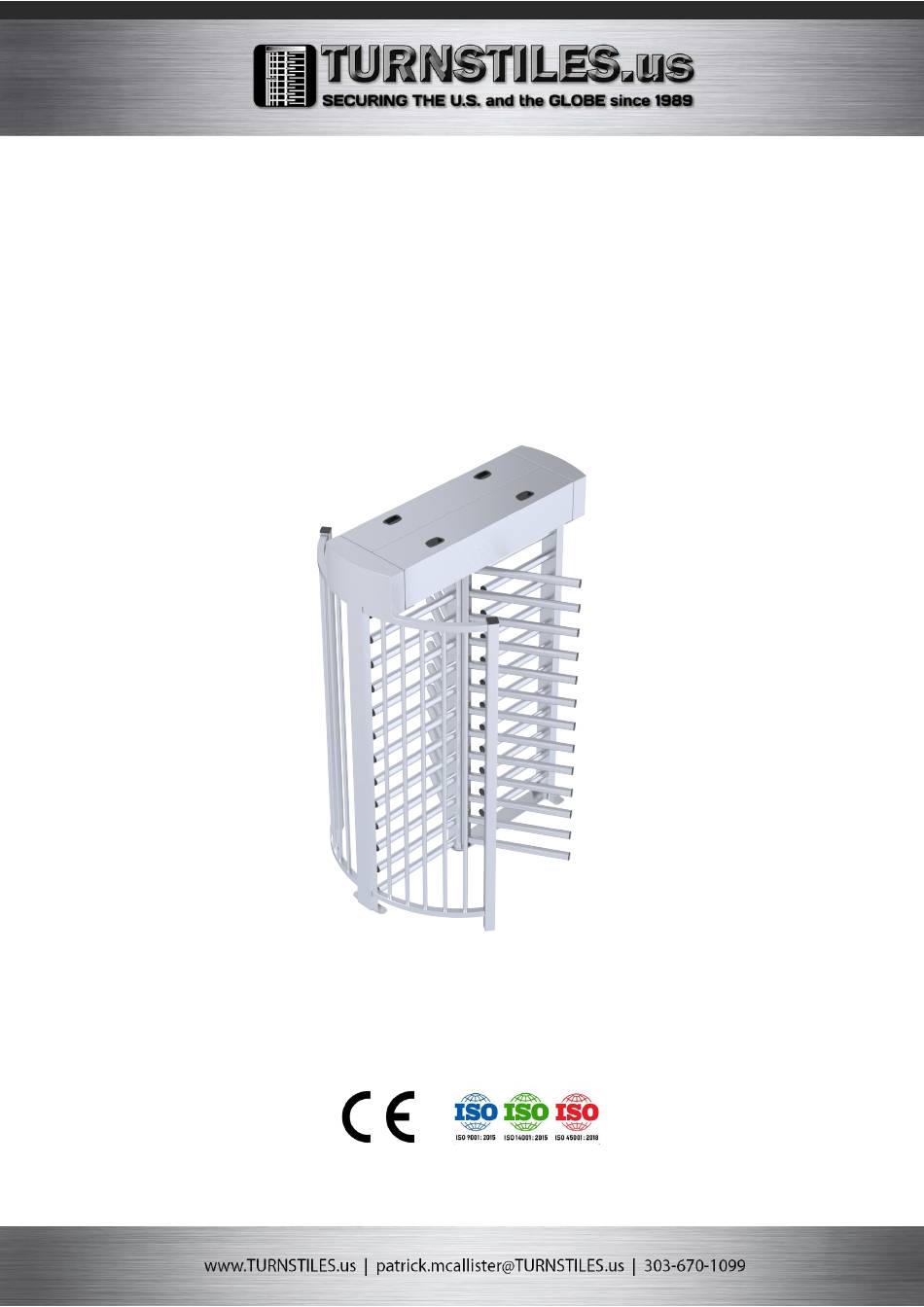

- Page 1 OST FULL HEIGHT SINGLE TURNSTILE INSTALLATION & USER’S MANUAL...
-
Page 2: Installation Safety
WARNING! Safety instructions READ CAREFULLY! INSTALLATION SAFETY BEFORE INSTALLING AND STARTING UP THE DEVICE, PLEASE OBSERVE THE SAFETY INSTRUCTIONS LISTED IN THE FOLLOWING SECTIONS. THIS WILL • SUITABLY SECTION OFF AND DEMARCATE THE ENTIRE HELP YOU TO AVOID MAKING SERIOUS ERRORS THAT COULD IMPAIR YOUR INSTALLATION SITE TO PREVENT UNAUTHORIZED PERSONS FROM HEALTH, DAMAGE THE DEVICE AND ENDANGER OTHERS. - Page 3 • IN THE EVENT OF A MALFUNCTION OR SERVICING, THE DEVICES NEED • IT IS FORBIDDEN FOR USERS TO PERFORM ANY OPERATIONS THAT TO BE DISCONNEC-TED FROM THE MAINS IMMEDIATELY. IF DEVICES ARE ARE NOT EXPRESSLY REQUIRED OF THEM. FOR ANY REPAIRS, CONNECTED TO ONE OR MORE UNIN-TERRUPTIBLE POWER SUPPLIES MODIFICATIONS AND ADJUSTMENTS AND FOR EXTRA-ORDINARY (UPS), THEY WILL CONTINUE TO OPERATE EVEN IF THE PLUG TO THE UPS...
-
Page 4: Specifications
OST Full Height Mechanical Single Turnstile FEATURES LED INDICATORS • Portal and housing made of steel LED lights indicates the operating status of the turnstile in both • Portal turnstile, four-part rotor blade with spars, 90°division directions. OR three-part rotor, 120° division... - Page 5 OST Full Height Mechanical Single Turnstile 3 sectional (120°) and 13 horizontal arms in 51 mm diameter in each section 2370 mm / 93,31” (Standard) Rotor: 2460 mm / 96,85” (Motor driven) Complete Height: 2430 mm / 95,67” Complete Width: 2125 mm / 83,66”...
- Page 6 1. Removable lid 2. Keylocked Cabinet / Housing 3. Mechanism 4. Rotor arms 5. Barrier comb 6. Bottom bearing plate 7. IP67 Electronics box 8. Rotor 9. Yoke with filler rails 10. Installation locations 11. Lid handles...
-
Page 7: Opening The Lid
2. Opening the lid... -
Page 8: Ground Installation
3. Ground Installation... - Page 9 4. Full Height Mechanism 1. Sensor plate 2. Lock plate 3. Cast and machined aluminium mechanism plate 4. Hydrolic shock-absorber to ensure smooth operation 5. Lock arms 6. 24V solenoid/electromagnetic lock 7. Proximity sensor for direction control 8. Anti backup device to prevent reverse rotation once the the mechanism has moved 30 degrees from home position.
- Page 10 5. TEC 101 Logic Controller Board Connections...
- Page 12 ELECTRICAL CONNECTIONS Control card 1and specifications Open the electronic card box on the corner of the turnstile slowly by pressing lightly on the right and left sides to see the TEC-101 control card. When closing the cover of the card box, please pay attention to the electric cables. Figure 5.1 Electronic Card Box The circuit diagram of the control card in the turnstile is as in Figure 5.2.
- Page 13 LED is working. Red / Green LEDs are used for direction A and direction B. 8- L21 LED is used in turnstiles with drop arm option. It turns on when the arm dropping motor is powered, and remains off at the other...
- Page 14 Figure 5.2 TEC101 Control Card 1. Motherboard supply input (+24VDC) 2. (Option) drop arm motor connection 3. A direction / B direction LED indicator connector 4. Guiding indicators (Indicator LED) 5. A direction / B direction pass information NO / NC selection jumper 6.
- Page 15 Control card switch descriptions Figure 5.3 Function switch The functions of the on / off function switches (number 17 on the control card) seen in figure 5.3 above are as follows: The switches are ON in Figure 5.3. Automatic shutdown time: It is determined by the switch 1 and switch 2. It is the waiting time setting for the person to pass, corresponding to the “open”...
- Page 16 Memory mode selection: It is determined by the switch 5. In standard turnstiles, after the entry signal is received, the input (Ain, Bin, Oin) is inactive and the incoming signals are not processed until passing is completed or the automatic closing is activated. With the memory mode, all entry signals (up to 200) are saved in the memory even during passing.
- Page 17 Control card terminal descriptions (XL5)
- Page 18 External connection types Triggering with dry contact As shown in Figure 5.4, the pin 1 of the XL5 terminal is used as the common pole with + 24VDC voltage. The pin 2 is used as opening to direction B, and the pin 3 is used as the opening to direction B inputs.
- Page 19 As shown in the diagram, the J1 jumper is installed on the control board in the first turnstile with alarm cable, while it is not installed on other turnstiles. If installed, it must be definitely removed. (Figure 5.7) Pin 6 (GND) of terminal XLS of turntables are connected to each other, and the pin 5 emergency inputs are connected to each other.
- Page 20 Control card terminal descriptions (XL9) XL9 terminal has direction A and B pass relay contacts. (Figure 5.8) Relay contacts are normally open (NO) when the turnstile is at idle. The pins 2 and 3 of terminal XL9 are connected to the relay RL1. The relay RL1 is active in passing to direction A.
- Page 21 How to use the pass relays There are 2 directional pass relays on the turnstile control card. Normally open (NO) poles of these relays are extended to terminal XL9. The pass information relay contact is available separately for A and B directions. At each rotation of the turnstile arm to direction A, the A direction pass contact 500mS is activated, and it becomes passive again.
