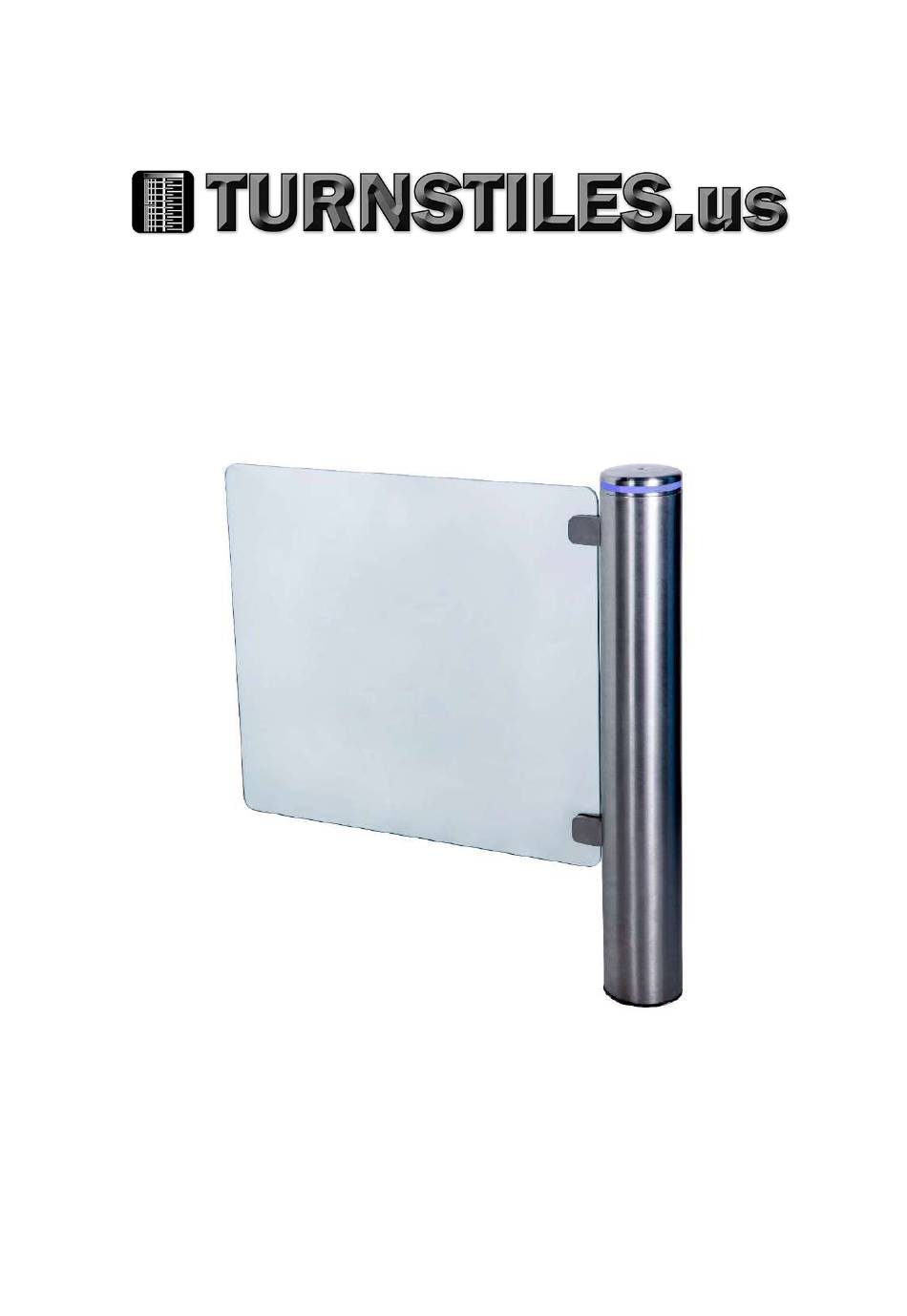

USER MANUAL
PAG180
Pulse Automatic Gate
www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pulse Automatic Gate PAG180 and is the answer not in the manual?

Questions and answers

Related Manuals for Turnstiles Pulse Automatic Gate PAG180

Summary of Contents for Turnstiles Pulse Automatic Gate PAG180

  • Page 1 USER MANUAL PAG180 Pulse Automatic Gate www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...

  • Page 2: Table Of Contents

    Figure 5: PAG700V02 Controller & Connections ................ 10 Figure 6: Client trigger connections ..................11 POWER SUPPLY AND VOLTAGE SELECTION ............12 Figure 7: Power supply mains change 220v - 110v ..............12 CONTROLLER SWITCH SETTINGS ................13 DRAWINGS ........................ 15 www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...

  • Page 3: Layout

    Below is a typical layout for the gate. A plinth is required to be 250x250 wide and long, and 250mm deep. The concrete should be at least 15MPa strength, or to a civil engineers’ specifications. Figure 1: Typical layout of Pulse Special Needs Gate www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...
  • Page 4 1.7. There is allowance for a reception trigger, which can be used with a remote or a pushbutton placed at the reception desk. The trigger has a push-to-open, push-to-close function. www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...

  • Page 5: Preparation For Installation

    & control cables. Also check that the floor is level and smooth. 2.3. The conduit should be flush with the floor and the power & control cables must extend +- 500mm from floor level to reach the connection terminals. www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...
  • Page 6 2.5. Place the base ring, mark the holes with chalk. Remove and drill holes in concrete. 2.6. Bolt down the base assembly using the 4x bolting holes and suitable M10 Capscrew anchors. www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...

  • Page 7: Parts

    Special Needs Gate Automatic - USER MANUAL Doc: SNGA-UM 3. PARTS 3.1. Below is an exploded view of the special needs gate and its main parts. Figure 4: Gate frame Assembly www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...

  • Page 8: Opening & Installation

    5 4.7. Connect the power and controls (see ) before replacing the body. The body must be placed with the controls facing toward the area where the gate will in the closed www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...

  • Page 9: Connections And Setup

    5.1. In the PAG700V02 controller, the most used triggers are wired to the terminal rail located above the power supply. 5.2. The power connections for mains power are also located at the terminal rail, with live wire connected to the circuit breaker. www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...
  • Page 10 Special Needs Gate Automatic - USER MANUAL Doc: SNGA-UM Figure 5: PAG700V02 Controller & Connections 5.3. Connect 220v AC live power as shown in the diagram Figure 6: . www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...
  • Page 11 (latch). 5.6. Connect the terminals 3 and 5 (toggle trigger A and ground) to use as an opening latch for a remote control or push button at the reception desk. Figure 6: Client trigger connections www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...

  • Page 12: Power Supply And Voltage Selection

    6.1. The power supply has a switch that should be set for either 220V or 110V (for USA installations). Remove the front screw, slide the perforated top back and up to remove, to access the switch. Figure 7: Power supply mains change 220v - 110v www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...

  • Page 13: Controller Switch Settings

    Brake Mode in Open Position Brake Mode in Closed Position Fire Alarm Direction Direction gate opens when fire alarm is triggered. Open Trigger Memory Trigger memory for storing multiple triggers. This is by default off. www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...
  • Page 14 Buzzer sound on operation. Spare Trigger Hold Open Hold open function for trigger if contact is closed indefinitely. LEARN MODE – Switch ON for 5 For factory settings. seconds Test Mode – 2 Second Auto Cycle www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...

  • Page 15: Drawings

    8.1.2. SNGA-SA-01 – Rev. 6 8.1.3. SNGA-SA-02 – Rev. 6 8.1.4. SNGA-SA-03 – Rev. 7 8.1.5. SNGA-SA-04 – Rev. 6 8.1.6. SNGA-SA-05 – Rev. 6 8.1.7. 1278-WD-01 – Rev. 1 8.1.8. 1278-WD-02 – Rev. 0 www.TURNSTILES.us | patrick.mcallister@TURNSTILES.us | 303-670-1099...
  • Page 20 PARTS LIST ITEM PART NUMBER DESCRIPTION GW92106_0_ASM 2002-1403 2002-1404 2002-1307_0 2002-1201 2002-1294 PROJECT: 2002-1394 SPECIAL NEEDS GATE AUTOMATIC SCALE: NTS FIRST ANGLE PROJECTION DIMENSIONAL TOLERANCES (UNLESS OTHERWISE SPECIFIED): FROM: TOLERANCE +- 0.25 +- 0.50 +- 1.00 +- 1.50 ISOMETRIC (TR) 1000 +- 2.50 >...
  • Page 23 PAG700V02 CONTROLLER MAINS 220V 6A 50Hz PROJECT #: 1278 PROJECT: AUTOMATIC SPECIAL NEEDS GATE SITE: 2 3 4 5 6 ---- CLIENT: 10 11 ---- DIMENSION TOLERANCES SCALE: NTS (Unless otherwise specified): FROM: TOLERANCE +- 0.25 +- 0.50 +- 1.00 24V POWER SUPPLY +- 1.50 1000...
  • Page 24 PROJECT #: 1278 TRIGGER A PROJECT: AUTOMATIC SPECIAL MAINS 220V 6A 50Hz TRIGGER B NEEDS GATE SITE: TOGGLE TRIGGER A ---- EMERGENCY TRIGGER CLIENT: ---- DIMENSION TOLERANCES SCALE: NTS (Unless otherwise specified): FROM: TOLERANCE +- 0.25 +- 0.50 +- 1.00 2 3 4 5 6 +- 1.50 1000...
