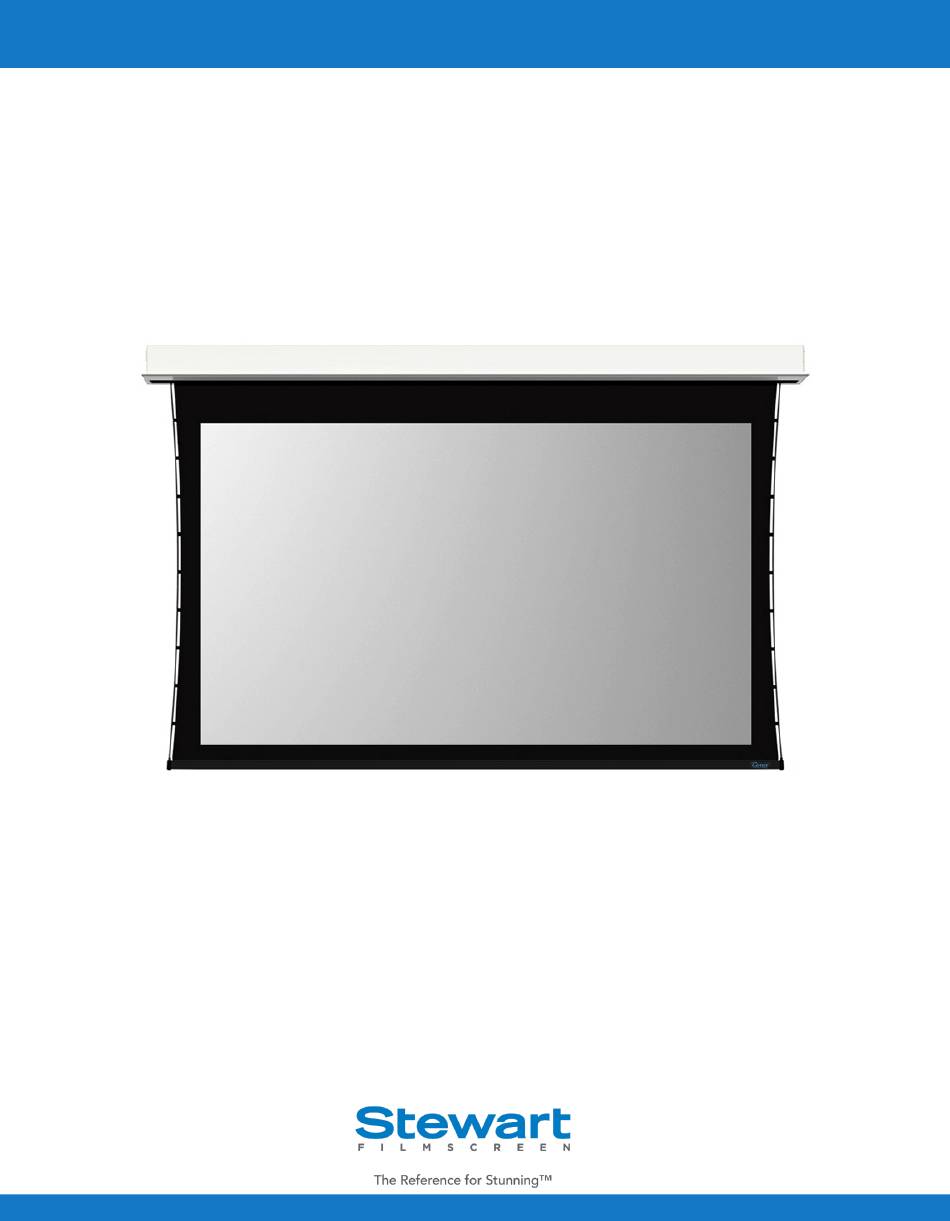

- Page 1 O W N E R S M A N U A L Cima Above Ceiling Retractable, Above Ceiling Screen System...
- Page 2 Printed in U.S.A. ©2020 Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product specified in this document. Sizes and specifications subject to change without notice at Manufacturer’s discretion. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at:...
-
Page 3: Table Of Contents
Cima Above Ceiling O W N E R S M A N U A L Contents To the Owner Important Safety Informaton Preparing the Installation Product Dimensions Installing the Screen Into the Ceiling Standard Control - Keypad Standard Control - Projector Trigger Standard Control - Keypad &... -
Page 4: To The Owner
Cima by Stewart Filmscreen product ABOUT YOUR CIMA ABOVE CEILING The Cima Above Ceiling is designed for ease of installation The Cima Above Ceiling features a self- finishing face-plate There are no user-servicable parts contained within the unit IMPORTANT SAFETY INFORMATION... -
Page 5: Preparing The Installation
WARNING Failure to remove the batten lock-down screws can result in permanent damage to the screen MOTOR WIRING The Cima Above Ceiling screen motor is pre-wired at the factory No additional internal motor wiring is required i i CAUTION During installation, do not place the unit on an unstable cart, stand, table, or ladder The unit may fall,... -
Page 6: Product Dimensions
PRODUCT DIMENSIONS CASE & SCREEN Detail A: Screen Sideview Stewart Filmscreen... -
Page 7: Installing The Screen Into The Ceiling
CAUTION During installation of the Cima Above Ceiling into the ceiling opening, be advised that damage can occur to the screen Perform the following actions to avoid damage: Wear clean gloves throughout the installation process to prevent damage to the screen housing... -
Page 8: Standard Control - Keypad
(See Figure 4) Note: See the section on Adjusting the Screen Extension for information regarding the default limits by which the screen can be adjusted up or down from the factory pre-set. Figure 4: Keypad Face Stewart Filmscreen... -
Page 9: Standard Control - Projector Trigger
If there is a sudden change in direction, the motor is paused for 1/2 second before reversing direction This is to prevent strain on the motor mechanism, and to prevent damage to any material controlled by the motor Relays are automatically de-energized after 120 seconds of operation to reduce power consumption Cima Above Ceiling... -
Page 10: Standard Control - Keypad & Projector Trigger
If there is a sudden change in direction, the motor is paused for 1/2 second before reversing direction This is to prevent strain on the motor mechanism, and to prevent damage to any material controlled by the motor Relays are automatically de-energized after 120 seconds of operation to reduce power consumption Stewart Filmscreen... -
Page 11: Optional Control - Cima-Link Controller Description
Figure 8: Cima-Link Controller (face) Note: The Cima-Link Controller is installed at the factory when ordered with a screen In the event of an aftermarket installation, contact the factory for instructions for mounting the controller Call Toll-Free 800-762-4999 or 310-784-5300 Cima Above Ceiling... -
Page 12: Optional Control - Cima-Link Infrared Package Connection
Note: The maximum length of the RJ25 cable is 20’ INFRARED EYE INFRARED EYE CONNECT CABLE CONN (STEP 1) RJ25 JACK RJ25 CABLE RJ25 CABLE CIMA-LINK CONTROLLER LOCATED INSIDE CASE RJ25 JACK FOR STANDARD INFRARED REMOTE INFRARED REMOTE CONTROLS Figure 9: Cima-Link Infrared Package Connection Figure 9: Stewart Filmscreen... -
Page 13: Optional Control - Cima-Link Cima-Link Ethernet Package Connection
Note: The maximum length of the RJ25 cable shall not exceed 50’. RJ25 CABLE RJ25 JACK RJ25 JACK IP DEVICE (FRONT) POWER SUPPLY RJ45 JACK CIMA-LINK CONTROLLER IP DEVICE LOCATED (BACK) INSIDE CASE RJ25 JACK FOR STANDARD CONTROLS Figure 10: Cima-Link Ethernet Package Connection Cima Above Ceiling... -
Page 14: Optional Control - Cima-Link Rs232 Package Connection
LOCATED CONNECTS INSIDE CASE RJ25 JACK FOR STANDARD CONTROLS Figure 11: Cima-Link RS232 Package Connection Note: For RS-485 connection protocol, installer may need to provide an adapter to interface with the control system This adapter is not included Stewart Filmscreen... -
Page 15: Operating The Screen
“Stop” function shorts both directions internally to common You can use both switching functions simultaneously by simply connecting a splitter to the Cima RJ Input jack The trigger input is only a 2 conductor connection Figure 12: Pinout Diagram Cima Above Ceiling... -
Page 16: Adjusting The Screen Extension
If the power is still on, the screen will drop incre- mentally as the switch is turned Note: One complete turn of the switch will make approximately a 3/4” (2 cm) change in the screen’s stop position Stewart Filmscreen... - Page 17 Note: The yellow “UP” limit switch is to stop the motor in the retracted position We advise not adjusting this switch as to avoid possible screen damage should the switch get mis-adjusted It is recommended that you make a note of any changes made to the factory preset Cima Above Ceiling...
-
Page 18: Adjusting The Screen Tension
(stretching screen) adjustment thereby eliminating any wrinkles, waves, or puckers Detail B: Batten Overview Detail B: Batten Underside creen Stewart Filmscreen... -
Page 19: Caring For & Cleaning The Screen
A draftsman-style brush may be used to lightly whisk away any loose dirt or dust particles (This type of brush is usually available at office supply stores ) Stewart Filmscreen has an optional screen cleaning kit that contains the proper type of brush Contact your dealer if you would like to obtain... -
Page 20: Troubleshooting
TROUBLESHOOTING Refer to the following guidelines if you encounter a difficulty in the operation of your Stewart Filmscreen product Problems related to electrical or motor function may require a qualified service person or electrician Should you have a problem that is not addressed here, call Stewart Filmscreen Corporation... - Page 21 Indentations appear on screen Debris or particles adhering to Check back of screen; gently surface screen due to static cling brush debris away with a draftsman-style brush Cima Above Ceiling...
-
Page 22: Product Warranty
Corporation shall not be liable for any and all consequential damage(s) occasioned by the breach of any written or implied warranty pertaining to the sale of a Stewart Filmscreen product in excess of the purchase price of the product sold... -
Page 23: Maintenance Notes
MAINTENANCE NOTES Cima Above Ceiling... - Page 24 1161 W. Sepulveda Blvd., Torrance CA 90502 USA 800.762.4999 Tel: 310.784.5300 Fax: 310.326.6870 Email: request@stewartfilmscreen.com 2022© Stewart Filmscreen. Specifications are subject to change without notice.
