Summary of Contents for Stewart Filmscreen Visionary Medio

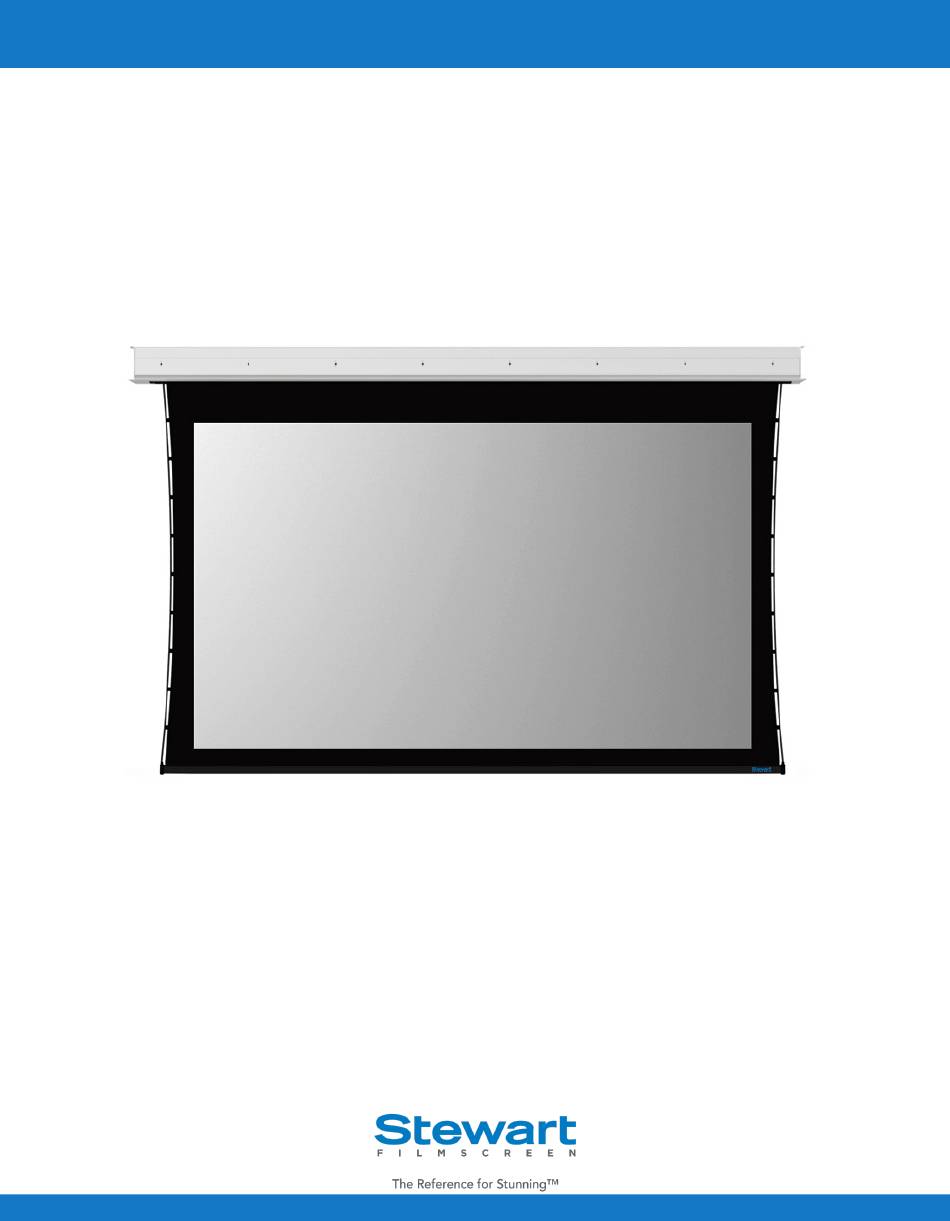

- Page 1 O W N E R S M A N U A L Visionary Medio Retractable, Above Ceiling, Self-Finishing Screen System with Two-Piece Construction...
- Page 2 Printed in U.S.A. Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product specified in this document. Sizes and specifications subject to change without notice at Manufacturer’s discretion. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at:...
-
Page 3: Table Of Contents
Visionary Medio O W N E R S M A N U A L Contents To the Owner Preparing the Installation Installation Procedures Operating the Screen Adjusting the Screen Extension Screen Care and Cleaning Troubleshooting Product Warranty... -
Page 4: To The Owner
Projection screens should always be protected in rooms that are under construction Damage will result if the screen is unprotected in these situations (With the Visionary Medio, you can install the case and then install the screen assembly when construction is complete ) When installed in a room undergoing construction or remodeling, make sure the screen is retracted at all times and that the electrical service to the unit is shut off Cover the unit’s ceiling opening with plastic sheeting to guard against foreign debris... - Page 5 Appropriate tools for selected type of installation Electrical hook-up wire and associated components to connect control system DIMENSIONS Refer to Figure 1 for key dimensions Mounting Threaded Nut for attaching screen assembly to case Figure 1: Schematic side view of Visionary Medio Visionary Medio...
- Page 6 3 Open the shipping container 4 Remove the Visionary Medio from carton by lifting straight up Place the unit on sawhorses as shown in Figure 2 Do NOT place the Visionary on its back (with the screen opening up), as this may...
- Page 7 Figure 3: Unit end Lift case straight up Case Screen assembly Lift case straight up Figure 4: Case lifted before being placed adjacent to screen assembly Screen assembly Figure 4: Case lifted before being placed adjacent to screen assembly Visionary Medio...
- Page 8 PREPARING THE INSTALLATION (CONTINUED) AVAILABLE INSTALLATION METHODS You can use different methods to install the Visionary Medio housing Flat ceiling mount brackets Refer to Figure 5 Threaded rods, using the built-in sliding nut rail The installer supplies the mounting hardware,...
-
Page 9: Installation Procedures
Note: If necessary, you can make the electrical connection when the case is partially lifted into the opening to provide better access if the case fits tightly to the opening Position ladders and or duct jack under area where Visionary Medio is to be installed 2 Lift the case into the prepared opening... - Page 10 Stewart 3-button wall pad with infrared sensor and handheld IR transmitter RS-232 via IBT100 Serial Translator Note: Other control systems are optional All control systems for the Visionary Medio are to be connected in an outboard fashion No internal controllers are available...
- Page 11 INSTALLING THE SCREEN ASSEMBLY i i CAUTION During installation of the Visionary Medio screen assembly into the mounted housing, be advised that damage can occur to the screen Perform the following actions to avoid damage: When lifting the screen assembly up into the case, make sure the screen does not come into...
- Page 12 INSTALLATION PROCEDURES (CONTINUED) Position ladders and or duct jack under area where the Visionary Medio screen assembly is to be installed 2 Lift the screen assembly up to the case 3 Make sure electrical pigtails are clear of the screen assembly before positioning it...
- Page 13 Locate the tabs on end of plate on threaded rod 2 Pushing the plate in until it is flush Refer to Figure 10 Figure 9: Leveling the screen assembly Access cover plate Tabs Slots Figure 10: Installing access cover plates Visionary Medio...
-
Page 14: Operating The Screen
Do not operate the motor when any of the following occurs: The unit emits any smoke, heat, abnormal noise or unusual odor The unit is damaged in some way, such as damage from a water leak If any of these situations occur, call a qualified service person Stewart Filmscreen... -
Page 15: Adjusting The Screen Extension
Use a hex head or an electrician’s style screw- driver (with a minimum 6-inch / 15 cm blade) Turn the switch in a counterclockwise direction If the power is on, the screen will drop incrementally as the switch is turned Visionary Medio... - Page 16 Once you have made the adjustment, whenever you lower the screen, it will automatically stop at the new position Note: It is recommended that you make a note of any changes made to the factory preset Stewart Filmscreen...
-
Page 17: Screen Care And Cleaning
A draftsman-style brush may be used to lightly whisk away any loose dirt or dust particles (This type of brush is usually available at office supply stores ) Stewart Filmscreen has an optional screen cleaning kit that contains the proper type of brush Contact your dealer if you would like to obtain... -
Page 18: Troubleshooting
TROUBLESHOOTING Refer to the following guidelines if you encounter a difficulty in the operation of your Stewart Filmscreen product Problems related to electrical or motor function may require a qualified service person or electrician Should you have a problem that is not addressed here, call Stewart Filmscreen Corporation... - Page 19 Brush off or use a mild on screen surface detergent solution with clean rag or cotton swab Indentations appear on screen Debris or particles adhering to Check back of screen; gently surface screen due to static cling brush debris away by hand Visionary Medio...
- Page 20 Corporation shall not be liable for any and all consequential damage(s) occasioned by the breach of any written or implied warranty pertaining to the sale of a Stewart Filmscreen product in excess of the purchase price of the product sold...
- Page 21 MAINTENANCE NOTES Visionary Medio...
- Page 22 1161 W. Sepulveda Blvd., Torrance CA 90502 USA 800.762.4999 Tel: 310.784.5300 Fax: 310.326.6870 Email: request@stewartfilmscreen.com 2021© Stewart Filmscreen. Specifications are subject to change without notice.
