O W N E R ' S M A N U A L
AT 1.5
Fixed Frame, Tensioned and Grommet Screen

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT 1.5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stewart Filmscreen AT 1.5

Summary of Contents for Stewart Filmscreen AT 1.5

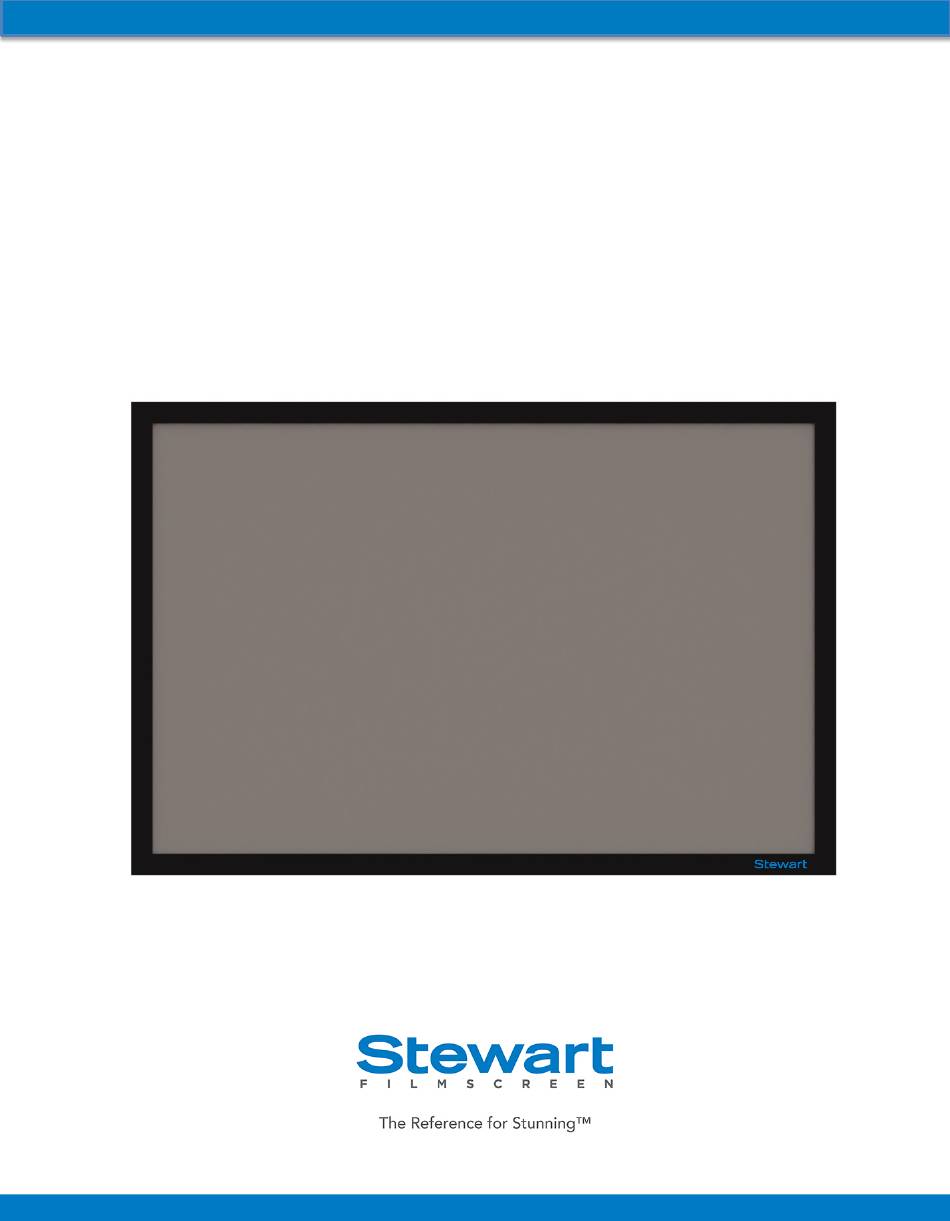

  • Page 1 O W N E R ’ S M A N U A L AT 1.5 Fixed Frame, Tensioned and Grommet Screen...
  • Page 2 Printed in U.S.A. Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product specified in this document. Sizes and specifications subject to change without notice at manufacturer’s discretion. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at: www.StewartFilmscreen.com...

  • Page 3: Table Of Contents

    AT 1.5 O W N E R’ S M A N U A L Contents To the Owner About the AT 1.5 Screen Preparing the Installation Frame Assembly Instructions Wall Board Mount Wall Plate Mount Eye Bolt (Hanging) Mount T-Stand (Self-Supporting) Mount...

  • Page 4: To The Owner

    From all of us at Stewart Filmscreen, we would like to thank you for choosing AT 1.5. Should you have any questions, please don’t hesitate to contact our customer service department at 1 (310) 784-5300, or toll free at 1 (800) 762-4999.

  • Page 5: About The At 1.5 Screen

    USING THIS MANUAL FOR INSTALLATION If you are using this manual to install the AT 1.5, you should be aware that it describes procedures for several types of mounts. You must refer to the section for the type of mounting system you are utilizing.

  • Page 6: Preparing The Installation

    You will need at least two people to mount the smaller screens; more are needed for larger, heavier screens. What’s inside the box? Inside your AT 1.5 unit box, you will find everything you need to get started on enjoying your Stewart screen: ‣ Screen material, rolled up in a tube ‣...
  • Page 7 Do not stand on the screen tube or store it on its end. This will cause screen damage. If you are not going to install the screen immediately, make sure it remains horizontal during storage. Note: Failure to comply with the instructions and guidance contained in this manual may result in voiding your warranty. Stewart Filmscreen – AT 1.5...

  • Page 8: Frame Assembly Instructions

    1. Connect the frame members by matching numbered dots on the ends of the members (see Figure 1). Secure the frame members with the supplied 1/4-20 x 3/4” hex head bolts. Figure 1. Frame Assembly Detail A. Repeat for all Corners Stewart Filmscreen – AT 1.5...

  • Page 9: Wall Board Mount

    WALL BOARD MOUNT NOTE: Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard or faulty installations. Failure to comply with the instructions and guidance contained in this manual may result in voiding your warranty. Lay assembled frame face down on a clean surface (see Figure 2).
  • Page 10 Do not install the screen/frame without the required back braces. ⚠ CAUTION Figure 5: Finished Screen Attached to Wall Boards Be careful not to touch or scratch the viewing surface. Stewart Filmscreen – AT 1.5...

  • Page 11: Wall Plate Mount

    WALL PLATE MOUNT NOTE: Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard or faulty installations. Failure to comply with the instructions and guidance contained in this manual may result in voiding your warranty. The Wall Plate Mount allows you to install the screen frame as close as possible to wall. In order to do so, you will need to install the screen material after the frame has been mounted.

  • Page 12: Eye Bolt (Hanging) Mount

    Use the Eye Bolt Mount to suspend the screen. Eye bolts are already secured to the frame, making your AT 1.5 ready for installation to an appropriate surface (refer to Figure 8). Note: A false ceiling is not intended to support the weight of an AT 1.5. Contact a Stewart representative for more information.
  • Page 13 3. If the installation requires the use of a scaffold or lift, one person on the floor must work together with the person on the scaffold to rotate the screen cylinder to unroll the screen. You also may need a third person on the ground to move the scaffold or lift. Stewart Filmscreen – AT 1.5...

  • Page 14: T-Stand (Self-Supporting) Mount

    T-STAND (SELF-SUPPORTING) MOUNT NOTE: Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard or faulty installations. Failure to comply with the instructions and guidance contained in this manual may result in voiding your warranty. Attach the screen to the frame (see pages 16-18).

  • Page 15: Aperture Mount

    APERTURE MOUNT NOTE: Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard or faulty installations. Failure to comply with the instructions and guidance contained in this manual may result in voiding your warranty. The Aperture Mount allows you to install the screen into an opening in a wall or wall unit.

  • Page 16: Attaching The Screen To The Frame

    Do not allow the weight of the screen to rest on any one hook during this time. ‣ Continue along the top, using the techniques described on the next page. Stewart Filmscreen – AT 1.5...
  • Page 17 Shift the S-hooks, one grommet at a time, to move the screen sideways on the frame. When the screen is centered on the frame, you can proceed with the sides. Screen center line Center grommet Stewart Filmscreen – AT 1.5...
  • Page 18 S-hooks along the bottom, working toward the center. ‣ Make a final inspection of the screen to verify that it is attached properly and that the corners are free from tears and stress. Stewart Filmscreen – AT 1.5...

  • Page 19: This Screen Seems Too Small

    “S” hooks. This stretching process may take up to one hour, but not more. It is desirable that the installation site’s room temperature be somewhere between 60 to 78 degrees Fahrenheit, 15.5 to 25.5 degrees Celsius. Stewart Filmscreen – AT 1.5...

  • Page 20: Caring For And Cleaning The Screen

    Any residual watermarks will evaporate on their own in a few minutes; do not attempt to manually dry the screen. ‣ Contact tech support at Stewart Filmscreen if you have questions about removing difficult spots. VELUX™ COVERING ⚠...
  • Page 21 Stewart Filmscreen Corporation shall not be liable for any and all consequential damage(s) occasioned by the breach of any written or implied warranty pertaining to the sale of a Stewart Filmscreen product in excess of the purchase price of the product sold.
  • Page 22 1161 W. Sepulveda Blvd., Torrance CA 90502 USA 800.762.4999 Tel: 310.784.5300 Fax: 310.326.6870 Email: request@stewartfilmscreen.com 2021© Stewart Filmscreen. Specifications are subject to change without notice.
