Summary of Contents for Stewart Filmscreen Luxus Grande S6

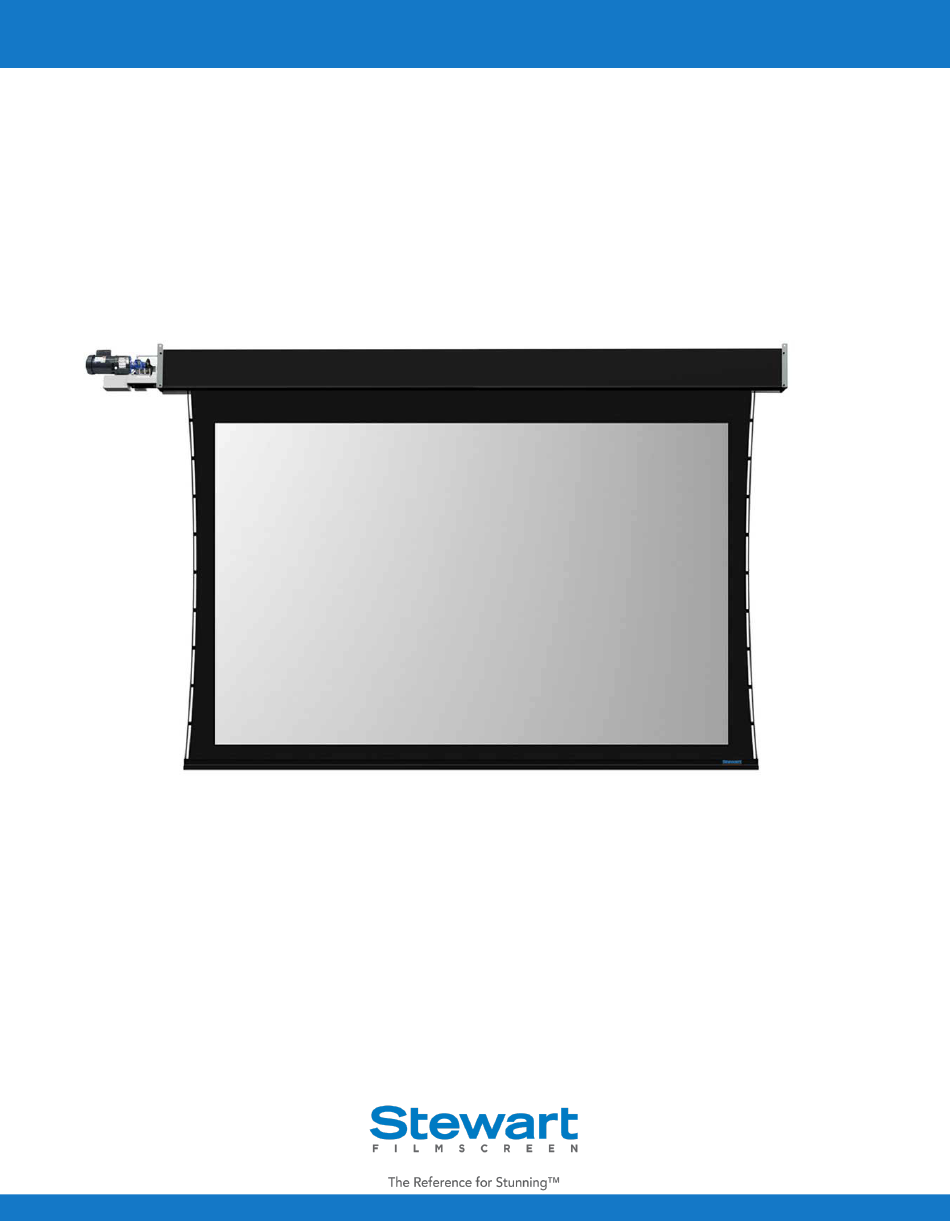

- Page 1 O W N E R S M A N U A L Luxus Grande Retractable, Below Ceiling Screen System...
-
Page 3: Table Of Contents
Luxus Grande O W N E R S M A N U A L Contents To the Owner Preparing the Installation Step 1 Hanging the Case Step 2 Electrical Hook-up Operating the Screen Adjusting the Screen Extension Screen Care and Cleaning Troubleshooting Product Warranty... -
Page 4: To The Owner
Your Luxus Grande ElectriScreen offer the most technologically advanced roller screens in the world The maximum overall screen dimensions of the Luxus Grande S6 are 18’ high by 27’6” wide (5 5 m x 8 1 m) The maximum overall screen dimensions of the Luxus Grande S8 are 25’ high by 39’6” wide (7 6 m x 11 8) - Page 5 PREPARING THE INSTALLATION (CONTINUED) You will need: Enough ladders for the personnel supporting the screen during the mounting process A level Fasteners appropriate for the surface on which the screen is being mounted 2 block and tackles or scissor lifts to raise the unit into place Standard screwdriver 7/16”...
-
Page 6: Step 1 Hanging The Case
The Luxus Grande ElectriScreen is ready to install into the ceiling or soffit A false ceiling is not intended to support the weight of a Luxus Grande ElectriScreen The screen can be bolted directly to the support structure or suspended Stewart Filmscreen recommends contacting a civil engineering consultant to determine if the building can support the load... -
Page 7: Step 2 Electrical Hook-Up
Soldering is recommended The use of wire nuts is acceptable INSTALLING THE LOW-VOLTAGE 3-BUTTON SWITCH (STANDARD) The Stewart Filmscreen low-voltage control allows the use of low-voltage wire to connect to the supplied 3-position 24V momentary wall switch PREPARING THE CONNECTION... - Page 8 COMMON - White UP - Red DOWN - Black NEUTRAL - White 4 Conductor Hook-up Cable HOT - Black 20-24ga Recommended Category 5 3-button Typically Used (NOT Supplied) Momentary Switch GREEN - Ground Figure 2: Low voltage 3-button switch wiring Stewart Filmscreen...
-
Page 9: Operating The Screen
OPERATING THE SCREEN FIRST TIME OPERATION The first time you operate the screen, the protective paper will fall out as the screen unrolls Once the screen is fully displayed, make sure that no packing paper remains on the screen roll The screen can be damaged if loose paper remains Use the 3-button switch or outboard switching network to control the screen When you lower or retract the screen, it will stop at its preset limit If an obstacle (such as a person or furniture) gets in the path... -
Page 10: Adjusting The Screen Extension
The thumbwheels are located on the left side of the screen roller tube inside the case, as shown in Figure 3 Remove the cover of the case using a hex head screwdriver When finished, replace the cover Stewart Filmscreen... - Page 11 ADJUSTING THE SCREEN EXTENSION (CONTINUED) To increase the screen’s fully extended (screen down) stop position: Lower the screen to its current stop position 2 Locate the red extension (down) thumbwheel located on the left side of the screen tube Turn the thumbwheel in the direction of the (+) sign If the power is on, the screen will drop incrementally as the thumbwheel is turned Note: One complete turn of the thumbwheel will make approximately a 11”...
-
Page 12: Screen Care And Cleaning
A draftsman-style brush may be used to lightly whisk away any loose dirt or dust particles (This type of brush is usually available at office supply stores ) Stewart Filmscreen has an optional screen cleaning kit that contains the proper type of brush Contact your dealer if you would like to obtain... -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Cause Action Steps Screen won’t operate No AC power available Check to see if the circuit Outboard switching problem breaker has switched off Reset if needed Check outboard switching apparatus Check voltage availability Contact an electrician Screen won’t roll up or down Bad connection at switch Have an electrician or (even though power is... -
Page 14: Product Warranty
Corporation shall not be liable for any and all consequential damage(s) occasioned by the breach of any written or implied warranty pertaining to the sale of a Stewart Filmscreen product in excess of the purchase price of the product sold... - Page 15 MAINTENANCE NOTES Luxus Grande...
- Page 16 1161 W. Sepulveda Blvd., Torrance CA 90502 USA 800.762.4999 Tel: 310.784.5300 Fax: 310.326.6870 Email: request@stewartfilmscreen.com 2021© Stewart Filmscreen. Specifications are subject to change without notice.
