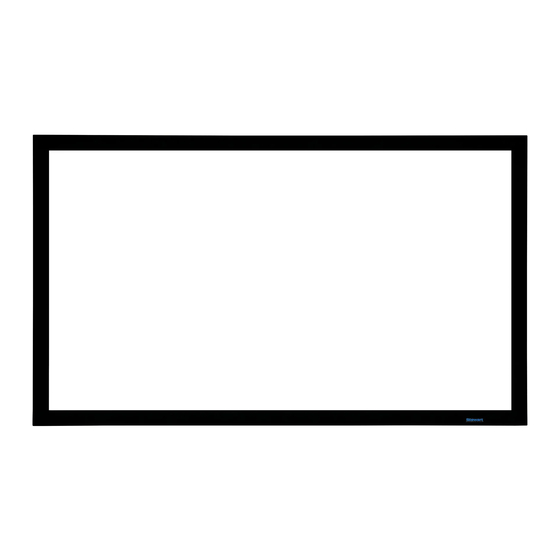

- Page 1 O W N E R ’ S M A N U A L WallScreen 2.5 Fixed Frame, Snap Screens Stewart Filmscreen – WallScreen 2.5...
- Page 2 Stewart Filmscreen reserves the right to make changes to the product specified in this document. Sizes and specifications are subject to change without notice at Stewart’s discretion. From time to time, this document is updated. Current versions of this documentation are posted on the Stewart Filmscreen website at: www.StewartFilmscreen.com Revision 1.0...
-
Page 3: Table Of Contents
WallScreen 2.5 O W N E R ’ S M A N U A L Contents To the Owner About WallScreen 2.5 Preparing the Installation Frame Assembly Instructions Hanging Bar Mount Wall Board Mount Eye Bolt Mount (Hanging) Aperture Mount... -
Page 4: To The Owner
From all of us at Stewart Filmscreen, we would like to thank you for choosing WallScreen 2.5. Should you have any questions, please don’t hesitate to contact our customer service department at 1 (310) 784-5300, or toll free at 1 (800) 762-4999. -
Page 5: About Wallscreen 2.5
The WallScreen 2.5 features snaps and brackets that move on the frame to allow for adjustments. Rear projection is available as an option. The hanging bar is the standard mount. -
Page 6: Preparing The Installation
You need at least two people to mount the smaller screens. More people are needed for larger, heavier screens. What’s inside the box? Inside your WallScreen 2.5 unit box, you will find everything you need to get started on enjoying your Stewart screen: ‣ Screen image rolled up in a tube ‣... - Page 7 Do not stand on the screen tube or store it on its end. This will cause screen damage. If you are not planning to install the screen immediately, make sure it remains horizontal during storage. Stewart Filmscreen – WallScreen 2.5...
-
Page 8: Frame Assembly Instructions
Connect the frame members by matching the numbered dots on the ends of the members. Secure the frame members with the supplied 5/16-18 x 1/2” hex head bolts (see Figure 1). Figure 1: Frame Assembly Stewart Filmscreen – WallScreen 2.5... -
Page 9: Hanging Bar Mount
HANGING BAR MOUNT NOTE: Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard or faulty installations. Failure to comply with the instructions and guidance contained in this manual may result in voiding your warranty. ⚠ CAUTION ‣... - Page 10 Your WallScreen is now ready to hang in its final position (see Figures 3-6). Figure 3: Hanging Bar Front View Figure 4: Screen Rear View Figure 6: Hanging the Screen – Side View Figure 5: Components for Wall Mounting – Side view Stewart Filmscreen – WallScreen 2.5...
-
Page 11: Wall Board Mount
WALL BOARD MOUNT NOTE: Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard or faulty installations. Failure to comply with the instructions and guidance contained in this manual may result in voiding your warranty. Lay assembled frame face down on a clean surface. - Page 12 Do not install the screen/frame without required back braces. ⚠ CAUTION Be careful not to touch or scratch the viewing surface. Figure 10: Finished Screen Attached to Wall Boards Stewart Filmscreen – WallScreen 2.5...
-
Page 13: Eye Bolt Mount (Hanging)
EYE BOLT MOUNT (HANGING) NOTE: Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard or faulty installations. Failure to comply with the instructions and guidance contained in this manual may result in voiding your warranty. Attach the screen to the frame (see pages 15-16). -
Page 14: Aperture Mount
APERTURE MOUNT NOTE: Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard or faulty installations. Failure to comply with the instructions and guidance contained in this manual may result in voiding your warranty. The aperture mount allows you to install the screen into an opening in a wall or wall unit. -
Page 15: Attaching The Screen To The Frame
Remove the screen from the cardboard shipping tube. On a clean surface, unroll the screen viewing side up (see Figure 13). Remove the protective packing material from the screen material. Figure 13: Unrolling the Screen Stewart Filmscreen – WallScreen 2.5... - Page 16 Lay the frame viewing side down on a clean surface. A movement of 1/16” to 1/8” (1.6mm to 3.2mm) is usually sufficient to eliminate puckers. Figure 14: Attaching Top Corner Snaps Figure 15: Attaching Remaining Snaps Stewart Filmscreen – WallScreen 2.5...
-
Page 17: Caring For And Cleaning The Screen
A brush may be used to comb (lift) the nap of the Velux material to eliminate depression marks. FOR NON-VINYL SCREEN MATERIAL If you have concerns with one of our non-vinyl Stewart Filmscreen screen materials, contact tech support at Stewart Filmscreen. -
Page 18: One (1) Year Limited Warranty
Filmscreen Corporation shall not be liable for any and all consequential damage(s) occasioned by the breach of any written or implied warranty pertaining to the sale of a Stewart Filmscreen product in excess of the purchase price of the product sold. - Page 19 1161 W. Sepulveda Blvd., Torrance CA 90502 USA (800) 762-4999 Tel: 1 (310) 784-5300 Fax: 1 (310) 326-6870 Email: TechSupport@StewartFilmscreen.com ©2021 Stewart Filmscreen. Specifications are subject to change without notice. Stewart Filmscreen – WallScreen 2.5...
