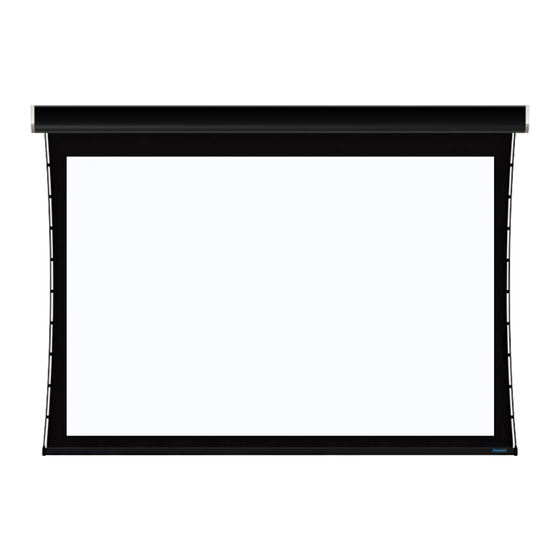

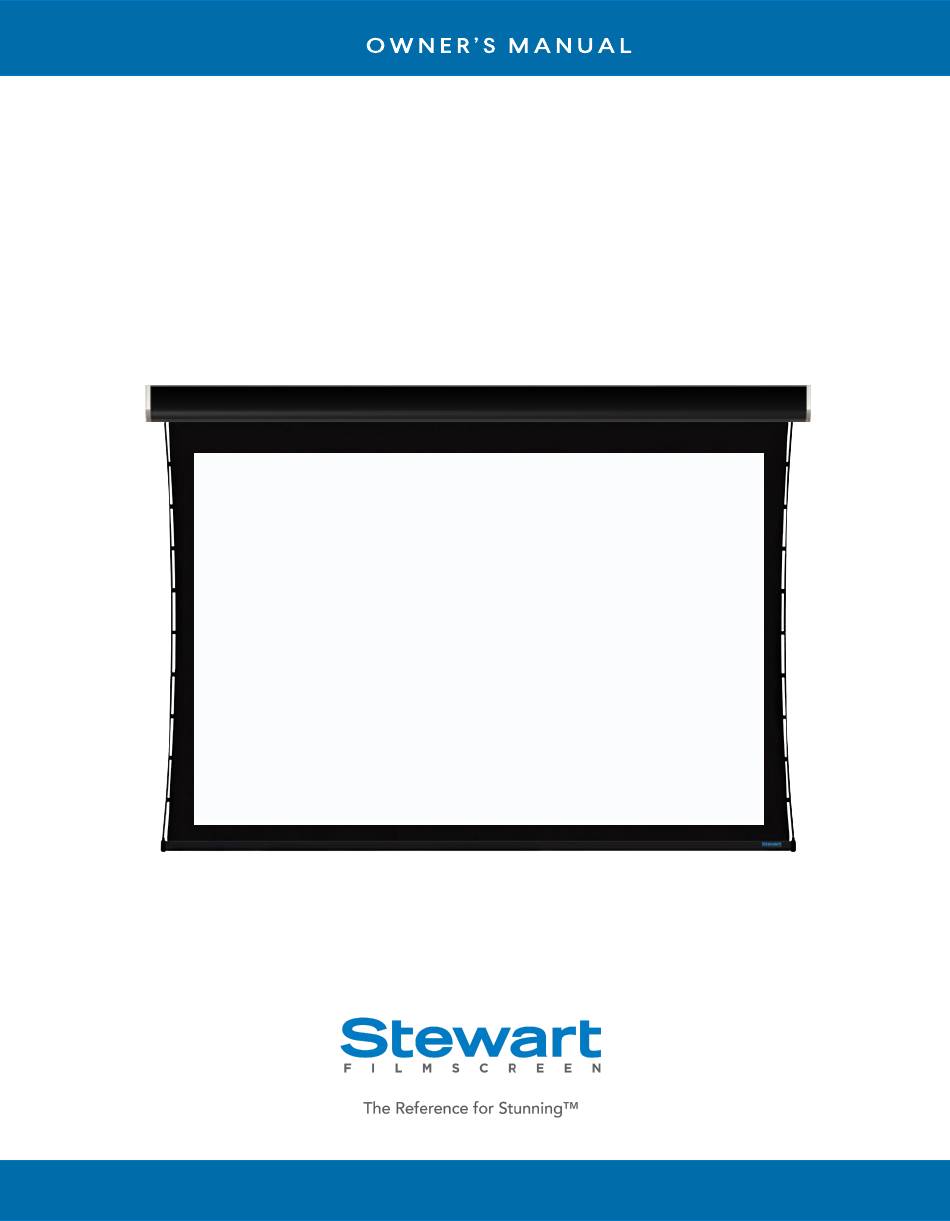

- Page 1 Luxus Retractable, Below Ceiling Screen System Stewart Filmscreen...
- Page 2 Printed in U.S.A. ©2021 Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product specified in this document. Sizes and specifications subject to change without notice at the manufacturer’s discretion. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at: www.StewartFilmscreen.com...
-
Page 3: Table Of Contents
Luxus O W N E R’ S M A N U A L Contents To the Owner ..........................................4 About Luxus ..........................................5 Preparing the Installation .......................................6 Wall Mount ............................................9 Ceiling Mount ..........................................10 Electrical ............................................11 IMC with IR Receiver and Remote (Standard) ............................12 12 Volt Projector Trigger (Standard) ................................ -
Page 4: To The Owner
From all of us at Stewart Filmscreen, we would like to thank you for choosing Luxus. Should you have any questions, please don’t hesitate to contact our customer service department at 1 (310) 784-5300, or toll free at 1 (800) 762-4999. -
Page 5: About Luxus
USING THIS MANUAL FOR INSTALLATION If you are using this manual to install the Luxus screen, you should be aware that it describes procedures for two types of mounting options. You must refer to the section for the type of mounting system you are utilizing. -
Page 6: Preparing The Installation
You will need at least two people to mount the smaller screens. More are needed for larger, heavier screens. What’s inside the box? Inside your Luxus unit box, you will find everything needed to get started enjoying your Stewart screen: Luxus unit preassembled and prewired ... - Page 7 Retain the packing material for future use, if desired. Batten retainer The Luxus screen may have special retainers for the batten and roller tube. These items may be left in place Figure 1. Luxus bottom view until after the screen has been mounted (see Figure 1).
- Page 8 PREPARING THE INSTALLATION (CONTINUED) When installing your Luxus to the wall or ceiling using the sliding mount bracket, there are a couple things to consider to make the installation a smooth and easy operation. Mounts Inside each Luxus box there are two 18 inch mounts to be used in whichever configuration that is required.
-
Page 9: Wall Mount
WALL MOUNT Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard or faulty installations. Failure to comply with the instructions and guidance contained in this manual may result in voiding your warranty. ⚠ CAUTION Be careful not to touch or scratch the viewing surface. -
Page 10: Ceiling Mount
CEILING MOUNT Professional mounting techniques should be used. Stewart Filmscreen cannot be liable for substandard or faulty installations. Failure to comply with the instructions and guidance contained in this manual may result in voiding the warranty. ⚠ CAUTION During installation, do not place the unit on an unstable cart, stand, table or ladder. The unit may fall, causing injury to you or others as well as cause possible damage to the unit. -
Page 11: Electrical
⚠ CAUTION Luxus has two female RJ45 inputs on rear of case. Neither port is to be used with POE (power over Ethernet). Improper use of ports will cause irreversible damage to IMC control board and may void your warranty. -
Page 12: Imc With Ir Receiver And Remote (Standard)
Trigger Port Dry Contact 1. Connect the IR eye with RJ25 end to the back of Luxus on the smart port with RJ45 as shown (see Figure 12). 2. Place the IR eye anywhere in the room, making sure that there are no obstructions between the eye and the screen. - Page 13 Using the IR remote, press the “down” button and the Luxus screen will automatically extend fully to its preset limit and will power itself off. Press the “up” button once and the Luxus screen will automatically retract back into the case and power itself off. If a custom position is desired, simply press the “stop”...
-
Page 14: Volt Projector Trigger (Standard)
Two male, mono, 3.5mm auxiliary plugs are supplied so they can be used with the standard 12 volt projector trigger feature of the IMC. Since Stewart Filmscreen cannot be certain how long of a cable will be needed for every single application, the trigger cable will have to be assembled by the installer. -
Page 15: Rts Motor Operation (If Equipped)
With a network connection, Amazon Alexa, Google Home, IFTTT – or by using the myLink app with your smart device — will allow control over your Stewart electric screen’s RTS motor. Optionally, you can also purchase the RF remote to control your RTS motor. Stewart Filmscreen – Luxus... -
Page 16: Ir Wall Switch And Remote (If Equipped)
Figure 16). 2. Connect the IR wall switch cable with RJ25 end to the back of Luxus on the smart port with RJ45 as shown (see Figure 12). 3. Install the IR wall switch anywhere in the room, making sure that there are no obstructions between the eye and the screen. -
Page 17: Decora Paddle Wall Switch (If Equipped)
GETTING STARTED Making the Connections 1. Connect the RJ45/RJ25 cable to the back of the Luxus case on the dry contact RJ45 port (see Figure 12). 2. Cut the other end of the wire and expose the four conductors. -
Page 18: Ibt-100 For Serial (Rs-232C) Connectivity (If Equipped)
IBT-100 for Serial (RS-232C) CONNECTIVITY (IF EQUIPPED)_______ An IBT-100 can be equipped to plug in through the smart port on the back of the Luxus case. This unique piece of hardware combined with its integrated firmware and optional ancillary software can be used to interface CS-Bus controllers with external RS-232C networks to enable seamless bi-directional control and feedback. -
Page 19: Operating The Screen
If the unit emits any smoke, heat, abnormal noise or unusual odor, the unit is most likely damaged in some way — such as damage from a water leak or power surge. Do not operate the motor if any of these situations occur. Call a qualified service person for assistance. Stewart Filmscreen – Luxus... -
Page 20: Intelligent Motor Control (Imc) Wiring
(IP) control system, and a screen trigger through a projector. The IMC is the most robust controller offered for Luxus. For a detailed look at what the IMC has on board, please see below (see Figure 20). - Page 21 3 Conductor Hookup 20-24 Common, -12 VDC Trigger GA (Not Supplied) Length Input (white) Up (Red) Class II, 24 Volt Control Circuit Down (Black) Wall Switch Wiring Diagram 120 VAC, 60 HZ, 1.0A Figure 22. IMC Wiring Diagram Stewart Filmscreen – Luxus...
-
Page 22: Imc Rj45 Pinouts Found On Back Of Case
All Stewart Filmscreen “smart port accessories” that are RJ25 will plug into the RJ45 smart port (see Figure 12) on the back of the Luxus case. In the box you will find two spare RJ45 connectors. These are provided for the ease of making or extending wires for use with dry contact port. -
Page 23: Imc Specifications
IMC SPECIFICATIONS Network (IP) Connection Through separate (single) e-Node RS-232c Connection Through separate (single) IBT-100 Compliance ETL Listing to UL 325 , FCCA, CE, RoHS Dimensions .78" x 2.75" x 1.1" Stewart Filmscreen – Luxus... -
Page 24: Adjusting Screen Deployment
These instructions refer to screens equipped with the IMC control unit only. For screens with the RTS motor, please refer to the respective RTS motor section (Page 15). Stewart Filmscreen uses tubular Somfy motors in many of our projection screens. Users may require adjusting the limit switches at some point in time. - Page 25 Counterclockwise adjustments of this switch will raise the batten bar and clockwise adjustments will lower the batten’s top setting. Lowering the batten’s top stopping position is valuable when trying to align the screen’s batten with the bottom of the Luxus case. ⚠...
-
Page 26: Bonnet Removal
BONNET REMOVAL Luxus now offers a two-piece construction that allows the bonnet (front fascia) to come off for servicing. This allows easy access to the control system and roller tube assembly without having to take the entire unit down. To remove the bonnet: 1. -
Page 27: Caring For And Cleaning The Screen
This type of brush is usually available at office supply stores. Stewart Filmscreen has an optional screen cleaning kit that contains the proper type of brush. Contact your dealer if you would like to Figure 28. -
Page 28: Troubleshooting
Problems related to electrical or motor function may require a qualified service person or electrician. Should you have a problem that is not addressed below, please call Stewart Filmscreen at 1 (310-784- 5300) or toll free 1 (800-762-4999) for assistance. - Page 29 Take a clean high quality Aluminum finish may be Brushed aluminum end caps microfiber towel and hand buff tarnishing normally due to age on case appear dull in color aluminum endcaps to remove and exposure any tarnishing Stewart Filmscreen – Luxus...
-
Page 30: One (1) Year Limited Warranty
In the event that there is a defect in materials or workmanship of a Stewart Filmscreen product, you may contact our customer service department at 1161 W Sepulveda Blvd, Torrance, CA 90502- 2797, or call us at 1 (310) 784-5300, or toll free at 1 (800) 762-4999. - Page 31 1161 W. Sepulveda Blvd., Torrance CA 90502 USA l 800.762.4999 l Tel: 310.784.5300 l Fax: 310.326.6870 l Email: request@stewartfilmscreen.com ©2020 Stewart Filmscreen. Specifications are subject to change without notice. Stewart Filmscreen – Luxus...
