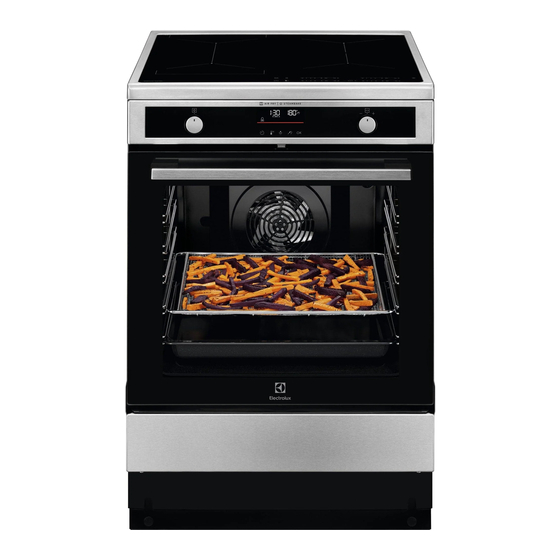

Electrolux LKI66891NW User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN User Manual | Cooker
LKI66891NW
LKI66891NX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LKI66891NW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Electrolux LKI66891NW

Summary of Contents for Electrolux LKI66891NW

  • Page 1 EN User Manual | Cooker LKI66891NW LKI66891NX...

  • Page 2: Table Of Contents

    Welcome to Electrolux! Thank you for choosing our appliance. Get usage advice, brochures, troubleshooting, service and repair information: www.electrolux.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................5 3. INSTALLATION....................8 4. PRODUCT DESCRIPTION................9 5. BEFORE FIRST USE..................10 6.
  • Page 3 be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use.
  • Page 4 • Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid. • CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

  • Page 5: Safety Instructions

    • Use only the food sensor (core temperature sensor) recommended for this appliance. • Be careful when you touch the storage drawer. It can get hot. • To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
  • Page 6 • If the mains socket is loose, do not • Use only accessories recommended for connect the mains plug. this appliance by the manufacturer. • Do not pull the mains cable to disconnect • Always use glass and jars approved for the appliance.
  • Page 7 2.5 Pyrolytic cleaning • Be careful not to let objects or cookware fall on the appliance. The surface can be damaged. • Do not activate the cooking zones with Risk of Injury / Fires / Chemical empty cookware or without cookware. Emissions (Fumes) in Pyrolitic Mode.

  • Page 8: Installation

    harmful to humans, including children or • Use only lamps with the same persons with medical conditions. specifications. 2.6 Internal lighting 2.7 Service • To repair the appliance contact the WARNING! Authorised Service Centre. • Use original spare parts only. Risk of electric shock.

  • Page 9: Product Description

    3.3 Anti-tilt protection CAUTION! Install the anti-tilt protection to prevent the appliance from falling under incorrect loads. The anti-tilt protection only works when the appliance is put in a correct area. Your appliance has the symbols shown on the pictures (if applicable) to remind you about the installation of the anti-tilt protection.

  • Page 10: Before First Use

    4.2 Hob overview For cookware, cake tins, roasts. • Baking tray For cakes and biscuits. • Grill- / Roasting pan To bake and roast or as pan to collect fat. • AirFry tray To fry food with less oil or without baking paper.

  • Page 11: Hob - Daily Use

    6. HOB - DAILY USE WARNING! Refer to Safety chapters. 6.1 Hob control panel Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. Sensor Function Comment field ON / OFF To activate and deactivate the hob. Lock / Child safety device To lock / unlock the control panel.
  • Page 12 6.2 Heat setting displays Display Description The cooking zone is deactivated. The cooking zone operates. Pause operates. Automatic heat up operates. PowerBoost operates. There is a malfunction. + digit OptiHeat control (3 step Residual heat indicator): continue cooking / keep warm / resid‐ ual heat.
  • Page 13 6.8 Bridge • you use incorrect cookware. The symbol comes on and the cooking zone deactivates automatically after 2 minutes. • you do not deactivate a cooking zone or The function operates when the pot change the heat setting. After some time covers the centres of the two zones.
  • Page 14 6.11 Timer indicator of the cooking zone starts to flash quickly. The display shows how long the zone Count down timer operates. You can use this function to set how long the To deactivate the function: set the cooking cooking zone should operate for a single cooking session.
  • Page 15 communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the When you deactivate the hob, you also hob. You can also operate the fan from the deactivate this function. hob manually.

  • Page 16: Hob - Hints And Tips

    6.17 Power management function 4. Press a few times until comes on. • All cooking zones are connected to one 5. Press of the Timer to select an phase. See the illustration. automatic mode. • The phase has a maximum electricity load.
  • Page 17 7.1 Cookware Cooking Cookware diam‐ Power (W) zone eter (mm) For induction cooking zones a strong Right front 125 - 210 2300/3200 electro-magnetic field creates the heat in Left front 125 - 210 2300/3200 the cookware very quickly. 7.3 Noises during operation Use the induction cooking zones with suitable cookware.

  • Page 18: Hob - Care And Cleaning

    Heat setting Use to: Time Hints (min) Keep cooked food warm. as neces‐ Put a lid on the cookware. sary 1 - 3 Hollandaise sauce; melt: butter, choco‐ 5 - 25 Mix from time to time. late, gelatine. 2 - 3 Solidify: fluffy omelettes, baked eggs.

  • Page 19: Oven - Daily Use

    abrasive detergent. After cleaning, wipe • Remove shiny metallic discoloration: the hob dry with a soft cloth. use a solution of water with vinegar and clean the glass surface with a cloth. 9. OVEN - DAILY USE WARNING! Refer to Safety chapters. 9.1 Control panel Control panel sensor fields Timer...
  • Page 20 Position Default Setting Setting Options hour Time of Day set Time of Day Display Brightness 1-2-3-4-5 Key Tones 1-beep/2-click/3-none Buzzer Volume 1-2-3-4 Food Sensor 1-alarm+STOP/2-alarm Uptimer ON-OFF Light ON-OFF Fast Heat Up ON-OFF Cleaning Reminder ON-OFF Demo Mode Demo Mode- only for the demon‐ stration Software Version Software version display...
  • Page 21 2. Turn the knob for the temperature to select a temperature. Symbol Oven function 3. To deactivate the oven turn the knobs for Moist fan baking the oven functions to the off position. This function was used to comply with the energy efficiency class and 9.5 Activating the function: eco design (according to EU 65/2014 SteamBake...
  • Page 22 9.6 Residual heat indicator and Heat Temperature (°C) Switch-off time (h) The fan continues to operate. When you turn 30 - 115 12.5 off the oven, the display shows the residual 120 - 195 heat. You can use that to keep the food warm.
  • Page 23 Wire shelf: Push the shelf between the guide bars of the shelf support. The display shows the current temperature of AirFry tray: the core temperature sensor. Place the AirFry tray on the third shelf 4. Press to set the core temperature of position.

  • Page 24: Oven - Clock Functions

    10. OVEN - CLOCK FUNCTIONS 10.1 Clock functions 4. Press 5. The timer starts counting down immediately. 00:00 pulses on the display when you 6. When the time ends, press and turn connect the appliance to the electrical the knob for the heating functions to the supply.

  • Page 25: How To Set: Assisted Cooking

    11. HOW TO SET: ASSISTED COOKING Assisted Cooking - use it to prepare a dish 3. Select the dish and press quickly with default settings: 4. Insert the dish to the oven and press 1. Turn the knob for the heating functions to to confirm the setting.
  • Page 26 Dish Weight Shelf level / Accessory Duration time Beef roast / 1,5 - 2 kg ~ 180 min 2; roasting dish on wire shelf braised (prime Fry the meat for a few minutes on a hot pan. rib, top round, Add liquid.
  • Page 27 Dish Weight Shelf level / Accessory Duration time Whole chicken 1 - 1,5 kg; fresh ~ 60 min 2; casserole dish on baking tray; wire shelf with deep pan on level 1 to collect the fat Turn the chicken after half of the cooking time to get an even browning.
  • Page 28 Dish Weight Shelf level / Accessory Duration time Brownies 2 kg 30 min 3; baking tray Chocolate muf‐ 30 min 3; muffin tray on wire shelf or baking tray fins Add 150 ml of water in the bottom of the cavity. Loaf cake 80 min 2;...

  • Page 29: Oven - Hints And Tips

    13. OVEN - HINTS AND TIPS 13.2 Baking WARNING! For the first baking, use the lower Refer to Safety chapters. temperature. You can extend the baking time by 10 – 15 minutes if you bake cakes on more than one The temperature and baking times in the shelf position.
  • Page 30 Baking results Possible cause Remedy The cake is too dry. The oven temperature is too low. Next time set higher oven temperature. The baking time is too long. Next time set shorter baking time. The cake bakes unevenly. The oven temperature is too high Next time set a longer baking time and and the baking time is too short.
  • Page 31 Meat Food Temperature (°C) Time (min) Shelf position Meat in pouch 250 g 30 - 40 Meat skewers 500 g 25 - 30 Small baked items Food Temperature (°C) Time (min) Shelf position Cookies 25 - 35 Macaroons 30 - 40 Muffins 20 - 30 Savoury cracker...

  • Page 32: Oven - Care And Cleaning

    13.10 Information for test institutes Food Function Tempera‐ Time (min) Accesso‐ Shelf po‐ ture (°C) ries sition Small cakes (20 small Conventional cooking 20 - 30 Tray cakes per tray) Small cakes (20 small True fan cooking 20 - 35 Tray cakes per tray) Small cakes (20 small...
  • Page 33 • Clean the cavity after each use. Fat CAUTION! accumulation or other residue may cause fire. Do not use the hob at the same time as • Do not store food in the appliance for the Pyrolysis function. It can cause longer than 20 minutes.
  • Page 34 To turn off the reminder enter the Menu and select Settings, Cleaning Reminder. 14.6 Removing the shelf supports To clean the oven, remove the shelf supports. 1. Pull the front of the shelf support away from the side wall. 1. Open the door fully. 2.
  • Page 35 1. Remove the left shelf support to get access to the lamp. 2. Use a narrow, blunt object (e.g. a teaspoon) to remove the glass cover. 4. Clean the door glass panels. To install panels, do the same steps in reverse.

  • Page 36: Troubleshooting

    15. TROUBLESHOOTING WARNING! Refer to Safety chapters. 15.1 What to do if... Problem Possible cause Remedy You cannot activate the appliance. The appliance is not connected to Check if the appliance is correctly an electrical supply or it is connec‐ connected to the electrical supply.
  • Page 37 Problem Possible cause Remedy The cookware is incorrect. Use the correct cookware. Refer to comes on the hob display. "Hob - Hints and tips" chapter. The diameter of the bottom of the Use cookware with correct dimen‐ comes on the hob display. cookware is too small for the zone.

  • Page 38: Energy Efficiency

    • If it is possible, always put the lids on the cookware. 16.3 Product Information Sheet and Product Information according to EU Energy Labelling and Ecodesign Regulations for Oven Supplier's name Electrolux LKI66891NW 947941511 Model identification LKI66891NX 947941512 Energy Efficiency Index 81.4 Energy efficiency class...
  • Page 39 Heat source Electricity Volume 73 l Type of oven Oven inside Freestanding Cooker LKI66891NW 67.0 kg Mass LKI66891NX 67.0 kg IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Meth‐ ods for measuring performance.

  • Page 40: Environmental Concerns

    Help protect the environment and human health by recycling waste of electrical and Electrolux Appliances AB - Contact Address: electronic appliances. Do not dispose of Al. Powstancow Slaskich 26, 30-570 Krakow, appliances marked with the symbol...
  • Page 44 867363705-D-282024...
