convenience concepts 157006 Assembly Instructions Manual

convenience concepts 157006 Assembly Instructions Manual

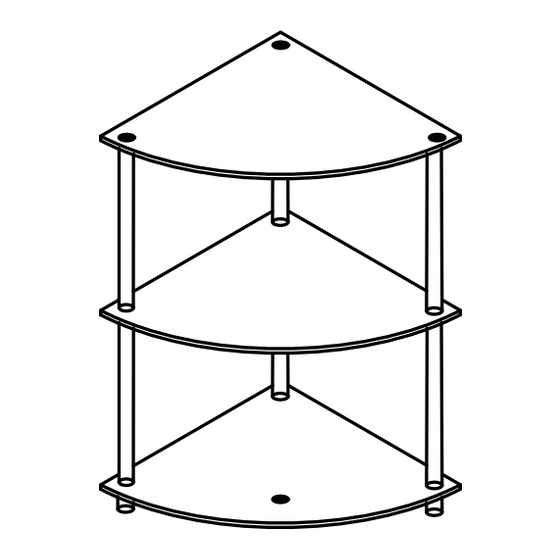

3 tier glass corner shelf

Advertisement

Quick Links

3 TIER GLASS CORNER SHELF
SCAN QR CODE FOR
E-MANUAL, IF DESIRED
ASSEMBLY INSTRUCTIONS
We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,
step by step instructions will guide you through the project from start to finish .
Feel confident that this will be a fun and rewarding project . The final product will be a quality
piece of furniture that will go together smoothly and give years of enjoyment .
Please do not return to the store
STOP
Broken or missing parts?
Need help with assembly?
Our Illinois based customer service team is ready to help with any problems or questions you may have.
Please give us a call (Toll Free) at 1-800-468-6447, or email us at parts@convenience-concepts.com.
Normal hours of Operation: M-F* 8am-4pm CST.
*Excludes Holidays
This product's warranty is only valid through authorized dealers.
157006

Advertisement

loading
Need help?

Need help?

Do you have a question about the 157006 and is the answer not in the manual?

Questions and answers

Summary of Contents for convenience concepts 157006

  • Page 1 3 TIER GLASS CORNER SHELF 157006 SCAN QR CODE FOR E-MANUAL, IF DESIRED ASSEMBLY INSTRUCTIONS We have designed our furniture with you , the customer in mind . Our clear , easy to follow , step by step instructions will guide you through the project from start to finish .
  • Page 2 PAGE 2 OF 6 (E) Bottom Shelf x 1 (F) Expansion Pipe X2 Eyelet Screw X2 Cable Tie X2...
  • Page 3 PAGE 3 OF 6...
  • Page 4 PAGE 4 OF 6 STEP 1 (1) Put Bottom Shelf (E) on top of Plastic Feet (D). (2) Gently screw Poles (C) into Feet (D) using care not to over tighten. (3) Screw End Cap (A) to front foot.
  • Page 5 PAGE 5 OF 6 STEP 2 (1) Place Shelf (B) on top of Poles (C). (2) Gently screw Poles (C) into unit.
  • Page 6 PAGE 6 OF 6 (1) Place Top Shelf (B) onto Poles (C). (2) Screw End Caps (A) onto unit and enjoy. STEP 3 (3).Drill hole slightly smaller than anchor (F) into drywall and gently tap anchor into hole. (4).Insert eyelet screw (G) into anchor and fasten unit to wall using cable tie.
