4.2.3 Installing Smart Cooling Product Components

This section applies to 02116411 and 0211642 cabinets.

4.2.3.1 Installing a Drainage Pipe for the Smart Cooling Product

Context
The condensate drainpipe has been installed on the smart cooling product before
delivery. You need to route the drainpipe from the bottom onsite.
Procedure
Step 1 Remove the baffle plate from the smart cooling product.

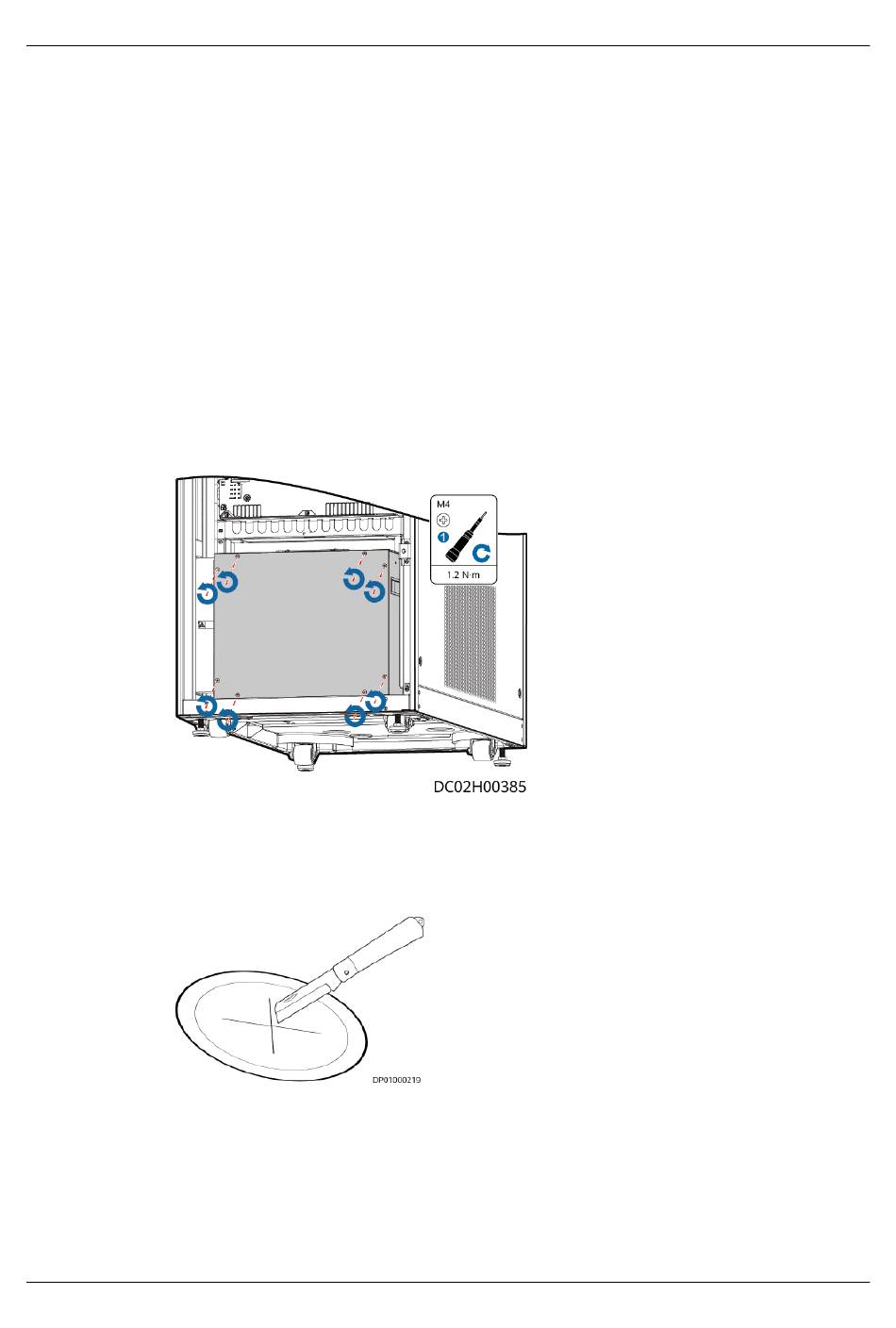

Figure 4-11 Removing the baffle plate
Step 2 Use an electrician's knife to cut a cross in the middle of the rubber plug for the
water pipe hole at the bottom of the cabinet.
Figure 4-12 Cutting the rubber plug
Step 3 Route the drainpipe.
