- Page 1 Operating Instructions Fronius Smart Meter 50kA-3 EN-US Operating instructions 42,0426,0280,EA 013-15072024...
-
Page 3: Table Of Contents
Connecting the data communication cable to the inverter Terminating resistors - explanation of symbols Terminating resistors Setting the transformation ratio of the current and voltage transformers on the Fronius Smart Meter Multi meter system - Explanation of symbols Modbus participant - Fronius SnapINverter... -
Page 4: Safety Rules
Safety rules Explanation of DANGER! Safety Instruc- tions Indicates an immediate danger. ▶ Death or serious injury may result if appropriate precautions are not taken. WARNING! Indicates a possibly dangerous situation. ▶ Death or serious injury may result if appropriate precautions are not taken. CAUTION! Indicates a situation where damage or injury could occur. -
Page 5: Environmental Conditions
Any safety devices that are not functioning properly must be repaired by an au- thorized specialist before the device is switched on. Never bypass or disable protection devices. For the location of the safety and danger notices on the device, refer to the sec- tion headed “General”... -
Page 6: General

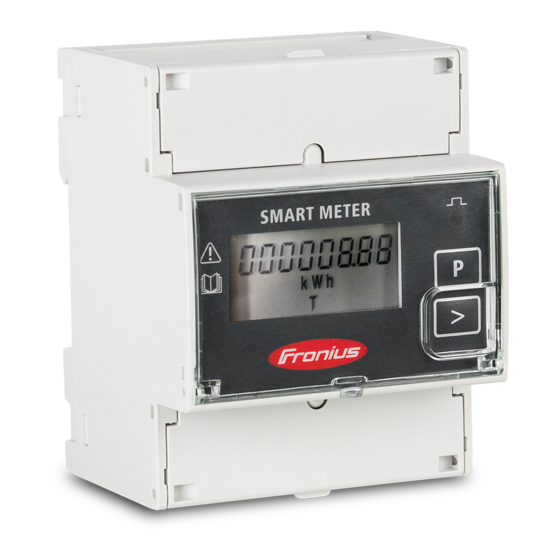

Together with the Fronius inverter, the Fronius Datamanager and the Fronius data inter- face, the Fronius Smart Meter provides a clear overview of your own power con- sumption. The meter measures the power flow to the loads or to the grid and forwards the information to the Fronius inverter via ModBus RTU/RS485 communication. - Page 7 Positioning at the feed-in point The positioning of the Fronius Smart Meter at the feed-in point. Positioning at the consumption point The positioning of the Fronius Smart Meter at the consumption point.
-
Page 8: Installation
Commissioning on page 25). Installation The Fronius Smart Meter can be mounted on a 35 mm DIN rail. The housing comprises 4 DUs (division units, max. 72 mm). Protective cir- The Fronius Smart Meter is a hard-wired device and requires a disconnecting... -
Page 9: Cabling
Disconnecting devices must be mounted within sight and as close as possible to the Fronius Smart Meter; they must also be easy to use. The disconnecting devices must satisfy the requirements of IEC 60947-1 and IEC 60947-3, as well as all national and local regulations for electrical systems. -
Page 11: Selection Criteria For Current Transformers
The Fronius Smart Meter needs 0.3 VA to carry out its measurements. Losses also occur on the outgoing and return leads. The power of the current trans- former must be greater than the sum total of the power of the Fronius Smart Meter and the leads. The higher the power, the better. -
Page 12: Connecting The Current Transformers
2.2 VA Example The length of the outgoing and return lead (0.5 m each) between the Fronius Smart Meter and the current transformer is a total of 1 m and has a copper cable cross-section of 1.5 mm²; the line resistance is therefore 0.6 VA according to the table above. -
Page 13: Connecting The Data Communication Cable To The Inverter
Connecting the Fronius SnapINverter: data communic- Connect the data communication connections of the Fronius Smart Meter to the ation cable to Fronius system monitoring in the inverter. Several Smart Meters can be installed the inverter in the system, see chapter... -
Page 14: Terminating Resistors - Explanation Of Symbols
Use double-insulated or sheathed output cables when they are close to bare conductors. ▶ Use shielded twisted pair cables to avoid faults. ▶ The outputs of the Fronius Smart Meter are electrically isolated from haz- ardous voltages. Terminating res- Inverter in the system istors - explana- e.g., Fronius Symo... - Page 15 * The terminating resistor on Fronius Smart Meters is installed between 33 and 34. The terminating resistor R 120 Ohm is included with the Fronius Smart Meter.
-
Page 16: Setting The Transformation Ratio Of The Current And Voltage Transformers On The Fronius
(001.0 - 500.0 Change password and write it down IMPORTANT! Changing the transformation ratios will reset the meter data in the Fronius Smart Meter to 0. Transformation ratio in the current transformer x Transformation ratio of the voltage transformers = max. 1,000,000. -
Page 17: Modbus Participant - Fronius Snapinverter
Secondary meter Records the load curve of individual loads (e.g. washing machine, lights, television, heat pump, etc.) in the consumption branch and makes the measured data available for energy profiling in Fronius Solar.web. Producer meter Records the load curve of individual producers (e.g. wind power plant) in the consumption branch and provides measurement data for energy profiling in Fronius Solar.web. -
Page 18: Multi Meter System - Fronius Snapinverter
Ohmpilot meters meters Multi meter sys- If several Fronius Smart Meters are installed, a separate address must be set for tem - Fronius Setting the address of the Fronius Smart Meter on page 21). The each one (see SnapINverter primary meter always receives the address 1. -
Page 19: Modbus Participant - Fronius Gen24
Place the terminating resistors individually for each channel. Modbus parti- The inputs M0 and M1 can be freely selected. A maximum of 4 Modbus parti- cipant - Fronius cipants can be connected to the Modbus terminal on the inputs M0 and M1. GEN24... -
Page 20: Multi Meter System - Fronius Gen24 Inverter
Ohmpilot meters meters Multi meter sys- If several Fronius Smart Meters are installed, a separate address must be set for tem - Fronius Setting the address of the Fronius Smart Meter on page 21). The each one (see GEN24 inverter primary meter always receives the address 1. -
Page 21: Menu Structure
Setting the ad- Symbol Name Event Function dress of the Prog Increases the set value Fronius Smart Meter Page Moves the cursor Enter Confirms the entry Press "Prog" and "Page" at the same time to enter the code. Enter the password "2633". In- crease the value with "Prog"... -
Page 22: Reading The Fronius Smart Meter Operating Parameters
Only configure the menu items "Password" and "Address". ▶ The parameter „Node A“ is preset and must not be changed. Reading the Symbol Name Event Function Fronius Smart Page Continue to the next screen Meter operating parameters Page Reset value / change menu 5 seconds The following illustrations are symbolic representations. - Page 23 Display Description Current phase L1 Current phase L2 Current phase L3 Chained voltage phase L1-L2 Chained voltage phase L2-L3 Chained voltage phase L1-L3 Effective power Reactive power Apparent power...
-
Page 25: Commissioning
Commissioning... -
Page 27: Fronius Snapinverter
The service password must be entered for the "Meter" menu item. Three-phase or one-phase Fronius Smart Meters may be used. In both cases, se- lection is made via the "Fronius Smart Meter" item. The Fronius Datamanager automatically detects the meter type. -
Page 28: Configuring The Fronius Smart Meter As A Secondary Meter
In the pop-up window, set the position of the meter (feed-in point or con- sumption point). For more information on the position of the Fronius Smart Positioning on page 6. Meter, see Click the "Ok" button when the OK status is displayed. If the Timeout status is displayed, try again. -
Page 29: Fronius Gen24 Inverter
The service password must be entered for the "Device configuration" menu item. Three-phase or one-phase Fronius Smart Meters may be used. In both cases, se- lection is made via the "Components" menu area. The meter type is determined automatically. -
Page 30: Configuring The Fronius Smart Meter As The Primary Meter
Follow the installation wizard in the individual sections and complete the in- stallation. Add the system components in Fronius Solar.web and start up the PV sys- tem. The network wizard and the product setup can be carried out independently of each other. - Page 31 Enter the name of the meter in the "Name" input field. In the "Category" drop-down list, select the category (producer or load). Click the "Add" button. Click the "Save" button to save the settings. The Fronius Smart Meter is configured as a secondary meter.
-
Page 32: Technical Data
Technical data Technical data Modbus transmission speed: 9600 baud Parity bit: None Software version: Datamanager 3.7.2 / Energypackage 1.3.3 Input Three-phase nominal voltage 400 - 415 V Operating range 363 to 457 V Single-phase nominal voltage 230 - 240 V Operating range 210 to 264 V Voltage transformer ratio (kVT) - Page 33 kCT x kVT Maximum display Resolution 1 to 9.9 9 9 9 9 9 9 . 9 9 kWh / kvarh 10 Wh / varh 10 to 99.9 9 9 9 9 9 9 9 . 9 kWh / kvarh 100 Wh / varh 100 to 999.9 9 9 9 9 9 9 9 9...
- Page 34 Insulation (EN/IEC 62052-11, 62053-21) Installation category Pollution degree Insulation voltage 300 V phase-neutral Impulse withstand voltage 5 kV 1.2/60 µs Test circuit Voltage input, current input, pulse output, communication Test voltage 2.75 kV r.m.s. 50 Hz / 1 min Test circuit Voltage input, current input, pulse output, communication Test voltage...
-
Page 35: Fronius Manufacturer's Warranty
Fronius manu- Detailed, country-specific warranty conditions are available atwww.fronius.com/ facturer's war- solar/warranty. ranty To obtain the full warranty period for your newly installed Fronius product, please register at www.solarweb.com.
