ClearOne Unite 150 User Manual

Hide thumbs Also See for Unite 150:
Table of Contents

Advertisement

Quick Links

®
UNITE
150 CAMERA - U
G
SER
UIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Unite 150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearOne Unite 150

Summary of Contents for ClearOne Unite 150

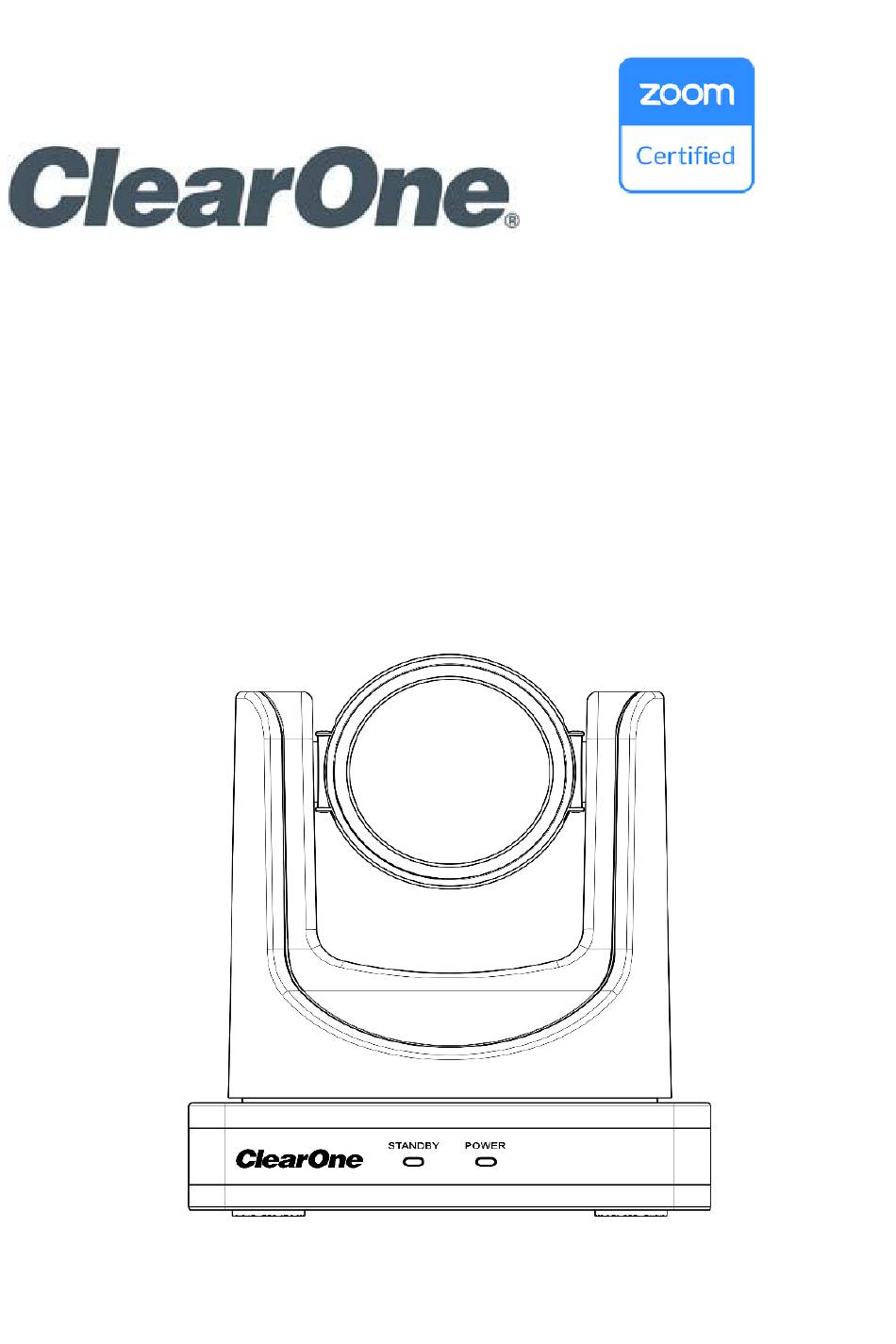

  • Page 1 ® UNITE 150 CAMERA - U UIDE...

  • Page 2: Copyright Notice

    All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne. Printed in the United States of America. ClearOne reserves specific privileges. Information in this document is subject to change without notice.

  • Page 3: Table Of Contents

    FEATURES ....................8 PRODUCT SPECIFICATION ..............9 MAIN UNIT ....................10 SIZE ......................11 IR REMOTE CONTROL ................12 SERIAL COMMUNICATION CONTROL ........... 15 MENU SETTING ..................27 USB 3.0 ..................... 36 MAINTENANCE AND TROUBLESHOOTING .......... 36 UNITE 150: User Guide 3...

  • Page 4: Preface

     Make sure there are no obstacles within the camera’s rotation range.  Never power on before installation has been completed. Do not dismantle the camera ClearOne is not responsible for any unauthorized modification or dismantling. 4 UNITE 150: User Guide...

  • Page 5: Supplied Accessories

    SUPPLIED ACCESSORIES When you unpack, check that all the supplied accessories are included:  Camera  AC power adapter  Power cord  RS232 cable  Remote controller  User manual  USB 3.0 cable 5 UNITE 150: User Guide...

  • Page 6: Quick Start

    Step3. The process of initialization is completed when the camera pan-tilt rotates to the maximum position of top right and then returns to the center. NOTE: If the position preset 0 has been stored, the position preset 0 will be called up after initialization. 6 UNITE 150: User Guide...

  • Page 7: Features

     Remote Control All the parameters of the camera can be remotely controlled using the RS232 and USB interfaces.  Zoom™ Certified Unite 150 has been tested and certified for use with Zoom Rooms functionality 7 UNITE 150: User Guide...

  • Page 8: Product Specification

    View Vertical Angle of 44.8° ~ 3.9° View Horizontal Rotation ±170° Range Vertical Rotation -30° ~ +90° Range Pan Speed Range 1.7° ~ 100°/s Tilt Speed Range 1.7° ~ 69.9°/s H & V Flip Support 8 UNITE 150: User Guide...
  • Page 9 DC 12V Current Consumption 1.0A (Max) Operating -10°C ~ 40°C (14°F ~ 104°F) Temperature Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F) Power Consumption 12W (Max) MTBF >30000h Size 144mm x144mm x168mm Net Weight 0.91kg 9 UNITE 150: User Guide...

  • Page 10: Main Unit

    MAIN UNIT 1. USB 3.0 4. RS232 Out Interface 2. Line In Interface 5.DC Power 12V Jack 3. RS232 In Interface 10 UNITE 150: User Guide...

  • Page 11: Size

    SIZE Unit: mm 11 UNITE 150: User Guide...

  • Page 12: Ir Remote Control

    6. Back Buttons Press OSD menu to return to previous menu. 7. Zoom Buttons Slow Zoom: Zoom In [+] or Zoom Out [-] slowly Fast Zoom: Zoom In [+] or Zoom Out [-] fast 12 UNITE 150: User Guide...
  • Page 13 Clear all presets: [*]+[#]+[Reset]: Erase all presets 14. Pan/Tilt Control Buttons Press arrow buttons to perform panning and tilting. Press [HOME] button to face the camera back to front. 15. MENU Press MENU to enter or exit the OSD menu. 13 UNITE 150: User Guide...
  • Page 14 18. Shortcut Set [*]+[＃]+[1]: Display OSD menu in English [*]+[＃]+[3]: Display OSD menu in Chinese [*]+[＃]+[5]: Save OSD [*]+[＃]+[6]: Quickly recover the default settings [*]+[＃]+[8]: Show the camera version [*]+[＃]+[9]: Quickly set mount mode (flip/normal) 14 UNITE 150: User Guide...

  • Page 15: Serial Communication Control

    NOTE: If the position preset 0 has been stored, the position preset 0 is called up after initialization, and users will be able to control the camera with commands in the following command list. Control Interface Definition Pin No. Function RS485- IR OUT RS485+ 15 UNITE 150: User Guide...
  • Page 16 Packet z0 4y FF Returned when the command is (y: Socket No.) accepted. ACK/Completion Messages z0 5y FF Returned when the command has Completion (y: Socket No.) been executed. *z = Camera Address + 8 16 UNITE 150: User Guide...
  • Page 17 Returned when a command can’t be z0 6y 41 FF executed due to current conditions. For Command Not (y: Execution example, when commands controlling Executable command Socket No. the focus manually are received during Inquiry command: 0) auto focus. 17 UNITE 150: User Guide...
  • Page 18 One Push WB mode Manual 8x 01 04 35 05 FF Manual Control mode OnePush trigger 8x 01 04 10 05 FF One Push WB Trigger CAM_RGain Reset 8x 01 04 03 00 FF Manual Control of R 18 UNITE 150: User Guide...
  • Page 19 8x 01 04 0C 00 00 0p 0q FF pq: Gain Position Gain Limit 8x 01 04 2C 0p FF p: Gain Position Reset 8x 01 04 0D 00 FF CAM_Bright Bright Setting 8x 01 04 0D 02 FF 19 UNITE 150: User Guide...
  • Page 20 Sharpness Auto CAM_ApertureMode (sharpness) Manual 8x 01 04 05 02 FF Sharpness Manual Reset 8x 01 04 02 00 FF CAM_Aperture(sharpness) 8x 01 04 02 02 FF Aperture Control Down 8x 01 04 02 03 FF 20 UNITE 150: User Guide...
  • Page 21 (high speed) 8x 01 06 01 VV WW 01 01 YYYY: Pan Position Upleft ZZZZ: Tilt Position 8x 01 06 01 VV WW 02 01 Upright DownLeft 8x 01 06 01 VV WW 01 02 21 UNITE 150: User Guide...
  • Page 22 Contrast Position 8x 01 04 A4 00 FF Flip-H 8x 01 04 A4 01 FF Single Command For CAM_Flip Video Flip Flip-V 8x 01 04 A4 02 FF Flip-HV 8x 01 04 A4 03 FF 22 UNITE 150: User Guide...
  • Page 23 50 00 00 0p 0q FF pq: R Gain CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain CAM_AEModeInq 8x 09 04 39 FF y0 50 00 FF Full Auto 23 UNITE 150: User Guide...
  • Page 24 50 00 00 0p 0q FF pq: Aperture Gain y0 50 02 FF CAM_PictureEffectModeInq 8x 09 04 63 FF y0 50 04 FF B&W p: Memory number last CAM_MemoryInq 8x 09 04 3F FF y0 50 0p FF operated. 24 UNITE 150: User Guide...
  • Page 25 Tilt Position CAM_GainLimitInq 8x 09 04 2C FF y0 50 0q FF p: Gain Limit p: Dynamic Hot Pixel CAM_DHotPixelInq 8x 09 04 56 FF y0 50 0q FF Setting (0: 0ff, level 1 to 6) 25 UNITE 150: User Guide...
  • Page 26 8x 09 04 4F FF y0 50 00 00 00 0p FF 14 dgrees) to Eh ( +14 degrees y0 50 00 FF High CAM_AWBSensitivityInq 8x 09 04 A9 FF y0 50 01 FF Normal y0 50 02 FF 26 UNITE 150: User Guide...

  • Page 27: Menu Setting

    Press the [MENU] button to display the Image main menu. Use the arrow buttons to P/T/Z select the item to be set. Press the Noise Reduction [HOME] button to enter a sub-menu. Setup Communication Setup Restore Default [Home] Enter [Menu] Exit 27 UNITE 150: User Guide...
  • Page 28   DRC: DRC strength  Bright Options: 0 ~ 8  ExpCompMode: Exposure  Bright: Intensity control compensation mode Note: This feature is only Note: This feature is only effective when exposure mode is 28 UNITE 150: User Guide...
  • Page 29 1/6000  F2.8  1/10000  F3.4 3. COLOR  F4.0 Select Color in the main menu and  F4.8 press the [HOME] button. The  F5.6 COLOR menu appears, as shown in  F6.8 29 UNITE 150: User Guide...
  • Page 30 IMAGE menu appears, as shown in  RG: Red gain the following figure: Note: This feature is only effective when WB-Mode is set to Manual. Options: 0~255  BG: Blue gain Note: This feature is only 30 UNITE 150: User Guide...
  • Page 31  Display Info 0 ~ 15  Flip-H: Image flipped horizontal Image Freeze Options: Digital Zoom  Call Preset Speed  Select Item  Flip-V: Image flipped vertical Change Value Options: [Menu] Back   31 UNITE 150: User Guide...
  • Page 32 [HOME] button.  High The NOISE REDUCTION menu  L/R Set appears, as shown in the following Optional items: figure:    Display Info Options:    Image Freeze Options:   32 UNITE 150: User Guide...
  • Page 33  figure.  1 – 5 7. SETUP Select Setup in the main menu and press the [HOME] button. The SETUP menu appears, as shown in the following figure: 33 UNITE 150: User Guide...
  • Page 34 The RESTORE DEFAULT menu decided according to agreement appears, as shown in the following (AUTO, VISCA protocol) Options:1 ~ 7 figure:  P_D_Address: PELCO-D protocol Options: 0 ~ 254  P_P_Address: PELCO-P protocol Options: 0 ~ 31 34 UNITE 150: User Guide...
  • Page 35 RESTORE DEFAULT Restore? Change Value [Home] OK [Menu] Back  Restore: Confirm restore factory settings Options:   NOTE: Press [HOME] button to confirm. 35 UNITE 150: User Guide...

  • Page 36: Usb 3.0

    Unqualified Application  Do not shoot extremely bright objects for a long period of time, such as sunlight, strong light sources, etc.  Do not operate in unstable lighting conditions, as image may flicker. 36 UNITE 150: User Guide...
  • Page 37 2. Check that the control cable is connected correctly. camera © 2020 ClearOne, Inc. All rights reserved - http://www.clearone.com/. Information in this document is subject to change without notice. QSG-0087-001 v1.0 Feb 2020 37 UNITE 150: User Guide...
