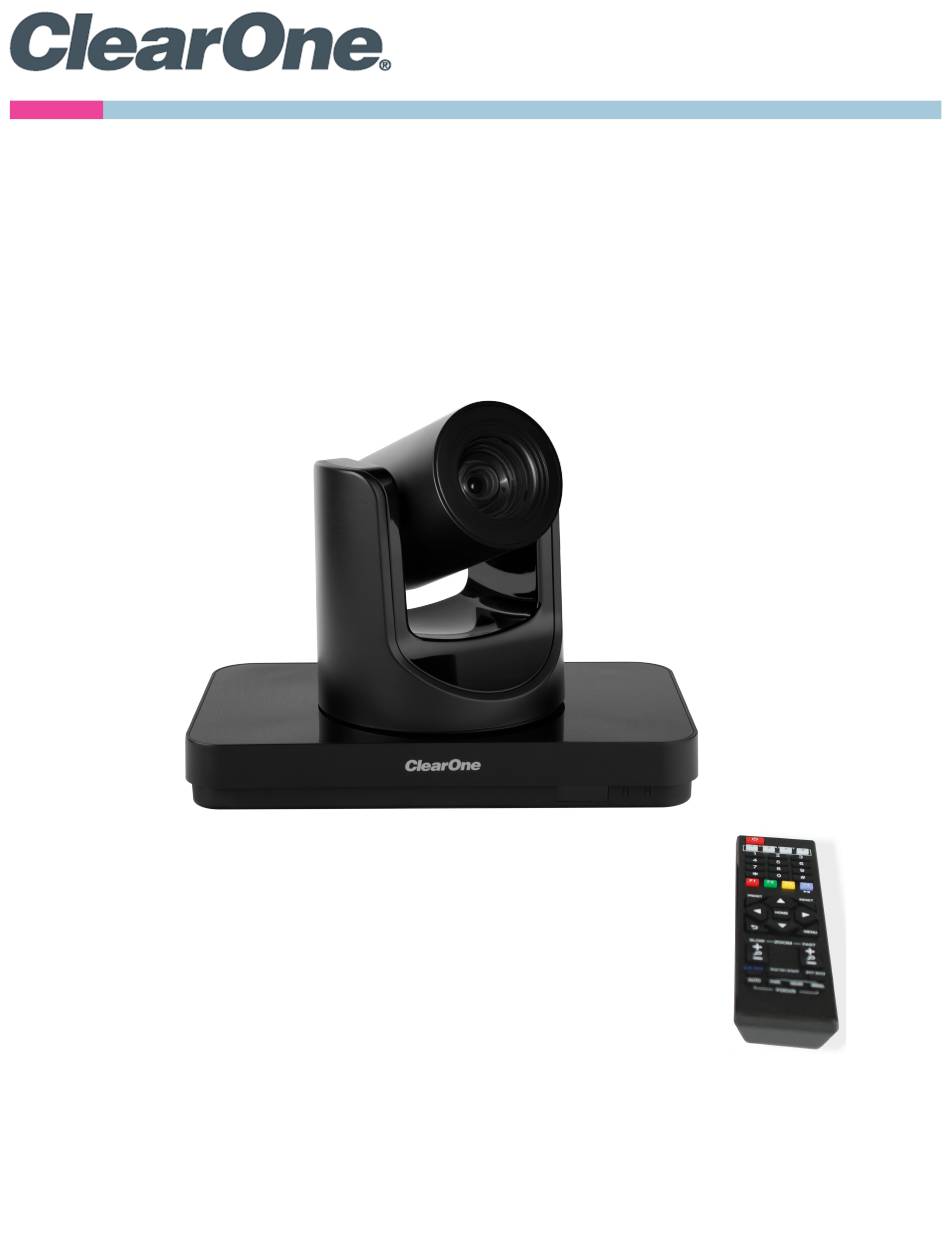

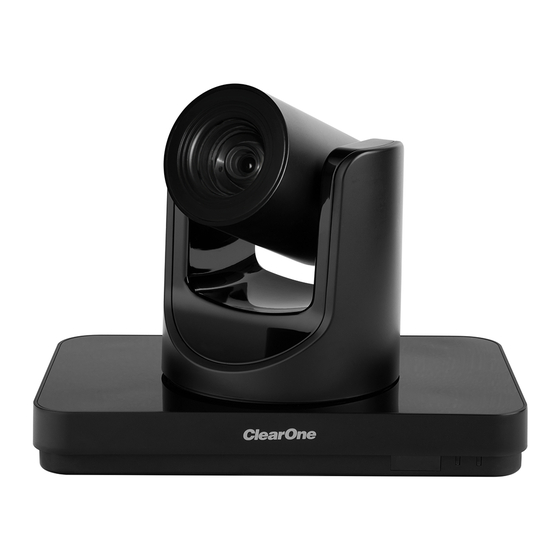

- Page 1 User Manual UNITE® 200 Pro PTZ HD Camera...
- Page 2 UNITE 200 Pro PTZ HD Camera User Manual ClearOne Contacts ® Headquarters Headquarters 5225 Wiley Post Way Suite 500 Tel: +1.801.975-7200 Salt Lake City, UT 84116 Sales Technical Support Tel: +1.801.975.7200 Tel: +1.801.974.3760 sales@clearone.com videotechsupport@clearone.com Notices © 2021 ClearOne, Inc. All rights reserved.
-
Page 3: Table Of Contents
UNITE 200 Pro PTZ HD Camera User Manual Contents anchor Introduction ....................1 Remote Control ..................1 Command List ...................2 Menu Settings ...................3 EXPOSURE ......................3 COLOR ....................... 5 NOISE REDUCTION ..................8 SETUP ....................... 8 COMMUNICATION SETUP ................9 RESTORE DEFAULT ..................10 USB 3.0 ....................10... -
Page 4: Introduction
UNITE 200 Pro PTZ HD Camera User Manual Introduction This user manual provides advanced information regarding control of the ClearOne UNITE 200 Pro PTZ HD Camera. Additional information about the camera is provided in the corresponding Datasheet and Quick-Start Guide, which are available in ClearOne’s Resource Library... -
Page 5: Command List
UNITE 200 Pro PTZ HD Camera User Manual Set Camera IR Address Buttons Function 1. Set camera IR address [*]+[#]+[F1]: Address 1 [*]+[#]+[F2]: Address 2 [*]+[#]+[F3]: Address 3 [*]+[#]+[F4]: Address 4 Function 2: Image freezing function Press [F4] to start the freeze function. The word “Freeze” displays in the upper left. After five seconds, the display automatically disappears (though the freeze feature continues). -
Page 6: Menu Settings
UNITE 200 Pro PTZ HD Camera User Manual Menu Settings Press the [MENU] button to display the main menu. Use the arrow buttons to select the item to be set. Press the [HOME] button to enter a sub-menu. EXPOSURE Select Exposure from the main menu and press the [HOME] button. - Page 7 UNITE 200 Pro PTZ HD Camera User Manual Setting Description Options Effective only when the exposure mode is set to... Mode • Auto • AAE • Manual • Bright • SAE ExpCompMode Exposure compensation • On Auto mode • Off...
-
Page 8: Color
UNITE 200 Pro PTZ HD Camera User Manual COLOR From the main menu, select Color, then press the [HOME] button. The system displays the COLOR menu. Setting Description Options Effective only when... WB-Mode White balance mode • Auto • OnePush •... - Page 9 UNITE 200 Pro PTZ HD Camera User Manual IMAGE From the main menu, select Image, then press the [HOME] button. The system displays the IMAGE menu. Setting Description Options Luminance Brightness adjustment 0 ~ 14 Contrast Contrast adjustment 0 ~ 14...
- Page 10 UNITE 200 Pro PTZ HD Camera User Manual P/T/Z From the main menu, select P/T/Z, then press the [HOME] button. The system displays the P/T/Z menu. Setting Description Options SpeedByZoom The depth of field • On scale switch • Off...
-
Page 11: Noise Reduction
UNITE 200 Pro PTZ HD Camera User Manual NOISE REDUCTION From the main menu, select Noise Reduction, then press the [HOME] button. The system displays the NOISE REDUCTION menu. Setting Description Options NR2D-Level 2D noise reduction • Off • 1 - 5 •... -
Page 12: Communication Setup
UNITE 200 Pro PTZ HD Camera User Manual COMMUNICATION SETUP From the main menu, select Setup, then press the [HOME] button. The system displays the COMMUNICATION SETUP menu. Setting Description Options Protocol Control protocol type • AUTO • PELCO-D • VISCA •... -
Page 13: Restore Default
• Mac OS: FaceTime. iChat, Photo Booth and Debut Video Capture, etc. Note the following: • ClearOne recommends the use of AMCAP version 8.0 in Windows, as its software performance is more stable. When you use the high version of AMCAP in a low configuration system, it shows the stream rendering. -
Page 14: Ip Function
UNITE 200 Pro PTZ HD Camera User Manual IP Function Access Through a Local Area Network (LAN) 1. Setup IP address The camera’s default IP address is 192.168.100.88. If you forget the camera’s IP address or have changed it, to show the camera IP address on screen, on the remote control, press * and # and 4. -
Page 15: Access Through A Wide Area Network (Wan)
UNITE 200 Pro PTZ HD Camera User Manual After login, the Web interface appears, as shown below: Note: If this is the first use of the web interface, you must install the VLC player software. Access Through a Wide Area Network (WAN) - Page 16 UNITE 200 Pro PTZ HD Camera User Manual Pan-Tilt control: Up, Down, Left, Right, Home button. • Rate: You can choose vertical speed as 1 - 24, horizontal direction at the rate of 1 - 20. • Select corresponding speed and click direction button to realize PTZ speed increase or decrease.
- Page 17 UNITE 200 Pro PTZ HD Camera User Manual • Fluctuate level Restrain the fluctuation magnitude of variable rate. Options: 1 - 6 Image Setup Click “Image.” • Brightness Image brightness, 0 -14, slider control, on the right shows the corresponding numerical value. The default value is 7.
- Page 18 UNITE 200 Pro PTZ HD Camera User Manual System Setting Click “System.” • Work Mode Work Mode RTSP • Reboot Click the “Reboot” button to restart the system. • User and password You can modify the password (letters and numbers only) •...
-
Page 19: Control Interface Definition
UNITE 200 Pro PTZ HD Camera User Manual Device Information Click “Information”, the current device information as shown. Serial Command Control In default working mode, the camera can be controlled via RS-232 or RS-485 (half-duplex mode). The parameters are as follows: •... -
Page 20: Network Configuration
UNITE 200 Pro PTZ HD Camera User Manual Camera DB - 9 Serial Camera In Camera Out 1. DTR 1. CD 1. DTR 1. DTR 2. DSR 2. RXD 2. DSR 2. DSR 3. TXD 3. TXD 3. TXD 3. TXD 4. -
Page 21: Maintenance And Troubleshooting
UNITE 200 Pro PTZ HD Camera User Manual Maintenance and Troubleshooting Camera Maintenance • If you choose not to use your camera for a long time, turn off the power switch and disconnect AC power cord of AC adapter to the outlet. - Page 22 UNITE 200 Pro PTZ HD Camera User Manual Trouble Solution Serial communication cannot control • Check the camera working mode. the camera • Check that the control cable is connected correctly. No sound • Check the audio connection to the host PC •...
