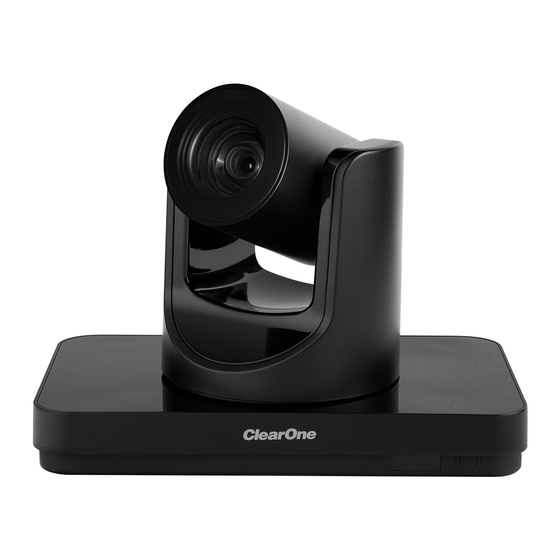

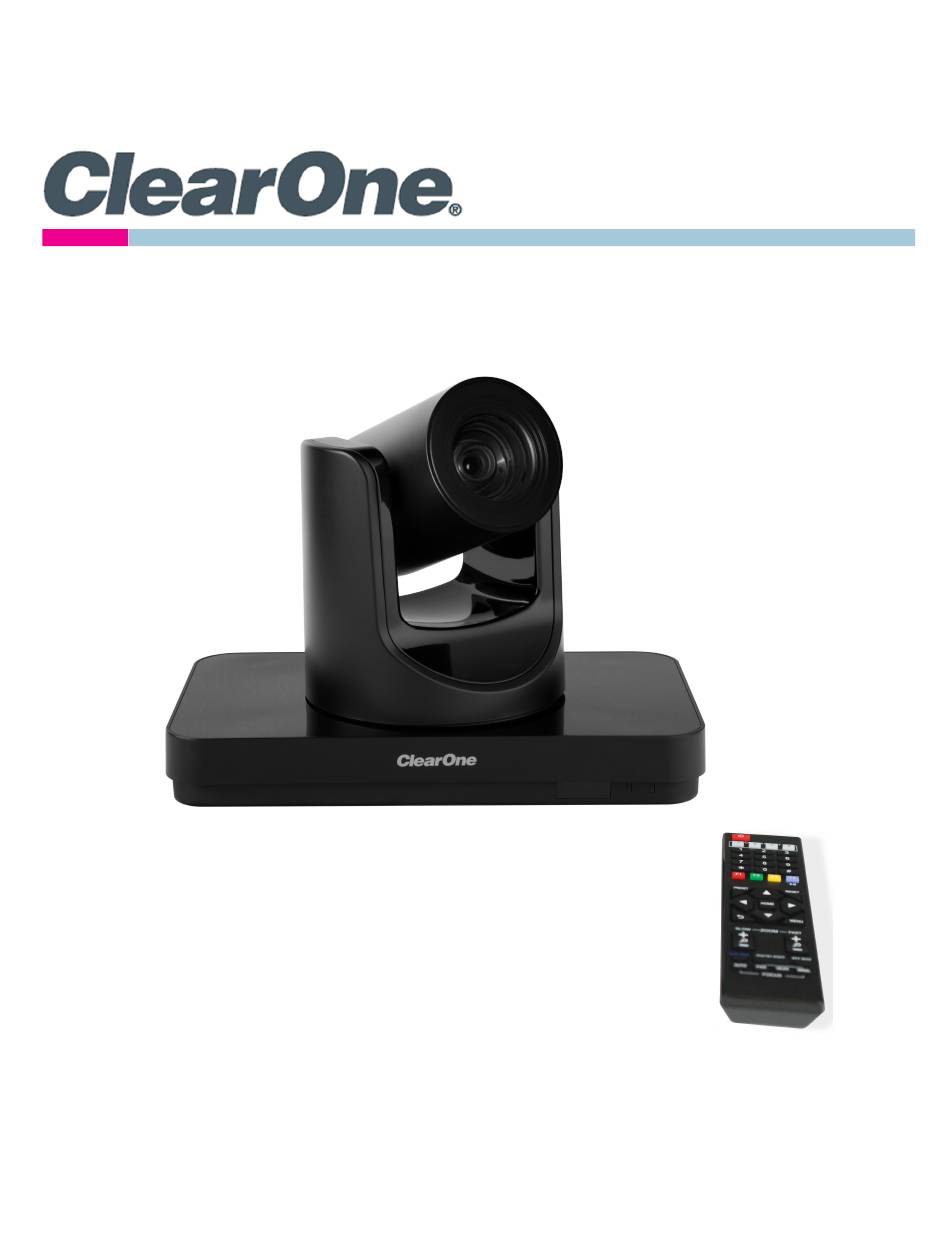

- Page 1 Quick-Start Guide UNITE® 200 Pro PTZ HD Camera QSG-0142-001v1.0 September 2021...
-
Page 2: Clearone ® Contacts
Tel: +1.801.974.3760 sales@clearone.com videotechsupport@clearone.com Notices © 2021 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. Document: QSG-0142-001v1.0, September 2021 Important Safety Information Before you set up the camera, read this manual carefully. Follow the setup instructions indicated in this manual. -
Page 3: Packing List
Verify that you have received all parts associated with each of the components. Inspect your shipment carefully. If the shipment shows obvious signs of damage, retain original boxes and packing material for inspection by the carrier, and contact them immediately. ClearOne is not responsible for product damage incurred during shipment. -
Page 4: Back View
UNITE® 200 Pro PTZ HD Camera Back View a. System Select Switch g. Reserved Port b. RS-232 Out Port h. HDMI Port c. RS-232 In Port i. USB 3.0 Port d. RJ45 Port j. Reserved Port e. Reserved Port k. DC In 12 V Port f. -
Page 5: Set Switches
UNITE® 200 Pro PTZ HD Camera Connect Make connections as shown in the following diagram: Computer, TV, VCR w/audio input jack, Router/Switch, Speaker Microphone RS-232 RS-232 Adapter* (not included) HDMI & USB 3.0 (included) (included) Ethernet* Audio (not included) (not included) Caution: Do not apply Cable &... -
Page 6: Ir Remote Control
• Slow Zoom: Zoom In [+] or Zoom Out [-] slowly • Fast Zoom: Zoom In [+] or Zoom Out [-] fast More detailed information about using the UNITE 200 Pro PTZ HD Camera is provided in the UNITE 200 Pro User Manual, available in the ClearOne Resource Libary.
