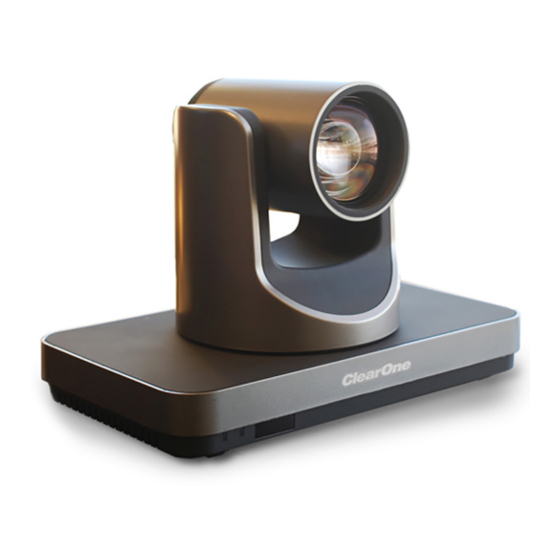

ClearOne Aura UNITE 200 Quick Start Manual

Ptz hd camera
Hide thumbs Also See for Aura UNITE 200:
Table of Contents

Advertisement

Quick Links

Quick-Start Guide
UNITE
200 PTZ HD CAMERA
®
VIDEO SOLUTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aura UNITE 200 and is the answer not in the manual?

Questions and answers

Related Manuals for ClearOne Aura UNITE 200

Summary of Contents for ClearOne Aura UNITE 200

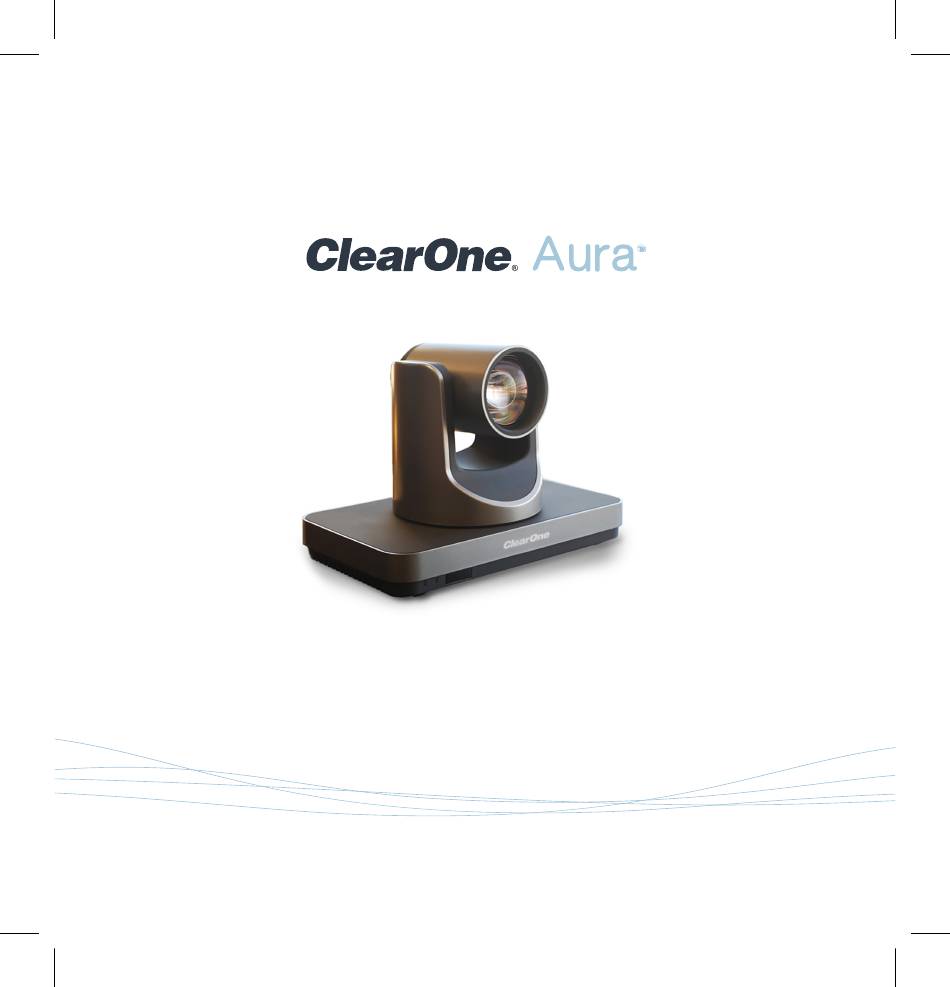

  • Page 1 Quick-Start Guide UNITE 200 PTZ HD CAMERA ® VIDEO SOLUTION...
  • Page 2 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © 2021 ClearOne All rights reserved. Information in this document is subject to change without notice. Document number QSG-0128-002v1.1 February 2021 QSG-0128-002v1.1...

  • Page 3: Table Of Contents

    Quick-Start Guide CONTENTS CONTACT INFORMATION ..........i IMPORTANT SAFETY INFORMATION ......1 PACKING LIST.............. 2 PRODUCT DETAILS ............. 2 QUICK START .............. 4 MAIN UNIT ..............7 IR REMOTE CONTROL ..........8 MENU SETTINGS ............12 MAINTENANCE AND TROUBLESHOOTING .... 42 SIZE ................

  • Page 4: Important Safety Information

    UNITE 200 PTZ Camera IMPORTANT SAFETY INFORMATION Before you set up the camera, read this manual carefully. Follow the setup instructions indicated in this manual. Keep this manual for future use. To prevent electric shock, do not remove screws or the camera housing.

  • Page 5: Packing List

    Quick-Start Guide PACKING LIST When you unpack, check that all the supplied accessories are in- cluded: • Camera • AC power adapter • Power cord • RS232 cable • Remote controller • USB 3.0 cable • Quick-Start Guide PRODUCT DETAILS 72.5°...
  • Page 6 UNITE 200 PTZ Camera H.265 Support • Supports H.265 encoding, enabling full HD 1080p/60fps video stream at ultra-low bandwidth. 1080P Full HD • A 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor can reach maximum 1920 x 1080 resolution to achieve a high-quality image.

  • Page 7: Quick Start

    Quick-Start Guide QUICK START Step 1. Refer to the diagram below to make sure the connections are correct. Step 2. Set the bottom switches Set both switch1 and switch2 to “OFF”. That is “Normal Working Mode.” QSG-0128-002v1.1 February 2021...
  • Page 8 UNITE 200 PTZ Camera SW - 1 SW - 2 Mode Normal Working Mode Step 3. Set the Video System Switch to the desired setting Video format Options: VIDEO SYSTEM 1080p60 720p30 1080p50 720p25 1080I60 1080I50 720p60 720p50 1080p30 1080p25 QSG-0128-002v1.1 February 2021...
  • Page 9 Quick-Start Guide Note: After you change the switch, you must restart the camera for the change to take effect. Step 4. Press the ON/OFF button to turn on the camera. Step 5. When the camera starts, Pan-Tilt rotates to the maximum position of top right, then returns to the center position.

  • Page 10: Main Unit

    UNITE 200 PTZ Camera MAIN UNIT 1. Lens 11. RJ45 Interface 2. Sensor for the Remote 12. Reserved Interface Control 13. Line In Interface 3. Power Lamp 14. Reserved Interface 4. Standby Lamp 15. HDMI Interface 5. Bottom Switches 16. USB 3.0 6.

  • Page 11: Ir Remote Control

    Quick-Start Guide IR REMOTE CONTROL 1. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. Note: Power consumption in standby mode is approximate- ly half of the normal mode 2. Position Buttons To set preset or call preset 3.
  • Page 12 UNITE 200 PTZ Camera perform panning and tilting. Press the [HOME] button to face the camera back to front. 6. Return Button Press to return to previous menu. 7. Zoom Buttons Slow Zoom: Zoom In [+] or Zoom Out [-] slowly Fast Zoom: Zoom In [+] or Zoom Out [-] fast 8.
  • Page 13 Quick-Start Guide 10. Camera Select Buttons Press the button corresponding to the camera you want to control with the remote controller. 11. # Button Used with other buttons 12. Set Camera IR Address Buttons Function 1. Set camera IR address [*]+[#]+[F1]: Address 1 [*]+[#]+[F2]: Address 2 [*]+[#]+[F3]: Address 3...
  • Page 14 UNITE 200 PTZ Camera 14. Pan/Tilt Control Buttons Press arrow buttons to perform panning and tilting. Press [HOME] button to face the camera back to front. 15. MENU Press MENU to enter or exit the OSD menu. 16. BLC (Backlight Compensation) Button If there is light behind the subject, the subject will appear dark.

  • Page 15: Menu Settings

    Quick-Start Guide [*]+[#]+[6]: Quickly recover the default settings [*]+[#]+[8]: Show the camera version [*]+[#]+[9]: Quickly set mount mode (flip/normal) MENU SETTINGS 1. MENU Press the [MENU] button to display the main menu. Use the arrow buttons to select the item to be set. Press the [HOME] button to enter a sub-menu.
  • Page 16 UNITE 200 PTZ Camera 2. EXPOSURE Select Exposure from the main menu and press the [HOME] button. The EXPOSURE menu appears. Mode: Exposure mode ExpCompMode: Exposure compensation mode Options: • Auto Note: This feature is only effec- • Manual tive when exposure mode is set •...
  • Page 17 Quick-Start Guide ExpComp: Exposure Bright: Intensity control Compensation value Note: This feature is only effec- Note: This feature is only effective tive when exposure mode is set when ExpCompMode is on. to Bright. Options: -7 ~ 7 Options: 00~17 Gain Limit: Maximum gain limit Anti-Flicker Flicker: Anti-flicker Note: This feature is only effective Note: This feature is only effective...
  • Page 18 UNITE 200 PTZ Camera Iris: Aperture Value Shutter: Shutter value Note: This feature is only effective Note: This feature is only effective when exposure mode is set to when exposure mode is set to Manual/AAE. Manual/SAE. Options: Options: • F1.8 •...
  • Page 19 Quick-Start Guide 3. COLOR Select Color in the main menu and press the [HOME] button. The COLOR menu appears, as shown in the following figure: QSG-0128-002v1.1 February 2021...
  • Page 20 UNITE 200 PTZ Camera WB-Mode: White balance mode RG Tuning: Red gain fine- tuning Options: Note: This feature is only effective • Auto when AWB sens is set at Low. • Indoor Options: -10 ~ +10 • Outdoor • OnePush BG Tuning: Blue gain fine- •...
  • Page 21 Quick-Start Guide 4. IMAGE Select Image in the main menu and press the [HOME] button. The IMAGE menu appears, as shown in the following figure: Luminance: Brightness Sharpness: Sharpness adjustment adjustment Optional items: 0 ~ 14 Options: • Auto Contrast: Contrast adjustment •...
  • Page 22 UNITE 200 PTZ Camera Flip-H: Image flipped horizontal Gamma Options: Options: • • Default • • 0.45 • Flip-V: Image flipped vertical • 0.56 • 0.63 Options: • Style • Options: B&W-Mode: Image color • Norm • Clarity Options: • Bright •...
  • Page 23 Quick-Start Guide 5. P/T/Z SpeedByZoom: The depth of AF-Zone: Interested in focusing field scale switch area Options: Options: • • • • Center • Bottom QSG-0128-002v1.1 February 2021...
  • Page 24 UNITE 200 PTZ Camera AF-Sense: Automatic focusing Image Freeze sensitivity options Options: Options: • • • • Normal • High Digital Zoom L/R Set Options: Optional items: • • • • • • Display Info • Options: Call Preset Speed •...
  • Page 25 Quick-Start Guide 6. NOISE REDUCTION Select Noise Reduction in the main menu and press the [HOME] button. The NOISE REDUCTION menu appears, as shown in the following figure: NR2D-Level: 2D noise reduc- tion D-HotPixel: Dynamic bad Options: points • Options: •...
  • Page 26 UNITE 200 PTZ Camera 7. SETUP Select Setup in the main menu and press the [HOME] button. The SETUP menu appears, as shown in the following figure: Language: menu language System Frequency Options: Options: • • 50 Hz • Chinese •...
  • Page 27 Quick-Start Guide 8. COMMUNICATION SETUP Select Setup in the main menu and press [HOME] button. The COMMUNICATION SETUP menu appears. Protocol: Control protocol type V_Address: Protocol address decided according to Options: agreement (AUTO, VISCA • AUTO protocol) • VISCA • PELCO-D Options:1 ~ 7 •...
  • Page 28 UNITE 200 PTZ Camera P_D_Address: PELCO-D Net Mode: Set the serial port protocol control networking Options: 0 ~ 254 Options: • Serial P_P_Address: PELCO-P • Parallel protocol Baudrate: Serial port baud rate Options: 0 ~ 31 Options: V_AddrFix: Set whether users •...
  • Page 29 Quick-Start Guide 9. RESTORE DEFAULT Select Restore Default in the main menu and press the [HOME] button. The RESTORE DEFAULT menu appears. Restore: Confirm restore fac- Note: Press [HOME] button to tory settings confirm. Options: • • QSG-0128-002v1.1 February 2021...
  • Page 30 Mac OS: FaceTime. iChat, Photo Booth and Debut Video Capture, etc. Note the following: • ClearOne recommends the use of AMCAP version 8.0 in Windows, as its software performance is more stable. When you use the high version of AMCAP in a low configuration system, it shows the stream rendering.
  • Page 31 Quick-Start Guide IP FUNCTION 1. Operating Environment Operating System: Windows 7/8/8.1/10 Note: Use of the included utility programs requires Windows, but use of the Web interface does not require any particular operating system. Network Protocol: TCP/IP 2. Equipment Installation 1) Connect the camera to your network or to your PC directly via an Ethernet cable.
  • Page 32 UNITE 200 PTZ Camera Connect directly by Ethernet crossover cable Connect via router/switch 4. Access the camera though LAN. 4.1. Setup IP address The camera’s default IP address is 192.168.100.88. If you forget the camera’s IP address or have changed it, use the following method to show the camera IP address: Press * and # and 4 on the remote control to display the camera IP address on-screen.
  • Page 33 Quick-Start Guide To change the camera’s IP address: a. Open the camera’s Web interface (see Access Camera’s Web Interface later in this Manual for detailed instructions). b. On Web interface page, find “Network”--->Change IP . Enter a new IP address, then Click “Apply”. c.
  • Page 34 UNITE 200 PTZ Camera 4.2. Access camera’s web Input http://192.168.100.88 into a browser (Internet Explorer and Firefox work best). Note: If you have changed the camera’s IP address, enter the new address. Note: To access the camera with an IP address, you must be on the same network as the camera.
  • Page 35 Quick-Start Guide After login, the Web interface appears, as shown below: Note: If this is the first use of the web interface, you must install the VLC player software. 5. Access the camera though WAN. 5.1. Dynamic DNS setup for accessing the camera Once you have set a domain name to the camera, and have forwarded the traffic to the correct address and port number, you can use a domain name to access the camera.
  • Page 36 UNITE 200 PTZ Camera 5.2. VLC stream media player monitoring VLC media server procedure Open VLC media player, click “Media”->”Open Network Steam”, or type “Ctrl + N”. Input stream address: rtsp://ipaddress:port number/1 (Main stream ). Example: rtsp://192.168.100.88:554/1 rtsp://ipaddress:port number/2 (Sub stream). Example: rtsp://192.168.100.88:554/2 Note: The default RTSP port number is 554.
  • Page 37 Quick-Start Guide 6. IP Camera parameter setup 6.1. Homepage introduction Menu All pages include two menu bars: • Real time monitoring: displaying video image • Parameter setup: with function buttons Video viewing window The video viewing window must be the same as video resolution;...
  • Page 38 UNITE 200 PTZ Camera 4) Set/Call: After you have set PTZ to a desired position, you can save that configuration as a preset for later use. Click the “Set” button to save a preset. At any point later, you can click the “Call” button to call this preset.
  • Page 39 Quick-Start Guide The higher the resolution, the clearer the image, but this uses more network bandwidth. 5) Bit Rate You can assign bit rate/stream. Generally, the higher the bit rate, the clearer the image. The bit allocation must combine with network bandwidth.
  • Page 40 UNITE 200 PTZ Camera 1) Brightness Image brightness, 0 -14, slider control, on the right shows the corresponding numerical value. The default value is 7. 2) Saturation Saturation 0 - 14, slider control, on the right shows the corresponding numerical value.
  • Page 41 Quick-Start Guide Select Flip to turn the image upside down; select Mirror to flip the image horizontally. The default value for both is not selected. 7) Button After you adjust any parameters, to save the settings click “Apply”; to cancel the parameter adjustments, click “Cancel”. To revert to the default value, click “Default”.
  • Page 42 UNITE 200 PTZ Camera 7) Apply Button To save changes click “Apply”, or to discard the changes click “Cancel”. 6.5. System setting, please click “System” 1) Work Mode Work Mode RTSP 2) Reboot Click the “Reboot” button to restart the system. 3) User and password You can modify the password (letters and numbers only)
  • Page 43 Quick-Start Guide 6.6. Network Setting, Click “Network.” 1) LAN Settings The default IP address is 192.168.100.88. The MAC address can be modified. 2) Port Settings HTTP Port, Default port number: 80 RTSP Port, Supports the RTSP protocol. Default port number: 554. PTZ Port, Supports PTZ protocol.
  • Page 44 UNITE 200 PTZ Camera 6) Multicast Setting Multicast switch, multicast address (default address 224.1.2.3) and port (default port number: 6688) can be set. 7) Apply / Cancel Modify network parameters then click “Apply” to save the changes, or click “Cancel” to discard the changes. 6.7.

  • Page 45: Maintenance And Troubleshooting

    Quick-Start Guide MAINTENANCE AND TROUBLESHOOTING CAMERA MAINTENANCE • If you choose not to use your camera for a long time, turn off the power switch and disconnect AC power cord of AC adapter to the outlet. • Use soft cloth to clean the camera cover. •...
  • Page 46 UNITE 200 PTZ Camera No image 1. Check whether the power cord is connected, voltage is OK, POWER lamp is lit. 2. Check whether the camera can self-test after start up. 3. Check the BOTTOM switch and make sure the two switches are both set OFF.
  • Page 47 Quick-Start Guide After installation, log in again. You should see the video stream on the home page of the Web interface. Unable to access IP Camera by browser 1. To rule out cable failure or network failure caused by a virus, make sure your computer is connected to the network, Make sure you can ping the computer from another computer and that computer can ping other computers on the local network or the...
  • Page 48 UNITE 200 PTZ Camera The IR remote control cannot control the camera 1. Change the remote control battery. 2. Check the camera working mode. 3. Check that the IR address of the Remote Commander is set correctly. Serial communication cannot control the camera 1.

  • Page 49: Size

    Quick-Start Guide SIZE Front View Units: mm QSG-0128-002v1.1 February 2021...
  • Page 50 UNITE 200 PTZ Camera Side View Units: mm QSG-0128-002v1.1 February 2021...
  • Page 51 Quick-Start Guide Top View Units: mm QSG-0128-002v1.1 February 2021...
  • Page 52 UNITE 200 PTZ Camera Bottom View Units: mm QSG-0128-002v1.1 February 2021...
