Summary of Contents for Hyundai HY0390

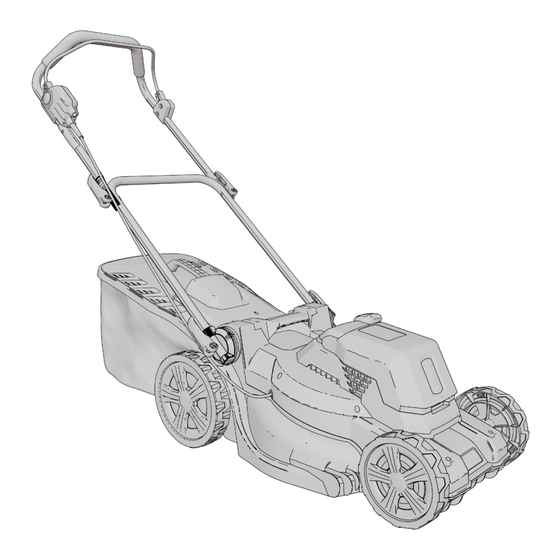

  • Page 1 HY0390 Manual...
  • Page 2 HYUNDAI HY0390 The engine exhaust from this product contains chemicals known to cause cancer, birth defects or other reproductive harm. Licensed by Hyundai Corporation Holdings, Korea. HY0390_Manual_EN_2024-01-04...
  • Page 3 HY0390 This product is supported by Midland Power. Contact us directly for assistance and warranty help. Do not return this product to store. You must register online for your warranty to be valid. It only takes a minute, do it now while you still have your purchase receipt.
  • Page 4 HYUNDAI Thanks for choosing Hyundai! You're excited to get started, we'll keep this brief. READ THIS ENTIRE GUIDE BEFORE USING THIS PRODUCT AND SAVE FOR LATER USE. This user guide contains important instructions including safety, setup, operation, and maintenance that must be followed.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS 1. Safety 1.1 Use Safety 1.2 Risk of Debris 1.3 PPE 1.4 Mower Safety 1.5 Symbols 1.6 Maintenance Safety 1.7 Vibration Safety 2. Component Identification 2.1 Control Functions 3. Before First Use 3.1 Lawnmower Assembly 3.2 Handle Storage 3.3 Inserting/Removing the Rechargeable Battery 4.

  • Page 6: Safety

    HYUNDAI 1. SAFETY WARNING! Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants.

  • Page 7: Risk Of Debris

    HY0390   NEVER operate the machine without the defensive guards or shields.   NEVER lock or otherwise prevent safety switches, kill switches, or release levers from operating properly.   Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service.

  • Page 8: Ppe

    HYUNDAI 1.3 PPE WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contain chemicals known to cause cancer, birth defects, or other reproductive harm. Some samples of these chemicals are:   Lead from lead-based paints;...

  • Page 9: Mower Safety

    HY0390 warnings, or shouts from approaching people or vehicles. Be extra diligent and observant of hazards and bystanders when wearing hearing protection devices. When someone approaches, turn the tool OFF immediately. WARNING! Always wear breathing protection. Bystanders should be encouraged to wear breathing protection devices even if they are kept at a distance as hazardous dust can travel considerable distances, especially if the dust is windblown.
  • Page 10 HYUNDAI and bolts in sets to preserve balance.   Avoid operating the equipment in wet grass, where feasible.   Always be sure of your footing on slopes.   Walk, NEVER run.   Exercise extreme caution when changing direction on slopes. DO NOT mow excessively steep slopes.

  • Page 11: Symbols

    HY0390 1.5 SYMBOLS Some of the following symbols may appear on the tool. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for safer operation of this tool. Warning! Danger Read the manual Shock hazard...
  • Page 12 HYUNDAI   You must switch off the machine: before checking or working on the machine; ƒ when transporting the machine; ƒ if the machine starts vibrating abnormally; ƒ whenever you leave the machine unattended. ƒ   Do not open or disassemble this tool. All maintenance other than that listed in this manual should be carried out by professionally trained and certified personnel.

  • Page 13: Vibration Safety

    HY0390 1.7 VIBRATION SAFETY Prolonged use of handheld (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death.

  • Page 14: Component Identification

    HY0390 HY0390 HYUNDAI 2. COMPONENT IDENTIFICATION Safety button Power lever Upper Handle Quick Release Lever Lower Handle Control Cord Deck Height Adjustment Lever Grass Bag Deck 2.1 CONTROL FUNCTIONS Power lever   Starts the trimmer. Safety button   Must be pressed to engage the power lever, prevents accidental starting.

  • Page 15: Before First Use

    HY0390 3. BEFORE FIRST USE Double-check the lawnmower and package contents. NOTE   There is a risk of damaging the lawnmower if the package is opened carelessly—do not use sharp objects when opening the package. Follow these steps upon first inspection: Carefully remove the lawnmower from its packaging on an even-level surface.

  • Page 16: Lawnmower Assembly

    HYUNDAI 3.1 LAWNMOWER ASSEMBLY NOTE   Improper handling of the lawnmower and its parts can cause significant injury and damage. Always read and comply with the safety instructions outlined in the Before First Use chapter of this manual. Follow these steps to safely assemble the lawnmower: Unfold the lower handlebar.

  • Page 17: Handle Storage

    HY0390 3.2 HANDLE STORAGE When transporting or storing the lawnmower, the handle can be folded to save space. NOTE   Do not fold the handle backwards, doing so may snap the cable. Fold slowly and carefully to avoid cable troubles.

  • Page 18: Operation

    HYUNDAI 4. OPERATION NOTE   Improper handling of the lawnmower can cause significant injury and damage. Always read and comply with the safety instructions outlined in the Before First Use chapter of this manual. 4.1 ADJUSTING THE CUTTING HEIGHT Follow these steps to safely adjust the cutting height: Ensure the safety key is removed.

  • Page 19: Using The Grass Collector

    HY0390 To switch the lawnmower off: Release the safety bar to return it to its normal position. The motor will stop and the blades will cease rotating. Wait until all rotating parts come to a complete standstill. 4.3 USING THE GRASS COLLECTOR Follow these steps to properly handle the grass collection bag: Ensure the safety key is removed.

  • Page 20: Using The Mulch Kit

    HYUNDAI mowed grass spreads directly back onto the lawn via the grass discharge chute. In this case, do not open the safety flap during operation. 4.5 USING THE MULCH KIT The mulch insert prevents the grass from discharging to the rear by blocking the collection chute.

  • Page 21: Maintenance

    HY0390 Before mowing, ensure the new cutting blade is attached correctly and is sufficiently tight. 5. MAINTENANCE WARNING! Turn OFF the machine, allow all moving parts to come to a complete stop, and disconnect the battery before performing any maintenance. You must wear proper clothing and protective gloves whenever your hands are at risk.

  • Page 22: Recycling And Disposal

    HYUNDAI 7. RECYCLING AND DISPOSAL You must comply with local regulations for the disposal of packaging, oils, fuel, filters, damaged parts or any elements which have a strong impact on the environment. This waste must not be disposed of as normal waste. It needs to be separated and taken to specified waste disposal centers where the material will be recycled.

  • Page 23: Troubleshooting

    HY0390 8. TROUBLESHOOTING Fault Probable Cause Solution The rechargeable battery Charge the battery. is dead. The rechargeable battery Replace the rechargeable is faulty. battery. Insert the safety key The safety key is not (see the Switching the inserted. Lawnmower On and Off The motor does not start.
  • Page 24 HYUNDAI Remove the grass collection bag and The grass collection bag empty its contents (see is blocked. the Emptying the Grass Collection Bag chapter). The mowed grass is not collecting correctly. Clean the grass The grass discharge is discharge with a long blocked.

  • Page 25: Technical Specifications

    HY0390 9. TECHNICAL SPECIFICATIONS Model HY0390 Motor Rated Power 40V (2x20V) DC Motor Speed (No Load) 3300 RPM Functions Bag/Mulch Deck Width 430mm (17in) Cutting Width 400mm (15.7in) Min. Cutting Height 25mm (1in) Max. Cutting Height 70mm (2.7in) Deck Height Adjust...

  • Page 26: Limited Warranty

    HYUNDAI 10. LIMITED WARRANTY This product is distributed by: Midland Power Inc. 376 Magnetic Drive, Toronto, ON M3J 2C4, Canada Warranty Beginning at the time of retail purchase and for the duration of the warranty period Midland Power Inc. (Midland) warrants that Equipment manufactured by it is warranted to be free from defects in material and workmanship.
  • Page 27 HY0390 Replacement of parts made in connection with normal maintenance services including oils, adhesives, additives, fuel, filters, brushes, belts, lubricants, spark plugs, gaskets, seals, fasteners, wires, tubes, pipes, fittings, wheels, batteries, and other expendables susceptible to natural wear; g. Any accessory or attachment.
  • Page 28 Enjoy! Be sure to check www.hyundaipower.ca for updates regarding your product.
  • Page 29 Customer Service Online: www.hyundaipower.ca E-mail: support@midlandpowerinc.com Toll Free: 1-877-528-3772...
  • Page 30 For Inquiries, Please Contact: Midland Power Inc. 376 Magnetic Drive, Toronto, ON Canada M3J 2C4 1-877-528-3772 support@hyundaipower.ca www.hyundaipower.ca Imported / Distributed by Midland Power Inc., Canada Licensed by Hyundai Corporation Holdings, Korea...
