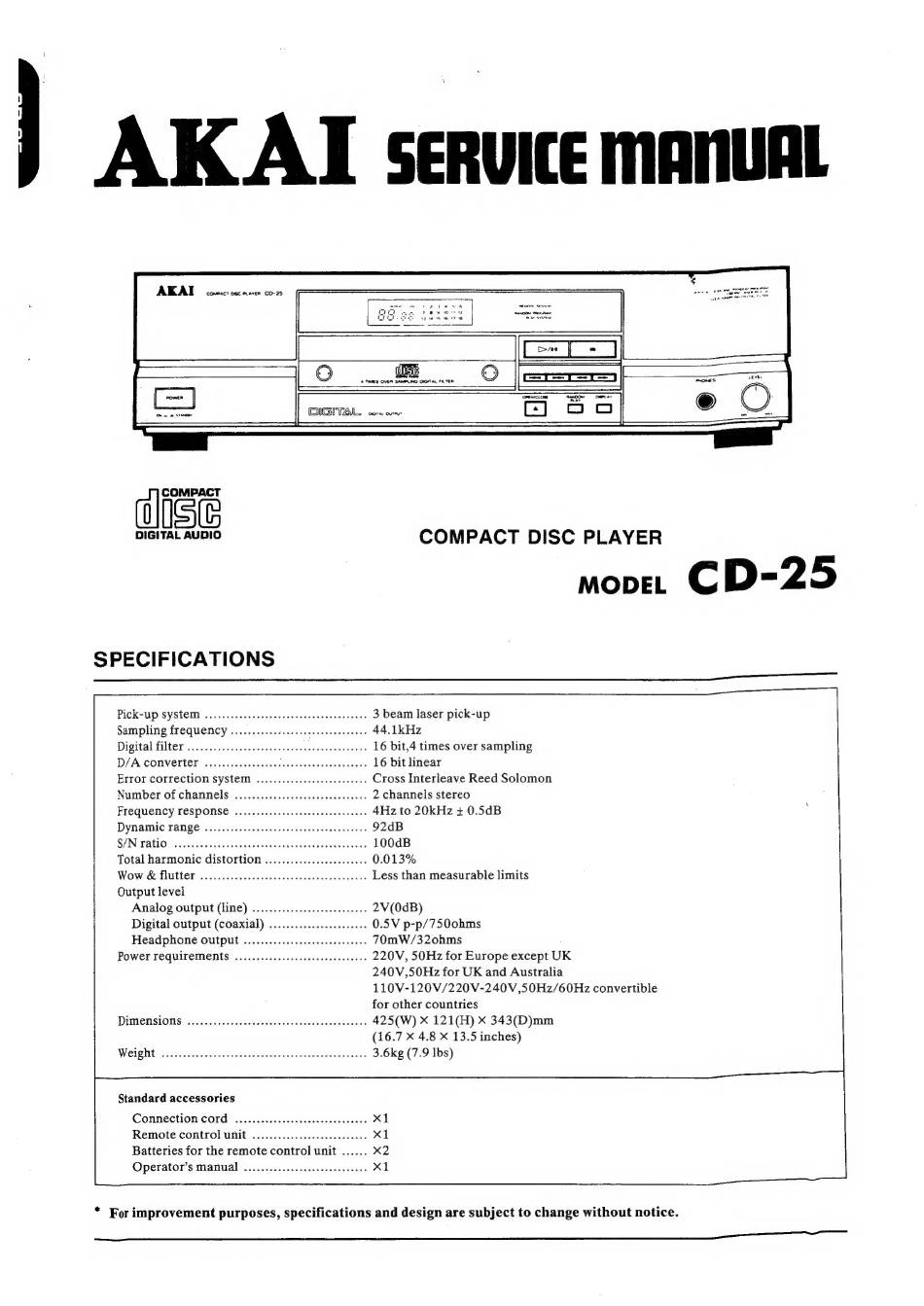

Akai CD-25 Service Manual

ARAL ccvescs osc nares c0-25
BIGITAL. corm om
COMPACT
MODEL Cc D-25
SPECIFICATIONS
Pick-Up SYStOM .......c.ccceeeeeceeceeeeer eee een sees 3 beam laser pick-up
Sampling frequency ...........c.cciceee eee ee eee eee 44.1kHz
Digital filter sce cssreieec ceveswnctac ddan estewaesonnees 16 bit,4 times over sampling
D/A COMVETTEL .... ccc eee eee ees eee eee eee see eenenees 16 bit linear
Error COTrectiONn SYSt€M ..........:ceeeeeee eee eee Cross Interleave Reed Solomon
Number of channels ............ccsecseeesneeeeeees 2 channels stereo
FreQueNCy FESPONSE .......cceeeeeeeeeeeee eee eenees 4Hz to 20kHz + 0.5dB
Dynamic range ..........cceceeseeee eee ee een eeeenees 92dB
S/N TAtiO: . Ssicctensewoscdscee nes beetvadsvewdnscedevens 100dB
Total harmonic distortion .................0eeees 0.013%
Wow & flutter 0.0.0... cecc eee ee eens sees Less than measurable limits
Output level
Analog output (line) .......... 0... cece eee ees 2V(0dB)
Digital output (coaxial) ...............::00600 0.5V p-p/750ohms
Headphone output ..............ccecee eee eeees 70mW/32ohms
Power requirements 220V, 50Hz for Europe except UK
240V,50Hz for UK and Australia
110V-120V/220V-240V,50Hz/60Hz convertible
for other countries
DIMENSIONS ........csseceesecreeeceeeeeeeneeseneenaes 425(W) X 121(H) X 343(D)mm
(16.7 X 4.8 X 13.5 inches)
ee Sen ten duad tite dst, uetedudetninacehancduaetes de 3.6kg (7.9 Ibs)
Standard accessories
Connection Cord .........eceeeeeeceeeeaeceeeeee
Remote control uit ...........cccseeeee eee ees x1
Batteries for the remote control unit ...... x2
Operator's manual .................cceeeeeeeeee
* For improvement purposes, specifications and design are subject to change without notice.
